Collingwood Tilt Adjustable 223mm Cut-Out Ground Light - RGBW - Stainless Steel - Low Voltage

A Colour Changing Ground Light You Can Park On

Most recessed ground lights make you pick a side. Either they are tough enough for a driveway, or they are clever enough to change colour. The Collingwood Tilt Adjustable 223mm cut out ground light does both. It is an RGBW fitting with a static loading capacity of 2000kg, rated for drive over use at up to 15mph, and the beam inside it can be angled by hand once the light is in the ground. That last part matters more than it sounds. A fixed ground light throws straight up and hopes for the best. This one can be aimed at the thing you actually want lit.

316 Stainless Steel, Built For Weather

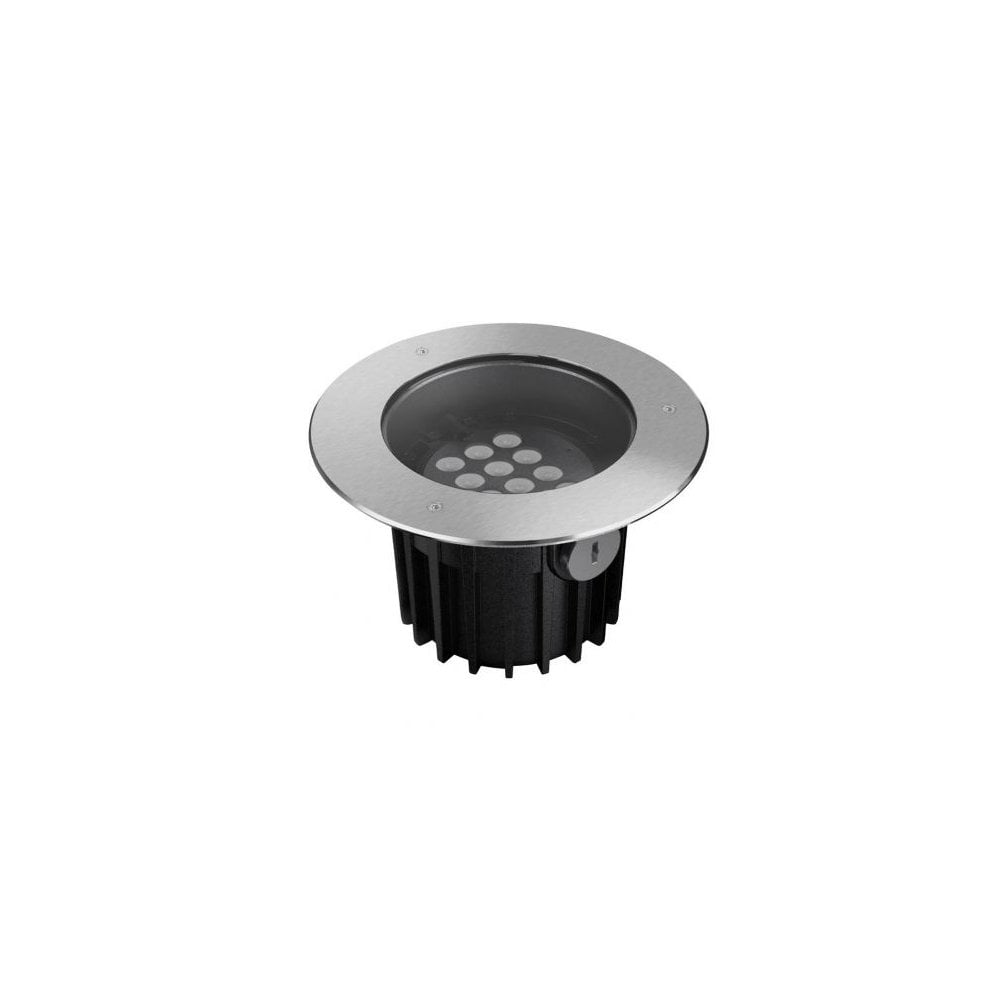

The visible part is a wide circular bezel in 316 stainless steel with a soft brushed finish and neat countersunk fixings around the rim. It reads as a clean disc set flush into the surface rather than a piece of hardware sitting on top of it. Grade 316 is the marine specification of stainless, which is why Collingwood lists this fitting as suitable for coastal locations where salt air punishes lesser metals. Under the bezel the body is anodised aluminium, deeply finned to shed heat into the ground around it. Brushed steel sits well against grey porcelain paving, resin bound gravel, block paving and poured concrete, and it will not fight with the stainless trims on outdoor kitchens or balustrades.

How It Works

Inside the recessed lens is a cluster of LEDs producing red, green and blue plus a dedicated warm white at 3000K, through a 40 degree beam with a colour rendering index of 80. Load varies with the colour being produced: 9W on red, 11.5W on green or on the 3000K white, and 12W on blue. The tilt mechanism is adjusted by a knob and swings the light distribution up to 25 degrees off vertical, so you can rake light up a wall or along a hedge instead of straight into the sky. This is a Class III low voltage fitting, which means it does not connect to the mains directly. It needs a driver, bought separately, with the fittings wired in series along the run. It arrives with 1 metre of cable already attached to speed up the connection in the ground. The cut out is 223mm, the fitting measures 250mm in diameter by 212mm deep, and it weighs 4kg.

Where It Works Best

This is a fitting for hard landscaping that has to work for a living. Driveways where cars cross the light every day. Patios and terraces where furniture gets dragged about. Paths, courtyards and entrance aprons that need to look considered after dark without anything standing proud of the surface to trip over or mow around. Because the head tilts, it also earns its place at the base of a wall, a specimen tree or a rendered garden feature, washing colour up the face of it rather than lighting the sky. The colour changing element suits properties where the lighting scheme is expected to shift, whether that is a soft 3000K white for everyday use and a colour set for entertaining, or commercial frontages and hospitality courtyards that change with the season. The IP67 rating is well above the IP44 threshold used for wet rooms, so this fitting is also suitable for bathroom use where a recessed floor light is wanted, and our guide to bathroom lighting zones explains how the zones are measured.

About Collingwood Lighting

Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked in LED technology and nothing else since 2002. The brand states it was among the first to put fire rated, fully sealed for life and mains dimmable LED products in front of the UK electrical wholesale trade. It has also been awarded an EcoVadis Gold medal, which places it in the top 5% of all companies assessed worldwide for sustainability. For an exterior fitting that will be buried in a driveway for years, that combination of British engineering and long term thinking is worth having behind it.

Good to Know

• Backed by a 5 year Collingwood warranty.
• Rated IP67, meaning it is completely sealed against dust and protected against temporary immersion in water, so standing water on a driveway is not a problem.
• IK10 impact rated, the top step of the impact scale, with a static loading capacity of 2000kg and approval for drive over traffic at up to 15mph.
• Class III low voltage. A driver is required and is sold separately, with fittings wired in series along the circuit.
• Not a fitting for a standard wall dimmer. The colour output is set by the driver and control system it is wired into, so specify the control gear at the same time as the lights.
• 316 stainless steel bezel makes it suitable for coastal installations.
• 223mm cut out. Overall size 250mm diameter by 212mm deep, weight 4kg, supplied with 1 metre of cable.
• Integrated LED. There is no lamp to change.
• Care is simple. Rinse the bezel with clean fresh water to lift grit and salt, then dry it off. Avoid abrasive pads, which will scratch the brushed finish.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Does the Collingwood 223mm RGBW ground light need a separate driver?
Yes. The Collingwood Tilt Adjustable 223mm RGBW ground light is a Class III low voltage fitting, so it cannot be connected straight to the mains. It requires a driver, which is purchased separately, and multiple fittings are wired in series along the same circuit.

Can you drive a car over the Collingwood Tilt 223mm ground light?
Yes. The Collingwood Tilt Adjustable 223mm ground light has a static loading capacity of 2000kg and is rated for drive over use at speeds up to 15mph. It also carries an IK10 impact rating, so it is built for domestic driveways and vehicle courtyards.

What size cut out does the Collingwood Tilt 223mm ground light need?
The Collingwood Tilt Adjustable RGBW ground light needs a 223mm cut out. The fitting itself measures 250mm in diameter across the stainless steel bezel and sits 212mm deep into the ground, and it weighs 4kg.

How far does the beam tilt on this Collingwood ground light?
The beam on the Collingwood Tilt Adjustable ground light can be angled up to 25 degrees away from vertical using a knob on the fitting. The beam itself is 40 degrees wide, so the light can be aimed at a wall or a tree rather than pointing straight upward.

What colours does the Collingwood RGBW ground light produce?
The Collingwood Tilt Adjustable 223mm RGBW ground light produces red, green and blue along with a separate warm white at 3000K. Power draw changes with the colour selected, at 9W on red, 11.5W on green or on the 3000K white, and 12W on blue, with a colour rendering index of 80.

250mm diameter x 212mm depth (refer to spec for details)

• Collingwood Ground Light Guide 2025
• Collingwood Colour Change Guide 2025
