A Colour Changing Ground Light You Can Park On
This is the biggest of Collingwood's tilt adjustable ground lights, taking a 193mm cut out and sitting flush in the surface once it is in. The whole optical assembly tilts by up to 25 degrees, so instead of firing a fixed beam straight up you can lean the light onto a wall, a tree trunk or a doorway and still walk or drive over the top of it. It runs RGBW, which means full colour change plus a proper 3000K warm white rather than a washed out approximation of white mixed from coloured diodes.
316 Stainless Steel Over Anodised Aluminium
The visible part is the bezel, and it is 316 stainless steel with a fine brushed finish that reads as a soft satin grey rather than a bright chrome. Underneath, hidden in the ground, the body is anodised aluminium with deep cooling fins. That pairing matters more than it looks. 316 is the marine grade, so the ring that sits exposed in the paving copes with salt air and winter grit, while the aluminium underneath does the job of pulling heat away from the LEDs. Against grey granite setts, buff sandstone or dark porcelain paving the brushed steel stays quiet and does not fight the surface it is set into.
How It Works

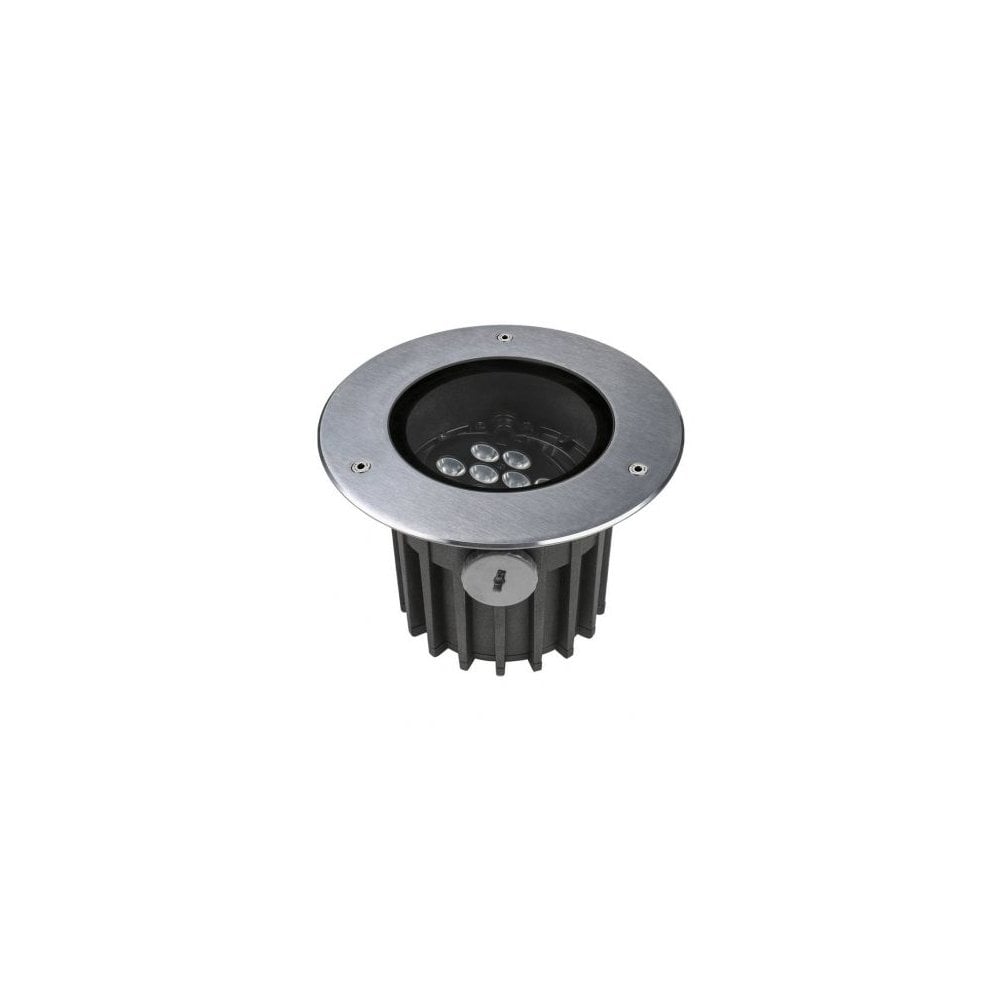

Inside the bezel is a cluster of individually lensed LEDs on a tilting plate. Collingwood sets the tilt with a knob, so the aim is adjusted from above once the unit is seated and can be set after the paving is down. The beam is 40 degrees, which is a useful middle ground: tight enough to make a defined pool of light on a wall, wide enough not to look like a spotlight.
Power is 7W on red and 9W on green, blue and white at 3000K, with a CRI of 80. This is the low voltage Class III version, so it needs a separate Collingwood driver, which is not supplied with the light, and the fittings wire in series from that driver. It arrives already wired with a one metre cable tail so the installer has something to work with, and Collingwood supplies an installation tube for setting the housing into the ground. Cut out is 193mm, the fitting measures 210mm across by 195mm deep, and it weighs 3.3 kg.
Where It Works Best
The drive over rating is what decides most of these installations. Rated to a 2000kg static load and to vehicles passing at up to 15mph, it goes into driveways, turning circles, courtyards and parking bays where a walk over only fitting would eventually fail. Set into a driveway it can graze a house front or light a boundary wall in colour for an evening and then sit at warm white for the rest of the year. It works just as well in a patio, a terrace edge or a set of wide steps, and the 193mm size suits larger paving units where a small ground light would look lost. Because the head tilts, it also earns its place tight against a wall or at the base of a specimen tree, where a fixed uplight would simply throw its beam into the sky.
The IP67 rating is well above the IP44 minimum that applies in a bathroom, and the product is classed for bathroom zone 2, so the same fitting can be recessed into a wet floor indoors. Our guide to bathroom lighting zones explains how those ratings are applied.
About Collingwood Lighting
Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked in LED specifically since 2002, which is a long run in a field where a lot of brands arrived much later. The brand states it was among the first to put fire rated, fully sealed for life and mains dimmable LED products in front of the UK electrical wholesale trade. It also holds an EcoVadis Gold medal, which places it in the top 5% of all companies assessed worldwide for sustainability.
Good to Know
- Five year warranty.
- IP67, meaning it is completely sealed against dust and protected against temporary immersion in water, which is what you need for a fitting set into a surface that puddles.
- IK10 impact rating, the highest in the standard scale, and a 2000kg static load rating with drive over permitted at up to 15mph.
- Class III, low voltage. It will not run off a mains feed on its own and needs the correct Collingwood driver, bought separately, with the fittings wired in series.
- Colour output is RGBW with a dedicated 3000K white channel, not white simulated from the colour LEDs.
- The LED is integrated, so there is no lamp to change.
- Cut out 193mm. Check your depth as well as your diameter, because the body needs 195mm below the surface.
- Care is simple. Wipe the steel bezel with a damp cloth and keep grit and moss off the glass, and avoid abrasive or chlorine based cleaners on the stainless.
- Moonlight Design recommends installation by a registered NICEIC electrician.
Questions People Ask
Can you drive a car over the Collingwood 193mm tilt ground light?
Yes. The Collingwood tilt adjustable 193mm ground light is rated to a 2000kg static load and is approved for vehicles driving over it at up to 15mph, which covers cars on a domestic driveway. It also carries an IK10 impact rating.
Does this ground light come with a driver?
No. The RGBW low voltage version of the Collingwood tilt ground light is Class III and requires a separate Collingwood driver, which is bought on its own. Multiple fittings are wired in series from that driver.
How far does the Collingwood tilt ground light adjust?
The optic tilts up to 25 degrees from vertical, and the beam itself is 40 degrees wide. The adjustment is made from above after the housing is set into the ground, and the fitting keeps its drive over rating once it is tilted and locked off.
What size hole does a 193mm cut out ground light need?
The cut out is 193mm in diameter and the fitting needs 195mm of depth below the finished surface. The visible bezel measures 210mm across, so it overlaps the cut out by around 8mm on each side. The unit weighs 3.3 kg.
Is the white light on an RGBW ground light any good on its own?
Yes. RGBW means there is a separate white LED channel at 3000K with a colour rendering index of 80, so the fitting produces a genuine warm white without mixing it from red, green and blue. It draws 9W on white and on green or blue, and 7W on red.
