Collingwood Tilt Adjustable 147mm Cut-Out Ground Light - RGBW - Stainless Steel - Low Voltage

A Colour Changing Ground Light You Can Drive Over

This is the RGBW version of Collingwood's Tilt ground light, sized for a 147mm cut out. Two things separate it from an ordinary recessed uplight. It changes colour, running red, green, blue and a warm white at 3000K from the same fitting. And the optic inside tilts. A knob on the body swings the light distribution up to 25 degrees off vertical, so you can aim the beam at a wall or a tree instead of firing it straight up into the sky.

316 Stainless Steel Bezel, Anodised Aluminium Body

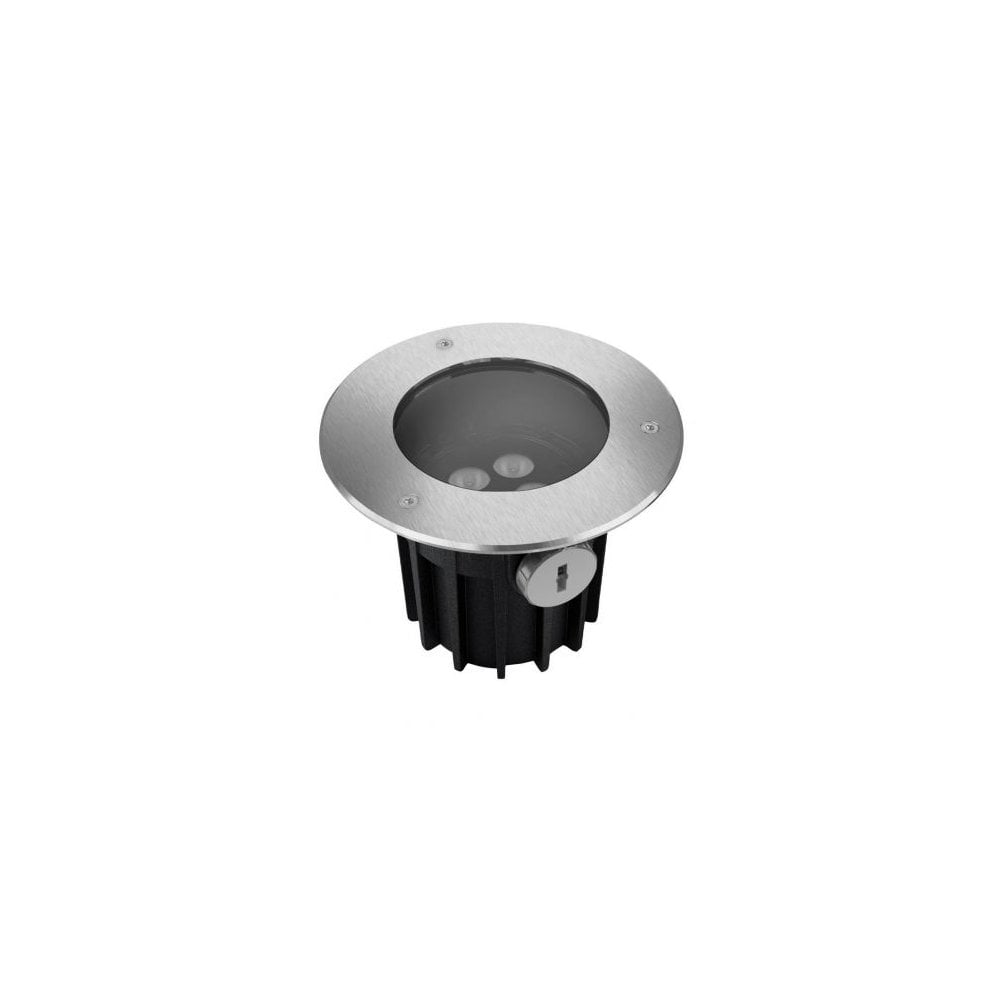

The only part you see once it is installed is the bezel, a brushed 316 stainless steel ring held down by four screws. 316 is the marine grade of stainless, which is why this fitting copes with salt air that would pit a lesser steel. Everything below ground level is anodised aluminium, finned to move heat away from the LEDs. The whole unit measures 160mm across and 156mm deep and weighs 1.6kg. Set into block paving, sandstone or poured concrete it reads as a small silver disc rather than a light fitting, and the brushed finish sits quietly against grey porcelain, buff stone and dark setts alike.

How It Works

This is a low voltage Class III fitting, so it does not connect to the mains on its own. It needs a Collingwood driver, sold separately, and the fittings wire in series along the run. Collingwood supplies the Tilt range with an installation tube, which is bedded into the ground first so the light can be dropped in afterwards and lifted back out for service. The fitting arrives already wired with a 1 metre cable tail, which saves fishing for a joint at the bottom of a hole. Draw varies by colour, 3W on red and 4W on green, blue or white at 3000K, delivered through a 40 degree beam with a colour rendering index of 80.

Where It Works Best

Driveways first. The static loading capacity is 2000kg and it is rated for vehicles crossing it at up to 15mph, so it can go where the cars actually run rather than in a safe strip off to one side. Patios, terraces, thresholds and walk over paths suit it just as well. Aim one at a rendered wall, a specimen tree or a run of clipped hedging and the colour change starts to earn its keep, warm white on an ordinary evening and a colour when the occasion calls for it. The IP67 rating means the housing is sealed against dust and against temporary immersion, which matters in a ground pocket that fills with rainwater. That rating also puts it well past the IP44 minimum used indoors, so it is suitable for bathroom use too, and our guide to bathroom lighting zones explains where each rating is permitted.

About Collingwood Lighting

Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked in LED specifically since 2002. The brand states it was among the first to put fire rated, fully sealed for life and mains dimmable LED products in front of the UK electrical wholesale trade. It has also been awarded an EcoVadis Gold medal, placing it in the top 5% of companies assessed worldwide for sustainability.

Good to Know

• Backed by a 5 year warranty.
• Rated IP67, meaning the fitting is dust tight and protected against temporary immersion in water.
• Rated IK10 for impact resistance, the highest rating in that scale.
• Static loading capacity of 2000kg, with a drive over rating for vehicles at up to 15mph.
• Class III low voltage. A Collingwood driver is required and is sold separately.
• Fittings are wired in series along the circuit, not in parallel.
• Requires a 147mm cut out. The fitting is 160mm in diameter by 156mm deep and weighs 1.6kg.
• Tilt adjusts up to 25 degrees from vertical. Fixed 40 degree beam angle, CRI 80.
• RGBW colour change, with the white channel at 3000K.
• Suitable for coastal locations thanks to the 316 stainless bezel. Rinse the bezel with fresh water now and then to keep salt deposits off it, and clear leaf litter away from the lens so heat can escape.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Does the Collingwood Tilt 147mm RGBW ground light need a separate driver?
Yes. It is a low voltage Class III fitting that cannot be connected to the mains directly, so a Collingwood driver must be bought separately, and the ground lights are then wired in series along the run.

Can a car be driven over this ground light?
Yes. The Collingwood Tilt 147mm ground light has a static loading capacity of 2000kg and carries a drive over rating for vehicles travelling at up to 15mph, which covers domestic driveways and parking bays.

What size hole does a 147mm Collingwood Tilt ground light need?
It requires a 147mm cut out. The fitting itself is 160mm in diameter and 156mm deep, weighs 1.6kg, and Collingwood supplies the Tilt range with an installation tube that is set into the ground before the light goes in.

How far can the beam be angled?
The optic tilts up to 25 degrees away from vertical and is adjusted by turning a knob on the side of the body. The beam itself is a fixed 40 degrees wide.

What colours does the RGBW version produce, and how much power does it use?
It produces red, green, blue and a warm white at 3000K. Consumption is 3W on red and 4W on green, blue or white, and the colour rendering index is 80.

160mm diameter x 156mm depth (refer to spec for details)
