Collingwood Solis 1200 x 300 LED Panel

A Flat Panel That Solves The Glare Problem

The Solis 1200 x 300 is Collingwood's answer to the tired fluorescent panel still sitting in thousands of British suspended ceilings. It drops into the same 1200mm by 300mm ceiling module, so the grid stays exactly as it is, but the light coming out of it is a different thing entirely. A back lit build pushes 3450 lumens through a diffuser rated UGR16, which is the low glare figure specifiers look for when people spend all day in front of screens. At 30W that works out at 115 lumens per watt, so the wattage on the circuit drops sharply while the light level goes up.

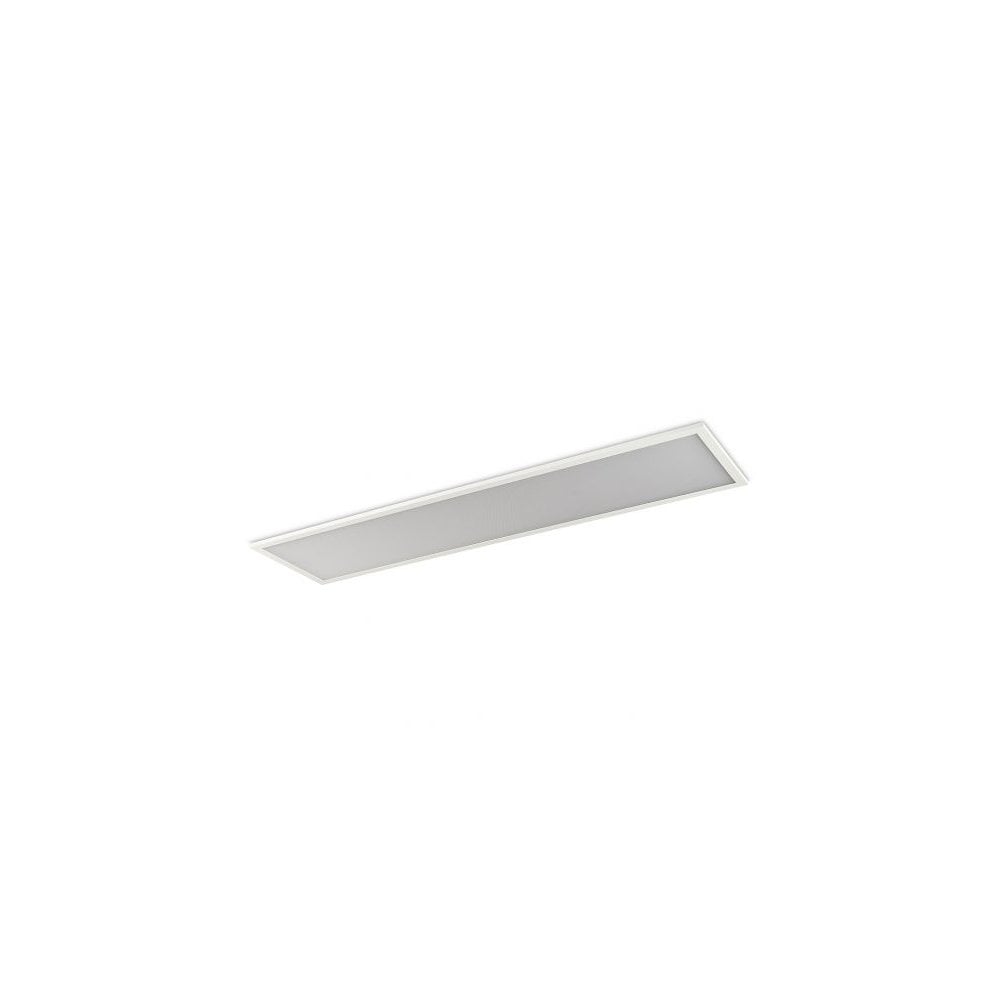

White Frame, Softly Textured Diffuser

The body is aluminium finished in plain white, with a slim 32mm depth and a neat square edged frame that sits flush against the ceiling tile line. The diffuser is TP(a) rated and finely micro textured rather than milky, so it reads as a soft even sheet of light instead of a bright hot strip. White on white means it disappears into a standard grid ceiling tile, and the long narrow proportion suits corridors, desk runs and reception counters better than a square 600 x 600 does. Light output is a neutral 4000K with a colour rendering index of 80, a clean commercial white that keeps paperwork, signage and skin tones looking normal.

How It Works

The LEDs and optics are sealed into the panel itself, so there is no lamp to change and no tube to dispose of. It arrives with a quick fit connector for the mains feed and a 1m safety steel cable, which is what makes swapping an existing panel a short job rather than a rewire. Choose between two builds. The non dimmable version, code P2B16S30WA, has its driver on board and simply needs a switched live. The dimmable version, code P2B16X30WA, is supplied without a driver and pairs with Collingwood's PS6501100MA driver, ordered separately, which unlocks DALI-2, 0-10V and push dim control. The beam spreads at 90 degrees, and Collingwood's own spacing guidance puts the 30W panel at roughly 500 lux with fittings on a 2.4m by 2.4m grid.

Where It Works Best

This is a working light for working buildings. Open plan offices, meeting rooms, school classrooms, GP surgeries, shop floors, reception areas and back of house corridors all suit it, particularly anywhere a lay in grid ceiling already exists and the brief is better light for less energy. The 1200 x 300 shape is the one to reach for when you want light running along a space rather than dotted across it, so think circulation routes, till points and long desk banks. There is no suspended grid required if you use the accessories: the P2SMB surface mount kit fixes it directly to a solid ceiling, and the P1SK suspension kit drops it below a high soffit.

About Collingwood Lighting

Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked with LED technology and nothing else since 2002. That focus shows in ranges like Solis, where the engineering effort goes into glare control, efficacy and driver compatibility rather than decoration. The brand states it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market. It also holds an EcoVadis Gold medal, which places it in the top 5% of companies assessed worldwide for sustainability.

Good to Know

• Covered by a 5 year Collingwood warranty.
• Rated IP40. The 4 means the panel is protected against solid objects larger than 1mm, and the 0 means no protection against water, so it belongs in dry interior ceilings only, not bathrooms and not outdoors.
• Class II construction, double insulated, so no earth connection is needed at the fitting.
• Dimming is only possible on the P2B16X30WA version paired with the PS6501100MA driver. The P2B16S30WA is a fixed output panel and cannot be dimmed by any means.
• Declared to meet UK Building Regulations Part P and Part L.
• Compatible with Collingwood's LEDEP10 emergency conversion module where an emergency lighting duty is required.
• Cleaning is simple. Isolate the circuit, then wipe the diffuser with a dry soft cloth. Avoid solvents and abrasive cleaners, which will haze the TP(a) surface.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Will the Collingwood Solis 1200 x 300 panel fit a standard suspended ceiling grid?
Yes. The Collingwood Solis 1200 x 300 LED panel measures 1200mm long by 300mm wide and 32mm deep, which is sized to sit in a standard 1200 x 300 lay in ceiling grid module in place of an existing fluorescent panel.

Does the Collingwood Solis 1200 x 300 panel come with a driver?
It depends on the version. The non dimmable P2B16S30WA has its LED driver built into the panel, while the dimmable P2B16X30WA is supplied without one and requires the Collingwood PS6501100MA driver, which is bought separately.

What dimming protocols does the dimmable Solis panel support?
The dimmable Collingwood Solis 1200 x 300 panel supports DALI-2, 0-10V and push dim control once it is paired with the PS6501100MA driver.

What does the UGR16 rating on this panel mean?
UGR16 is a Unified Glare Rating of 16, which sits below the UGR19 figure commonly specified for offices and screen based work, meaning the Collingwood Solis panel is considered a low glare fitting for spaces where people look at monitors all day.

Can the Solis 1200 x 300 be fitted where there is no suspended ceiling?
Yes. Collingwood offers a P2SMB surface mount kit that fixes the Solis 1200 x 300 panel directly to a solid ceiling, and a P1SK suspension kit for hanging it below a higher ceiling.

1200mm length x 300mm width x 32mm depth
