EUP30T1HMC0 Panel Power Supply, 750mA IP20 - Mains Dimmable

A Dedicated Constant Current Driver for LED Panels

The EUP30T1HMC0 is a panel power supply built to run LED panels that need a steady 750mA constant current rather than a fixed voltage. It takes a standard 220 to 240V mains supply and converts it into that steady output, so the connected panel gets even, consistent power rather than drifting brightness as the panel ages. It is a driver, not a light source, so it works alongside a separately sold LED panel rather than producing light on its own.

A Fixed 750mA Output in a Compact Vented Case

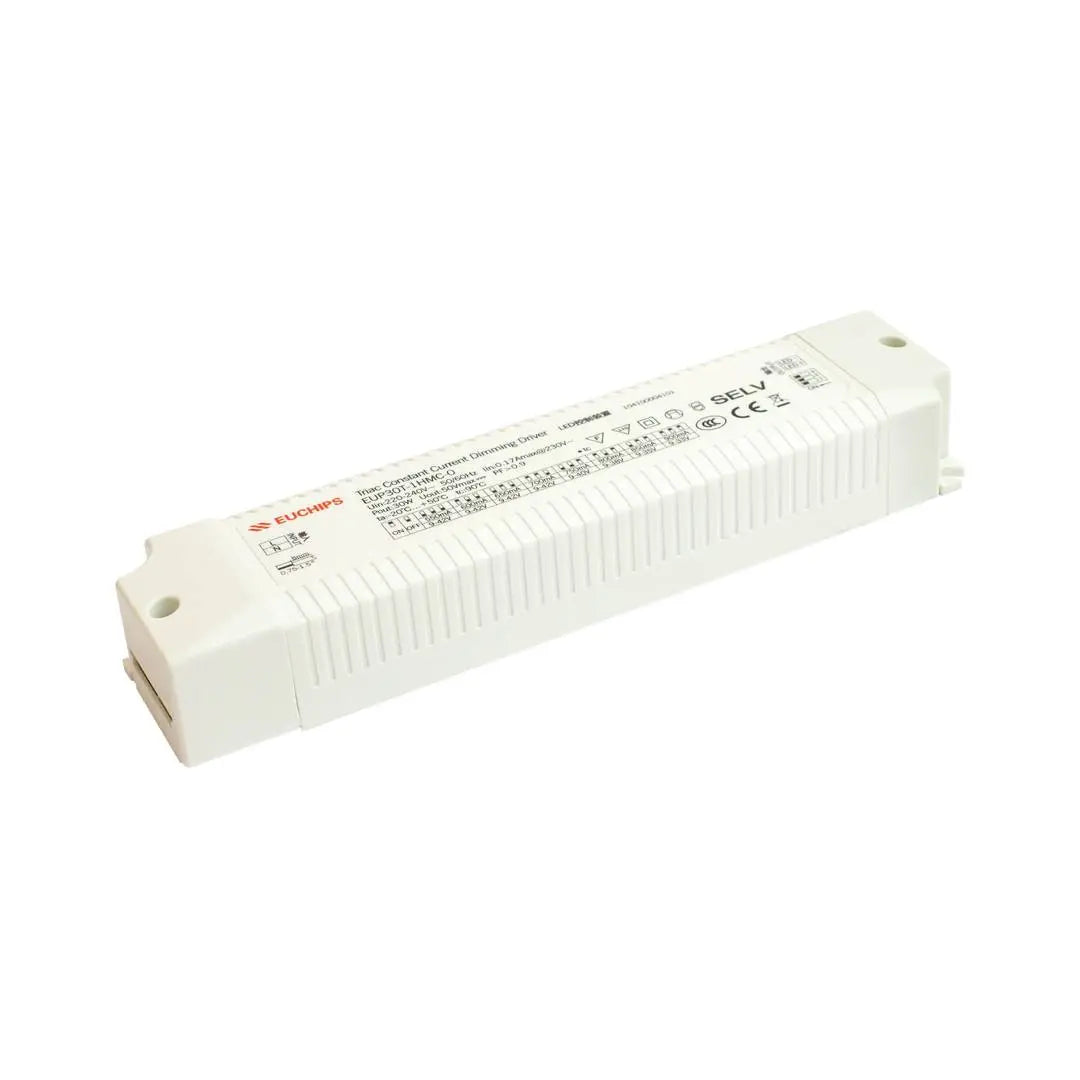

This part number is factory set to 750mA and rated up to around 30W of output power, so it suits panels sized to that current rather than the higher or lower settings found elsewhere in the same driver family. The casing is a slim white enclosure with ribbed heat sink fins running along the top to help it shed heat once it is boxed in, plus mounting lugs at each end for screw fixing. It carries an IP20 rating, so it is built for a dry indoor space rather than anywhere exposed to damp or dust.

How It Works

Inside the casing, the driver steps mains voltage down and holds the output steady at 750mA constant current, feeding the connected panel through its output leads. Because it is mains dimmable, it works with a standard leading edge or trailing edge dimmer switch fitted on the mains side, so brightness is controlled the same way as a dimmable lamp circuit rather than through a separate 1 to 10V or DALI control line. That keeps the wiring in a fit out simpler, since there is no extra control cable to run alongside the mains cable. Installing it means wiring the mains supply in, wiring the panel's output leads out, and fixing the unit somewhere it has room to ventilate.

Where It Works Best

Because it is IP20, this driver belongs somewhere dry and enclosed rather than out in an open room. Think above a suspended ceiling grid, inside a bulkhead, or tucked into a service void or riser cupboard close to the panel it feeds. It suits office refurbishments, retail fit outs and any commercial space running recessed or panel style LED lighting on a dimmer circuit, where the driver needs to sit out of sight but within easy reach for future maintenance. Before specifying it, check the panel or panels being driven are designed for a 750mA supply and that the combined load stays within its output rating.

About Collingwood Lighting

Collingwood designs and manufactures its LED products from its base in Sywell, Northamptonshire, and has been working with LED technology since 2002. The brand says it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market. It has also been awarded an EcoVadis Gold medal, a rating that places it in the top 5% of companies assessed globally for sustainability.

Good to Know

• Comes with a 3 year warranty from Collingwood.
• IP20 rated, meaning it is protected against solid objects but not against moisture, so it needs a dry indoor space and should never be fitted somewhere damp such as a bathroom.
• Output is SELV, a safety extra low voltage circuit on the panel side of the driver.
• Mains dimmable via leading edge or trailing edge dimmer switches. Check compatibility with the dimmer already on the circuit before ordering.
• Fixed 750mA output, confirm the connected panel's current rating matches before installing.
• Wipe the casing with a dry cloth only, and keep the heat sink fins clear of dust and loose insulation.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

What does the 750mA rating on this driver actually mean?
750mA is the constant current output the EUP30T1HMC0 supplies to the connected LED panel, and the panel itself needs to be designed to run on that current for the pairing to work correctly.

Can this power supply be used with any dimmer switch?
It works with standard leading edge and trailing edge dimmer switches fitted on the mains side, so it does not need a separate low voltage dimming control line.

Is the EUP30T1HMC0 suitable for a bathroom or outdoor installation?
No, it is rated IP20, which means it is designed for a dry indoor location such as a ceiling void or service cupboard rather than anywhere exposed to moisture.

Does this driver produce light on its own?
No, it is a power supply only and has to be wired to a separately sold LED panel or fitting in order to produce light.

What warranty comes with the EUP30T1HMC0?
Collingwood covers this power supply with a 3 year warranty.
