Collingwood SL220 LED Spike Light - Bronze - Low Voltage

A bronze spike light made for uplighting the garden

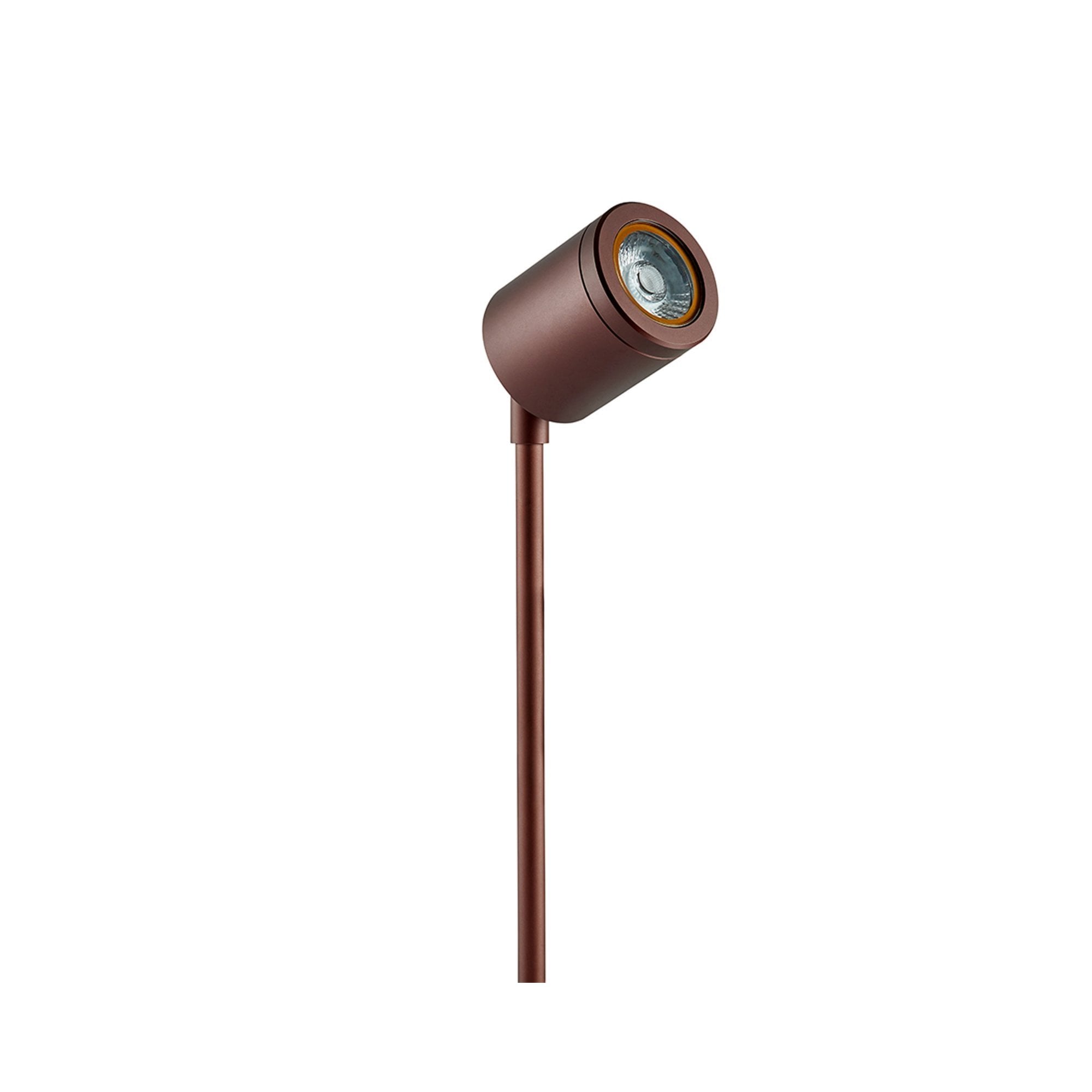

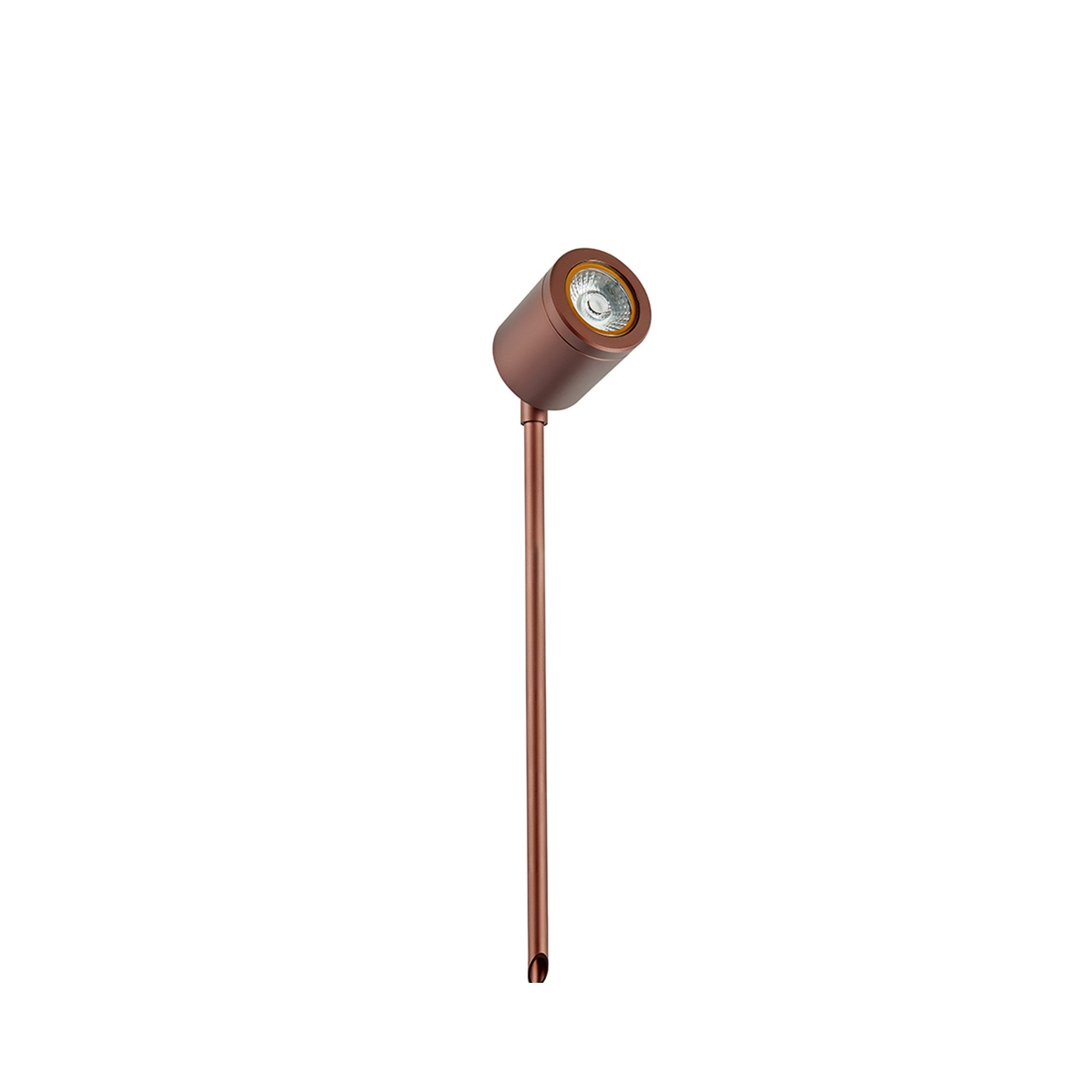

The SL220 is Collingwood's compact garden spike light, and this is the bronze low voltage version of it. It is the sort of fitting you push into a border once and then stop noticing by day, until the tree above it lifts out of the dark every evening. The head is a short anodised aluminium cylinder that tilts through a full 90 degrees, from pointing straight up to sitting level with the ground, so you can aim it at a trunk, a wall or a specimen shrub and walk away. Inside the head sits a single LED paired with its own lens, which is how Collingwood keeps the body this small while still throwing a usable beam.

The bronze finish

Bronze is what you choose when you would rather the fitting did not read as hardware. It is a warm brown anodised finish over aluminium, matte rather than glossy, and it settles against bark, brick and dark mulch in a way that black never quite manages once the sun is up. A slim amber bezel rings the lens and is the only bright detail on the whole thing. It pairs naturally with weathered timber, red brick, sandstone, terracotta and copper rainwater goods. If your garden is full of black powder coated metalwork instead, the black SL220 is the closer match.

How It Works

This is a low voltage fitting, which means it does not connect to the mains. It runs from a separate constant current LED driver that is bought alongside it rather than built in. Feed it 350mA and it draws 2.2W. Feed it 700mA and it draws 4.6W. Collingwood quotes efficacy of up to 144 lumens per watt, so even the lower setting is brighter in the garden than the wattage suggests. Heads are wired in series back to the driver, so one driver can carry several spikes on a single run.

Each SL220 leaves the factory with its colour temperature and beam angle already set, so you pick those when you order. Colour temperature is 2700K, 3000K or 4000K, and the beam is either a narrow 12 degree or a wide 40 degree. Colour rendering is CRI 80. The fitting arrives with a 3m flying lead ready to join into your garden circuit, and it measures 62.5mm across the head with an overall height of 440mm, of which the lower 240mm is the spike itself. It weighs 0.6 kg. The LED is integrated and sealed into the head, so there is no lamp to change over its life.

Where It Works Best

Uplighting trees is the job this fitting was drawn for. Push one into the ground a short distance from the base of a trunk, tilt the head back and the bark texture does the rest. The narrow 12 degree beam is the one for tall, straight subjects such as birch, pleached hornbeam or a brick pier, because it keeps the light in a tight column rather than spilling it into next door's windows. The wide 40 degree beam suits multi stem specimens, box balls, low hedging and washing a garden wall or fence panel.

Beyond planting, they work well lining a driveway edge, marking the turn of a path, grazing a rendered garden wall or lifting a water feature. Because it is a spike rather than a fixed base, it wants soft ground it can be pressed into, and it can be lifted and repositioned as a border matures. Collingwood also lists the SL220 as coastal protected, which matters if you garden within reach of salt air. Warmer 2700K flatters brickwork and autumn colour, while 4000K gives evergreens and pale stone a crisper, more modern look.

About Collingwood Lighting

Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked in LED specifically since 2002, which is a long run in a field where most brands arrived much later. The brand states it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market. It also holds an EcoVadis Gold medal, placing it in the top 5 percent of companies assessed worldwide for sustainability, which is a rarer thing in lighting than it should be.

Good to Know

• Backed by a 7 year warranty from Collingwood.
• Rated IP65, meaning it is fully sealed against dust and protected against water jets from any direction, so it copes with year round exposure in an open border.
• Electrical Class III. It is built to run only at safe low voltage from its own driver and must never be wired straight to the mains.
• Dimmable, but only when paired with a dimmable low voltage driver. The fitting itself carries no dimming control, so the driver decides whether you get dimming.
• A driver is not supplied with the light and has to be chosen separately to suit the number of heads on the run.
• CRI 80 colour rendering, enough to keep foliage green and brickwork honest rather than washed out.

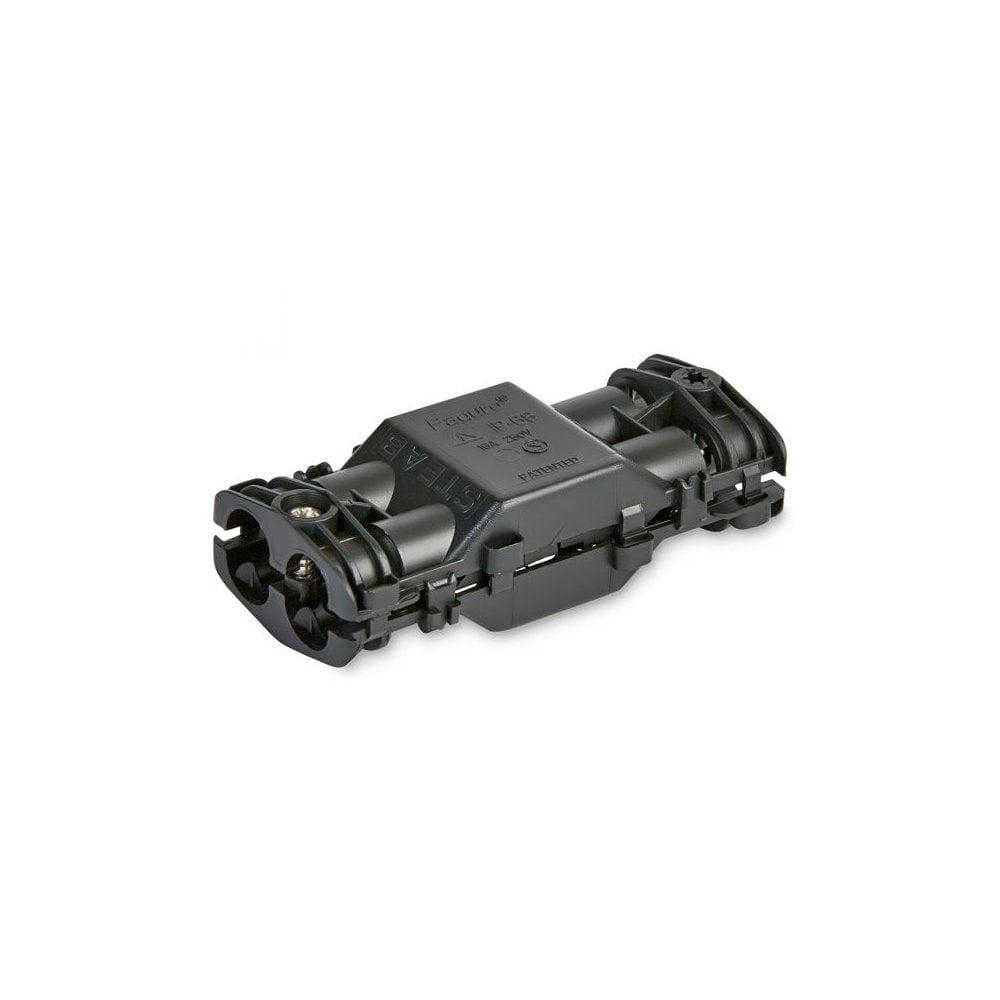

• Collingwood's GH220 tapered glare hood and JB4 gel filled waterproof junction box are made for this range if you need to cut spill or make a buried joint. Both are separate items.
• Care is simple. Wipe the lens now and then with a damp cloth and keep soil, leaf litter and mulch clear of the glass so the beam stays clean.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Does the Collingwood SL220 low voltage spike light come with a driver?
No. The Collingwood SL220 low voltage spike light is supplied without a driver and needs a separate constant current LED driver to run. A 350mA driver gives 2.2W per head and a 700mA driver gives 4.6W per head, and several heads are wired in series from a single driver.

What is the difference between the 12 degree and 40 degree beam angles?
The 12 degree option on the Collingwood SL220 produces a narrow, concentrated column of light best suited to tall tree trunks, columns and piers, while the 40 degree option spreads much wider for washing walls, hedges and broad shrubs. The beam angle is fixed inside each fitting and is chosen at the point of order, so it cannot be changed afterwards.

How much of the SL220 spike goes into the ground?
The Collingwood SL220 stands 440mm tall in total, and the lower 240mm of that is the spike section that pushes into the soil. The head above ground measures 62.5mm in diameter, and the whole fitting weighs 0.6 kg.

How long is the cable on the Collingwood SL220 spike light?
Each Collingwood SL220 spike light comes with a 3m flying lead attached, which is enough to reach a buried junction point without an immediate joint in most border planting. Any connection made below ground should be waterproof, which is what the JB4 gel filled junction box is intended for.

Which colour temperature suits garden uplighting best?
The Collingwood SL220 low voltage spike light is offered in 2700K, 3000K and 4000K. 2700K is the warmest and flatters red brick, timber and autumn foliage, 3000K is a neutral middle ground that suits mixed planting, and 4000K is the coolest and renders evergreens and pale stone most crisply. The colour temperature is built into each fitting and is selected when ordering.

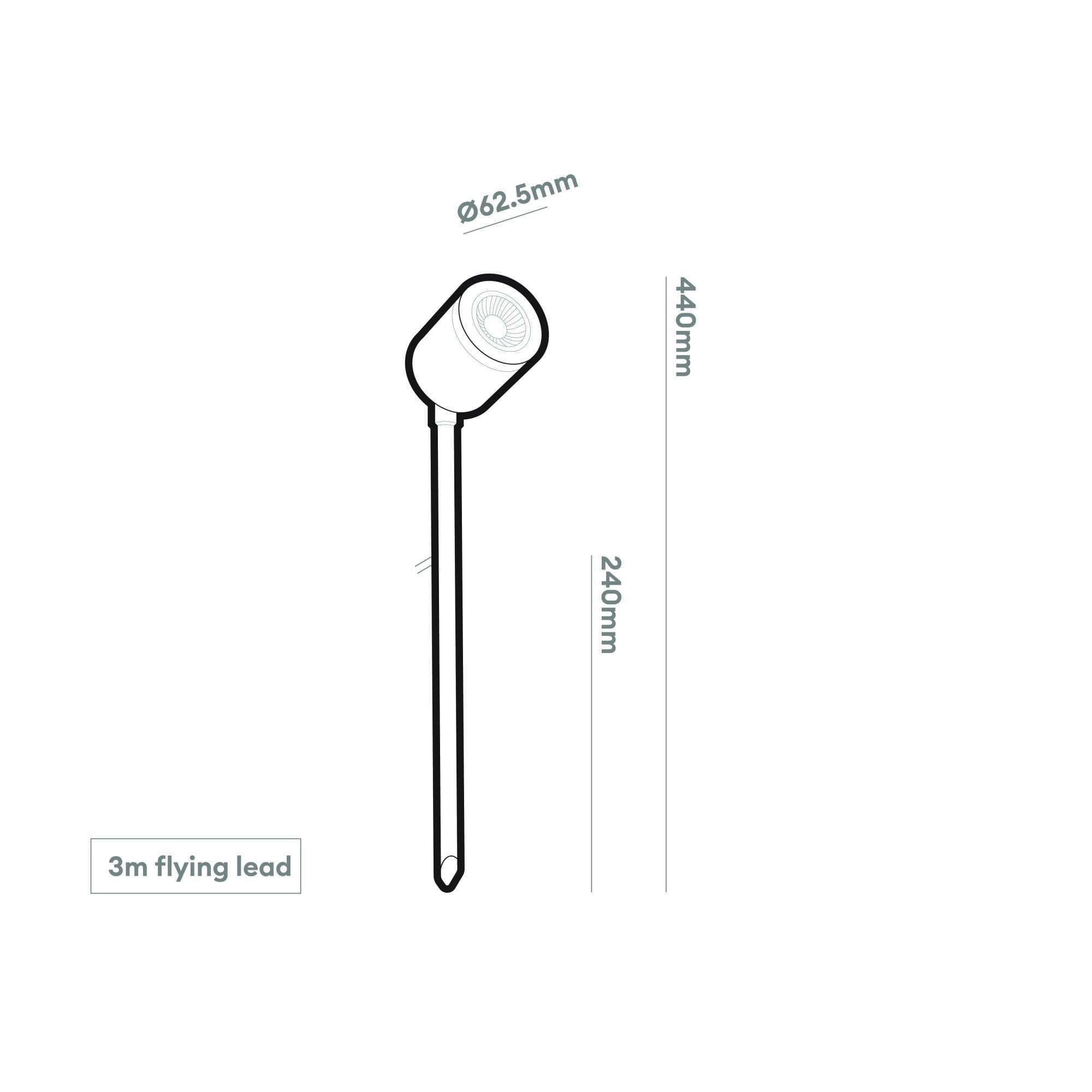

62.5mm diameter x 440mm height (refer to spec for details)

• Collingwood Spike Light Guide 2025
