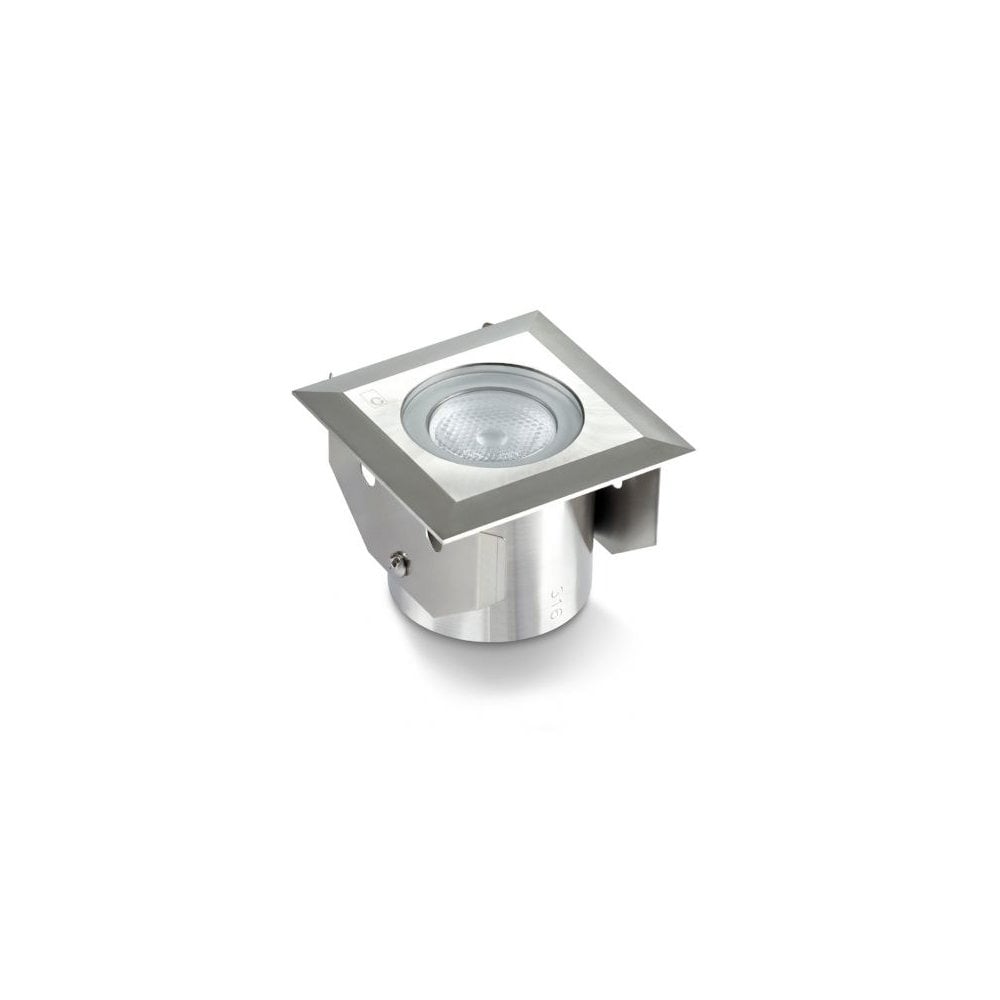

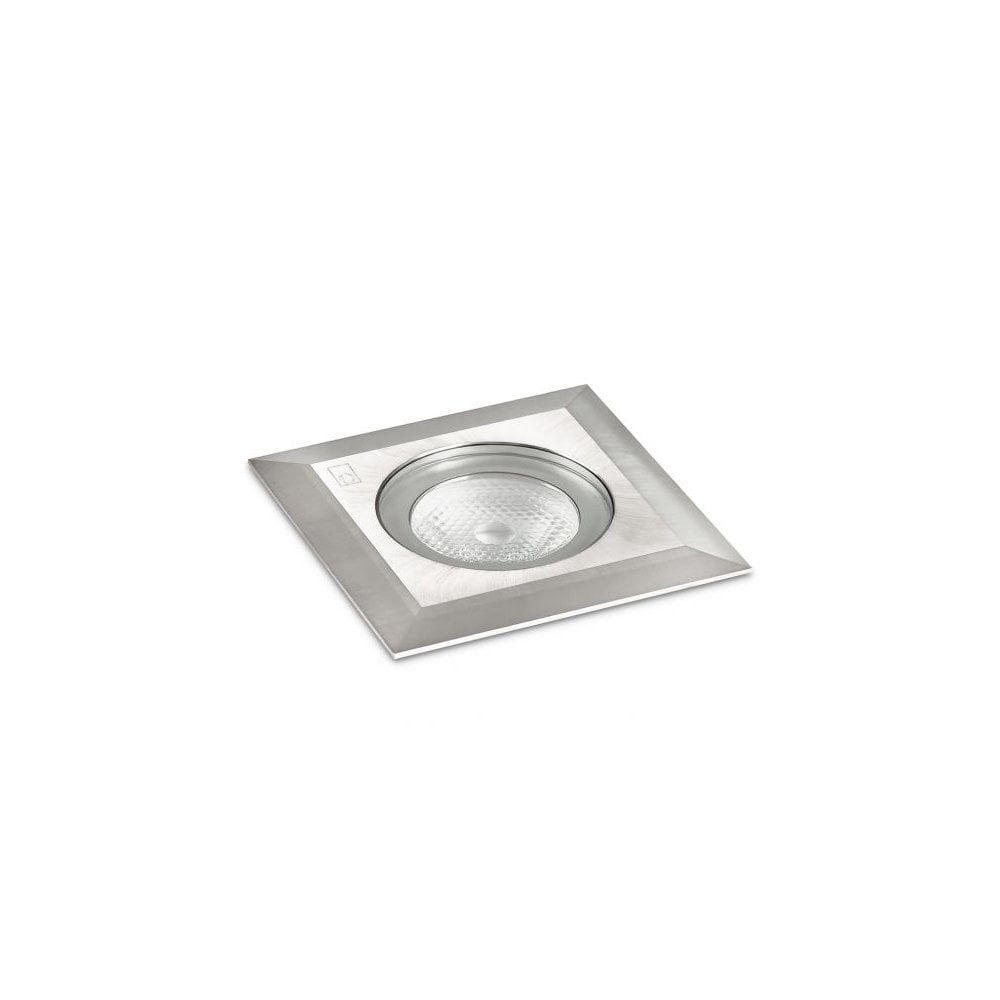

Collingwood GL016 Square Ground Lights - Stainless Steel - Low Voltage

A Square Edge for Paths, Decks and Water Features

This is the square bezel version of Collingwood's GL016 ground light. It gives you the same submersible fitting as the round GL016, but with a squared off face that lines up neatly against square paving, decking boards or a straight edged pool surround, rather than standing out as a circle against a grid.

Stainless Steel 316, Built for the Ground

The body and bezel are stainless steel 316, the grade normally chosen for coastal and marine settings because it resists corrosion so well. It's rated IP68 and submersible to 9 metres, and it carries an IK09 impact rating, so it's built to be walked over as part of a path or patio rather than just tolerate the occasional footstep.

How It Works

• Low voltage fitting that needs a separate driver, it doesn't run straight off mains.
• Wired in series, so several GL016 units can share one driver rather than needing a driver each.
• Runs at 1W on a 350mA driver or 2W on a 700mA driver, giving you a choice of output depending on how many fittings are on the run.
• 26 degree beam angle with a CRI of 80, and available in 2700K, 3000K or 4000K so you can match it to the rest of your garden lighting.
• 50mm cutout for installation.

Where It Works Best

Recessed into decking, set along a path, or dropped into the surround of a pond or water feature, this light does its job by staying out of sight during the day and marking the route or the edge after dark. Because it's rated for coastal use as well as fully submersible, it suits exposed gardens and waterside settings that would corrode a lesser fitting quickly.

Collingwood Lighting

Collingwood Lighting designs and manufactures its LED products from Sywell, Northamptonshire, and has specialised in LED technology since 2002. The brand states it was among the first to bring fully sealed, waterproof for life LED products to the UK electrical wholesale market, which is exactly the kind of fitting this ground light is built to be. Collingwood has also been awarded a Gold medal by EcoVadis, placing it in the top 5% of companies assessed globally for sustainability.

Good to Know

• Comes with a 7 year warranty from Collingwood.
• Rated IP68 and submersible to 9m, with an IK09 impact rating for walk over use.
• Class III (low voltage) electrical, wired in series from a separate driver, which needs to be sized to the number of fittings on the run.
• Moonlight Design recommends installation by a registered NICEIC electrician, since the driver itself connects to the mains supply.

Questions People Ask

What's the difference between this and the round GL016?
The square version uses the same submersible body and driver setup as the round GL016, but with a squared off bezel that suits square paving or decking better than a circular fitting.

Can I run more than one of these off a single driver?
Yes. The GL016 is wired in series, so multiple fittings can share one low voltage driver rather than each needing its own.

Is it safe to submerge, not just splash proof?
Yes. It's IP68 rated and tested submersible to a depth of 9 metres, so it can sit inside a pond or water feature as well as in open ground.

Can I drive over it or park on it?
It's walk over rated with an IK09 impact rating, which covers foot traffic on a path, patio or driveway edge, rather than being rated for vehicle loads.

What colour temperatures are available?
2700K, 3000K and 4000K, sold as separate variants of this same fitting.

Refer to specification sheet

• Collingwood Ground Light Guide 2025
