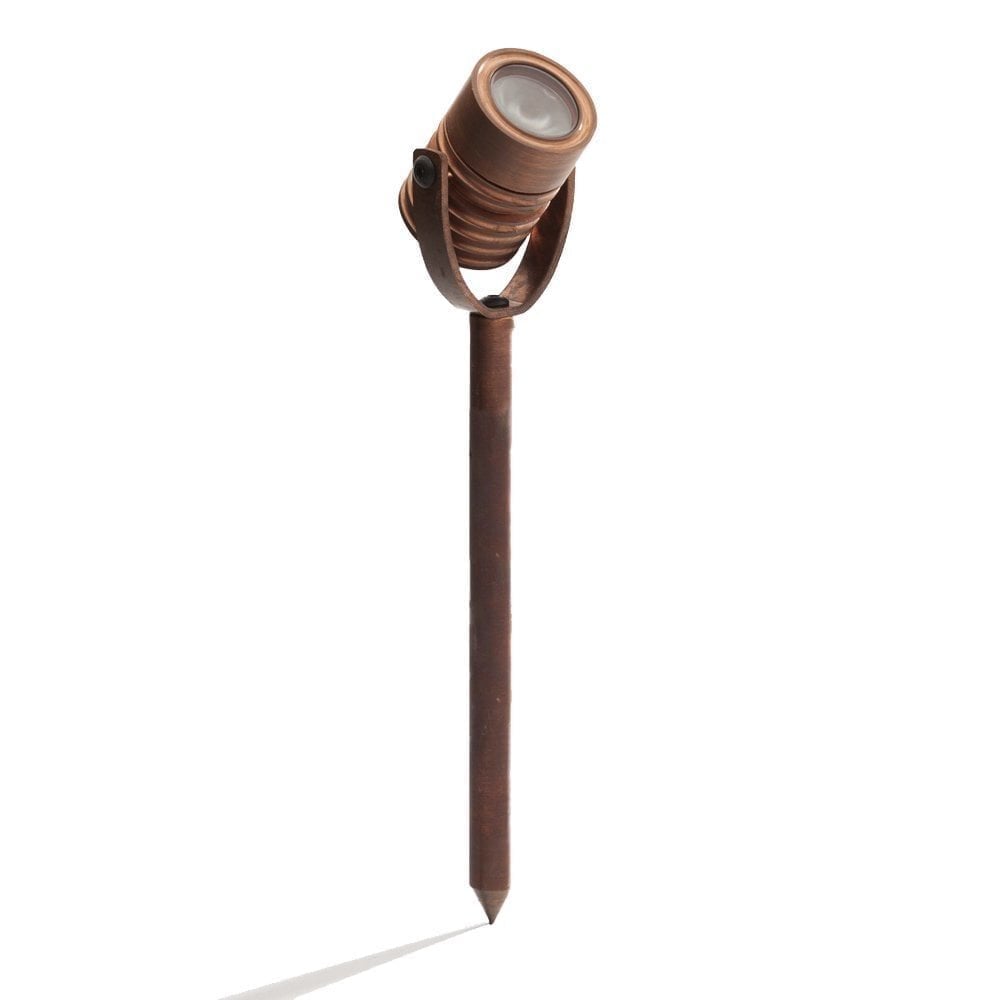

LuxR Modux 1 Spike Spot - Copper - Low Voltage

A Tiny Copper Spike Spot for Garden Borders

The LuxR Modux 1 Spike Spot is one of the smallest low voltage garden spotlights you can buy. The head is only 31mm across, so it hides easily among planting while it lights up a shrub, a small tree or a piece of garden furniture. It sits on a solid 175mm spike that pushes straight into the soil.

Solid Copper That Ages Beautifully

This version is precision machined from solid copper. It starts out warm and bright, then gradually develops a soft natural patina outdoors, so it settles into the garden rather than standing out from it. The light source is a 1 watt Cree LED with a CRI of 90 plus, which means plants and stonework look true to colour.

Choose Your Beam, Colour and Lens

• Beam: 30º is a narrow beam for a single feature, 53º is a wider beam for a larger shrub, and the oval beam stretches the light into a wider, flatter shape that works well on walls and hedges.
• Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
• Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

Push the spike into the soil and angle the head towards your subject. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The LED can be replaced, and the optic can be swapped to change the beam width, so you can change the look later without buying a new light.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

This is a good choice for small borders, pots, steps and the base of a tree, anywhere a larger spotlight would look out of scale. Use it on its own for a single feature, or in a group to build a layered scheme. If you want more output, the same design is also available as the larger M2 and M4.

Good to Know

• Dimensions: body 31mm diameter and 42mm long, spike 175mm. Supplied with 1m of H05RN-F cable.
• Rated IP68 for protection against dust and water, so it is built for outdoor use.
• 1 watt LED at 80 lumens per watt, low voltage, series wiring.
• Warranty: 10 years on the body, with 5 years on the LED.
• Made in New Zealand by the makers of Hunza.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

How big is the Modux 1 spike spot?

The head is 31mm in diameter and 42mm long, on a 175mm spike. It is the smallest fitting in the LuxR Modux range.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered electrician installs it.

Which beam angle should I choose?

Choose 30º to light a single feature, 53º for a larger shrub or small tree, and the oval beam for a broader, flatter wash across a wall or hedge.

Will the copper change colour?

Yes. Solid copper develops a natural patina outdoors over time, so the finish will soften and darken gradually. This is normal and is part of its appeal.

Can I change the LED later?

Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

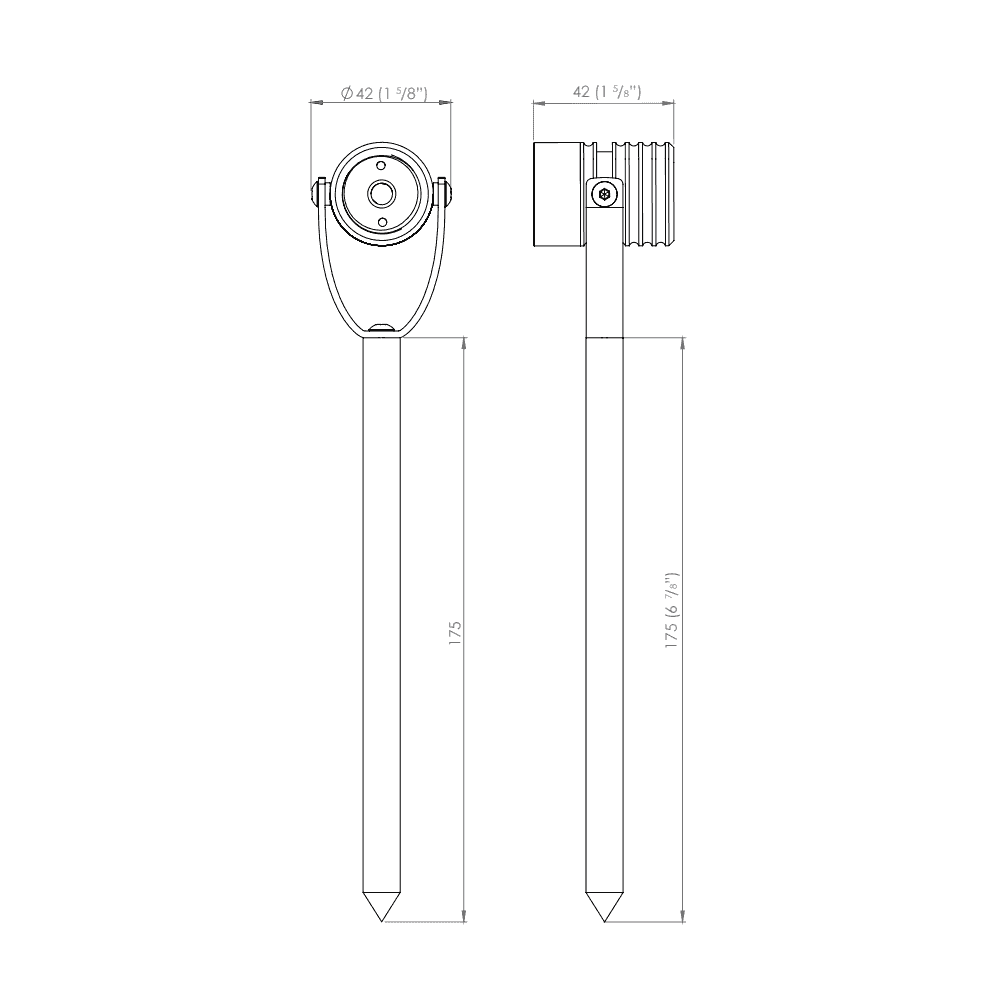

Body
Diameter: 31mm
Length: 42mm

Spike
Length: 175mm
(refer to spec for more information)

Cable: Supplied with H05RN-F 1m

• M1 Spotlight
