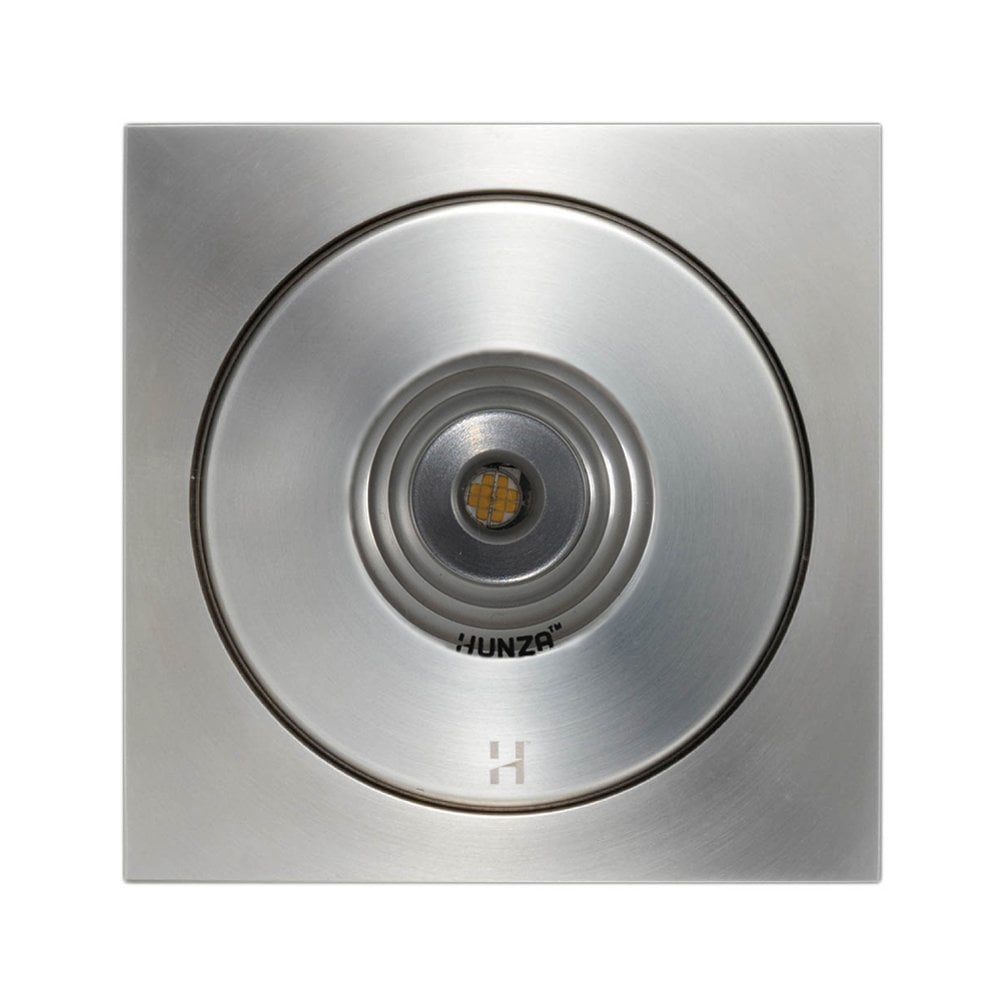

Hunza Pure LED Flush Floor Light Square - Stainless Steel - Low Voltage

Square Edged and Level With the Floor

Where the round flush floor light does not suit your paving pattern, the Hunza Pure LED Flush Floor Light Square gives you a square flange instead. It is designed to mount level with a pathway, hotel floor or building foyer, so nothing protrudes. The lens sits flush, which stops water pooling and dirt settling on it, and the fitting can be walked on or driven over. It is low voltage with the LED chip built in.

316 Stainless Steel for Heavy Use

This one is made from marine grade 316 stainless steel, a sensible choice for entrances and drives. The brushed finish stays even, though in some environments a light surface tarnish can appear, and washing deals with it. Solid copper is the alternative if you would like a finish that ages.

How It Works

• Drive over limits: 10km/h (6 mph) and a maximum vehicle weight of 1500kg (3300lb).
• The Cree LED chip is rated at 600 lumens and 6 watts, with CRI 90 or more at 3000K. Parts can be serviced.
• You choose the colour temperature (2200K to 4000K), the beam angle (15, 25, 38 or 60 degrees) and a clear or frosted lens.
• The canister is 83mm in diameter and 137.5mm long. The square flange is 110mm wide and 9mm deep. Cut out size 83mm.
• Includes 1m of cable and the canister.
• Low voltage, series wired, with a remote LED driver sold separately.
• Dimming is possible with a compatible dimmable driver.
• IP67 rated, 10 year warranty, 5 years on the LED.

Where It Works Best

• In block paved or slabbed areas where a square flange echoes the grid
• At the threshold of a foyer or entrance hall
• Along a wide path or forecourt edge
• Beneath a feature wall or a tall hedge

Lighting Schemes by Moonlight Design

Moonlight Design has worked with Hunza since 2003. We design lighting schemes for gardens, supply Hunza fittings and install them. See our own completed schemes on the Design Service page, which also explains how we plan, draw up and install a layout using NICEIC registered electricians. If you would like a hand choosing positions and beam angles, please take a look.

Good to Know

• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• Returns accepted within 14 days of delivery if the fitting is unused, uninstalled and in its original packaging.
• Canister included.
• You need a remote driver, sold separately, and the series circuit should be planned in advance.
• Stainless steel may show light surface tarnish in some settings.
• We recommend installation by a registered NICEIC electrician.

Questions People Ask

How wide is the square flange?
The flange is 110mm wide and 9mm deep.

Is it strong enough for a vehicle?
It can be driven over at a maximum of 10km/h (6 mph) by vehicles up to 1500kg (3300lb).

Does it include everything for fitting into the ground?
The canister and 1m of cable are included. You will also need a remote LED driver, sold separately.

What lens options are there?
You can choose a clear or frosted lens, and beam angles of 15, 25, 38 or 60 degrees.

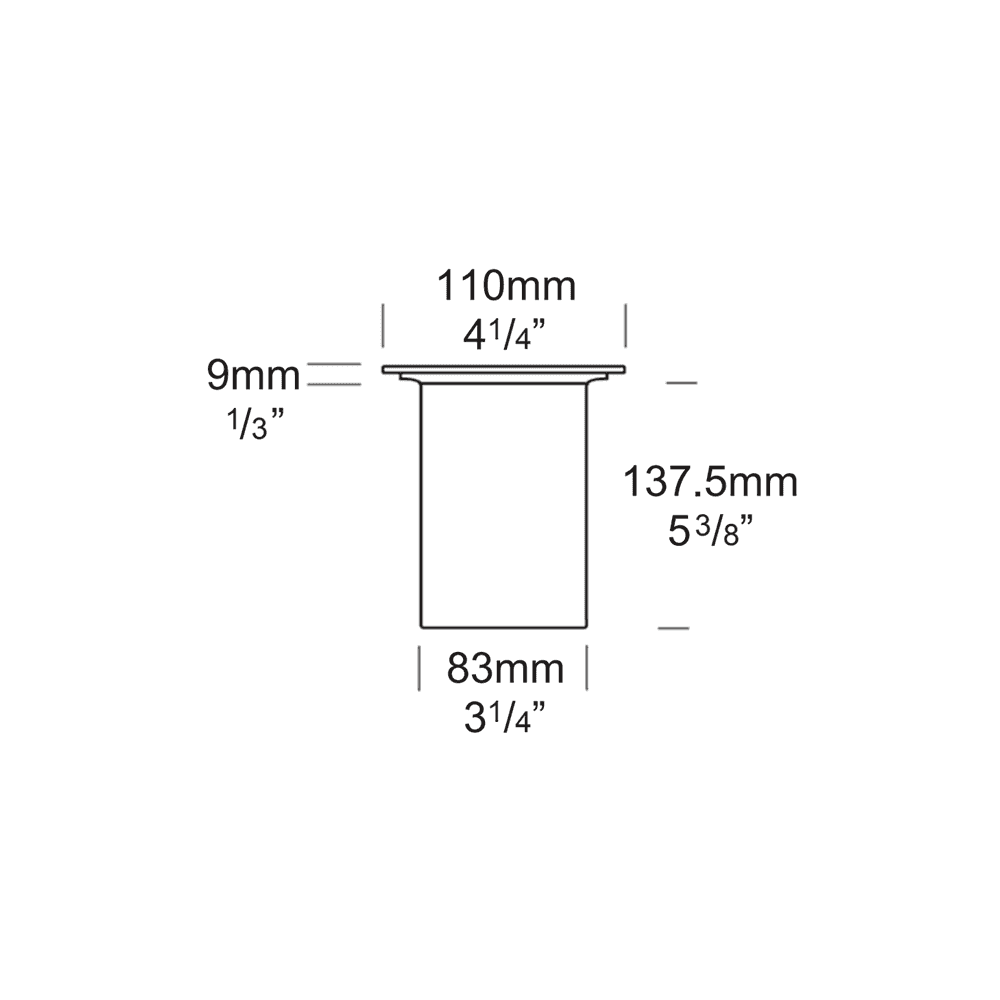

Canister
Diameter: 83mm
Length: 137.5mm

Flange
Width: 110mm
Depth: 9mm
(refer to spec for more information)
Supplied with 1m cable

• Hunza Pure LED Flush Floor Light Spec Sheet
