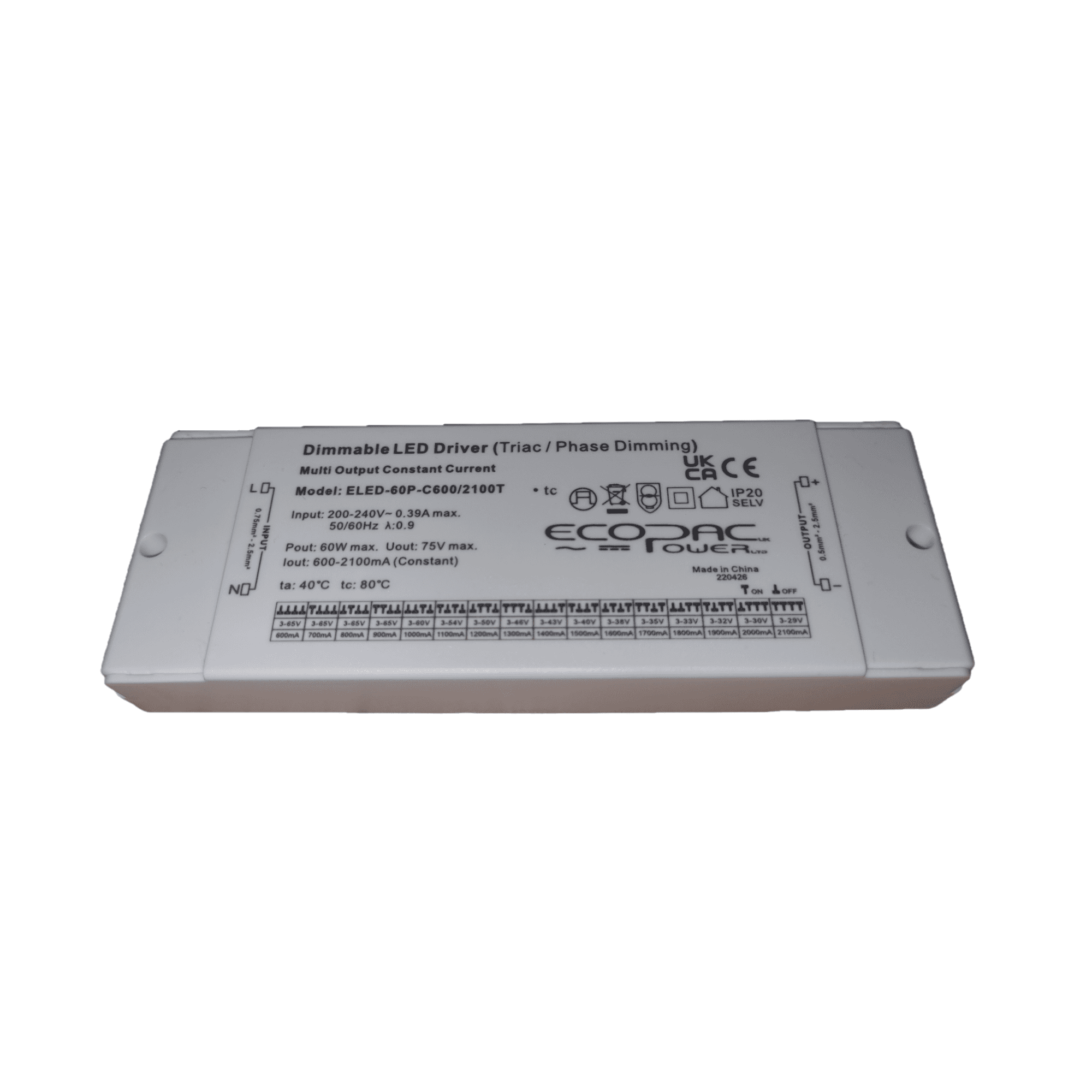

Mains Dimmable Driver T-ELED-60P-C600/2100T - 700mA & 1050mA
Pay in 3 with Klarna
Rated five stars by thousands of customers since 2014 - see our full review history here
2 years Warranty
Hassle-Free Returns
20+ Years of Experience
Free UK Delivery*
Features
- Constant current mode output with multiple levels selectable by dip switch
- Protections: Short Circuit/ Over load/ Over Current
- Full protection plastic housing easy installation
- IP20 design for indoor installation
- Dimming function: Triac dimmable phase cut dimmable
- Strong compatibility, flicker-free dimming
- 60w maximum
- Input: 200-240vAC
- Output: 75vDC/600mA-2100mA
Driver will supply:
- 1050ma 1-8 fittings (NB: please set driver to 1000ma)
- 700ma 1-8 fittings
Important Notes
- Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.
Questions People Ask
What does the T-ELED-60P-C600/2100T driver do?
It is a constant current LED driver with an input of 200 to 240VAC and a 75VDC output of 600 to 2100mA. Its maximum output is 60W.
How many fittings can it run?
At 700mA it will supply 1 to 8 fittings. At 1050mA it will also supply 1 to 8 fittings, and the driver should be set to 1000mA for this.
Can I dim lights with this driver?
Yes. It is mains dimmable, using Triac or phase cut dimming. The output level is chosen with a dip switch.
Should the driver be installed by an electrician?
Yes. We recommend that this driver is installed by a qualified electrician. It is IP20 rated and designed for indoor installation.
