Hunza Pure LED Floor Light Dark Lighter Square - Stainless Steel - Low Voltage

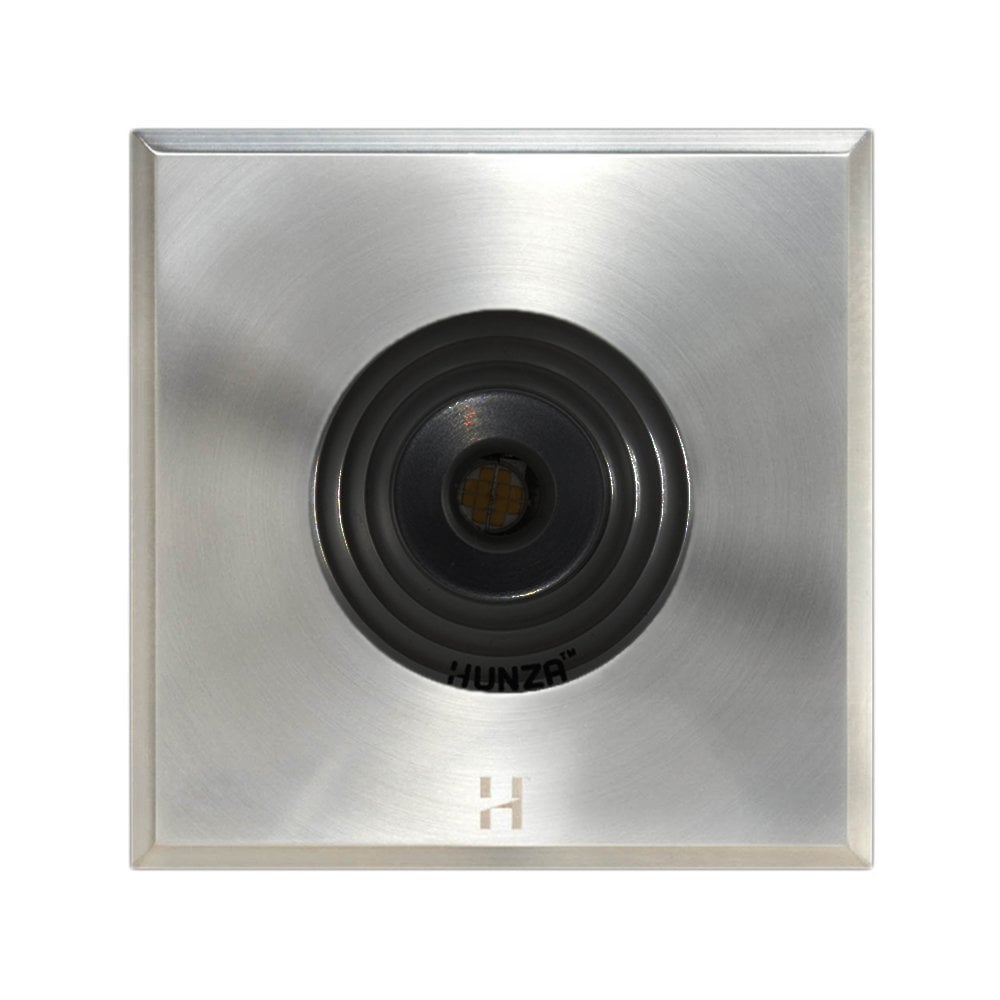

The Square Dark Lighter in Stainless Steel

The Hunza Pure LED Floor Light Dark Lighter Square is a compact uplighter with minimal glare, made in marine grade 316 stainless steel. Its matt black interior adds to the glare control, and the mounting canister is already included. It runs on low voltage, with the LED built in.

Stainless Steel That Stays Consistent

This fitting has a solid 316 stainless steel finish with a consistent brushed look. In some environments stainless can show a light surface tarnish, and washing it regularly keeps that under control. This Square version has a flange depth of 7mm, slightly deeper than the 3mm of the round Dark Lighter. Returns are accepted within 14 days if unused, uninstalled and in original packaging.

How It Works

• Cree LED chip: 600 lumens, 6 watts at 1050mA, CRI of 90 or more at 3000K.
• Order in 2200K, 2700K, 3000K or 4000K, with beam angles of 15, 25, 38 or 60 degrees and a clear or frosted lens.
• Canister 76mm across and 203mm long, with a 100mm base. The flange is 88mm across and 7mm deep. Cut out size 63.5mm, 1m cable.
• The mounting canister comes with the fitting.
• A remote LED driver is needed because it is low voltage and wired in series. Drivers are sold separately, for example the Hunza 1050mA driver.
• A suitable dimmable driver allows dimming.
• IP67, with a 10 year warranty and 5 years on the LED.

Where It Works Best

• Next to a seating area where glare would be uncomfortable
• Lighting the base of a rendered or brick wall
• Marking out a path or driveway edge from below
• Uplighting columns or planters on a terrace

Garden Lighting Schemes by Moonlight Design

Moonlight Design started working with Hunza in 2003. Designing lighting schemes for gardens, supplying Hunza fittings and installing them is part of what we do. On our Design Service page you can see photographs of schemes we completed ourselves, with an explanation of how we plan, draw up and install them using NICEIC registered electricians. Do visit the page if you would like to talk through a scheme.

Good to Know

• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• The mounting canister is part of the package.
• Choose a remote LED driver separately, as none is supplied.
• We recommend installation by a registered NICEIC electrician.

Questions People Ask

How is the Square different from the standard Dark Lighter?
The listed flange depth is 7mm rather than 3mm. Both have a matt black interior and a supplied mounting canister.

Is the matt black inside important?
Yes, it further enhances the glare control of this compact uplighter.

What flange size should I allow for?
The flange is 88mm in diameter and 7mm deep.

Is it made of real stainless steel?
Yes, marine grade 316 stainless steel.

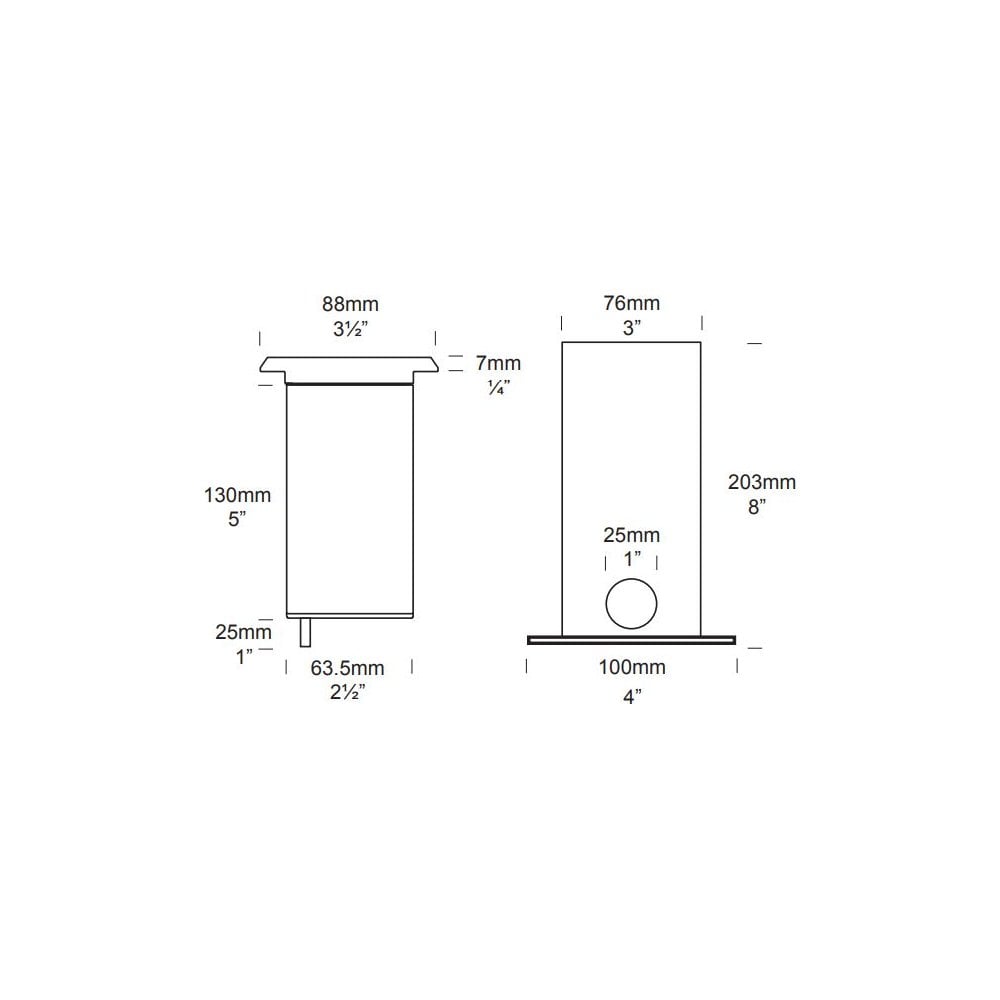

Canister
Diameter: 76mm
Length: 203mm
Base diameter: 100mm

Flange
Diameter: 88mm
Depth: 7mm
(refer to spec for more information)
Supplied with 1m cable

• Hunza Pure LED Floor Lite Dark Lighter Square Spec Sheet
