Collingwood UL030 SPS High Output Universal LED Light - Brass - Low Voltage

A Brass Spotlight Built to Live Outdoors, and Underwater

The UL030 SPS is a small, tough spotlight for the garden that does not mind getting wet. It sits on a square base plate and pivots a full 360 degrees on its stainless steel yoke, so you point it exactly where you want the light to land, up a tree trunk, along a wall, or straight down into a pond. It carries an IP68 rating and is rated submersible to 9 metres, which puts it in a different league from a standard spike light: this one can genuinely sit under water as part of a pond or water feature, not just survive rain.

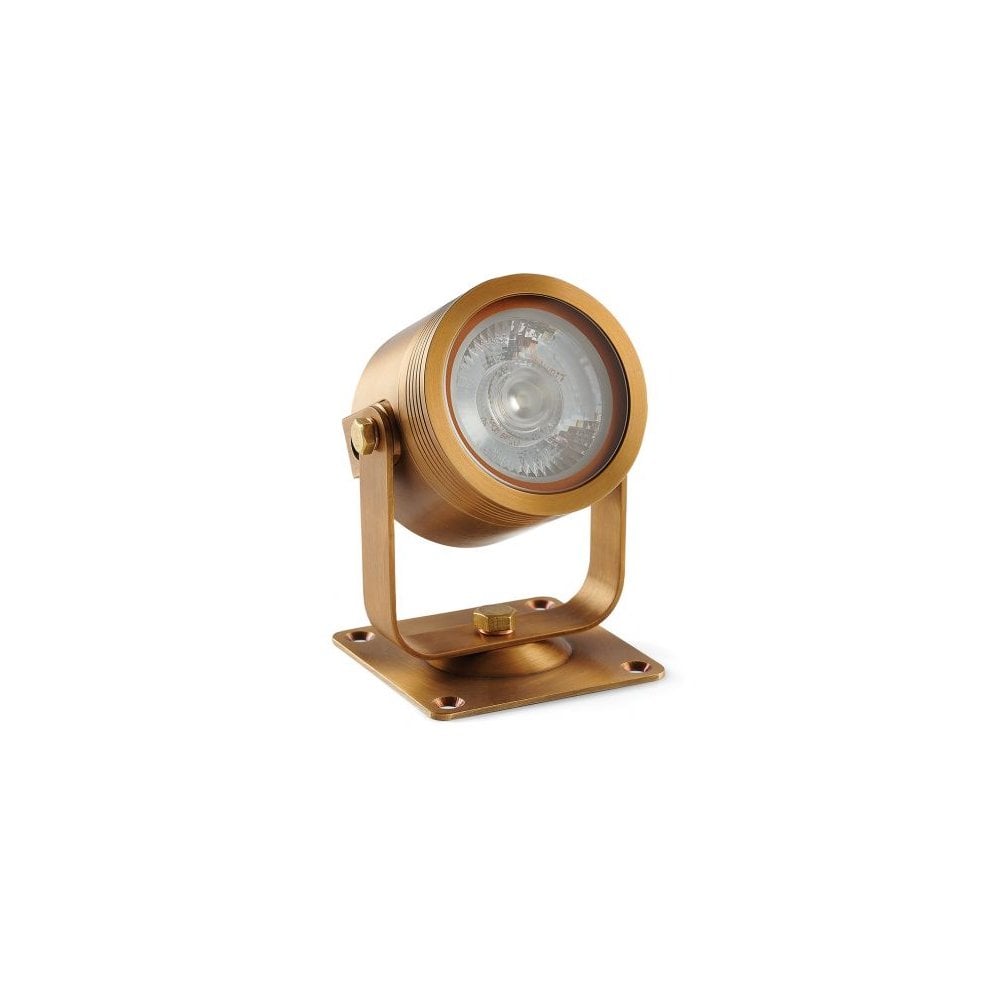

The Brass Finish

This version is finished in brass rather than the stainless steel or black anodised aluminium options in the same range. Brass ages with a warm, slightly antique tone that suits period gardens, gravel paths, and planting schemes with copper or weathered stone nearby, somewhere a bright silver fitting would stand out for the wrong reasons. Up close the body has a machined, finned housing around the lens, with a brass hex bolt on the yoke for locking the angle once you have found the right spot.

How It Works

Inside is a single built in LED rated at 4.6W and driven at 700mA, or it can be stepped down to 350mA for a softer output. You choose the beam spread and colour temperature at the point of ordering: a tight 12 degree beam for throwing light a distance, such as up a tall tree, or a wider 40 degree spread for washing a broader area, in either 2700K or 3000K white light. Colour rendering is above 80 CRI, so foliage and stonework read true rather than flat. Because it is a low voltage, Class III fitting, it cannot be wired straight into the mains. It needs a compatible low voltage driver, and multiple UL030 units can be wired in series from a single driver rather than each needing its own. It arrives with 3 metres of cable and the wall and base fixings needed to fit it, and it will dim if paired with a suitable low voltage dimming driver. The LED itself is sealed in and not a replaceable lamp, so the beam angle and colour temperature chosen at purchase are fixed for the life of the fitting.

Where It Works Best

This is a fitting for outdoor, low voltage garden lighting schemes rather than anywhere near a mains socket. The narrower 12 degree beam suits uplighting a specimen tree, a statue, or a tall architectural feature from a distance. The 40 degree beam works well set low among planting or at the edge of a border, washing light across a wider spread of ground. Given the submersible rating, it is equally at home sat on the bed of a pond or under a fountain, aimed up through the water, which is a job most garden spotlights simply are not built for.

About Collingwood Lighting

Collingwood Lighting designs and builds its LED fittings at Sywell in Northamptonshire, and has spent its time since 2002 focused specifically on LED technology rather than adapting older lamp formats. The brand says it was among the first to bring fire rated, fully sealed for life, and mains dimmable LED products into the UK electrical wholesale market, a claim worth noting as the company's own account of its history rather than an independently verified first. Collingwood has also been awarded an EcoVadis Gold medal, which ranks it in the top 5% of companies EcoVadis assesses worldwide for sustainability practice.

Good to Know

• Comes with a 7 year warranty from Collingwood.
• Rated IP68 and submersible to 9 metres, so it can be used fully underwater in a pond or water feature as well as in open, exposed garden positions.
• Class III, low voltage fitting. It must be run from a compatible low voltage driver and never wired directly to mains.
• Dimmable only when used with a suitable low voltage dimming driver, standard mains dimmers will not work with it.
• Multiple units can be wired in series from one driver rather than needing a driver each.
• The colour temperature and beam angle are fixed at the point of ordering, as the LED is sealed in and cannot be swapped later.
• Moonlight Design recommends installation by a registered NICEIC electrician

Questions People Ask

Can the Collingwood UL030 go fully underwater?
Yes. It carries an IP68 rating and is specified by Collingwood as submersible to a depth of 9 metres, so it can be positioned on the bed of a pond or water feature.

Does the UL030 run on mains power?
No. It is a Class III low voltage fitting that must be powered through a compatible low voltage driver rather than wired directly to the mains supply.

What is the difference between the 12 degree and 40 degree beam?
The 12 degree beam throws a tight, focused spot best suited to lighting something from a distance, such as a tall tree, while the 40 degree beam spreads light across a wider area at closer range.

Can more than one UL030 run from a single driver?
Yes. The fitting is wired in series, so several units can be connected to and powered from one shared low voltage driver.

Can the LED bulb in the UL030 be replaced?
No. The LED is built into the fitting and is not a replaceable lamp, which is why the colour temperature and beam angle are chosen at the time of ordering.

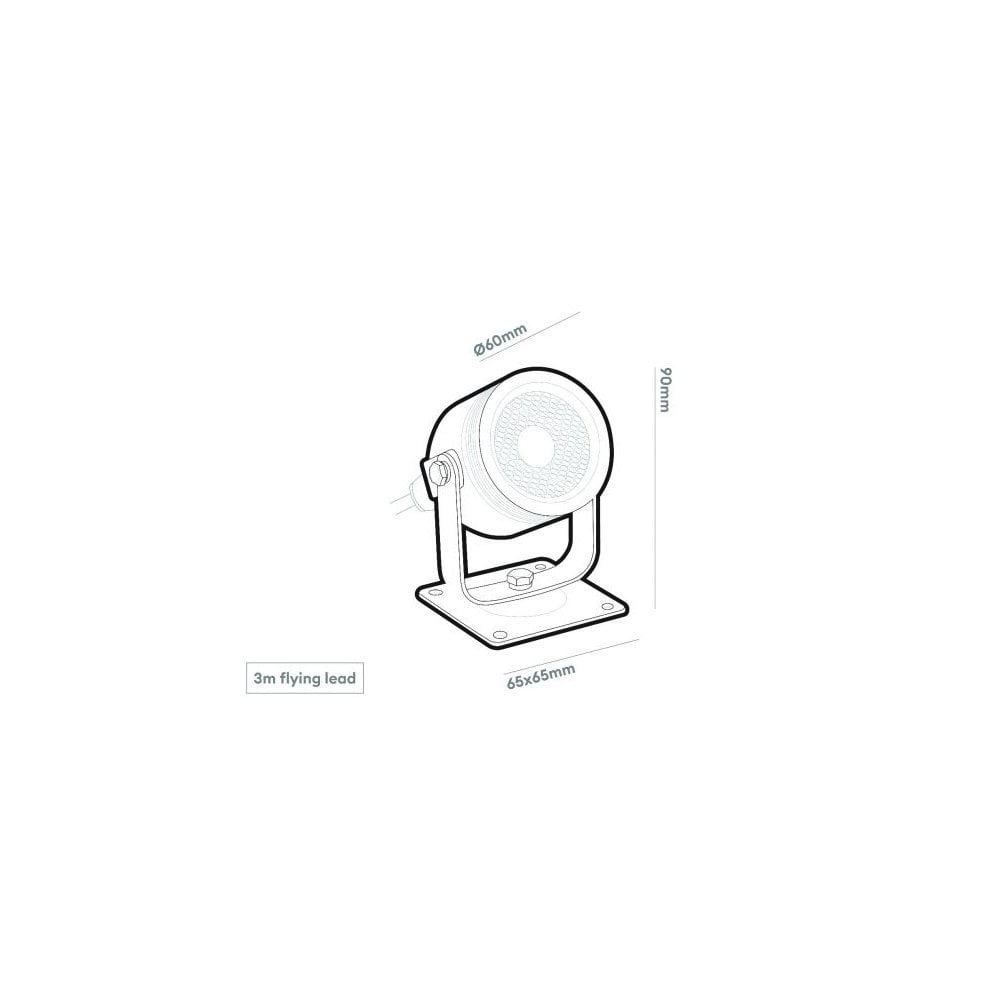

90mm height x 65mm width x 65mm depth (refer to dimensions image for more details)

• Collingwood Feature Light Guide 2025
