Collingwood Tilt Adjustable 223mm Cut-Out Ground Light - Stainless Steel - Straight to Mains

A Ground Light Built to Take Traffic

Most ground lights are designed to be looked at, not driven over. This one is different. It's a recessed light with a 223mm cut out, built to sit flush in a driveway, path or patio and take real vehicle weight without cracking the lens or shifting in its housing. Collingwood rates it for drive over use up to 15mph, with a static loading capacity of 2000kg quoted on the brand's own specification for this ground light range, so it can sit where cars and delivery vans actually cross rather than just somewhere people walk carefully around.

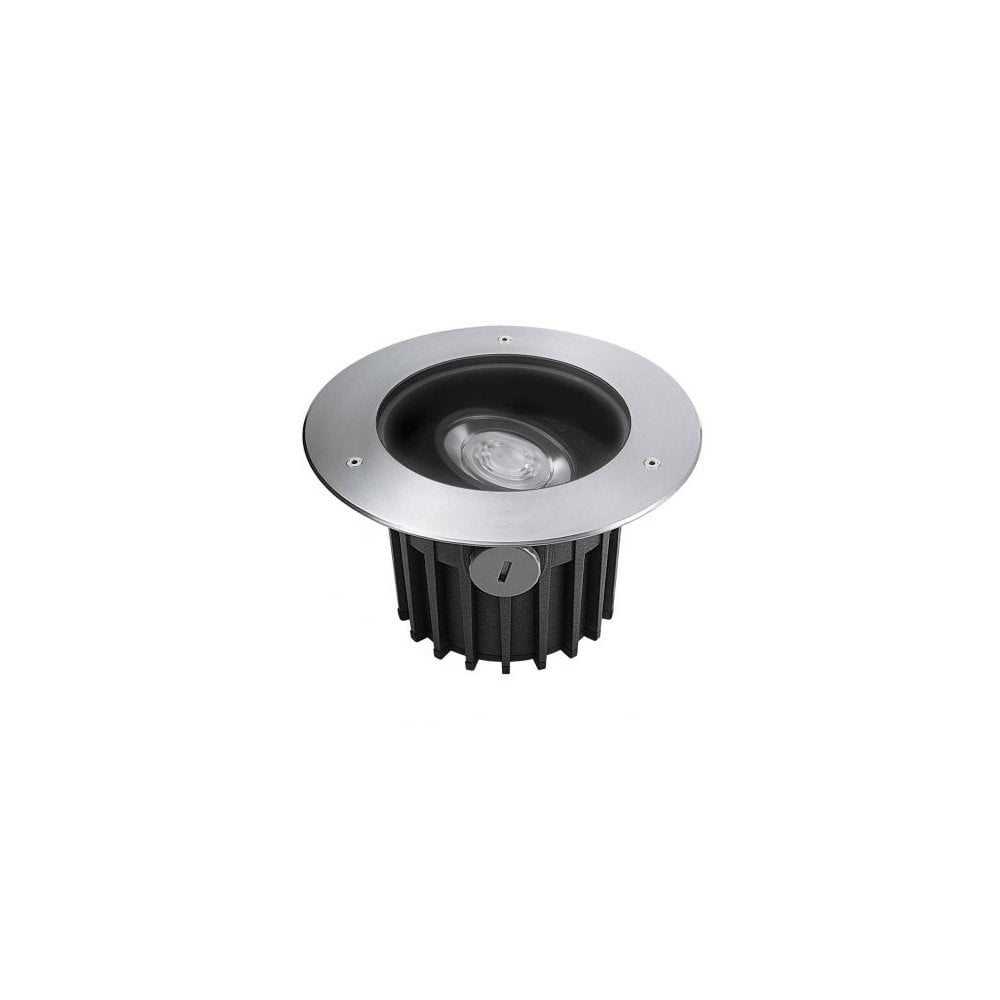

Stainless Steel Bezel, Aluminium Body

This version has a 316 marine grade stainless steel bezel, the same steel used for boat fittings, so it copes with salt air, road grit and pressure washing without staining or pitting over time. The body underneath is anodised aluminium, finned to draw heat away from the LED engine, which keeps the light output stable rather than fading as the unit warms up. The bezel carries the visible screw fixings you'd expect on a fitting meant to be walked and driven over, rather than a decorative trim.

How It Works

A single LED engine sits inside the housing, producing 3300 lumens at a warm 3000K through a 34 degree beam, with a CRI above 80 for reasonably accurate colour rendering on brickwork or planting nearby. The tilt mechanism lets you angle that beam up to 25 degrees off vertical, so instead of a fixed uplight you can wash a wall, a tree or a facade at an angle. It wires straight to the mains, so there's no separate driver to find space for, and it arrives pre wired with a 1 metre cable to make the below ground connection quicker. Two control options are sold as separate SKUs: a DALI-2 dimmable version running at 28W for sites with a proper lighting control system, and a TRIAC mains dimmable version running at 30W for a standard dimmer circuit. It carries an IP67 rating for complete protection against dust and water ingress, which also brings it within the requirements for bathroom zone 2, if you ever wanted to use it as a recessed floor light in a wet room. Read Moonlight's guide to bathroom lighting zones before specifying it there.

Where It Works Best

Driveways and parking areas are the obvious fit, given the drive over rating, but it also earns its place along garden paths, patios and courtyard edges where a flush fitting matters more than a raised bollard. Commercial sites use it for marking out delivery routes or pedestrian crossings over a forecourt, and its coastal grade steel makes it a sensible choice for seafront properties, marinas or any exposed site that gets salt spray and winter grit in equal measure.

About Collingwood Lighting

Collingwood designs and builds its LED fittings from Sywell in Northamptonshire, and has worked solely in LED lighting since 2002. The brand says it was among the first to get fire rated, fully sealed for life and mains dimmable LED products onto UK electrical wholesale shelves, a claim about its own early role in the market rather than an independent record. More recently, Collingwood picked up an EcoVadis Gold medal, a sustainability assessment that puts it in the top 5% of companies rated worldwide.

Good to Know

• Carries a 5 year warranty from Collingwood.
• IP67 rated: complete protection against dust ingress and protection against temporary submersion, so it's built for standing water and driven over grit as well as rain.
• Class I electrical, which means it must be properly earthed as part of the installation.
• The TRIAC and DALI-2 versions are different SKUs and need matching control gear already on site. A TRIAC version needs a compatible mains dimmer, and a DALI-2 version needs a DALI-2 control system. They are not interchangeable after installation.
• Static loading capacity is 2000kg and drive over use is rated to 15mph, per Collingwood's published specification for this ground light range.
• Overall size is around 250mm across the bezel and 212mm deep below the cut out line, so check clearance underground before you dig in.
• Weighs 4kg, so plan for two hands when lowering it into the sleeve.
• Wipe the stainless bezel with a soft cloth. Avoid abrasive pads or harsh chemical cleaners, which can dull the brushed finish.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

What size cut out does this ground light need?
This ground light requires a 223mm cut out, with an overall bezel diameter of around 250mm sitting proud of the surface.

How far can the beam be tilted?
The optic can be tilted up to 25 degrees off vertical, letting you angle the light onto a wall or tree rather than straight up.

What's the difference between the TRIAC and DALI-2 versions?
The TRIAC mains dimmable version runs at 30W and dims from a standard mains dimmer circuit, while the DALI-2 version runs at 28W and needs a DALI-2 lighting control system to dim.

Does this ground light need a separate driver?
No, it wires straight to the mains with no separate driver unit to install alongside it.

How bright is this ground light and what colour is the light?
It outputs 3300 lumens at 3000K warm white through a 34 degree beam, with a CRI above 80.

250mm diameter x 212mm depth (refer to spec for details)

• Collingwood Ground Light Guide 2025
