Collingwood Tilt Adjustable 193mm Cut-Out Ground Light - Stainless Steel - Straight to Mains

A ground light you can actually drive over

This is Collingwood's Tilt Adjustable ground light in the larger 193mm cut out size, and the tilt is what sets it apart. Most recessed ground lights fire straight up and that is the end of it. This one lets you angle the lamp up to 25 degrees off vertical, so you can wash a wall, graze a tree trunk or throw light along a path instead of into the sky. It takes a static load of 2000kg and is rated for vehicles up to 15mph, so it can sit in the middle of a driveway rather than being kept safely to the edges.

The 316 stainless steel bezel

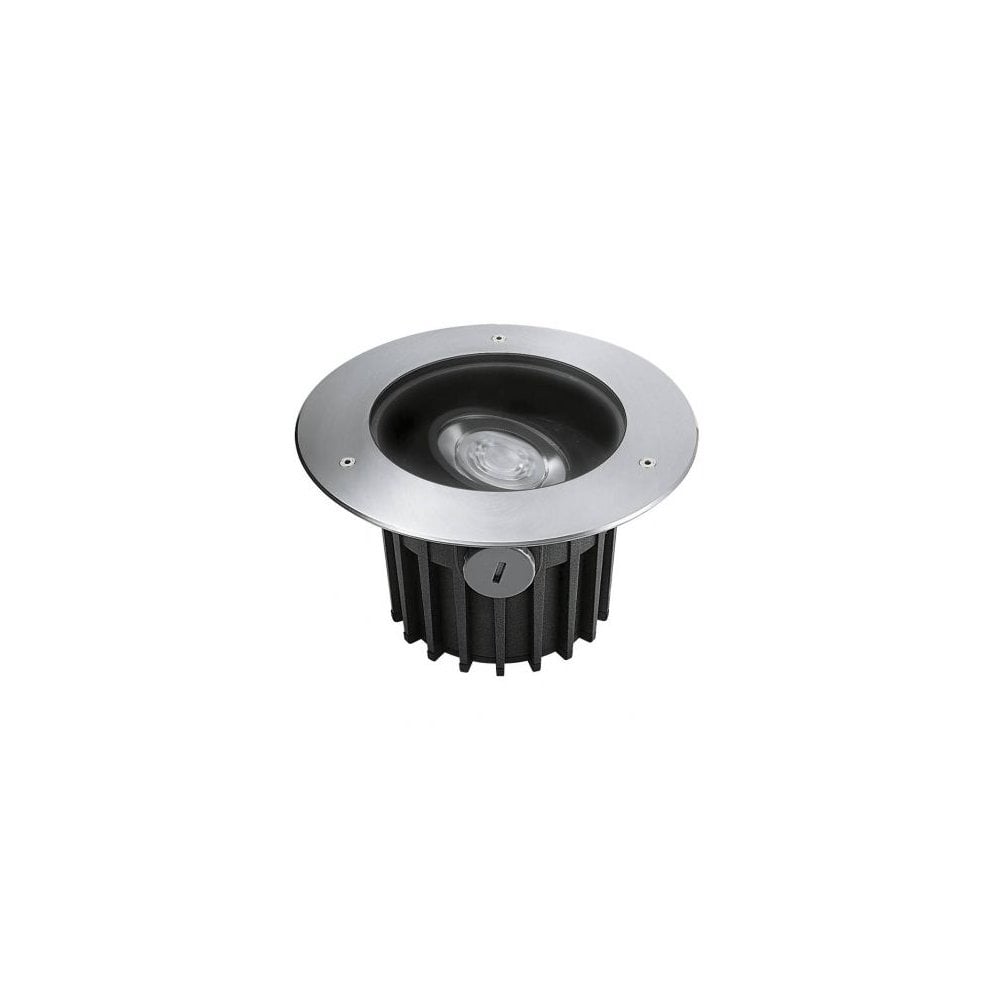

The part you see is a brushed 316 stainless steel trim ring, held down by three screws set into its face. 316 is the marine grade, which is why Collingwood lists this fitting as suitable for coastal sites where salt air makes short work of lesser metals. Below the bezel the body is anodised aluminium, deeply finned so it sheds heat into the surrounding ground. Stainless sits comfortably alongside grey granite setts, sawn sandstone, porcelain paving and resin bound gravel, and it reads as hardware rather than decoration, which is usually what you want underfoot. The whole fitting measures 210mm across and 195mm deep, and weighs 3.3 kg.

How It Works

It runs straight off the 230V mains. There is no remote driver to find a home for, which is one less box to bury or squeeze into a plant room. Inside, an integrated LED module gives 2300 lumens from 23W at 3000K, through a 34 degree beam, with a CRI of 80. A knob on the side of the body sets the tilt and the lamp stays at the angle you leave it. It arrives with a metre of cable already fitted and an installation tube for bedding into the ground. Wiring is parallel, so a run of them can sit on the same circuit. Choose the TRIAC version if you are dimming from a standard mains dimmer, or the DALI-2 version if the scheme is on a lighting control system.

Where It Works Best

Driveways are the obvious home for it, particularly a run marking out a turning circle or lighting the approach to a garage. The tilt earns its keep on hard landscaping where the thing you want lit is not directly overhead. Set into a patio a metre out from the house and angled back, it grazes brickwork or render without the fitting having to sit in a flowerbed. It also suits walk over paths, courtyards, the base of a specimen tree, and commercial forecourts and car park edges where a fitting has to survive being driven across. Being IP67 and fully sealed, it copes with standing water and with a soaked lawn edge. That sealing takes it far past the IP44 minimum used for bathrooms, so it is also suitable for bathroom use if a recessed floor fitting is what the room calls for.

About Collingwood Lighting

Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked in LED alone since 2002, which is a long stretch in this trade. The brand states it was among the first to put fire rated, sealed for life, mains dimmable LED products in front of the UK electrical wholesale market. It also holds an EcoVadis Gold medal, placing it in the top 5% of companies assessed globally for sustainability.

Good to Know

• Backed by a 5 year Collingwood warranty.
• IP67 rated, which means fully dust tight and protected against temporary immersion in water. That is the level a ground light needs when a path floods or a lawn stays wet for days.
• IK10 impact rated, the top of the standard scale, with a 2000kg static loading capacity and a 15mph drive over limit. It is not intended for heavy goods vehicles or fast traffic.
• Class I, so it requires an earth connection.
• Two versions to choose between: TRIAC mains dimmable (GLTMS193T30) and DALI-2 dimmable (GLTMS193D30). They are not interchangeable once installed, so match the one you order to your control gear.
• Supplied with an installation tube and one metre of cable already fitted. Wiring is parallel.
• Output is fixed at 3000K warm white with a 34 degree beam. It is not colour changing and the beam angle cannot be altered on site.
• Rinse the bezel with clean water occasionally, especially on coastal sites, to keep salt and grit off the stainless. Avoid abrasive pads and chlorine based cleaners.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Can you drive a car over the Collingwood Tilt Adjustable 193mm ground light?
Yes. The Collingwood Tilt Adjustable 193mm cut out ground light is rated for drive over use at speeds up to 15mph and has a static loading capacity of 2000kg, which covers cars and light vehicles on a domestic driveway or a commercial forecourt.

Does this ground light need a separate LED driver?
No. This is the straight to mains version of the Collingwood Tilt ground light, so it wires directly to a 230V supply with no remote driver required. The control gear sits inside the fitting.

How far can the beam be angled?
The lamp inside the Collingwood Tilt Adjustable ground light adjusts up to 25 degrees from vertical using a knob on the side of the body, so the 34 degree beam can be aimed at a wall, a tree or along a path rather than pointing straight upwards.

What size hole does it need?
This model requires a 193mm cut out. The fitting itself is 210mm in diameter and 195mm deep, weighs 3.3 kg, and is supplied with an installation tube to form the recess in the ground.

What is the difference between the TRIAC and DALI-2 versions?
The TRIAC version (GLTMS193T30) dims from a standard mains dimmer switch, while the DALI-2 version (GLTMS193D30) is dimmed over a DALI-2 bus by a lighting control system. Both produce 2300 lumens from 23W at 3000K with a 34 degree beam.

210mm diameter x 195mm depth (refer to spec for details)
