Collingwood Tilt Adjustable 165mm Cut-Out Ground Light - Stainless Steel - Straight to Mains

Aim the beam after it is in the ground

Most recessed ground lights fix their beam at the factory and leave you to design around it. This one does not. The Collingwood Tilt Adjustable ground light drops into a 165mm cut out, sits flush with the surface once installed, and keeps a small adjuster on the side of the housing so the beam can be tilted up to 25 degrees after the fitting is already in the ground. Get it in place, stand back, check the angle, then fine tune it. It also carries a 2000kg static load rating and is built for drive over traffic at up to 15mph, so parking a car on top of it is exactly what it was designed for.

316 stainless steel, wired straight to mains

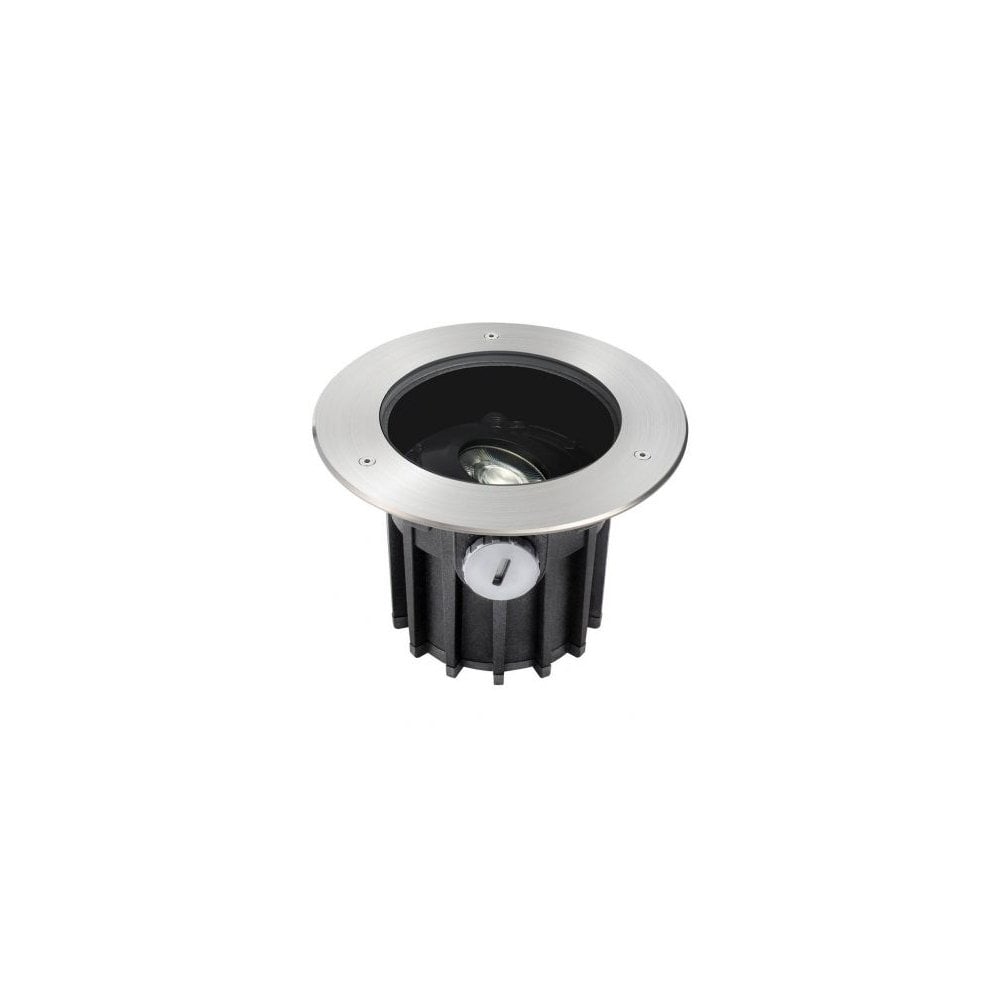

What you actually see once it is installed is a 316 marine grade stainless steel bezel with a brushed finish, evenly spaced countersunk fixing screws around the rim. Below that sits an anodised aluminium body, a pairing Collingwood specifies for coastal locations where salt air is a factor. It reads as understated and cool toned rather than decorative, so it sits quietly into granite setts, sawn sandstone or porcelain paving. This particular version is wired straight to mains at 220 to 240V AC, which means no remote driver box to find space for, hide, or replace down the line.

How It Works

Inside is an integrated 18W LED module running at 3000K warm white with a colour rendering index above 80. Two beam angles are available on this listing. The 34 degree option throws a narrower, longer column of light, better suited to a tall tree or a two storey facade. The 60 degree option spreads wider and closer in, which works well over a low wall, a hedge or a broad shrub. Both use the same 18W module, so the choice comes down to how far the light needs to reach rather than how bright it runs.

The fitting arrives with 1 metre of H05RN-F rubber cable already wired in, 3 core at 1.0mm sq, plus an installation tube in the box to form the void before paving or concrete is laid over it. Wiring is parallel, and the fitting is electrical class 1, so it needs a proper earth connection. Dimming on this straight to mains version is TRIAC based, using a compatible rotary dimmer such as Collingwood's own DM298FP faceplate or DM298GRID grid module, both sold separately. A JB5 gel filled connector, also sold separately, is the sensible way to make any below ground joint properly waterproof.

Rated IP67, it is fully sealed against dust and protected against temporary immersion in water, and Collingwood lists it for use in bathroom zone 2. For more on how bathroom zones work, our guide to bathroom lighting zones explains what each zone allows.

Where It Works Best

Driveways are the obvious fit, since the drive over rating is what sets this apart from a standard walk over ground light. Set in a line down a gravel or block paved drive, these give ground level light with nothing sticking up to catch the eye by day. Away from driveways, use them to uplight a mature tree, wash light up a rendered facade, mark the edge of a terrace or graze a stone wall so the texture shows after dark. The 2000kg loading also makes them a realistic option for courtyards, car parks and commercial entrances, anywhere a lighter duty fitting would not survive regular vehicle traffic.

About Collingwood Lighting

Collingwood designs and builds its LED lighting from a base in Sywell, Northamptonshire, and has focused on LED technology since 2002. Collingwood says it was among the first companies to bring fire rated, fully sealed for life and mains dimmable LED products into the UK electrical wholesale market, a claim about the brand's own history rather than an independently verified fact. The company has also been awarded an EcoVadis Gold medal, which places it in the top 5% of businesses assessed globally for sustainability. For a fitting that gets buried under paving for years, that attention to build quality is the part that matters most.

Good to Know

• Covered by a 5 year guarantee from Collingwood on this straight to mains, TRIAC dimmable version.
• Rated IP67, fully sealed against dust ingress and protected against temporary water immersion. Collingwood lists it as suitable for bathroom zone 2.
• Carries an IK10 impact rating, the top of the standard scale, alongside the 2000kg static load and drive over rating of up to 15mph.
• Electrical class 1, so an earth connection is required. Runs on a 220 to 240V AC mains supply.
• Supplied with 1 metre of H05RN-F cable already wired in and an installation tube in the box. Wiring type is parallel.
• Dimming is TRIAC based on this straight to mains version. Check any dimmer you use is rated for the load before fitting it.
• LED lifetime is quoted at L70 50,000 hours, and the LED module is integrated, so there is no lamp to replace.
• Rated for ambient operating temperatures from minus 25 to plus 40 degrees Celsius. This size weighs 2.03kg.
• Suitable for coastal use. In salt air, rinse the bezel with fresh water occasionally and keep the lens clear of leaves and debris.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

• Can a car be driven over the Collingwood 165mm Tilt Adjustable ground light? Yes. This fitting has a static loading capacity of 2000kg and a drive over rating of up to 15mph, so it can be installed in a domestic driveway or a car park designed for regular vehicle traffic.
• Does this ground light need a separate LED driver? No. This is the straight to mains version of the Collingwood Tilt Adjustable ground light, so it runs directly from a 220 to 240V AC supply. Collingwood also makes low voltage versions of the same fitting that do need a separate driver.
• How far does the beam tilt on this ground light? The internal LED module can be tilted up to 25 degrees from vertical using an adjuster built into the housing, and this adjustment can be made after the fitting has already been set into the ground.
• What size hole does this ground light need? It requires a 165mm diameter cut out. An installation tube is supplied with the fitting to form the recess before paving, concrete or decking is laid over the top.
• Is there a difference in output between the 34 degree and 60 degree beam options? Both beam options run the same 18W LED module at 3000K warm white. The 34 degree beam is narrower and reaches further, suiting tall trees and facades, while the 60 degree beam spreads wider and closer in, suiting low walls and planting.

• Collingwood Ground Light Guide 2025
