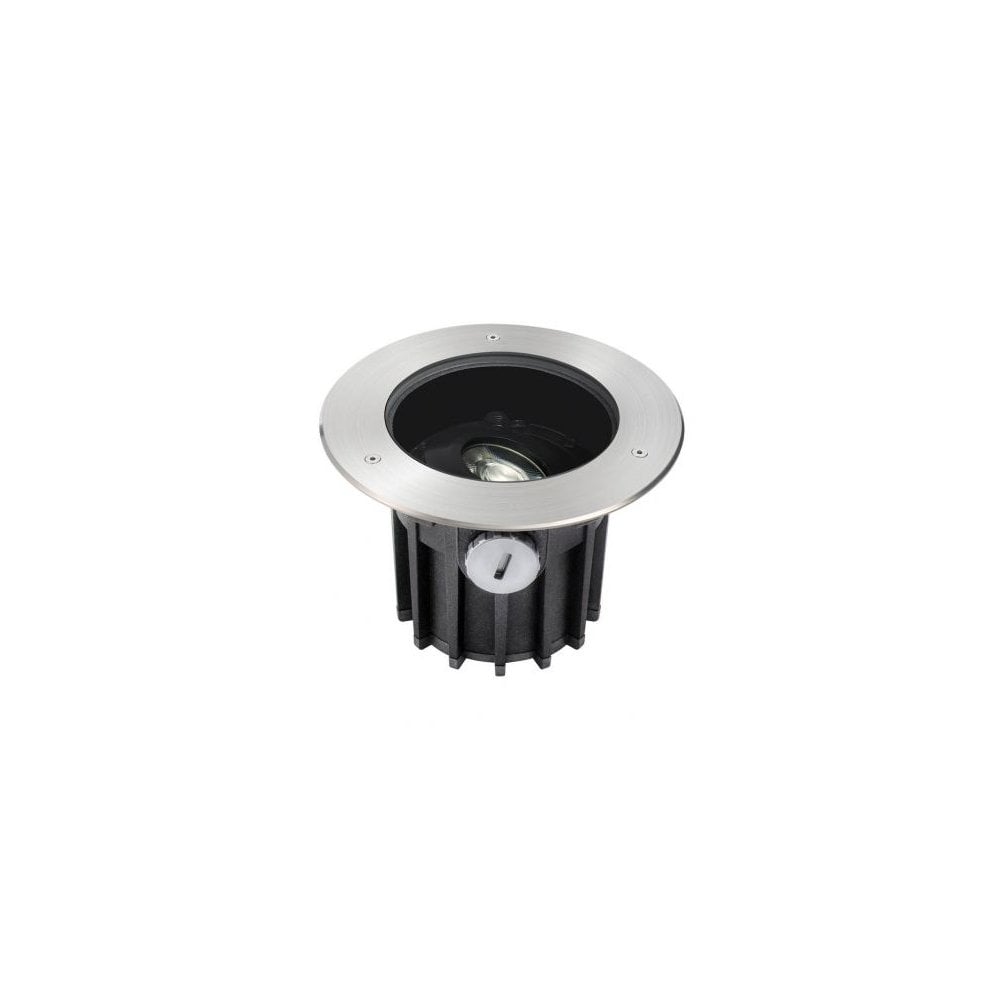

Collingwood Tilt Adjustable 147mm Cut-Out Ground Light - Stainless Steel - Straight to Mains

A ground light strong enough to park on

Most recessed ground lights fire straight up and stay that way. This one does not. The head inside the Tilt Adjustable 147mm cut out ground light turns on a knob, letting you angle the beam by up to 25 degrees so it washes a wall, a tree trunk or a gate pier instead of the night sky. It is also built for real traffic. The fitting carries a 2000kg static load rating and is approved to be driven over at speeds up to 15mph, which is what makes it a genuine driveway light rather than a border light that happens to sit in the ground.

316 stainless steel above, anodised aluminium below

Once it is set into the ground, all you see is the bezel. It is 316 stainless steel, the marine grade, with a flat brushed face, a slim rim and small recessed fixing screws that keep the top surface clean to look at and easy to sweep over. Everything under the surface is anodised aluminium, finned to shed heat into the surrounding ground. Stainless is the quiet choice here. It reads as neutral against block paving, resin bound gravel, granite setts and porcelain, and it ties in with stainless door furniture, glass balustrade and modern render without drawing attention to itself.

How It Works

This is the straight to mains version, which means the control gear lives inside the fitting and there is no remote driver to find a dry home for. It arrives already wired with one metre of cable, ready to join onto your 230V supply, and the wiring is parallel so several lights run off the same circuit. It is a Class I fitting, so it needs an earth. The recess needs a 147mm cut out, with the body measuring 160mm across and 156mm deep, and the whole unit weighs 1.6kg.

You choose the optic and the control method together. The TRIAC mains dimmable build runs at 12W and comes with either a 34 degree beam for a tight column of light up a wall, or a 60 degree beam for a broader spread across paving. The DALI-2 build runs at 10W, gives 1000 lumens and comes with the 34 degree optic. Every version is 3000K warm white with a CRI of 80, and the tilt mechanism works the same way across all of them.

Where It Works Best

The obvious home is a driveway, set in a line along the edge or in pairs either side of the entrance, where the drive over rating earns its keep. It works just as well sunk into a front path, a patio or a terrace, and the tilt makes it useful for grazing light up the face of a house, a garden wall or a boundary fence. Commercial forecourts, hotel approaches and car park landscaping suit it too. The 316 stainless bezel and IP67 sealing mean coastal and exposed sites are fair game. That IP67 rating also sits well above the IP44 minimum for bathroom use, so it can be recessed into a wet room or shower floor where a flush fitting is wanted, and our guide to bathroom lighting zones explains which rating belongs in which zone.

About Collingwood Lighting

Collingwood designs and makes its LED lighting in Sywell, Northamptonshire, and has worked with LED technology and very little else since 2002. The brand states it was among the first to put fire rated, sealed for life and mains dimmable LED products in front of the UK electrical wholesale trade. It also holds an EcoVadis Gold medal, which places it in the top 5% of the companies assessed worldwide for sustainability.

Good to Know

• Covered by a 5 year Collingwood warranty.
• IP67 rated, meaning it is fully sealed against dust and protected against temporary immersion in water, which is what you want in ground that holds a puddle after heavy rain.
• IK08 impact rated, with a 2000kg static load rating and approval for vehicles driving over it at up to 15mph.
• Class I, so an earth connection is required.
• The TRIAC version dims from a compatible mains dimmer on the lighting circuit. The DALI-2 version needs a DALI-2 control system to dim and will not respond to a mains dimmer, so pick the version that matches the controls already in the scheme.
• 3000K warm white with a CRI of 80, and no separate driver to buy or house.
• 147mm cut out required, 160mm diameter by 156mm deep, 1.6kg.
• Keep the bezel clean by rinsing it with fresh water now and then, particularly within a few miles of the sea, and clear leaves and grit off the glass so heat can escape.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Can you drive a car over the Collingwood Tilt 147mm ground light?
Yes. The Collingwood Tilt Adjustable 147mm cut out ground light has a 2000kg static load rating and is approved for vehicles to drive over it at speeds up to 15mph, so it can be installed in a domestic driveway or a commercial forecourt.

How much does the beam tilt, and how do you adjust it?
The light head tilts up to 25 degrees. Adjustment is made by turning a knob on the fitting, so the beam can be aimed at a wall or a tree after the light is already installed in the ground.

Does the straight to mains version need a separate LED driver?
No. The straight to mains version of the Collingwood Tilt ground light has its control gear built in and is supplied wired with one metre of cable for connection to a 230V supply, so no remote driver box needs to be found space for.

What size hole does it need?
It needs a 147mm cut out. The fitting itself measures 160mm in diameter by 156mm deep and weighs 1.6kg, so the recess has to be deep enough to take the full body and its cable exit.

What is the difference between the TRIAC and DALI-2 options?
The TRIAC option runs at 12W, dims from a compatible mains dimmer and is offered with either a 34 degree or a 60 degree beam. The DALI-2 option runs at 10W, produces 1000 lumens with a 34 degree beam and requires a DALI-2 control system. Both are 3000K warm white.

160mm diameter x 156mm depth (refer to spec for details)

• Collingwood Ground Light Guide 2025
