Collingwood SL130 1W LED Spike Light - Bronze - Low Voltage

A garden spike light small enough to vanish into the planting

The SL130 is the most discreet fitting in Collingwood's spike range. The head is only 42mm across, so it can sit down between shrubs and light what you actually want lit without becoming an object you notice. Total height is 408.5mm and 240mm of that is spike that goes under the surface, so only a short stem and a small barrel stand above the soil. If you have been hunting for a low voltage LED spike light that does its job quietly, this is the size to start with.

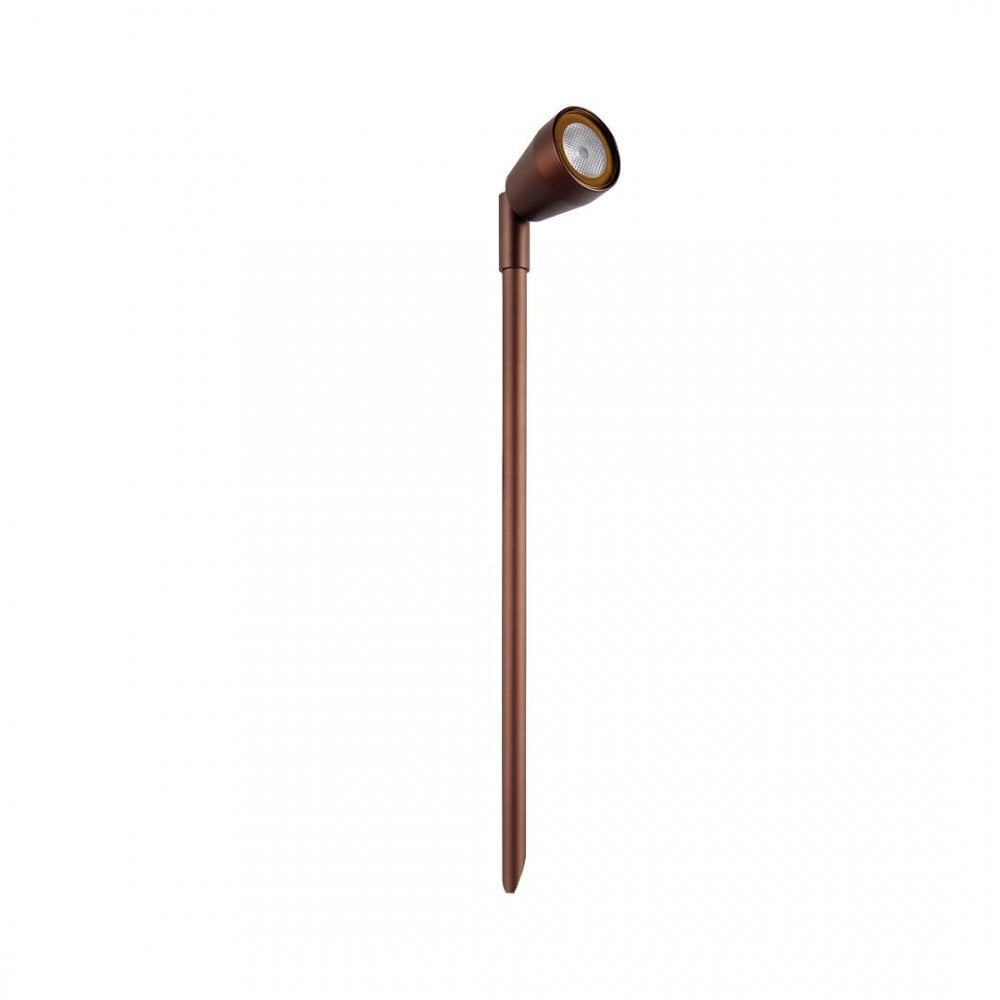

The bronze anodised finish

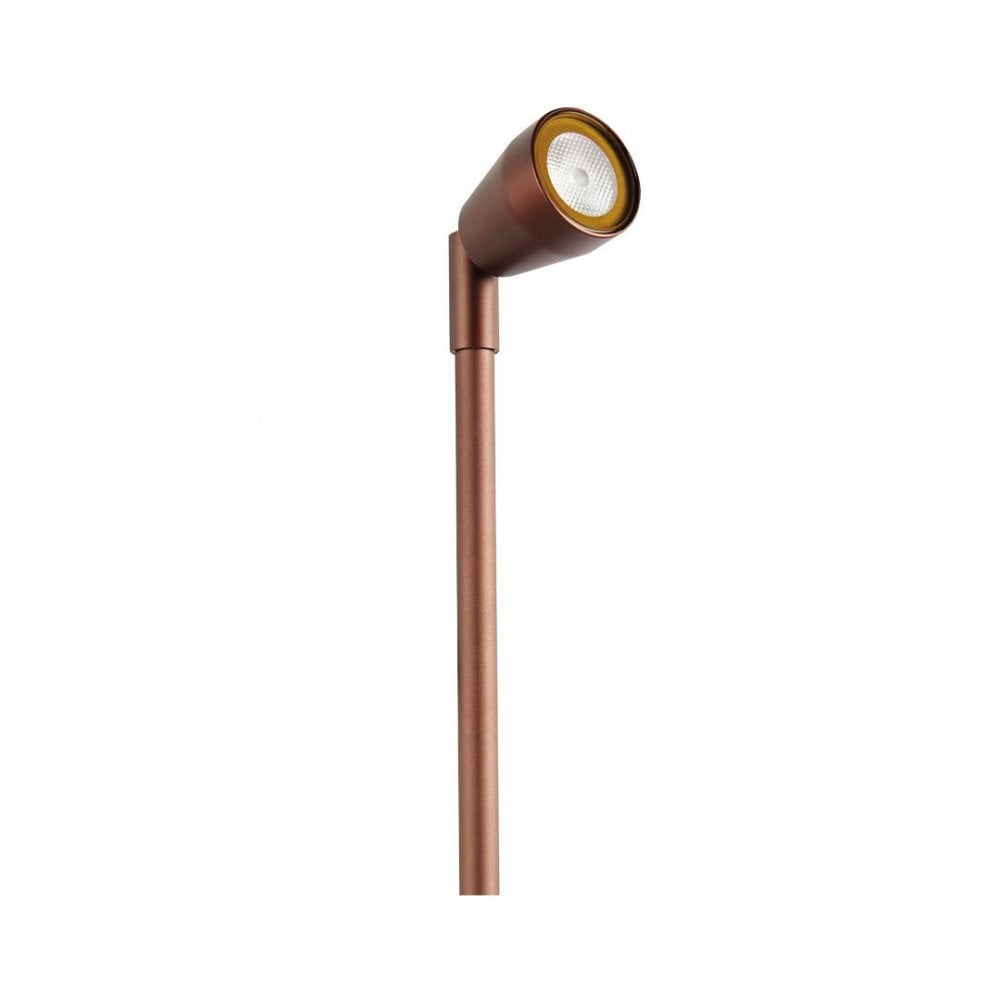

This version is bronze anodised aluminium. Anodising drives the colour into the surface of the metal rather than laying it over the top the way paint does, which matters on a fitting that will get clipped by a mower or a boot at some point in its life. The tone is a warm brown metallic. It reads much softer than black and settles quietly against brick, gravel, oak sleepers and bare winter beds. Up close there is a brass toned bezel ring around the lens that catches a little daylight and gives the head some definition. Collingwood also lists the SL130 as coastal protected, which is worth knowing if the garden sits within reach of salt air.

How It Works

This is a Class III fitting, so it never touches mains voltage. It runs from a separate LED driver, and the driver decides how hard the light is pushed. At 350mA it draws 1W. At 700mA it draws 2W. Output then follows the colour temperature you choose. Collingwood publishes 70 lumens at 350mA and 120 at 700mA for the 2700K version, 75 and 135 for 3000K, and 95 and 140 for 4000K. The beam is a narrow 26 degrees in every version, colour rendering is above 80 CRI, and the LEDs are binned to SDCM3 so a run of them looks consistent rather than patchy.

The fittings wire in series, so several can share one driver as long as the total load stays inside that driver's rating. Each light arrives with 3m of H05RN-F rubberised cable already attached, 6mm across, which is usually enough to reach a waterproof junction box without making a joint at the light itself. The head tilts through 90 degrees where it meets the stem, so the aiming happens after the spike is in the ground, and you can set it again a year later once the border has grown up around it.

Where It Works Best

A 26 degree beam is a pointing tool rather than a wash, so this one earns its place aimed at something specific. Push it in at the foot of a multi stem birch and run the light up through the branches. Set it back a hand span from a rendered or flint wall and let the beam graze across the texture. Aim one into a clipped box ball or an ornamental grass and the silhouette does the work for you. Along a path, a series of them reads as quiet markers rather than runway lighting. The 2700K and 3000K options give the mellow, low firelight glow most people want in a garden after dark, while 4000K is crisper and cleaner and tends to suit contemporary paving, water and architectural planting.

About Collingwood Lighting

Collingwood designs and manufactures its LED products at Sywell in Northamptonshire, and has worked in LED specifically since 2002, which is early for a British lighting manufacturer. The brand states it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market. It also holds an EcoVadis Gold medal, which places it in the top 5% of companies assessed for sustainability worldwide.

Good to Know

• Backed by a 7 year Collingwood guarantee.
• IP65 rated, meaning fully dust tight and protected against water jets from any direction, which is the level a fitting needs when it lives in wet soil and takes rain, hose and leaf mulch all year.
• Class III construction, so the fitting only ever receives safe low voltage from its driver.
• Dimmable, but only through a dimmable driver. There is no dimming built into the light itself, so settle the dimming question before you choose the driver.
• A driver is required and is not supplied. Pick 350mA for 1W per fitting or 700mA for 2W, then size the driver wattage to the number of lights on the run.
• Wires in series. Collingwood's own spike light guide lists 1 to 14 fittings on a DRV150700 driver and 1 to 8 on a PSIP70018W, so check the driver tables before you finalise a long run.
• Supplied with 3m of H05RN-F rubberised cable, 6mm outside diameter. Collingwood points to its JB2, JB4 and JB6 waterproof junction boxes or gel filled connectors for joints made below ground.
• Rated LED lifetime is L70 70,000 hours. The LED is integrated, so there is no lamp to change.

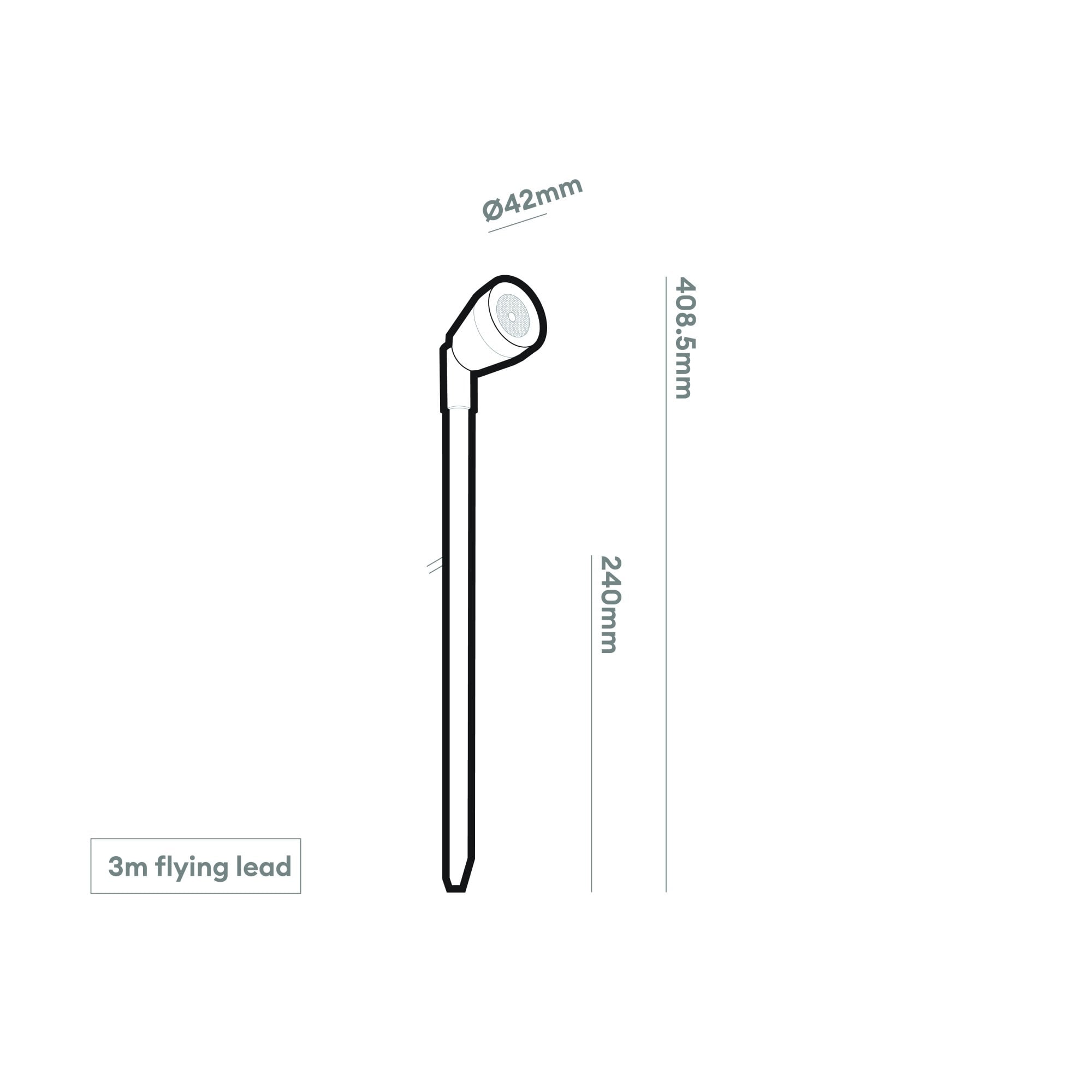

• Anodised aluminium body, 0.5 kg, 42mm diameter and 408.5mm tall including the 240mm of spike that sits below the surface.
• Care is easy. Wipe the lens occasionally so soil splash and algae do not dull the beam, and cut back anything that grows into the light path.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

• Does the Collingwood SL130 spike light need a separate driver? Yes. The Collingwood SL130 is a Class III low voltage fitting that cannot be wired to mains, so it needs a separate LED driver, which is not supplied with the light. A 350mA driver runs it at 1W and a 700mA driver runs it at 2W.
• How many lumens does the Collingwood SL130 produce? Collingwood publishes 70 lumens at 350mA and 120 lumens at 700mA for the 2700K SL130, 75 and 135 lumens for the 3000K version, and 95 and 140 lumens for the 4000K version.
• How deep does the Collingwood SL130 spike sit in the ground? The Collingwood SL130 is 408.5mm tall in total and the lower 240mm of that is spike designed to sit below the surface, which leaves roughly 168mm of stem and head standing above the soil.
• Can the beam be aimed after the spike is in the ground? Yes. The head of the Collingwood SL130 tilts through 90 degrees at the joint with the stem, so the beam is aimed once the spike is pushed into the soil and can be adjusted again in later seasons as planting grows around it.
• What cable is supplied with the Collingwood SL130? Every Collingwood SL130 is supplied with 3m of H05RN-F rubberised cable, 6mm in outside diameter, already fitted to the light, so the run can be taken back to a waterproof junction box without a connection being made at the fitting.

42mm diameter x 408.5mm height (refer to spec for details)

• Collingwood Spike Light Guide 2025
