Collingwood LSV05 LED Strip, IP20 9.6W/m - Low Voltage

A Flexible Line of Light for Wherever You Need It

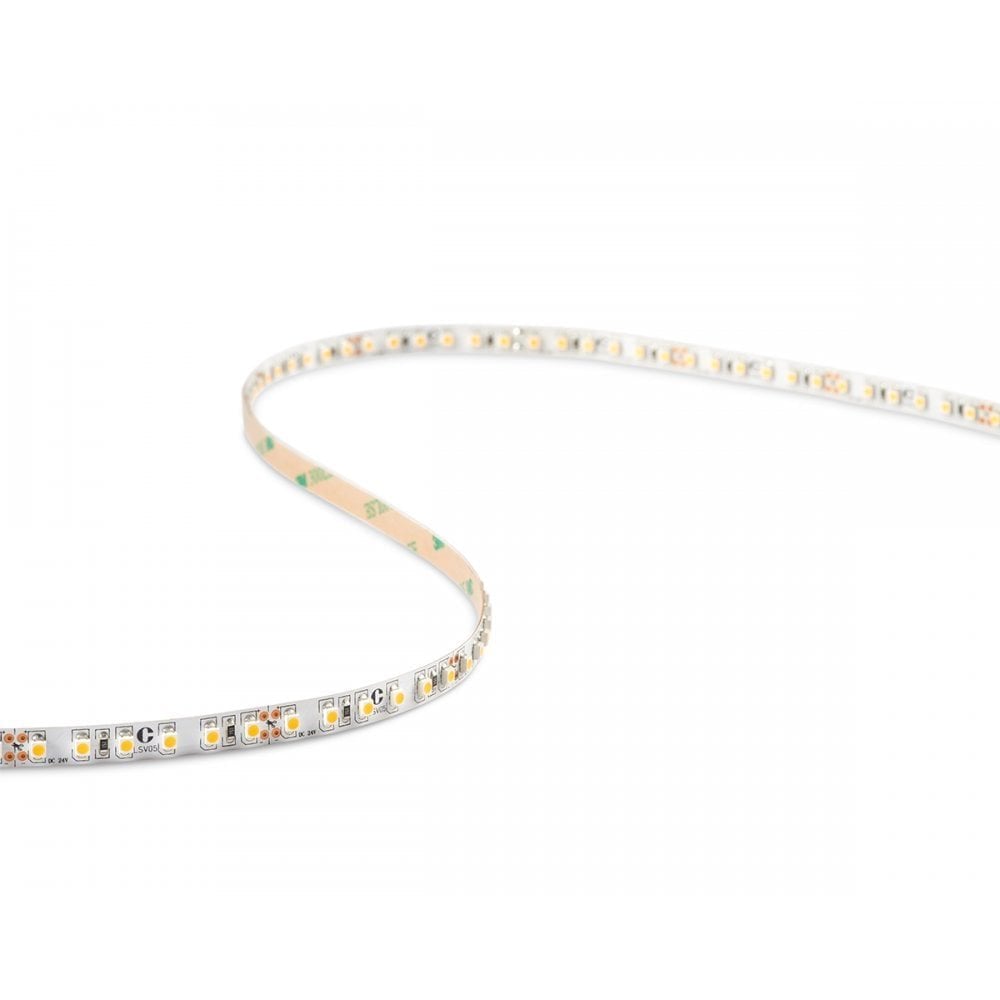

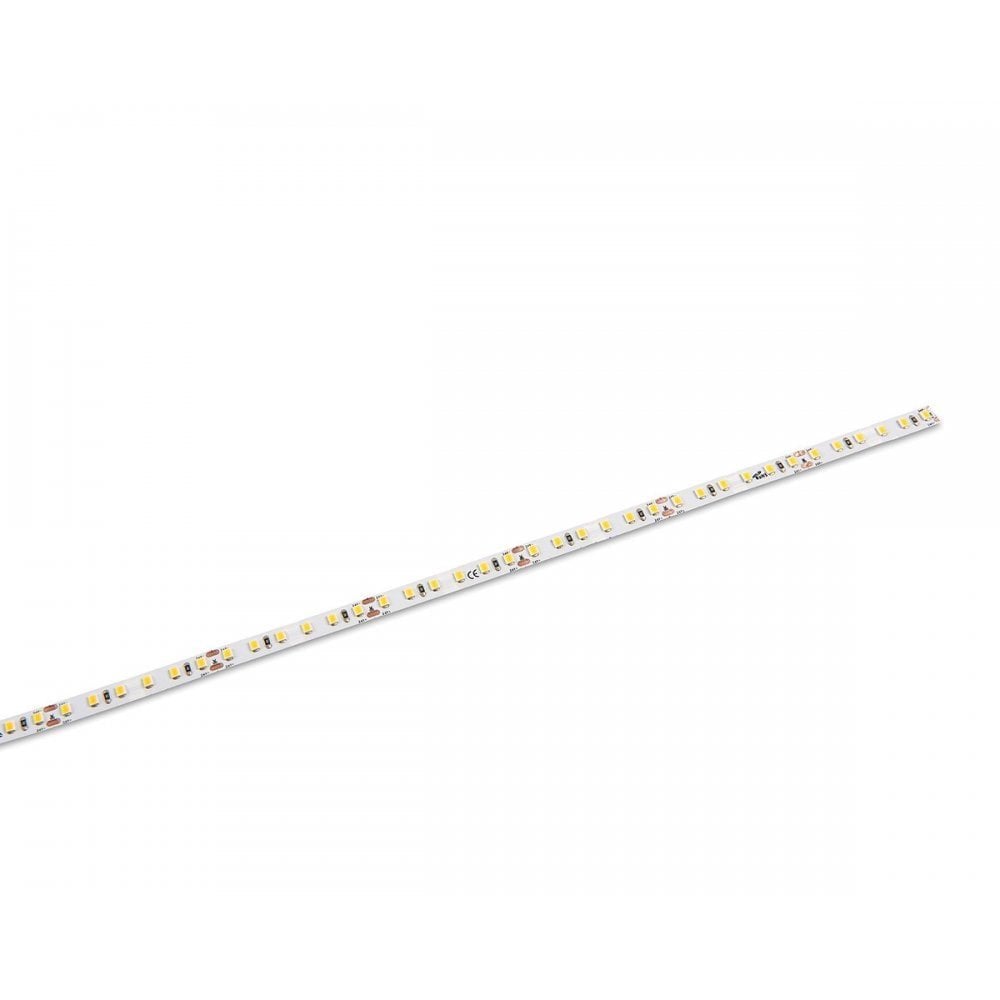

The LSV05 is Collingwood's 9.6W/m LED strip, an 8mm wide flexible tape that self adheres to most clean, flat surfaces. It's designed to disappear into the space it lights, run under a cabinet, inside a coving recess, along a shelf or into a routed profile, so all you see is the light itself rather than the fitting.

9.6W/m, Three Colour Temperatures, Lengths from 1m to 5m

This listing covers 2700K, 3000K and 4000K, so you can match it to a warmer living space or a crisper, more functional area like a home office. Output rises slightly with colour temperature, from around 900 lumens per 5m at 2700K to about 1040 lumens at 4000K, with an 80 CRI. It's available in fixed lengths from 1m up to 5m, or as a 50m reel you can cut down to the run you actually need.

How It Works

• Runs on 24V DC and needs a separate driver, sized to the total length of strip in your run.
• Wired in parallel with a 500mm flying lead, so brightness stays even along the length.
• Class III low voltage strip once powered through the correct driver.
• Self adhesive backing for a straightforward stick down fit to a clean, dry surface.
• 120 degree beam angle, and dimmable if paired with a compatible dimmable driver.
• Can be cut to length at the marked points, including from the 50m reel.

Where It Works Best

Because it's low profile and cuttable, LSV05 suits jobs where a normal fitting would be too visible or too bulky. Think under kitchen wall units, inside a coving or bulkhead in a living room or hallway, along open shelving in a home office, or built into a stair string for a subtle glow on the treads. It's rated IP20, so keep it to dry indoor spaces rather than bathrooms or anywhere it could get wet.

Collingwood Lighting

Collingwood has been developing LED technology since 2002, designing and manufacturing its strip and driver ranges from its base in Sywell, Northamptonshire. The brand says it was among the first to bring fully sealed, fire rated and mains dimmable LED products into the UK electrical wholesale market, and its strip and driver ranges, including LSV05, are built with that same pairing in mind rather than sold as generic tape. Collingwood has also been awarded a Gold medal by EcoVadis, placing it in the top 5% of companies assessed globally for sustainability.

Good to Know

• 3 year warranty from Collingwood.
• Non returnable once the strip has been cut to length.
• IP20 rated, for dry indoor use only. Not suitable for bathrooms or other damp locations.
• Requires a separately sold 24V DC driver. Collingwood recommends using an approved driver with it.
• Class III strip, but it still needs a driver connected to the mains supply. Moonlight Design recommends having that connection done by a registered NICEIC electrician.

Questions People Ask

• Does the LSV05 come with a driver? No, the 24V DC driver is sold separately and needs to be sized to the total length of strip you're powering.
• Can I cut the strip to a custom length? Yes, it's designed to be cut at the marked points along its length, including from the 50m reel, but any length that's been cut can't be returned.
• Is LSV05 suitable for a bathroom? No, it's IP20 rated, which means it's built for dry indoor locations rather than bathrooms or other wet or humid areas.
• Can the strip be dimmed? Yes, provided it's run from a suitable dimmable driver. The strip itself doesn't dim on its own.
• Which colour temperature should I pick? 2700K gives a warmer, softer glow suited to living areas, 3000K is a slightly whiter middle ground, and 4000K is a cooler, brighter white that suits task areas like a kitchen worktop or home office.

8mm width

• Collingwood Strip Light Guide 2025
