LuxR Modux 4 Pole Spot Black or Bronze

Twice the Light in Your Choice of Seven Colours

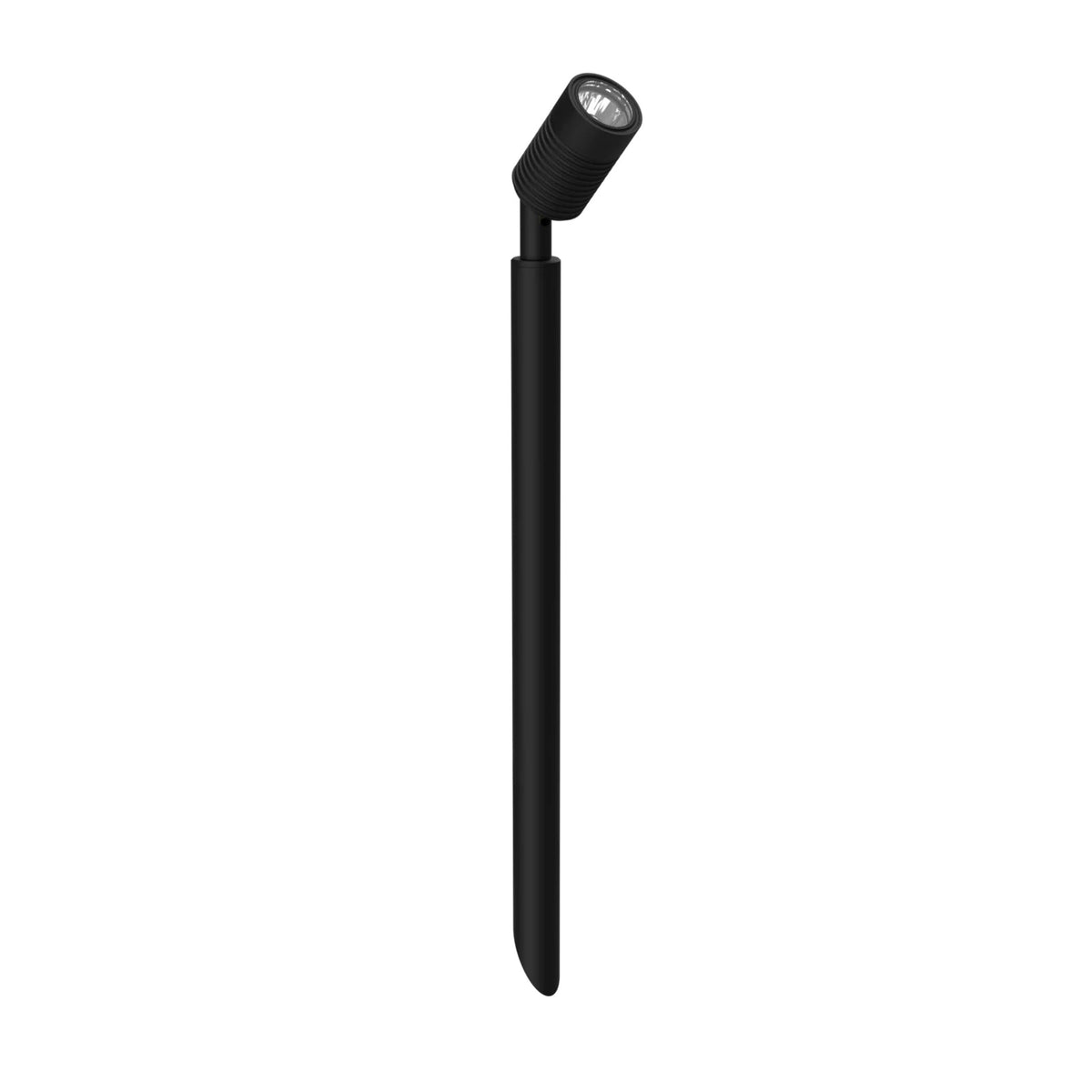

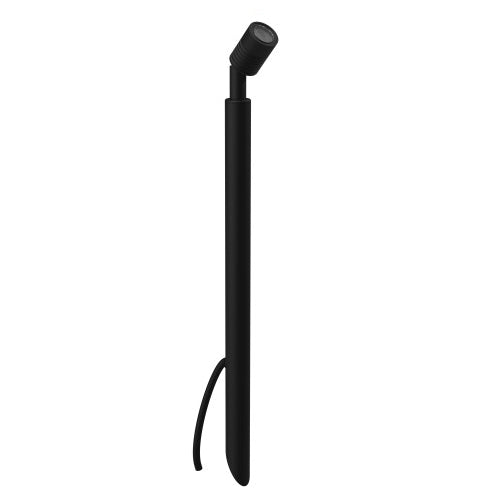

The LuxR Modux 4 Pole Spot in powder coat is a slim low voltage spotlight on a 400mm pole, with a 4 watt LED that gives roughly twice the light of the Modux 2. Seven powder coat colours let you either hide the fitting in the border or match it to the rest of your garden. The head adjusts, so you can aim it exactly where it is needed.

Powder Coated Aluminium

This version is made in aluminium with a UV stable polyester Eco matt powder coat, offered in matt black, matt bronze, matt olive green, matt white, matt white birch, matt dark grey and matt silver star. Matt black is a deep, non reflective black, and matt bronze is a dark brown that sits comfortably beside timber, bark and soil. Inside is a screw mounted 4 watt Cree LED, which the brand states delivers around 360 lumens.

Choose Your Colour, Beam, Temperature and Lens

Colour: select any of the seven powder coat finishes.
Beam: 26º is a narrow beam that reaches up a tall tree, 36º is medium, and 74º is a wide spread for planting.
Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a neutral white.
Lens: clear for the sharpest beam, frosted for softer edges.

How It Works

Push the pole into the soil and tilt the head towards your subject. The fitting runs on low voltage and needs a suitable driver, which is not included. Choose a dimmable driver if you want to dim it. The LED and the optic can be replaced later without changing the fitting.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

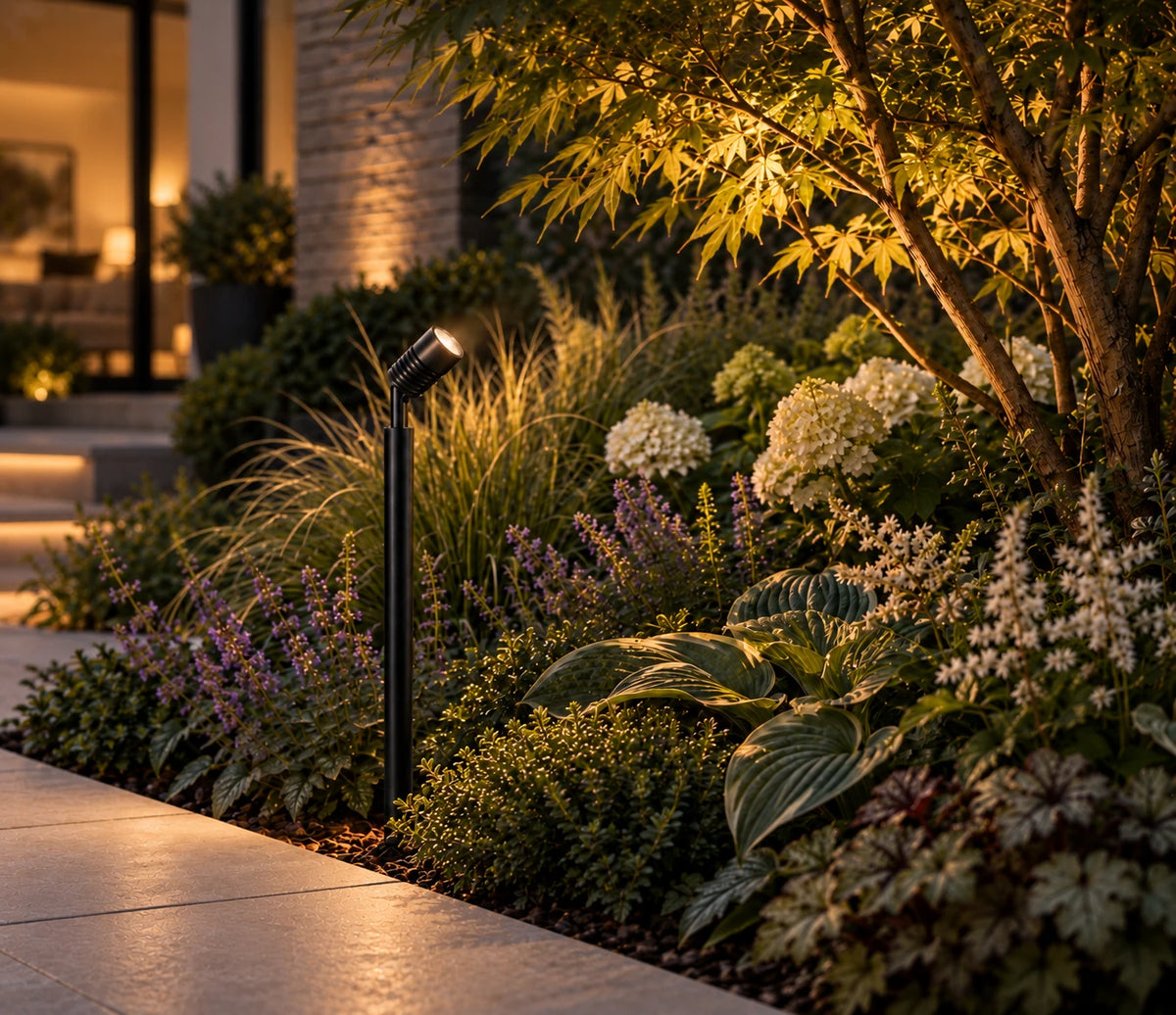

This is the version to pick when you want more output in a colour that suits your scheme: lighting a large tree, washing a wall of planting or picking out a sculpture from a distance. The 400mm pole keeps the head above lower planting. We can also supply longer poles, so please contact us to discuss the length you need.

Good to Know

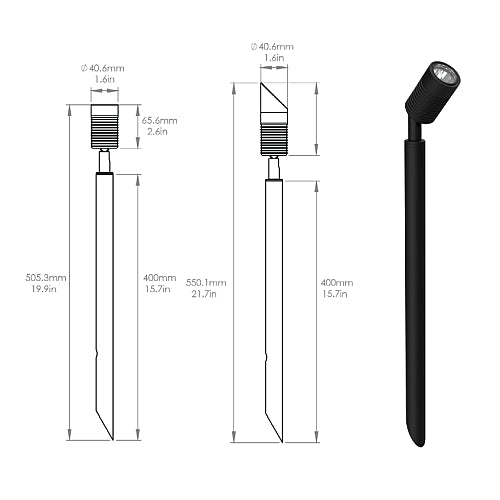

Dimensions: head 40.6mm diameter and 65.6mm long, pole 400mm, overall length 505.3mm. Longer poles are available on request, please contact us.
Rated IP68 for protection against dust and water, so it is built for outdoor use.
Warranty: 5 years on the aluminium, LED and electronics.
Colours marked Non-Returnable in the colour selector cannot be returned once ordered.
Colours shown are for guidance only. Physical colour swatches are available on request.
Made in New Zealand.
Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

What finishes does the M4 powder coat pole spot come in?

Seven finishes: matt black, matt bronze, matt olive green, matt white, matt white birch, matt dark grey and matt silver star. Bronze is a dark brown.

Are physical colour swatches available?

Yes. Colours on screen are for guidance only, and swatches are available on request.

How much brighter is the M4 than the M2?

The M4 has a 4 watt LED that gives around 360 lumens. The M2 has a 2 watt LED that gives around 180 lumens.

Which beam angle suits a tall tree?

A 26º beam reaches furthest and suits a tall, narrow tree. A 36º beam suits a rounder tree, and a 74º beam suits low, wide planting.

How tall is the M4 pole spot?

The pole is 400mm long and the whole fitting measures 505.3mm from the tip of the spike to the top of the head. How much shows above ground depends on how deep you push it into the soil.

Is a driver included?

No. It is a low voltage fitting and needs a suitable driver, sold separately. We recommend a registered electrician installs it.

Can I get a longer pole?

Yes. We can supply longer poles, so please contact us with the length you need.
