LuxR Modux 2 Wall Down Light - Brass - Low Voltage

A Compact Wall Down Light With a Clean, Minimal Form

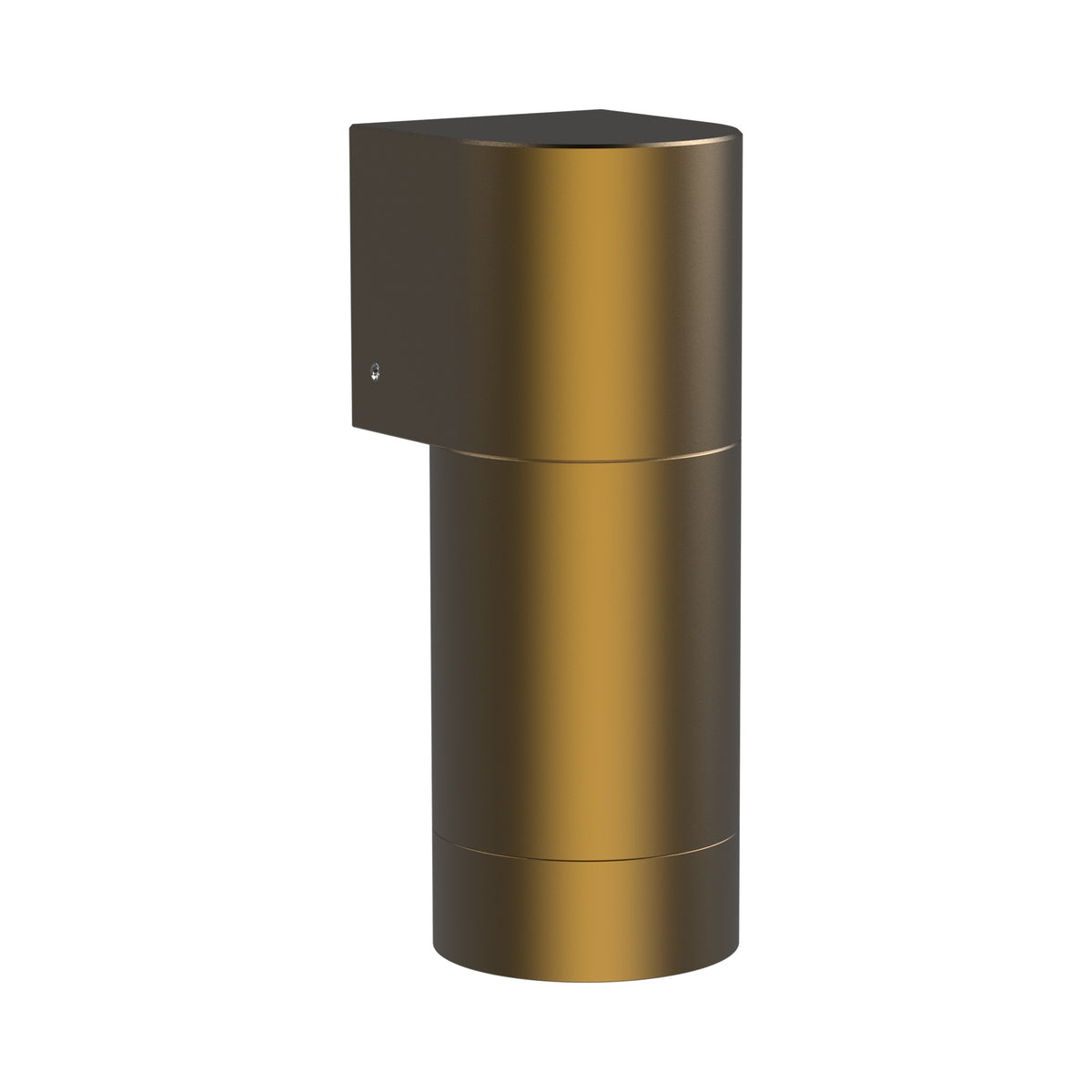

The LuxR Modux 2 Wall Down Light is a small, discreet cylinder that fixes to the wall and sends a controlled beam of light down it. It is only 40.6mm across, so it highlights textured brick, render or stone, picks out steps and paths, and shows off architectural detail without drawing attention to itself.

Solid Brass

This version is made in solid brass, which has a warm gold colour and develops a natural patina as it ages outdoors. The plain cylinder suits traditional and contemporary buildings alike. The light source is a screw mounted 2 watt Cree LED, which the brand states delivers around 175 lumens with a CRI of 90+.

Choose Your Beam, Colour and Lens

• Beam: 26º is a narrow beam that draws a tight line of light down the wall, 36º is a medium spread, and 74º is a wide wash.
• Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
• Lens: clear glass gives the sharpest beam, and frosted glass softens its edges.

How It Works

The fitting fixes to the wall with a mounting plate. It runs on low voltage from a 700mA constant current driver, which is sold separately. A dimmable driver lets you dim the light. The LED can be replaced later, so you can change the colour or the beam without buying a new fitting.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

Use it beside a door, along a garden wall, at the side of steps or on a terrace, wherever you want light to fall down a wall surface. A glare guard or a snoot can be added if you want tighter control of the light. Please contact us to check the right accessory for this fitting.

Good to Know

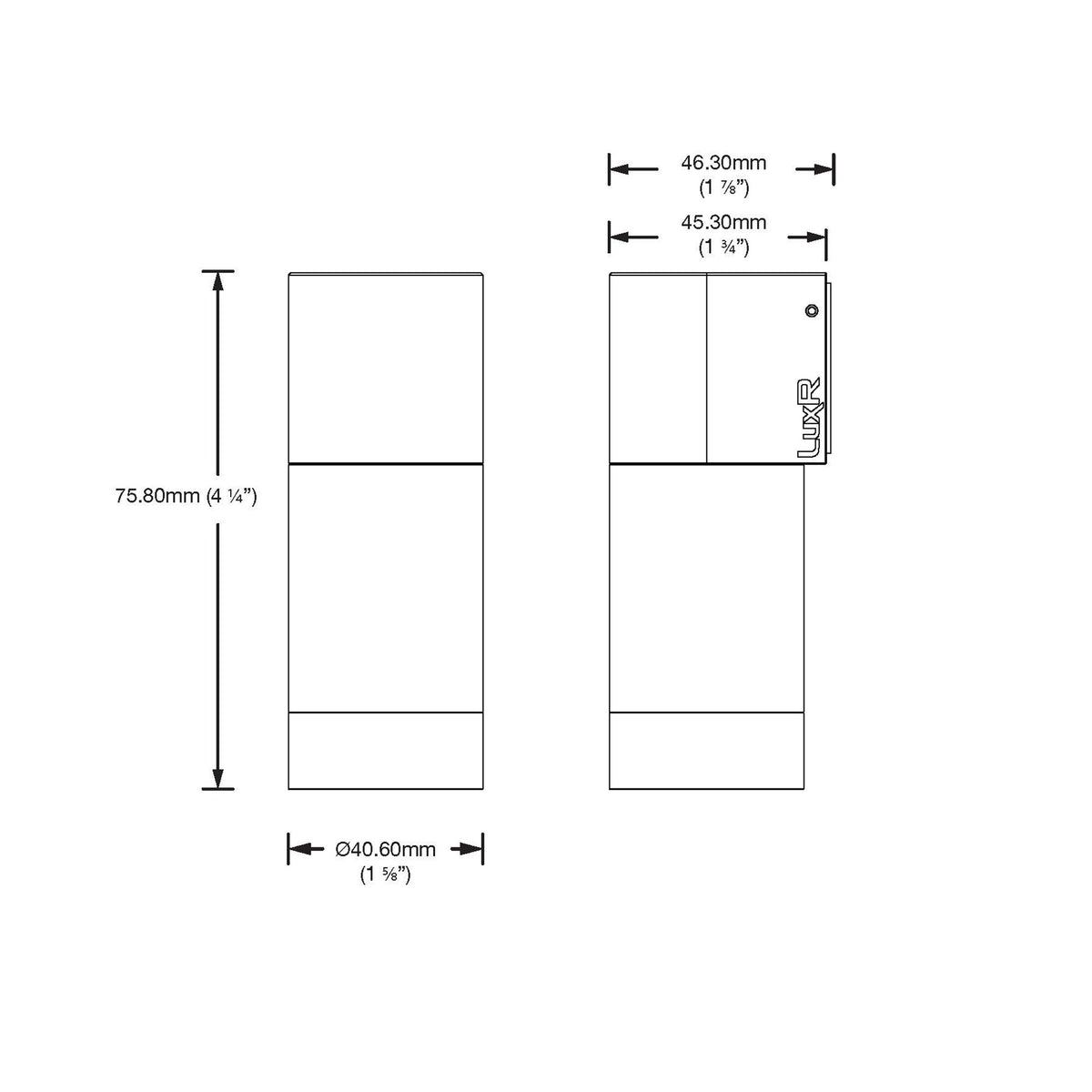

• Dimensions: 75.8mm high, 40.6mm diameter, projecting 46.3mm from the wall (45.3mm for the body).
• Rated IP66 for protection against dust and water, so it is built for outdoor use.
• Warranty: 10 years on the brass, with 5 years on the LED and electronics.
• Returns are accepted as normal, unless the item is made to order.
• Made in New Zealand.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

What does the M2 wall down light do?

It is a small wall mounted cylinder that throws light downwards, so it grazes the wall below it. It suits doorways, steps, paths and architectural detail.

Which beam angle should I choose?

Choose 26º for a narrow stripe of light, 36º for a medium spread, and 74º for a broad wash across the wall.

Does the wall down light come with a driver?

No. It is a low voltage fitting that needs a suitable 700mA constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered electrician installs it.

How big is it?

The body is 75.8mm high and 40.6mm across, and it projects 46.3mm from the wall including the mounting plate.

Will the brass change colour?

Yes. Solid brass ages naturally outdoors and develops a patina over time, so its look will soften and deepen.

Can I change the LED later?

Yes. The 2 watt Cree LED can be replaced, so the colour or beam can be changed without a new fitting.

Height: 75.8mm
Diameter: 40.6mm
Projection from wall: 46.3mm (body 45.3mm)
