LuxR Modux 2 Spot with Bracket & Spike - Powder Coat - Low Voltage

A Powder Coated Spot Supplied with a Bracket and a Spike

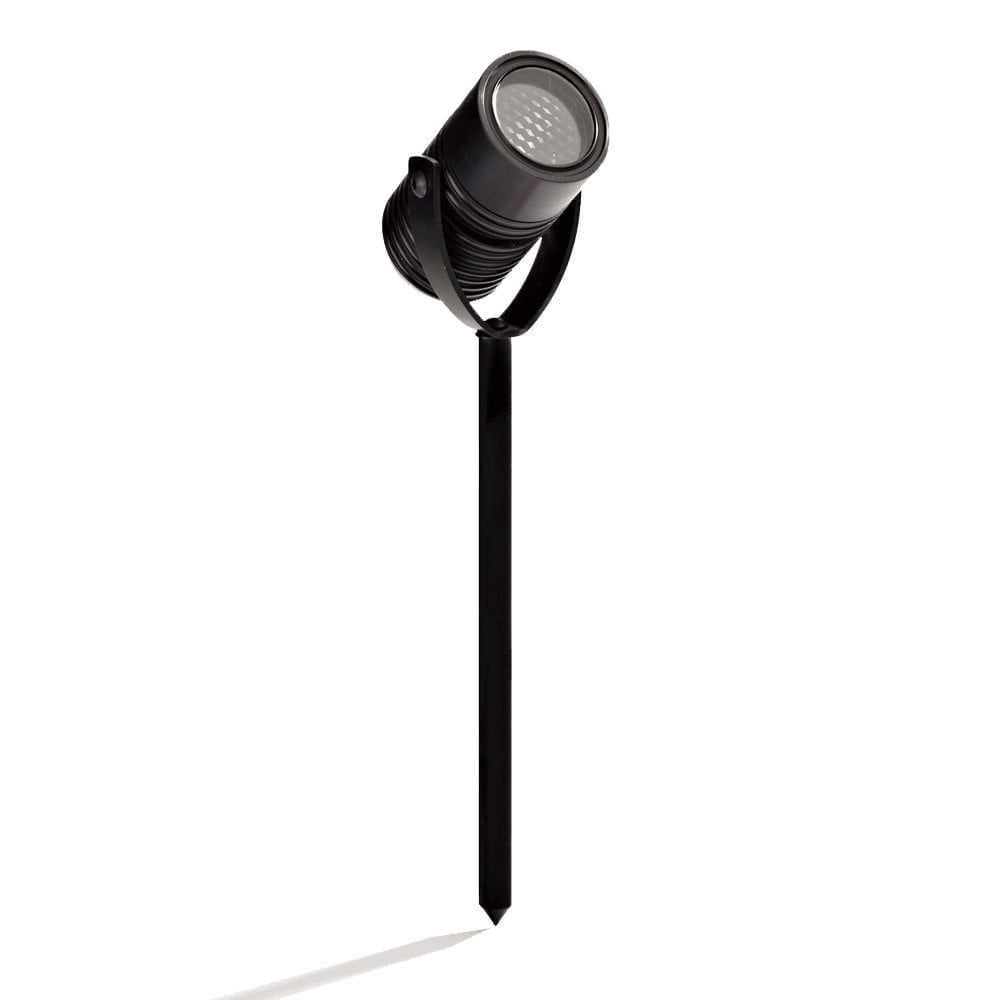

The LuxR Modux 2 Spot with Bracket and Spike is a very small low voltage outdoor spotlight. As the name says, it comes with both a bracket and a solid 175mm spike, so the same fitting can go into garden soil or be fixed in place with the bracket. The body is 41mm across and 65mm long.

UV Powder Coated Aluminium in Four Colours

This version is made from aluminium with a UV powder coat in Matt Black, Matt Bronze, Matt White or Matt Dark Grey. That makes it easy to match to a fence, a wall or a planter. The light source is a 2 watt Cree LED with a CRI of 90 plus, so plants and stonework look true to colour.

Choose Your Colour, Beam and Lens

• Powder coat colour: Matt Black is the most discreet at night, Matt Bronze is a warmer tone, and Matt White and Matt Dark Grey suit lighter or cooler schemes.

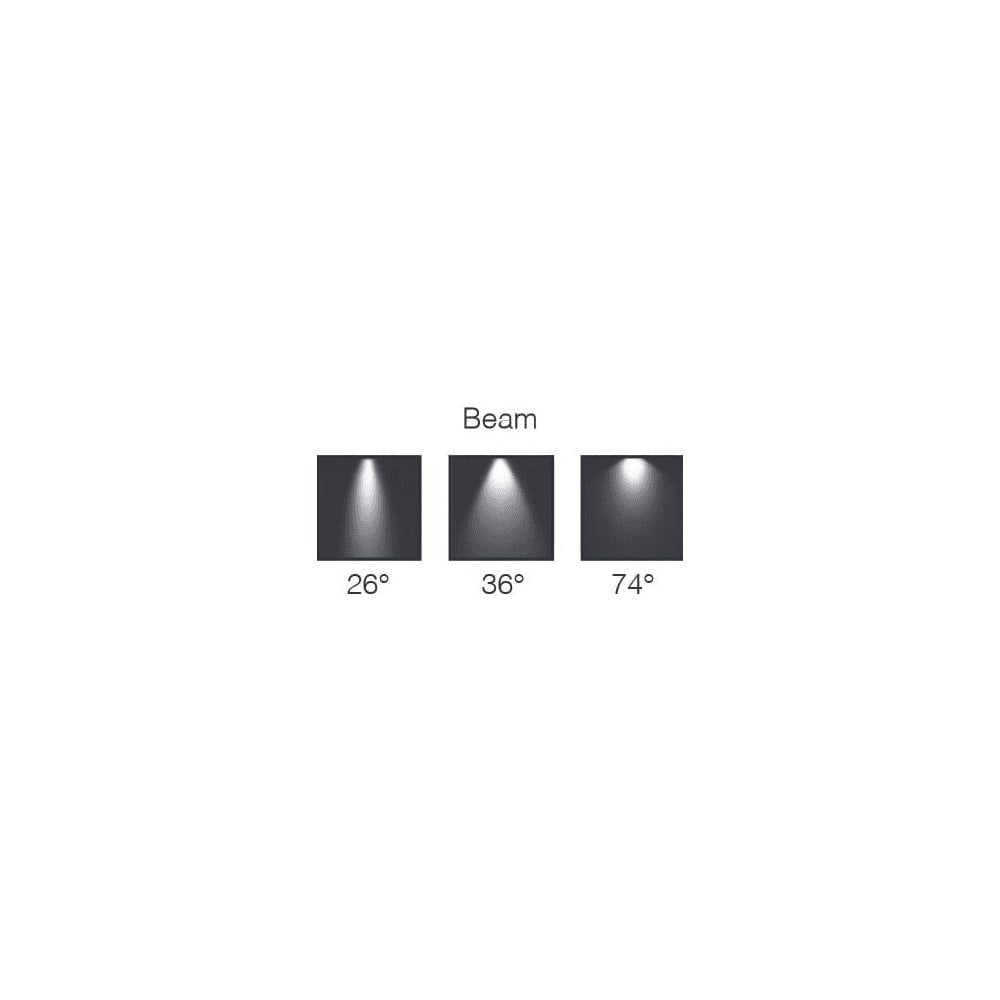

• Beam: 26º is the narrowest beam for a single feature, 36º is a little wider, and 74º spreads the light across a broader area.
• Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
• Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

Fit the head on the spike or the bracket and angle it towards your subject. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

It is useful where you may want to light from a border one day and from a wall or post the next, or where a spike alone is not enough. Moonlight Design uses LuxR fittings in its own garden lighting designs and installations. The same design is also available as the M1 and M4.

Good to Know

• Dimensions: body 41mm diameter and 65mm long, spike 175mm. Supplied with 1m of H05RN-F cable.
• Rated IP68 for protection against dust and water, so it is built for outdoor use.
• 2 watt LED at 85 lumens per watt, low voltage, series wiring.
• Warranty: 5 years.
• Colours marked Non-Returnable in the colour selector cannot be returned once ordered.
• Colours shown are for guidance only. Physical colour swatches are available on request.
• Designed, engineered and hand assembled in Auckland, New Zealand, by the makers of Hunza.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

What comes in the box with the bracket and spike version?

The spot is supplied with a bracket and a spike, along with 1m of H05RN-F cable. A driver is not included.

What colours can I choose?

Matt Black, Matt Bronze, Matt White and Matt Dark Grey. Matt White and Matt Dark Grey are marked Non-Returnable in the colour selector.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered NICEIC electrician installs it.

Which beam angle should I choose?

Choose 26º to light a single feature, 36º for a shrub or small tree, and 74º for a wider spread.

Can I change the LED later?

Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Body 41mm diameter, 65mm length / Spike 175mm length (refer to spec for more information) & H05RN-F 1m Included

• M2 Spotlight
