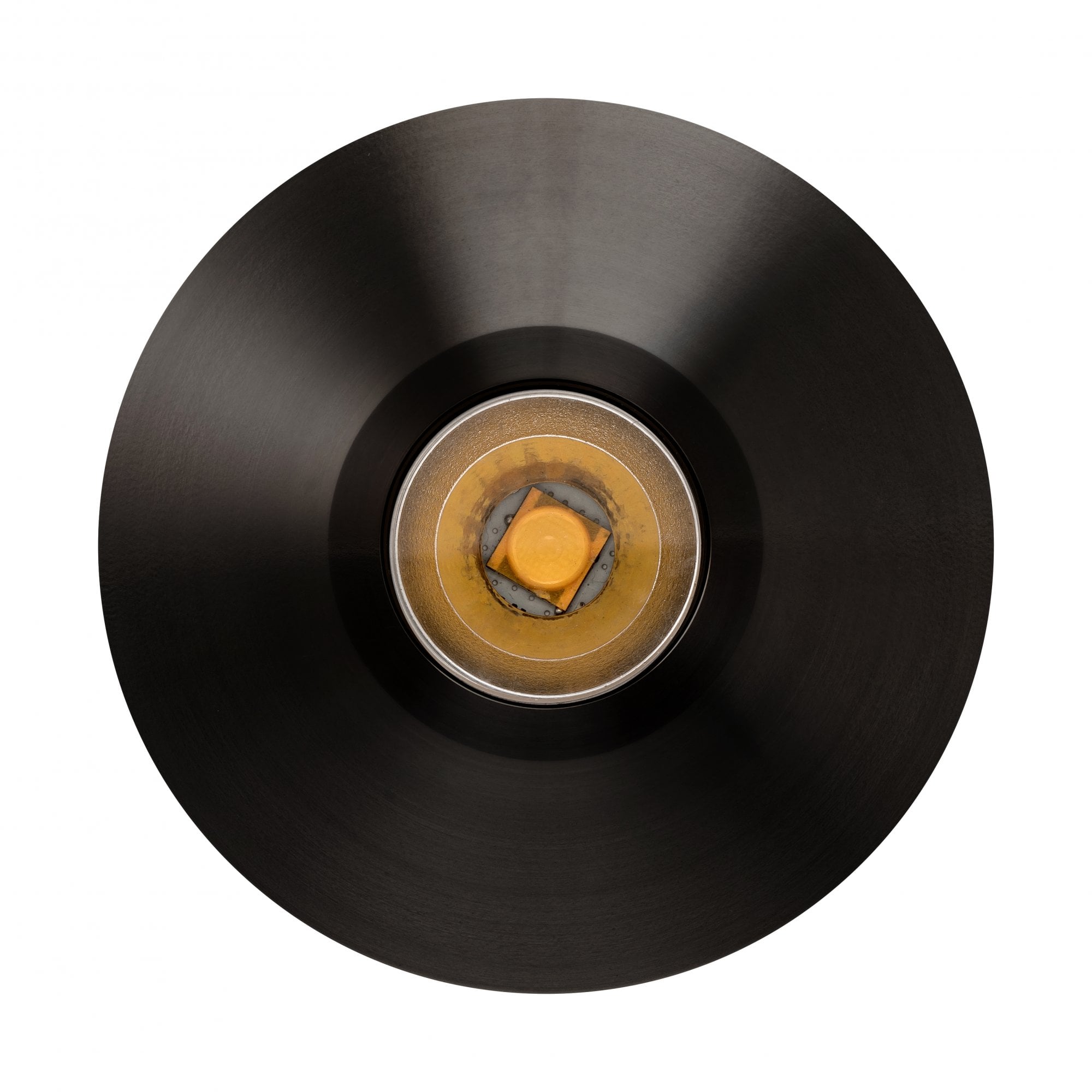

LuxR Modux 2 Large Round Recessed - Powder Coat - Low Voltage

A Larger Powder Coated Round Recessed Spotlight

The LuxR Modux 2 Large Round Recessed is a small low voltage recessed spotlight with a flange diameter of 75mm, compared with 58mm for the regular M2 round recessed. That extra width is useful when the mounting hole is generous or when hole coverage is a priority.

UV Powder Coated Aluminium in Four Colours

This version is machined from aluminium and finished in a UV powder coat, so the wide flange can match the surface around it. Choose from Matt Black, Matt Bronze, Matt Dark Grey or Matt White. The light source is a 2 watt Cree LED with a CRI of 90 plus, and the fitting is rated IP68.

Choose Your Colour, Beam and Lens

• Colour: Matt Black and Matt Bronze blend into dark surfaces, while Matt Dark Grey and Matt White suit lighter ones.

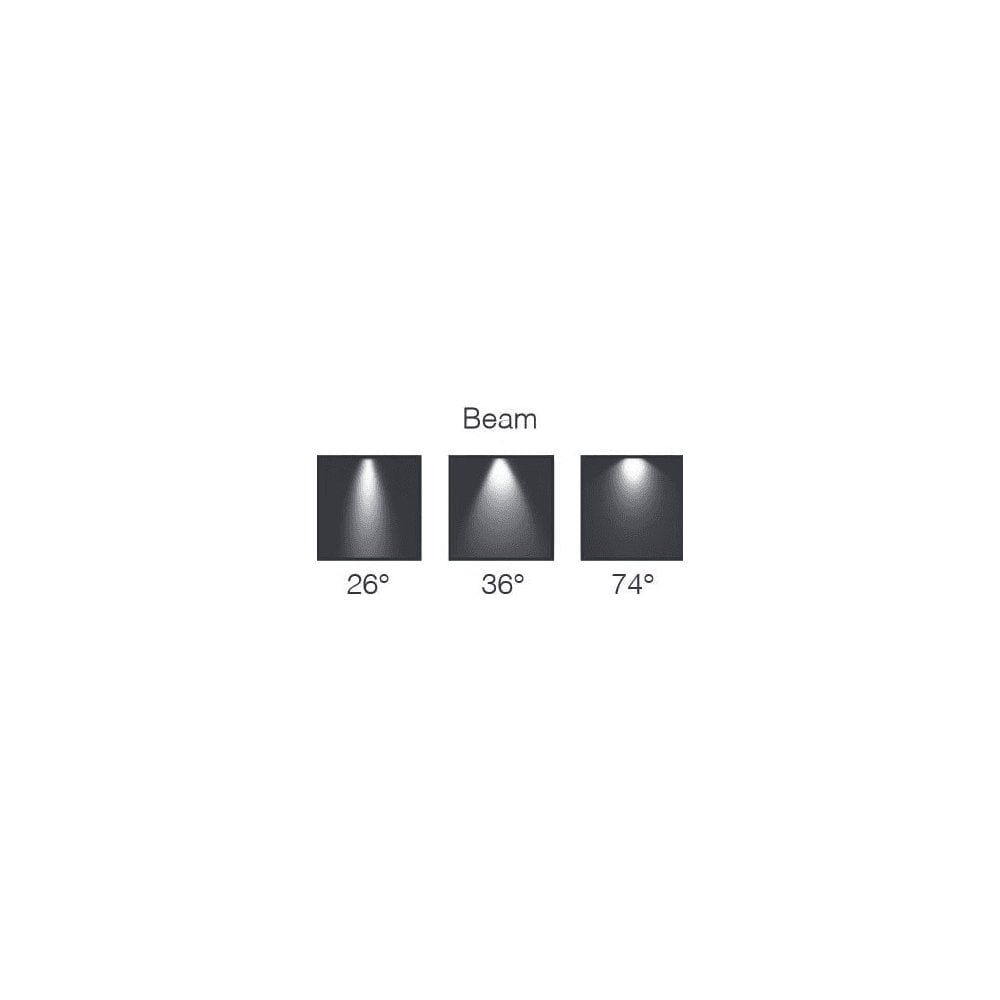

• Colour temperature and beam: choose 2200K, 2700K, 3000K or 4000K together with a 26º, 36º or 74º beam. 26º is narrow, 36º is medium and 74º is a wide wash. 2200K is a very warm glow and 4000K is a crisper neutral white.
• Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

The recessed body is 41mm in diameter and 62mm long, and sits in a 43.5mm cut out, with the larger flange covering the edge of the hole. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

Use it in walls, steps, paving and painted surfaces where you want a coloured flange to blend in. It is also available in M4.

Good to Know

• Size: 75mm flange diameter, 3mm deep. Recessed body 41mm diameter and 62mm long. Cut out 43.5mm.
• Rated IP68 for protection against dust and water.
• 2 watt LED at 85 lumens per watt, low voltage, series wiring. Supplied with 1m of H05RN-F cable.
• Warranty: 5 years.
• Colours marked Non-Returnable in the colour selector cannot be returned once ordered.
• Colours shown are for guidance only. Physical colour swatches are available on request.
• Made in New Zealand by the makers of Hunza.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

How big is the large round recessed?

The flange is 75mm in diameter, compared with 58mm for the regular M2 round recessed. The cut out is 43.5mm.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered electrician installs it.

Which colours are available?

Matt Black, Matt Bronze, Matt Dark Grey and Matt White. Matt Dark Grey and Matt White are marked Non-Returnable in the colour selector.

Which beam angle should I choose?

Choose 26º for a tight beam on one feature, 36º for a medium spread, and 74º for a wide wash across a larger area.

Can I change the LED later?

Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Recessed Body
Diameter: 41mm
Length: 62mm
Cut-Out: 43.5mm

Flange
Diameter: 75mm
Depth: 3mm

Cable: Supplied with H05RN-F 1m
(refer to spec for more information)
