LuxR Modux 1 Step Light Solid Eyelid - Copper - Low Voltage

A Compact Copper Step Light with an Eyelid

The LuxR Modux 1 Step Light Solid Eyelid is an extra compact recessed light for steps, paths and bordered areas where the fitting needs to be unobtrusive. The eyelid shields the light source so no light is thrown upwards, which gives a precise, glare free effect on the tread below.

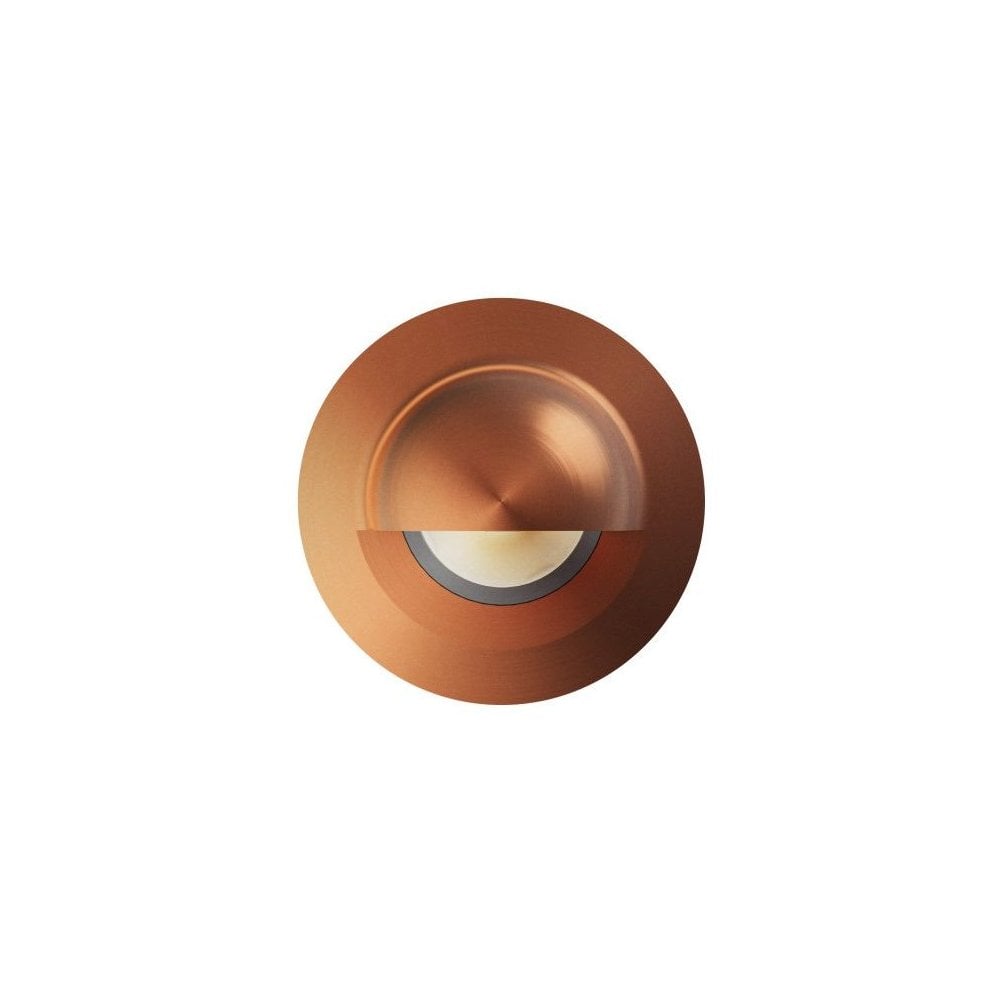

Solid Copper That Ages Beautifully

This version is made from copper. It starts out warm and bright, then gradually develops a natural patina outdoors, so it settles into the stonework rather than standing out from it. The light source is a 1 watt Cree LED with a CRI of 90 plus.

Choose Your Colour Temperature

• 2200K: a very warm glow.
• 2700K and 3000K: warm white.
• 4000K: a crisper neutral white.

How It Works

Fit the body into a 34.5mm cut out in the riser or wall, with the flange sitting around the edge. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied, and the Cree LED can be replaced or swapped for a colour LED.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

Use it in step risers, low walls and the edges of paths, where you want a pool of light on the ground without seeing the source. If you want more output, the same design is also available as the larger M2 and M4.

Good to Know

• Dimensions: recessed body 32mm diameter and 38.5mm long, cut out 34.5mm, flange 43mm diameter and 19mm deep. Supplied with 1m of H05RN-F cable.
• Rated IP68 for protection against dust and water, so it is built for outdoor use.
• 1 watt LED at 80 lumens per watt, low voltage, series wiring.
• Warranty: 10 years on the body, with 5 years on the LED.
• Made in Auckland, New Zealand, by the makers of Hunza.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

What does the eyelid do?

The eyelid shields the light source so that no light goes upwards. The light falls on the step or path below, which keeps glare down.

What size hole do I need?

The cut out is 34.5mm. The recessed body is 32mm in diameter and 38.5mm long, and the flange is 43mm in diameter and 19mm deep.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered NICEIC electrician installs it.

Will the copper change colour?

Yes. Copper develops a natural patina outdoors over time, so the finish will soften and darken gradually. This is normal and is part of its appeal.

Can I change the LED later?

Yes. The Cree LED can be replaced or swapped for a colour LED.

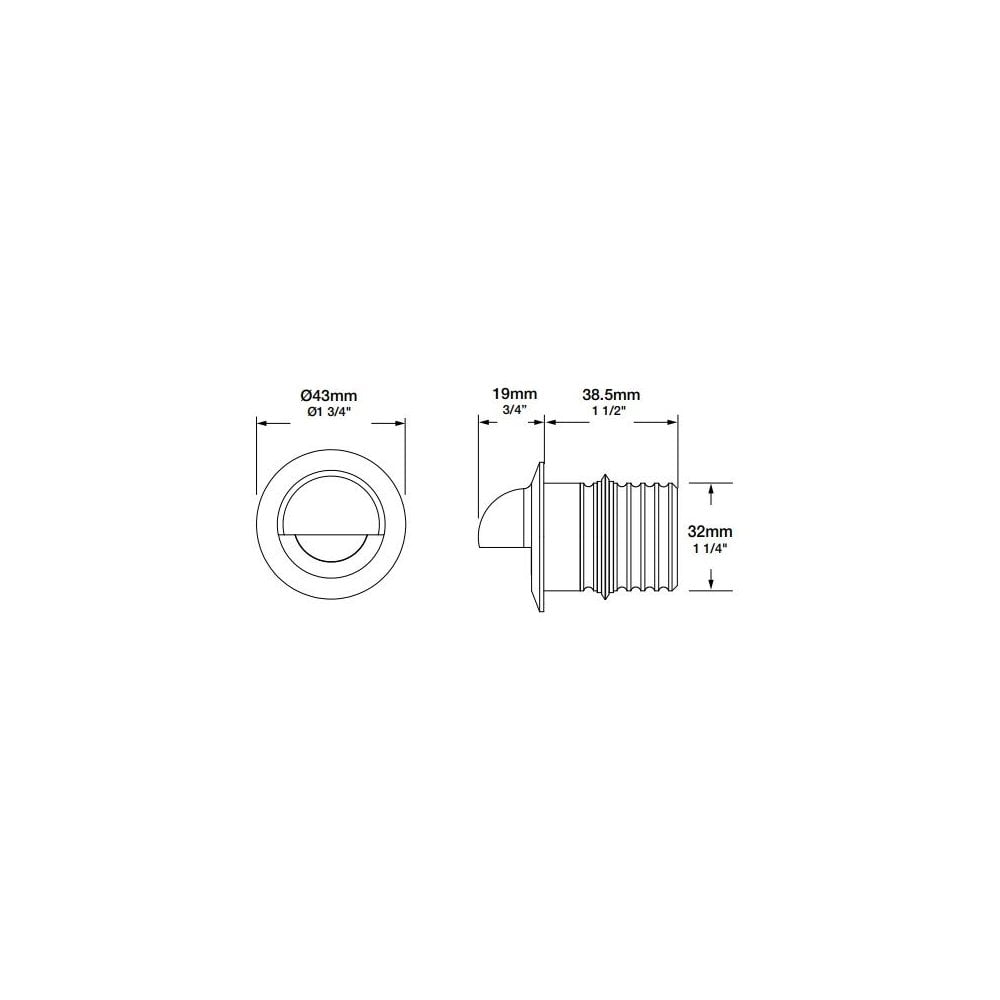

Recessed Body
Diameter: 32mm
Length: 38.5mm
Cut-Out: 34.5mm

Flange
Diameter: 43mm
Depth: 19mm

Cable: Supplied with H05RN-F 1m
(refer to spec for more information)

• M1 Step Light Solid Eyelid
