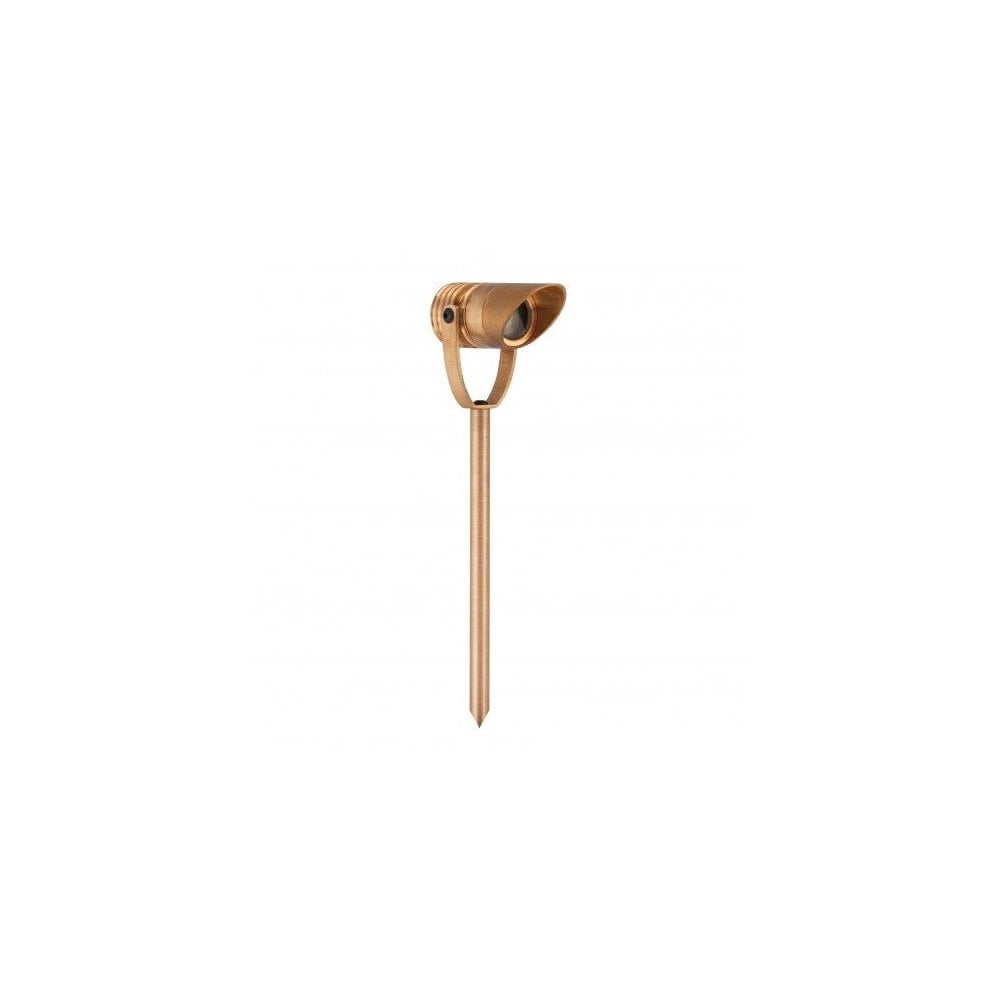

LuxR Modux 1 Spike Spot with Glare Guard - Copper - Low Voltage

A Tiny Copper Spike Spot with a Glare Guard

The LuxR Modux 1 Spike Spot with Glare Guard is a very small low voltage garden spotlight on a solid 175mm spike that pushes into the soil. The body is only 31mm across and 42mm long. The glare guard shades the lens, so the light lands on your plants rather than in your eyes.

Solid Copper That Ages Beautifully

This version is made from copper. It starts out warm and bright, then gradually develops a soft natural patina outdoors, so it settles into the border over time. The light source is a 1 watt Cree XPG-3 LED with a CRI of 90 plus, which helps plants and stonework look true to colour.

Choose Your Beam, Colour and Lens

• Beam: 30º is a narrow beam for a single feature, 53º is wider for a larger shrub, and the oval beam stretches the light into a flatter shape for walls and hedges.
• Colour temperature: 2200K is a very warm glow that suits copper well, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
• Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

Push the spike into the soil and angle the head towards your subject. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

This is a good choice for borders next to seating areas or paths, where the light may be seen from the side and a bare lens could dazzle. It also suits small pots, steps and the base of a tree. The same design is also available as the larger M2 and M4. Moonlight Design uses LuxR in its own garden lighting designs and installations.

Good to Know

• Dimensions: body 31mm diameter and 42mm long, spike 175mm. Supplied with 1m of H05RN-F cable.
• Rated IP68 for protection against dust and water, so it is built for outdoor use.
• 1 watt LED at 80 lumens per watt, low voltage, series wiring.
• Warranty: 10 years on the body, with 5 years on the LED.
• Made in New Zealand by the makers of Hunza.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

What does the glare guard do?

It shades the lens to cut glare when you look towards the light, so it is more comfortable beside seating and paths.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered electrician installs it.

Will the copper change colour?

Yes. Copper develops a natural patina outdoors over time, so the finish softens and darkens gradually. This is normal.

Which beam angle should I choose?

Choose 30º for a single feature, 53º for a larger shrub or small tree, and the oval beam for a broader, flatter wash across a wall or hedge.

31mm diameter, 42mm body length, 175mm spike (refer to spec for more information) & H05RN-F 2x 0.75mm (1m Included)

• M1 Spotlight
