LuxR Modux 1 Round Recessed - Powder Coat - Low Voltage

A Tiny Round Recessed Spotlight in Four Powder Coat Colours

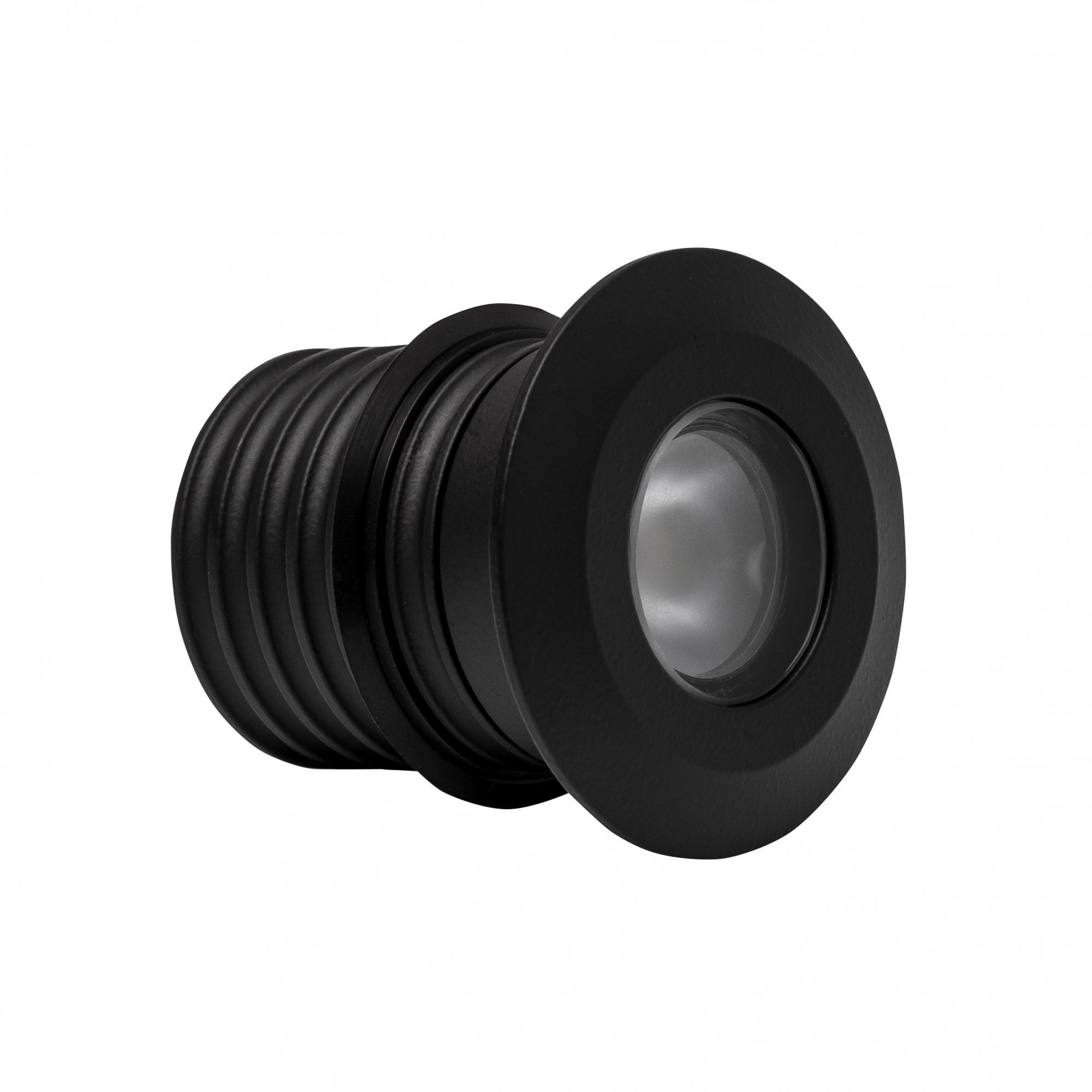

The LuxR Modux 1 Round Recessed is a very small low voltage outdoor spotlight that sits flush in a surface. The body is 31mm across and 38.5mm long, with a round flange 43mm wide that finishes the edge of the hole.

UV Powder Coated Aluminium

This version is UV powder coated aluminium, so you can match the ring to the surface around it. The light source is a 1 watt Cree XPG-3 LED with a CRI of 90 plus, which helps materials look true to colour. The same fitting is also made in copper and stainless steel.

Choose Your Colour, Beam and Lens

• Powder coat colour: Matt Black is the darkest and quietest, Matt Bronze is a warmer tone, Matt White (Non-Returnable) suits pale surfaces, and Matt Dark Grey (Non-Returnable) is a softer alternative to black.
• Beam and colour temperature: 15º is the tightest beam, 30º suits a single feature, 53º is wider, and oval gives a flatter spread. 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
• Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

Cut a 34.5mm hole, push the fitting in and the flange sits against the surface. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

This is a good choice where you want light without seeing the fitting, such as in paving, decking, walls or steps. Picking a colour close to the surface helps it blend in. The same design is also available as the larger M2 and M4. Moonlight Design uses LuxR in its own garden lighting designs and installations.

Good to Know

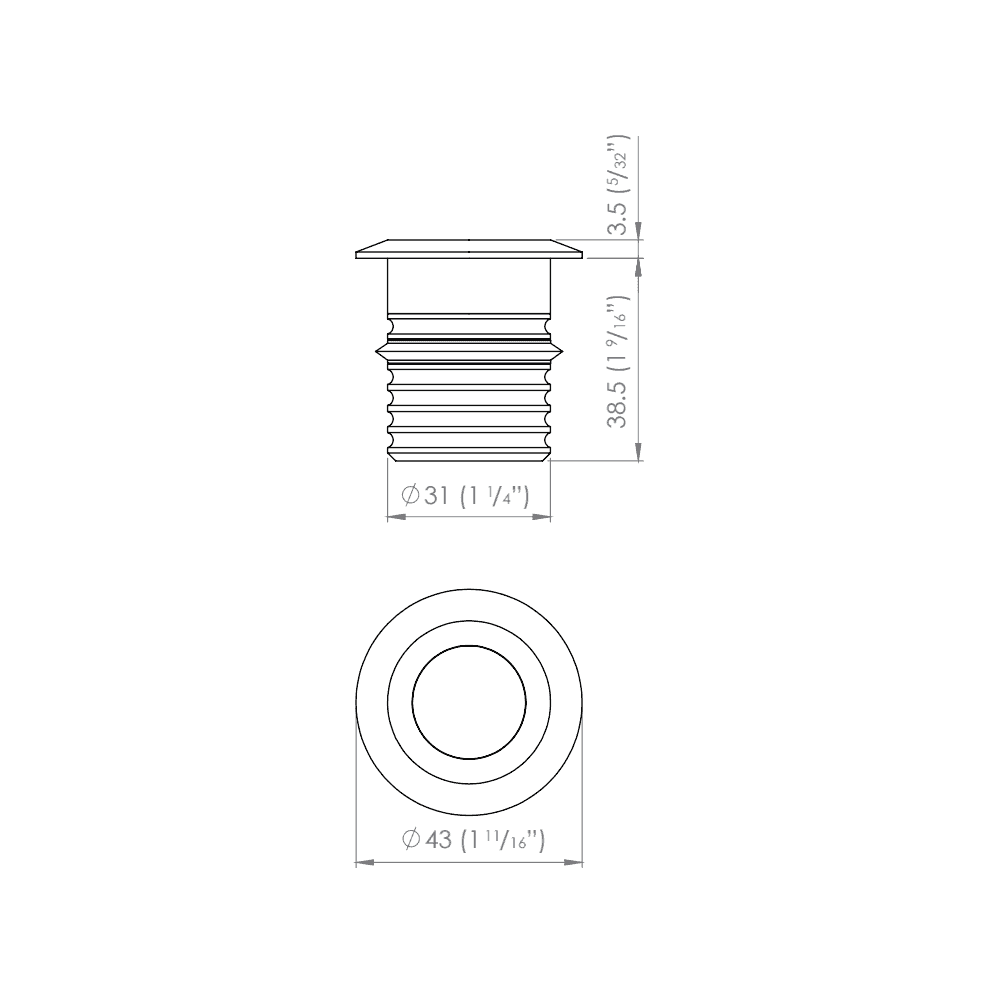

• Dimensions: recessed body 31mm diameter and 38.5mm long, cut out 34.5mm, flange 43mm diameter and 3.5mm deep. Supplied with 1m of H05RN-F cable.
• Rated IP68 for protection against dust and water, so it is built for outdoor use.
• 1 watt LED at 80 lumens per watt, low voltage, series wiring.
• Warranty: 5 years.
• Made in New Zealand by the makers of Hunza.
• Colours marked Non-Returnable in the colour selector cannot be returned once ordered.
• Colours shown are for guidance only. Physical colour swatches are available on request.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

What size hole do I need for the powder coated round recessed light?

The cut out is 34.5mm. The body is 31mm across and the flange is 43mm wide.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered electrician installs it.

Which colours cannot be returned?

Matt White and Matt Dark Grey are marked Non-Returnable in the colour selector, so they cannot be returned once ordered. Physical colour swatches are available on request.

Which beam angle should I choose?

Choose 15º for a tight, narrow beam, 30º for a single feature, 53º for a wider spread, and oval for a broader, flatter wash.

Recessed Body
Diameter: 31mm
Length: 38.5mm
Cut-Out: 34.5mm

Flange
Diameter: 43mm
Depth: 3.5mm

Cable: Supplied with H05RN-F 1m
(refer to spec for more information)
