LuxR Modux 1 with Bracket - Copper - Low Voltage

A Tiny Copper Spotlight on a Fixing Bracket

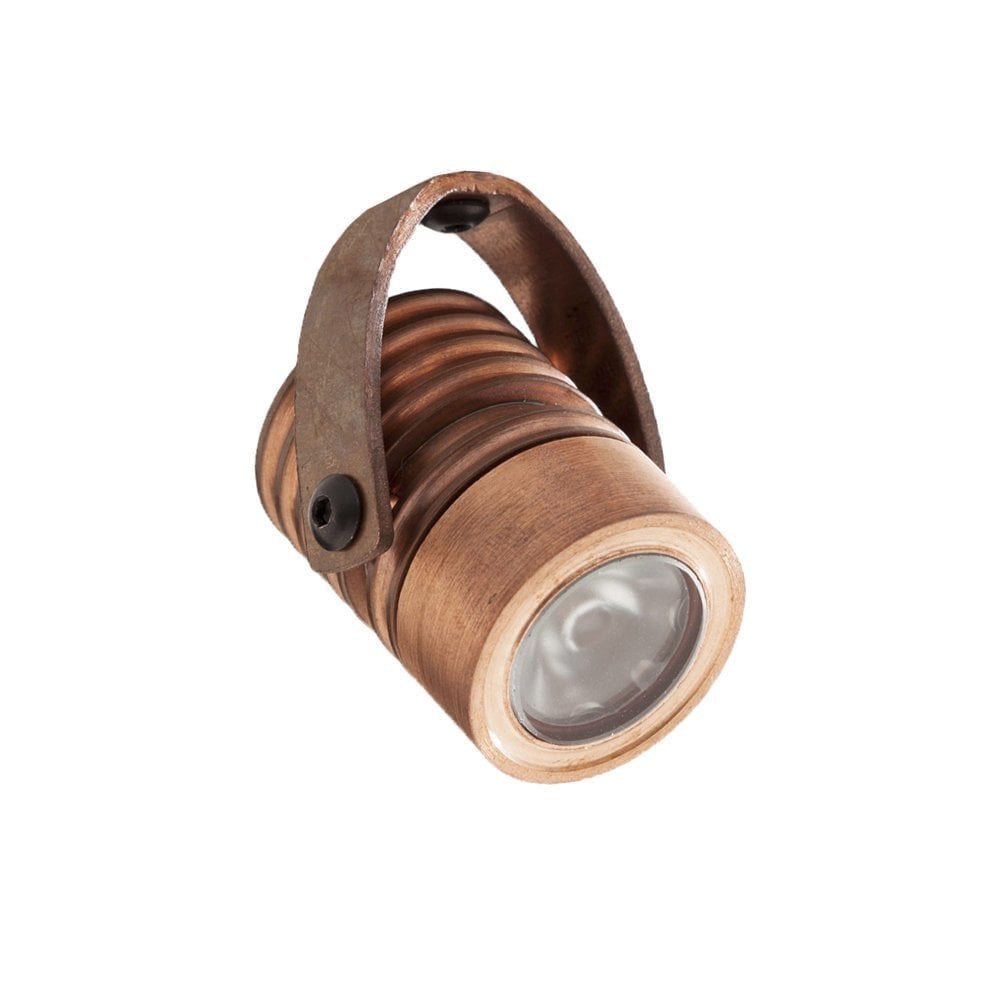

The LuxR Modux 1 with Bracket is a very small low voltage spotlight on a stiff metal bracket. It fixes to almost any surface with a single 4mm diameter screw, so you can mount it on a fence, wall, pergola or timber post and aim it where you need it. The head is only 31mm across and 42mm long.

Solid Copper That Ages Beautifully

This version is made from copper. It starts out warm and bright, then gradually develops a natural patina outdoors, so it settles into the garden rather than standing out from it. The light source is a 1 watt Cree LED with a CRI of 90 plus.

Choose Your Beam, Colour and Lens

• Beam: 30º is a narrow beam for a single feature, 53º is wider, and the oval beam stretches the light into a wider, flatter shape.
• Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
• Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

Screw the bracket to your surface and angle the head towards your subject. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

Use it where a spike is not practical, such as lighting a tree from a post or washing a fence or wall from a short distance. If you want more output, the same design is also available as the larger M2 and M4.

Good to Know

• Dimensions: body 31mm diameter and 42mm long. Supplied with 1m of H05RN-F cable.
• Rated IP68 and submersible up to 9m, so it is built for outdoor use.
• 1 watt LED at 80 lumens per watt, low voltage, series wiring.
• Warranty: 10 years on the body, with 5 years on the LED.
• Made in Auckland, New Zealand, by the makers of Hunza.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

How do I fix the bracket?

The stiff metal bracket fixes to any surface with a 4mm diameter screw. The head can then be angled towards your subject.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered NICEIC electrician installs it.

Which beam angle should I choose?

Choose 30º to light a single feature, 53º for a larger shrub or small tree, and the oval beam for a broader, flatter wash across a wall or hedge.

Will the copper change colour?

Yes. Copper develops a natural patina outdoors over time, so the finish will soften and darken gradually. This is normal and is part of its appeal.

Can I change the LED later?

Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Body
Diameter: 31mm
Length: 42mm

(refer to spec for more information)

Cable: Supplied with H05RN-F 1m

• M1 Spotlight
