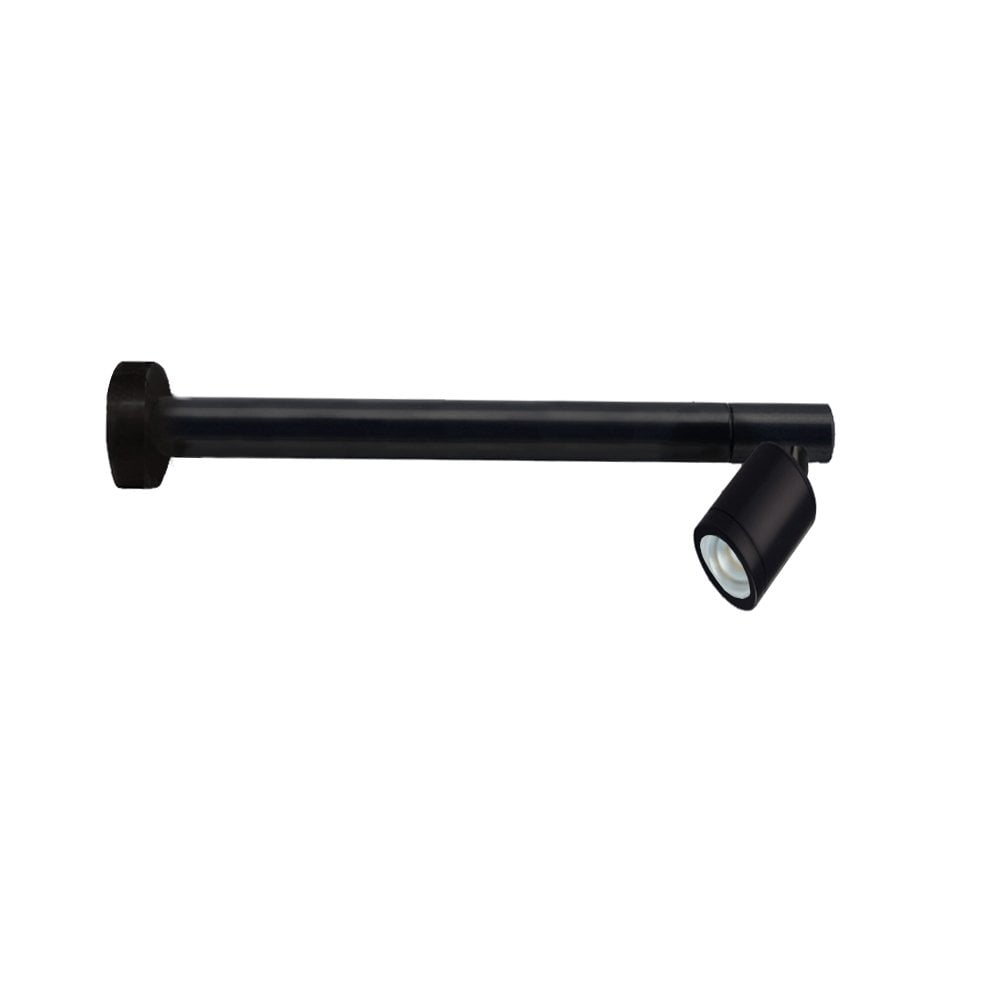

Hunza Pure LED Sign Light Powder Coat

A Sign Light in Your Choice of Colour

The Hunza Pure LED Sign Light in powder coated aluminium is designed to illuminate signs, wall displays and building features, and Hunza also suggests it for lighting external barbecues. Its head can be aimed precisely from the end of a 500mm arm, and with seven colours to pick from you can have the fitting disappear into the wall or match the paintwork around it. It is the low voltage version with the LED board built in.

Baked On Powder Coat in Seven Colours

Choose from Black, Dark Grey, White, Birch, Bronze, Olive Green or Silver Star. The body and 500mm pole are solid aluminium, finished in a high UV resistant polyester powder coat. The shades are indicative only, so ask for swatches if you want to compare. If it is unused, uninstalled and in its original packaging, a Matt Black or Matt Bronze fitting can be sent back within 14 days of delivery. The Matt Olive Green, Matt White, Matt White Birch, Matt Dark Grey and Matt Silver Star versions are built to order, so they cannot be returned unless faulty or damaged.

How It Works

The head turns 360 degrees and tilts from 0 to 90 degrees on a solid brass knuckle with an anti rust spring.
The Cree XHP-50-2 LED board is field replaceable and rated at 600 lumens at 1050mA (6 watts) with CRI 90 or more at 3000K. Rated life is 50,000 hours to L70.
Colour temperatures are 2200K, 2700K, 3000K and 4000K, with beam angles of 15, 25, 38 and 60 degrees and a choice of clear or frosted lens. The step lens is 10mm extra clear, low iron, shatter resistant glass.

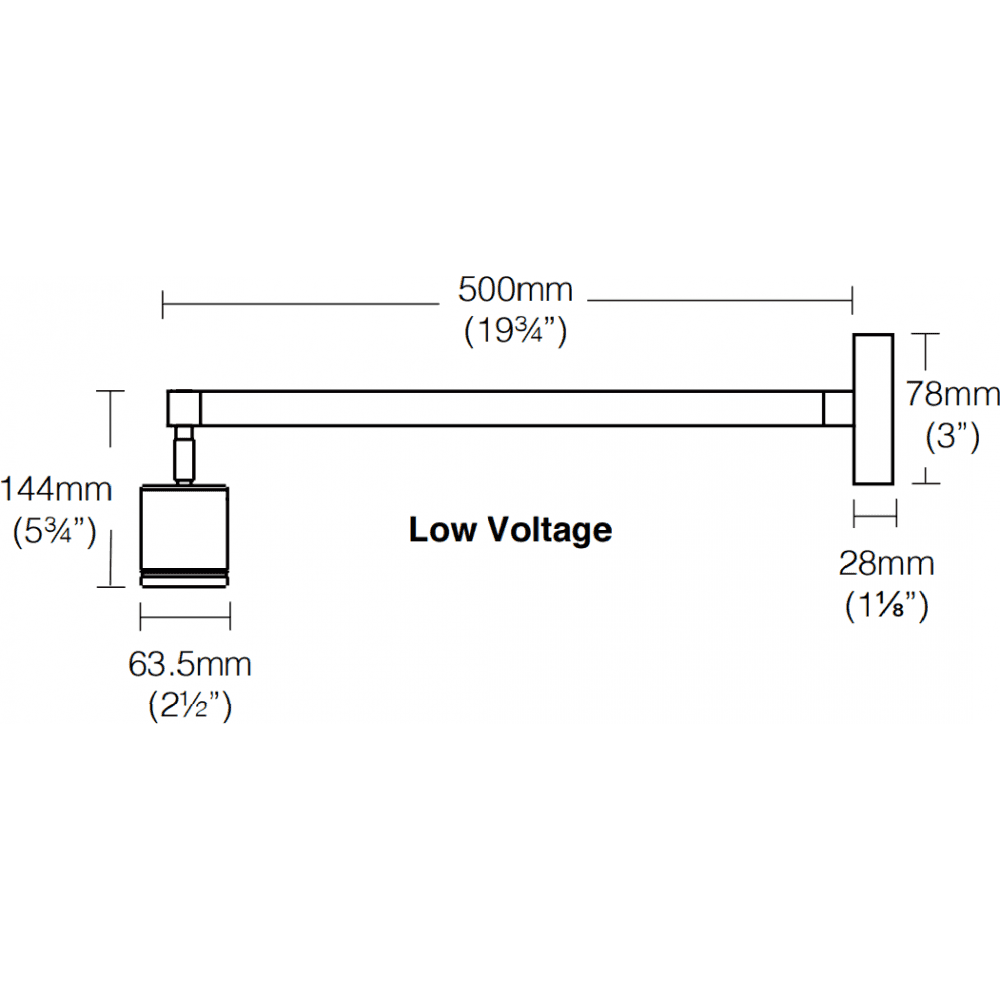

Head 63.5mm diameter by 75mm long, a 38mm diameter pole 500mm long, and a 78mm base 28mm deep, with 1m of cable. The fitting weighs 1.1kg.
A mounting plate is fixed to the wall with two screws, and the luminaire is then fitted to the plate.
Low voltage, so it needs a remote constant current driver and series wiring. Each fitting needs 6V DC at up to 1050mA.
Dimmable when paired with a suitable dimmable driver.
IP66 rated, with a 5 year warranty on the aluminium body and on the electronics.

Where It Works Best

Painted signs where the fitting should match the board or wall
Timber fences and gates, in a dark colour to stay discreet
Shop and office frontages with a coloured fascia
Cottage and farm name signs at the end of a drive

Moonlight Design and Hunza

Our work with Hunza goes back to 2003. We design lighting schemes for gardens, supply Hunza fittings and install them ourselves with NICEIC registered electricians. The project photographs on our Design Service page show our own completed schemes and explain how we plan and draw them up. Visit the page if you would like advice on lighting a sign.

Good to Know

Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
Needs a remote driver, sold separately, with the fittings wired in series.
Check the returns terms for your chosen colour, as some are non returnable.
We recommend installation by a registered NICEIC electrician.
