Collingwood SL230 LED Twin Pole Spike Light - Stainless Steel - Low Voltage

Two Beams From One Spike

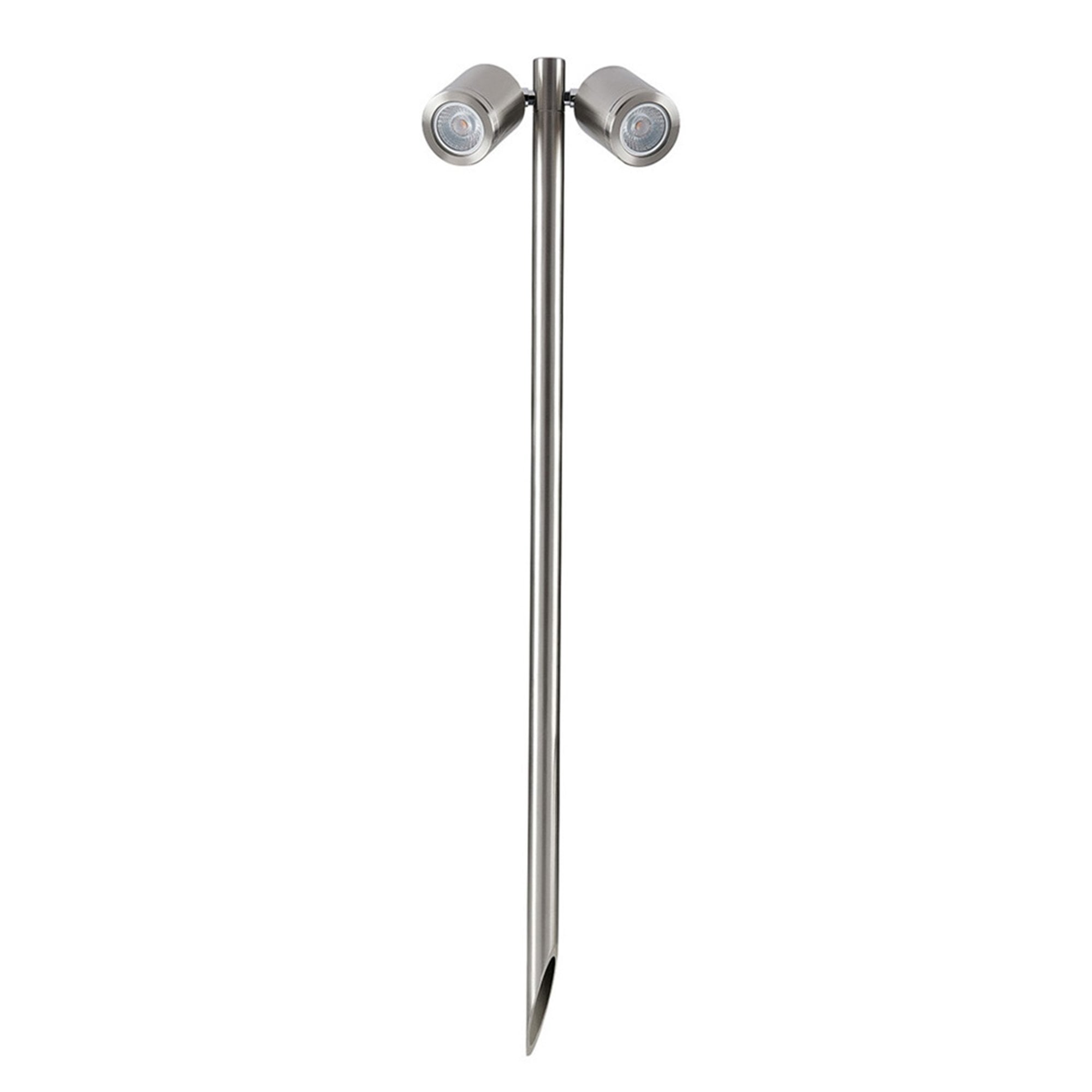

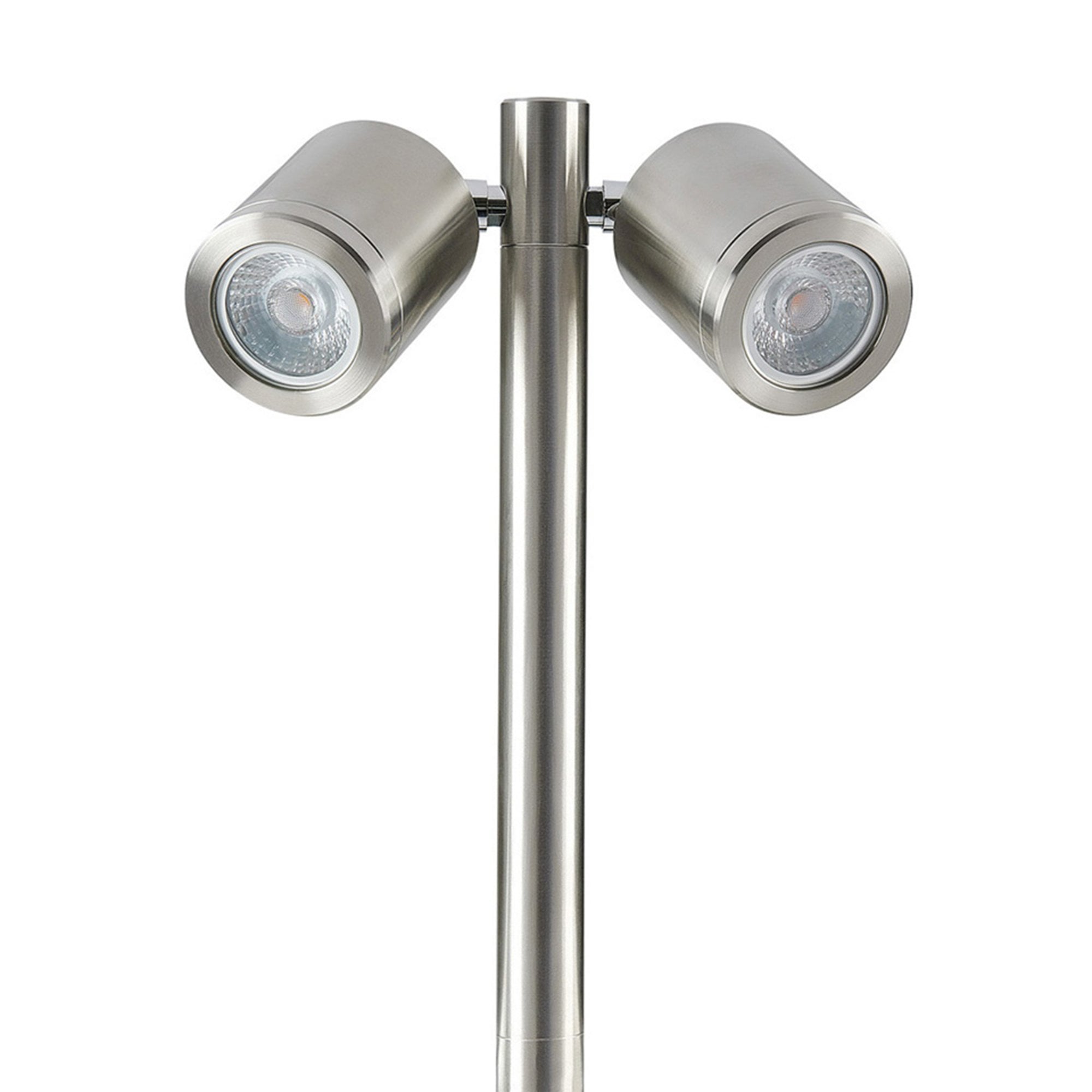

Most garden spike lights give you a single beam and a single job. The SL230 Twin Pole gives you two. It carries a pair of separate spotlight heads on one tall stem, fed by one leader cable, so a single hole in the border and a single cable run buys you two beams that aim in completely different directions. Each head tilts through 90 degrees and swings 330 degrees around the pole, so you can send one beam up into a tree and drop the other across the path beneath it from the same fitting.

Collingwood builds it from two of its SL220 spotlight heads, which is why the beam quality is the same as the single head version, just doubled.

The Stainless Steel Finish

This is the stainless steel version. The stem has a fine brushed grain running along its length, and each head barrel is finished the same way with a brighter polished bezel ring holding the lens. The result reads as light silver rather than mirror bright, so it catches daylight without glaring. Collingwood specifies coastal protection on this fitting, which is the reason it turns up so often in gardens near the sea. The cool silver tone sits naturally beside grey stone, smooth render, galvanised planters and modern aluminium framed glazing. If you would rather the fitting vanished into the planting, the same model is made in black and in bronze.

How It Works

Both heads use integrated LEDs, so there is no lamp to buy and none to change. Drive current sets the output. At 350mA each head draws 4.4W, and at 700mA it draws 9.2W. Collingwood quotes 580 lumens at the lower current, rising to 1030 lumens at the higher one, through a tight 40 degree beam with a colour rendering index of 80. You pick the colour temperature when you order: 2700K for a soft amber wash, 3000K for a warm neutral white, or 4000K for a crisper, cooler light.

This is a low voltage Class III fitting, so it does not wire to the mains on its own. It needs a separate LED driver, and the heads are wired in series, which means the driver has to be sized for every head on the run rather than for one fitting at a time. Dimming is possible, but only if the driver you pair it with is a dimmable one. The spike pushes into soft ground and the fitting stands 845mm tall overall, with head barrels 62.5mm across and a total weight of 3.3 kg.

Where It Works Best

A driveway or a long garden path is where this fitting really earns its place. One row of spikes can wash the walking surface and lift the planting behind it at the same time, which is work that would otherwise take two separate runs of fittings. Set a pair either side of a gate or a front door and you get a symmetrical welcome without cluttering the ground with hardware.

It is also a good answer for a specimen tree or a piece of topiary sitting in a bed. Aim one head at the trunk and the other into the canopy and you build depth into the shape instead of flattening it. In a courtyard or a small terraced garden, where every fitting has to justify itself, one twin head spike can cover a wall panel and a seating area from a single position. Because the spike simply pushes into the soil, it is easy to lift and reposition as a border fills out over the seasons.

About Collingwood Lighting

Collingwood designs and manufactures its LED products from Sywell in Northamptonshire, and has worked exclusively in LED technology since 2002. The brand states that it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market. Collingwood has also been awarded an EcoVadis Gold medal, placing it in the top 5% of companies assessed globally for sustainability.

Good to Know

• Backed by a seven year Collingwood warranty.
• IP65 rated. The 6 means it is completely sealed against dust, and the 5 means it is protected against water jets from any direction, so rain, hose washing and sprinkler spray are all fine.
• Low voltage Class III. A separate LED driver is required and is not supplied with the fitting.
• The heads are wired in series, so check your driver can carry the total number of heads on the circuit before you extend a run.
• Dimmable only through a compatible dimmable driver. There is no dimming control built into the fitting itself.
• Integrated LED, so there is no separate lamp to source or replace.
• Colour temperature is chosen at the point of ordering and is fixed for the life of the fitting.

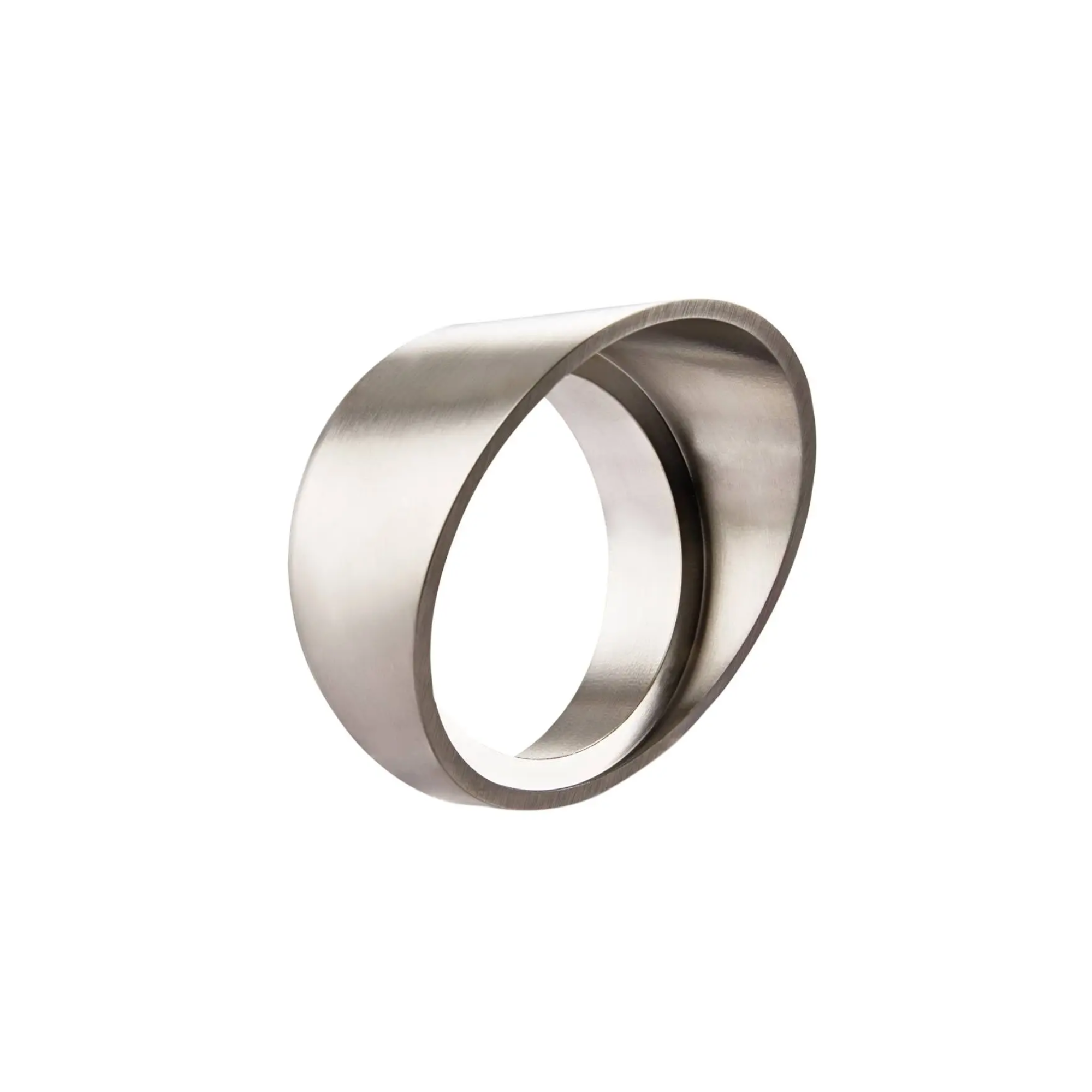

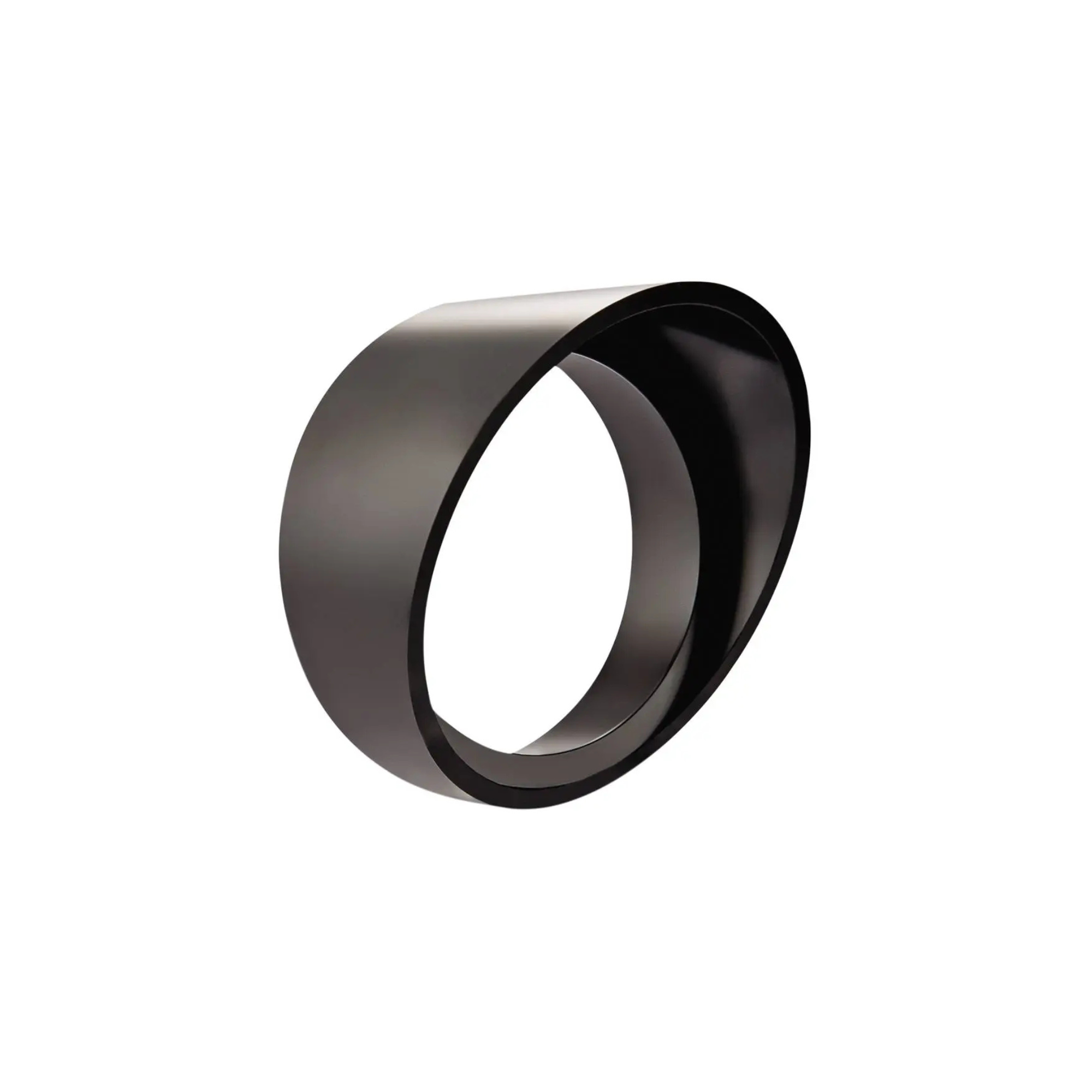

• Optional low glare hoods and snoots are made by Collingwood for this head, sold separately, if you want to soften the beam or cut spill.
• Clean with a soft damp cloth only. Abrasive pads and solvent cleaners will mark the brushed finish.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Does the Collingwood SL230 Twin Pole spike light need a driver?
Yes. The low voltage version of the Collingwood SL230 Twin Pole is a Class III fitting and cannot be connected to the mains supply directly. It requires a separate LED driver running at either 350mA or 700mA, which is not included with the light.

How far do the two heads on the SL230 adjust?
Each of the two heads on the Collingwood SL230 Twin Pole tilts through 90 degrees and rotates 330 degrees around the central pole. The heads move independently of one another, so the two beams can be aimed at completely different targets from the same spike.

How tall is the Collingwood SL230 Twin Pole and how much does it weigh?
The Collingwood SL230 Twin Pole measures 845mm in overall height, including the ground spike, and each of the two spotlight heads is 62.5mm in diameter. The complete fitting weighs 3.3 kg.

Which colour temperature suits a garden path best?
The Collingwood SL230 is available in 2700K, 3000K and 4000K. 2700K is the warmest and the most flattering over brick, timber and planting. 4000K is the coolest and picks out grey stone, render and modern hard landscaping more sharply. 3000K sits between the two and is the usual safe choice for a mixed garden.

Is the SL230 suitable for a coastal garden?
Collingwood specifies coastal protection for the SL230, and the fitting carries an IP65 rating, so it is intended for fully exposed outdoor positions including gardens near the sea. IP65 means the housing is completely dust tight and withstands low pressure water jets from every direction.

Heads 62.5mm diameter / Spike 845mm height
