Collingwood SL230 LED Twin Pole Spike Light - Bronze - Low Voltage

Two Beams, One Cable, One Fixing Point

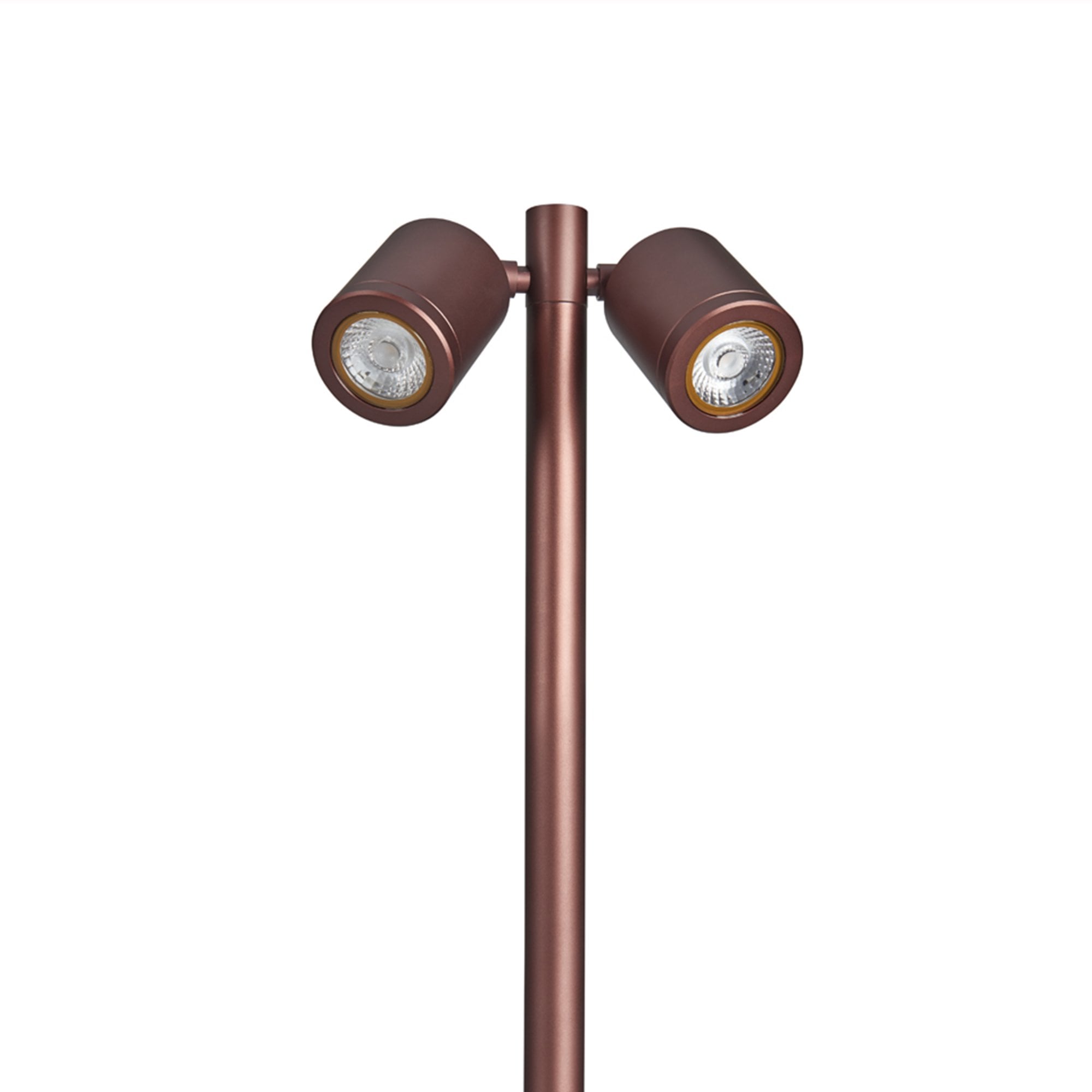

The Collingwood SL230 is a twin head spike light: two adjustable heads sharing a single slim pole that pushes straight into the soil. Each head tilts through 90 degrees and rotates through 330 degrees on its own swivel joint, so one cable run and one fixing point give you two completely separate 40 degree beams. That is the point of it. Most garden spike lights give you one beam for every cable you bury. This one gives you two, which halves the trenching on a path or a border scheme.

The Bronze Anodised Finish

This version is bronze anodised aluminium, a warm brown with a soft metallic sheen rather than a glossy painted coat. Anodising colours the metal itself instead of sitting on top of it, so there is no paint film to chip or flake when planting brushes against the pole. In daylight it recedes into bark, brick, gravel and dark soil, which is usually exactly what you want from a garden fitting you would rather not notice until dusk. Collingwood lists the SL230 as suitable for coastal areas, so salt laden air is not an issue. If you want to tighten the glare control, the GH220Z tapered hood and the GS220Z cylindrical snoot are available separately in matching bronze.

How It Works

This is the low voltage version of the SL230, so it runs from a separate LED driver rather than straight off the mains. Output follows the drive current. At 350mA the fitting draws 4.4W and produces 580 lumens in 2700K or 600 lumens in 3000K across the two heads. At 700mA it draws 9.2W and runs at an efficacy of around 111 to 112 lumens per watt, which lifts the output well above the 350mA figures. The heads wire in series, and Collingwood's own driver tables allow two to three SL230 fittings on a PSIP70036W, one to three on a DRV150700, or one to two on the dimmable DRV350700TD. A 3m H05RN-F rubberised flying lead of 6mm outside diameter comes attached, ready to join into a garden circuit through a gel filled waterproof connector or a JB series junction box. The LED is integrated, so there is no lamp to buy and none to replace.

Where It Works Best

Paths and driveways are the obvious job. Space them along the edge, angle one head down onto the surface and the other up into the planting behind, and a single fitting does two things at once. It is also very good at the top of garden steps, where two beams arriving from different directions wash the treads and take the hard shadows out of the nosings. In a border it will pick out a pair of specimen shrubs, or send one beam up through a small tree while the other grazes a wall. The 40 degree beam is a controlled pool rather than a flood, so think features and routes rather than lighting a whole lawn. And because it is spiked rather than bolted down, you can pull it up and move it as the planting fills in.

About Collingwood Lighting

Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked in LED technology since 2002. The brand states it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market. It has also been awarded an EcoVadis Gold medal, placing it in the top 5% of companies assessed worldwide for sustainability. The seven year warranty on this spike light is a fair signal of how long they expect it to survive outdoors.

Good to Know

• Seven year extended warranty from Collingwood.
• IP65 rated, meaning fully protected against dust and against water jets from any direction. That covers permanent outdoor use in British weather, including driving rain and a hose down.
• Electrical class III. This is a low voltage fitting and must be powered by a separate LED driver. It cannot be connected directly to the mains supply.
• Dimmable only with a driver that supports dimming. Collingwood lists the DRV350700TD at 700mA as the dimming option. The PSIP70036W and DRV150700 are not dimming drivers.
• The heads wire in series, so work out the driver load before you buy. Collingwood allows two to three of these fittings on a single PSIP70036W.
• One fixed colour temperature per fitting, chosen at purchase. This is not a switchable CCT product.
• Beam angle 40 degrees, CRI above 80 and colour consistency within 3 SDCM. LED lifetime is rated at 70,000 hours to L70.
• Heads measure 62.5mm in diameter, the pole stands 845mm, and the fitting weighs around 1.5kg.
• Maximum ambient operating temperature 35 degrees C.
• Anodised aluminium asks very little of you. Rinse soil splash off with clean water and wipe the lenses occasionally so the beams stay crisp. Avoid abrasives and solvents on the anodised surface.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Does the Collingwood SL230 low voltage spike light need a separate driver?

Yes. The low voltage SL230 is a Class III fitting and must be run from a separate LED driver at either 350mA or 700mA. Collingwood recommends the PSIP70036W for two to three fittings, the DRV150700 for one to three fittings, or the DRV350700TD where dimming is required.

Can the two heads on the SL230 be aimed independently?

Yes. Each of the two heads on the Collingwood SL230 tilts through 90 degrees and rotates through 330 degrees on its own joint, so the two beams can be pointed at entirely different targets from the same pole.

Is the SL230 spike light suitable for a coastal garden?

Yes. The SL230 is built from anodised aluminium and Collingwood lists it as suitable for coastal areas, so it is rated to cope with the salt laden air found near the sea.

How bright is the Collingwood SL230 at 350mA?

At 350mA the low voltage Collingwood SL230 draws 4.4W in total and produces 580 lumens in 2700K or 600 lumens in 3000K, spread across its two 40 degree heads. Driving it at 700mA raises the draw to 9.2W and increases the light output substantially.

What cable comes fitted to the SL230 twin pole spike light?

The low voltage Collingwood SL230 is supplied with a 3m H05RN-F rubberised flying lead of 6mm outside diameter. It is joined into the garden circuit using a gel filled waterproof connector or a Collingwood JB series junction box, both sold separately.

Heads 62.5mm diameter / Spike 845mm height
