Steinel IS 180-2 with PIR - White

A Motion Sensor for Entrances and Driveways

The Steinel IS 180-2 in white is a wall mounted PIR motion sensor for indoors and out. It is a sensor only and does not give light itself. It detects movement across 180 degrees and switches a separate light on, with a reach you can set to 5 or 12 metres. That makes it a useful outdoor security light sensor for a building front, driveway or side passage.

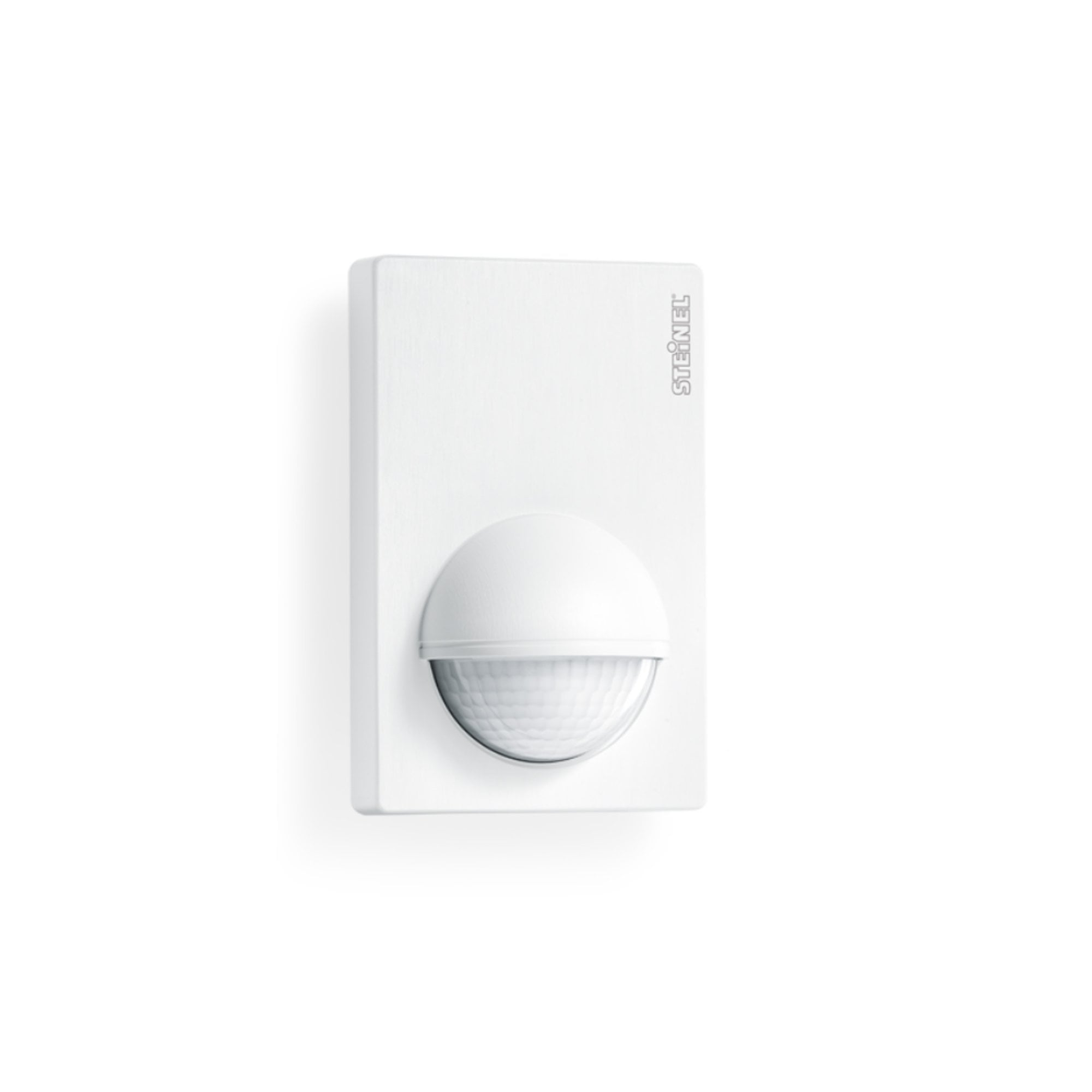

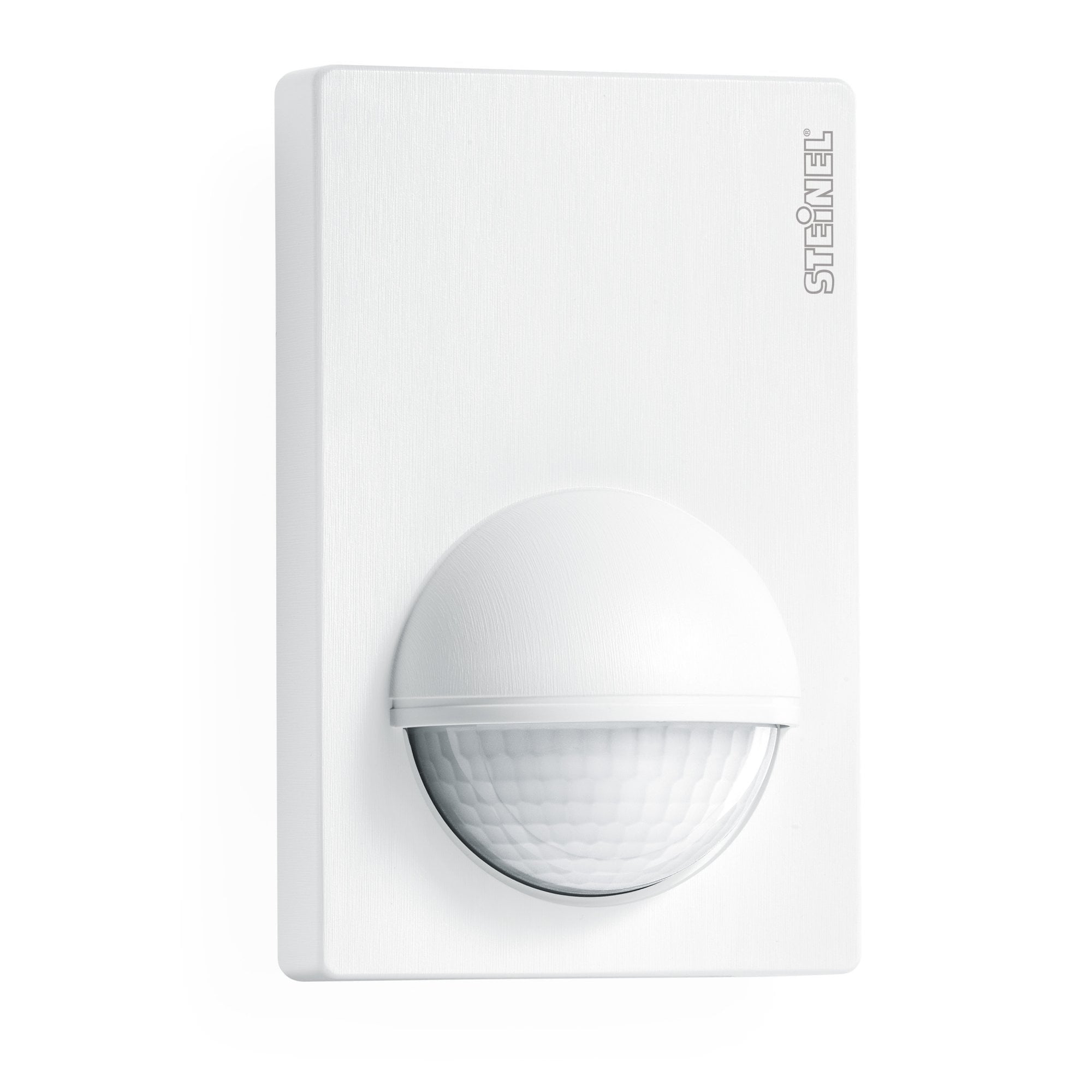

White Finish with a Domed Sensor Head

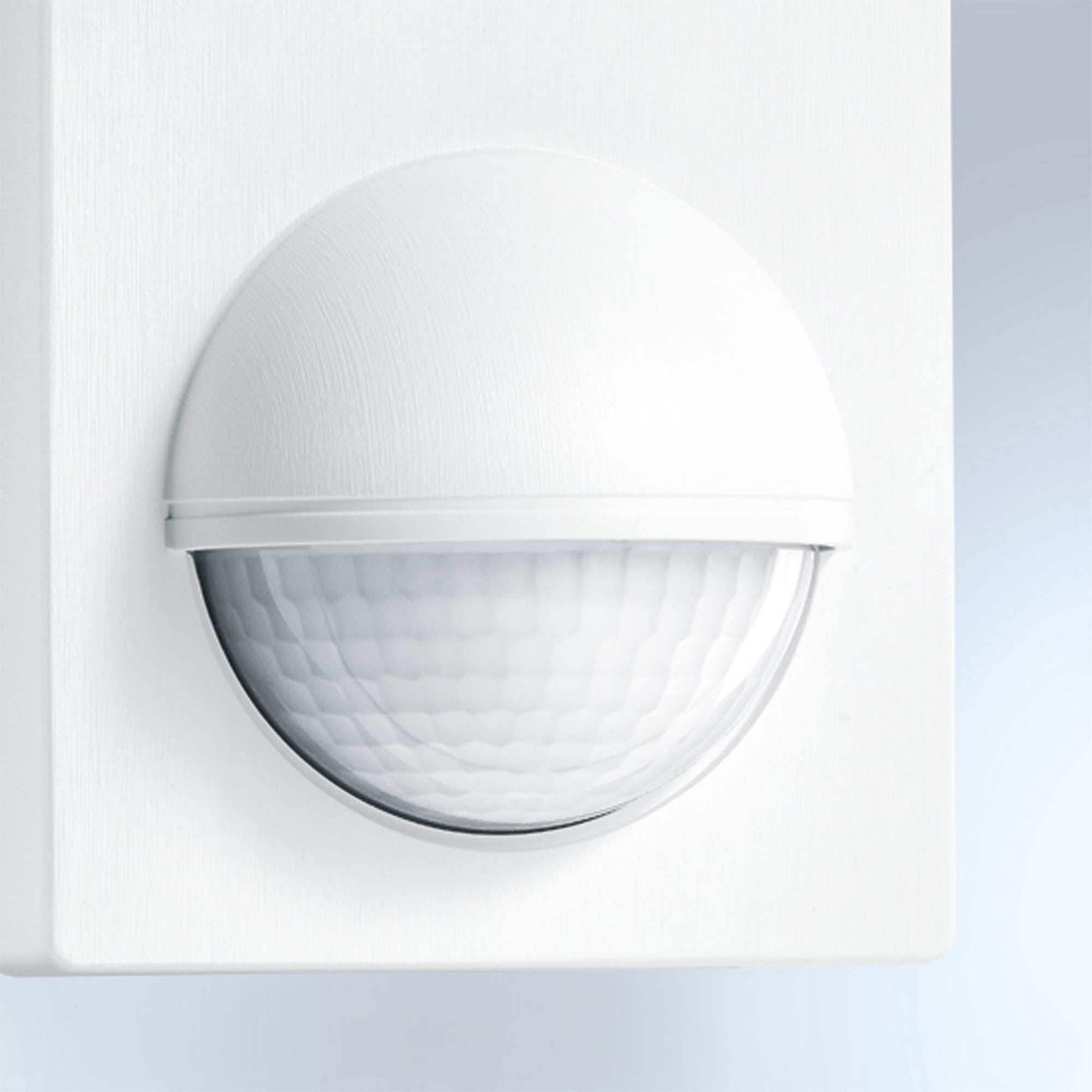

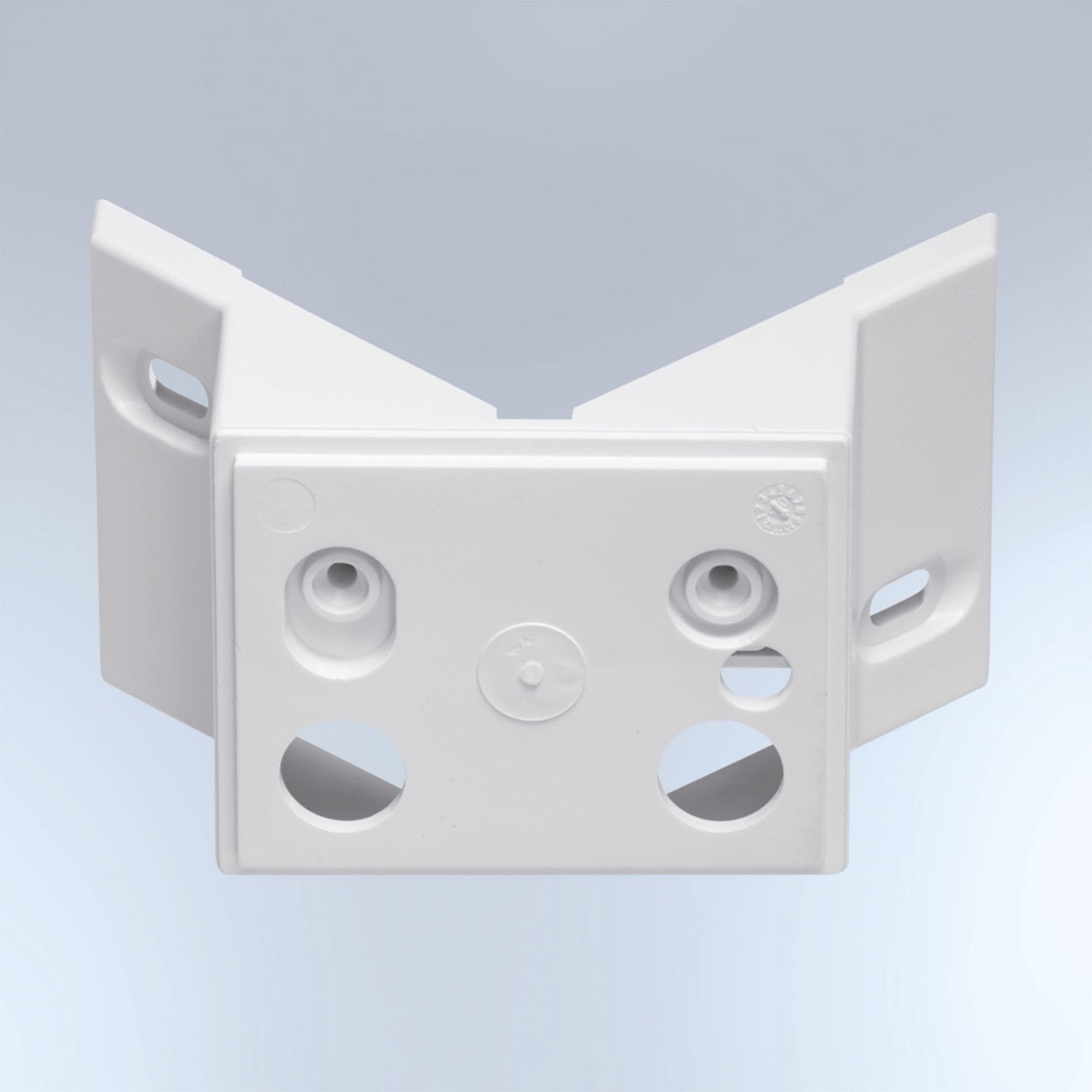

The body is a slim white rectangle with the Steinel name along one edge. A half dome at the lower end holds the faceted sensor lens, so it sits neatly on a pale rendered or painted wall. It is a compact unit, 56 x 76 x 120mm. For corner mounting, Steinel offers a corner wall bracket, which is bought separately.

How It Works

A passive infrared sensor picks up the movement of people and switches your light on. It covers 180 degrees, and the reach can be set to 5 metres or 12 metres to suit the space. You set the time the light stays on, up to 15 minutes, and the twilight level it responds to, from 2 to 2000 lux, with the two adjustable dials. Shrouds can be fitted to customise the detection zone, for example to keep a neighbour's path or a road out of range. The sensor works best at a mounting height of 1.8 to 4 metres, with 2 metres ideal. It runs from a 230V mains supply and switches a load of up to 1000W (resistive loads such as ordinary lamps). It is a Class II product with surface wiring. We always recommend a qualified electrician installs this product.

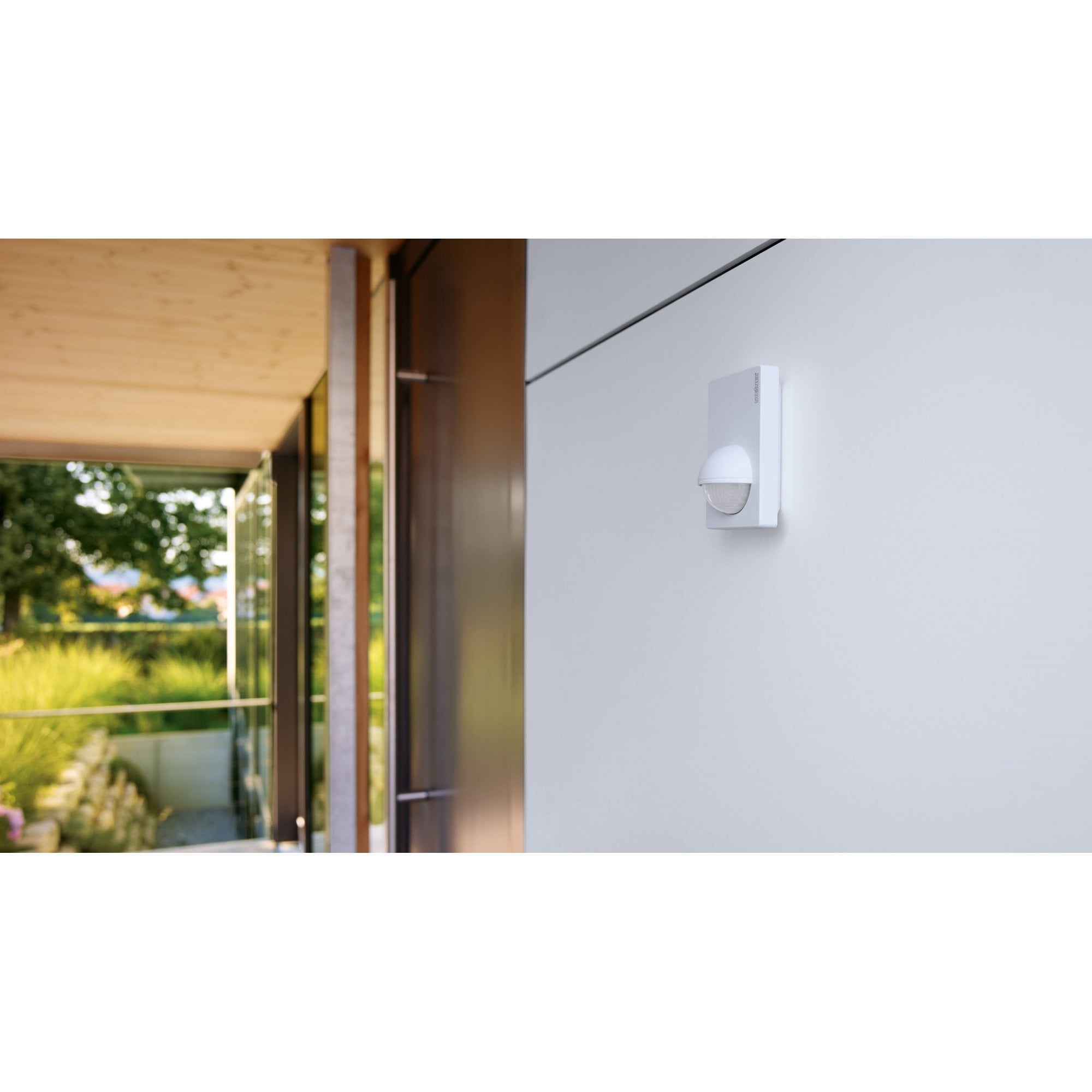

Where It Works Best

Steinel suggests it for the front door, all round the building, a terrace or balcony, a courtyard and a driveway. It is rated IP54, so it is protected against dust and splashing water, and suits an exposed outdoor wall. It can also be used indoors, for example in a large hallway or garage.

About Steinel

Steinel is a German sensor lighting brand, founded in 1959. The company says it introduced the world's first sensor switched light in 1987, and it has registered more than 300 patents, utility models and designs. Its products are sold in over 80 countries.

Good to Know

• This is a motion sensor that switches a separate light. It is not a light.
• 180 degree passive infrared sensor, reach set to 5 or 12 metres.
• Adjustable on time up to 15 minutes, twilight setting 2 to 2000 lux.
• Rated IP54 and Class II, 230V mains, switches up to 1000W resistive load.
• Size: 56 x 76 x 120mm. Corner wall bracket sold separately.
• We always recommend a qualified electrician installs this product.
• Comes with a 3 year manufacturer warranty.
• You can return this item within 14 days of delivery, provided it is unused, uninstalled and in its original packaging. See our returns policy for full details

Questions People Ask

Does the IS 180-2 include a light? No. It is a motion sensor that switches a separate light on, so you need to wire it to a light of your own.

How far does it detect movement? It covers a 180 degree area, and the reach can be set to either 5 metres or 12 metres.

How long does the light stay on? You choose. The on time can be set up to 15 minutes with the adjustable dial.

Can I stop it triggering in daylight? Yes. The twilight setting can be adjusted from 2 to 2000 lux, so you decide how dark it must be before the sensor switches the light on.

Who should install this sensor? We always recommend a qualified electrician installs this product.

Can I return it if it is not right? Yes. You can return this item within 14 days of delivery, provided it is unused, uninstalled and in its original packaging. See our returns policy for full details.

56 x 76 x 120 mm
