LuxR Modux 4 Twin Pole Light - Copper - Low Voltage

A Twin Head Pole Light for Paths, Borders and Planting

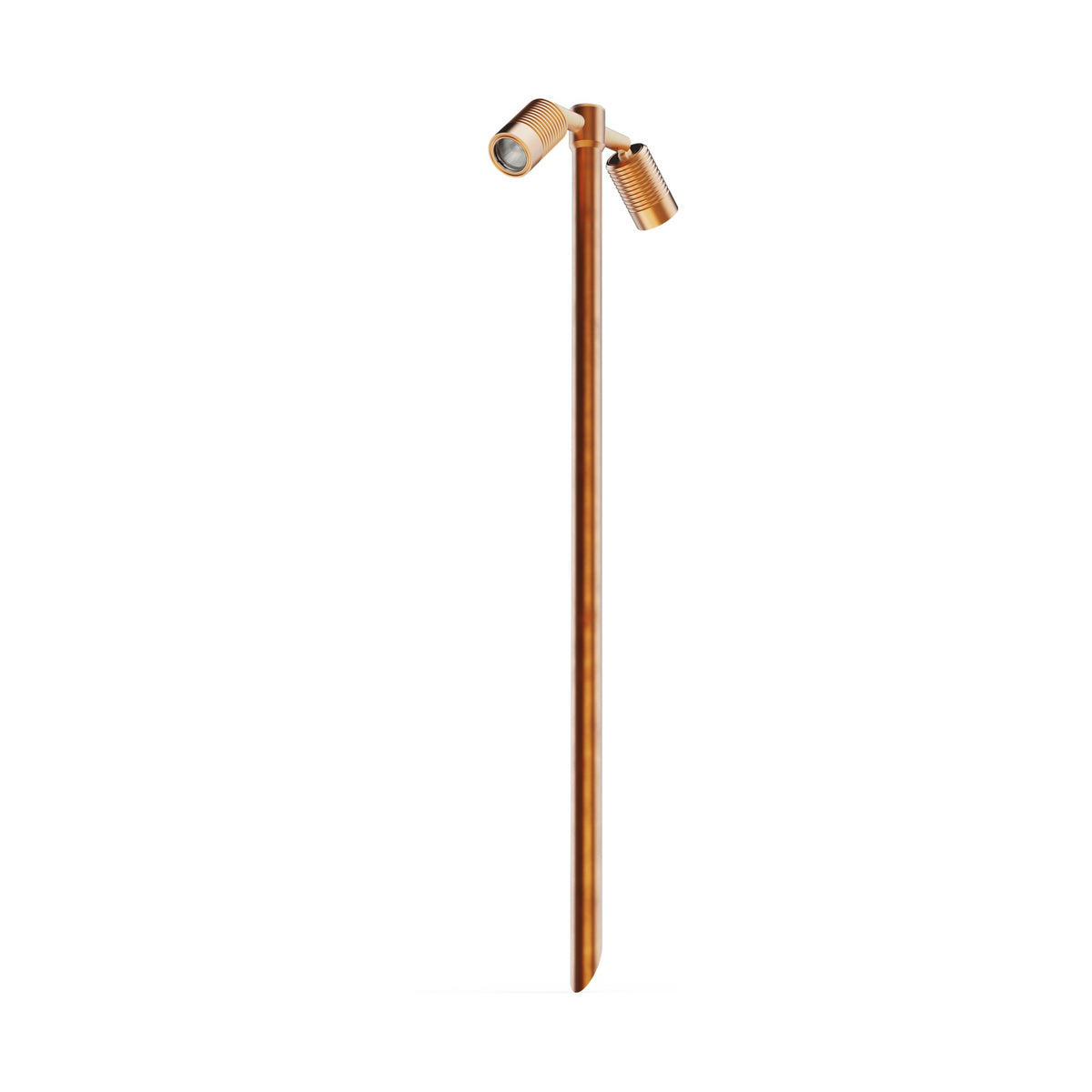

The LuxR Modux 4 Twin Pole Light has two adjustable heads on one slim 25.4mm pole that you push into the ground. The heads can be aimed in different directions, so a single fitting can light a path and the border beside it, or two sides of the same feature. Each head is only 40.60mm across, so the fitting stays discreet in the garden.

Solid Copper

This version is made in solid copper, a warm reddish brown metal that ages naturally outdoors, so the finish deepens and changes with the weather. Each head holds a screw mounted Cree LED. The whole fitting draws 8 watts, which the brand states delivers around 720 lumens at 700mA, with a CRI of 90+ at 3000K.

Choose Your Beam, Colour and Lens

• Beam: 26º is a narrow beam for a single feature, 36º is a medium spread, and 74º is a wide wash for planting.
• Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
• Lens: clear glass gives the sharpest beam, and frosted glass softens its edges.

How It Works

Push the pointed spike into the soil and aim each head where you want the light. The fitting is low voltage and runs from a 700mA constant current driver, which is sold separately. A dimmable driver lets you dim the light. The LED can be replaced later, so you can change the colour or the beam without buying a new fitting. A flange mount option is available if you want to fix it to a hard surface, and custom pole lengths can be supplied, so please contact us to discuss what you need.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

Use it along pathways, in borders and beside landscape features, wherever two pools of light from one pole will do the work of two fittings. A glare guard or a snoot can be added if you want tighter control of the light. Please contact us to check the right accessory for this fitting.

Good to Know

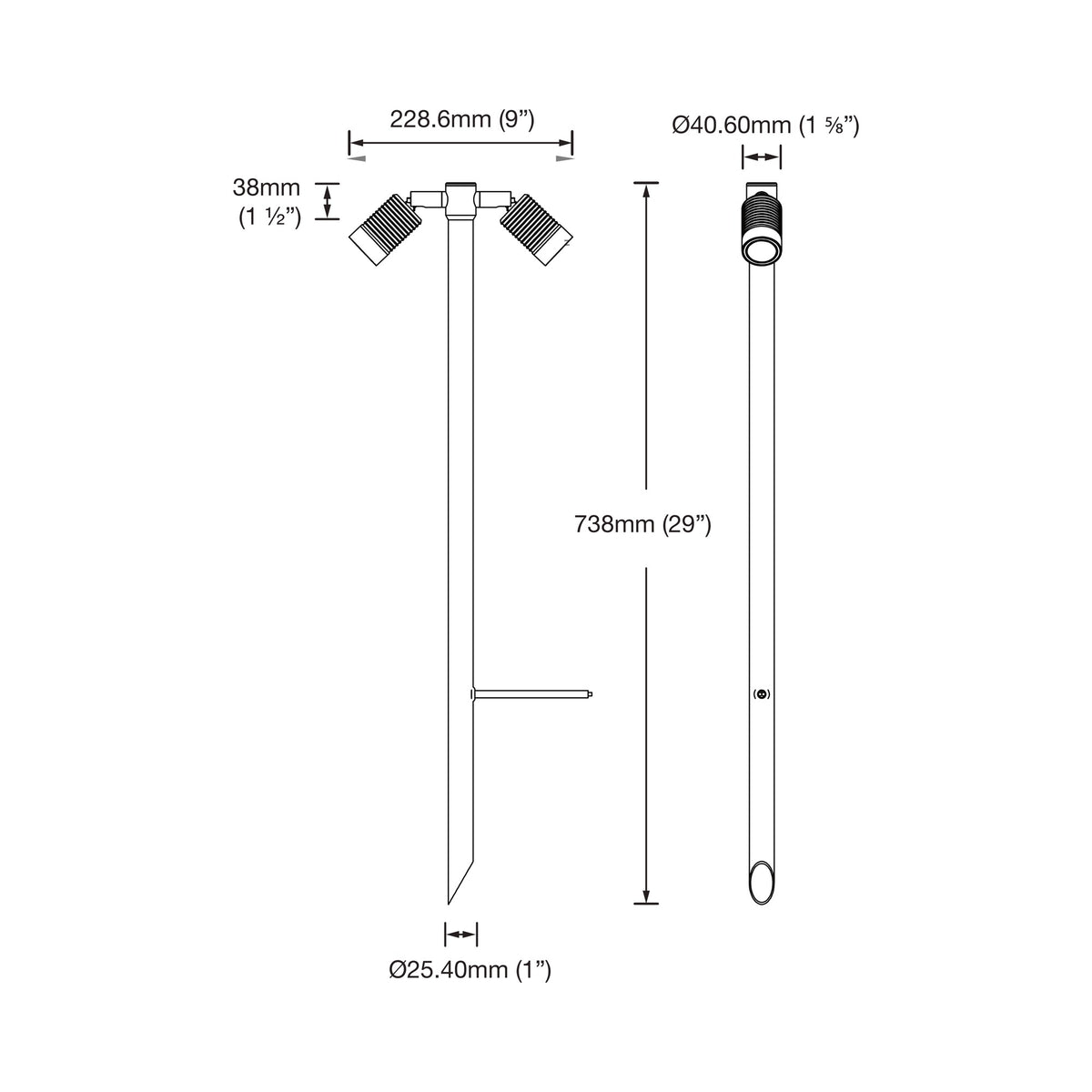

• Dimensions: 738mm overall height, 228.6mm across the two heads, head diameter 40.60mm, pole diameter 25.40mm. Custom pole lengths are available, please contact us.
• Rated IP67 for protection against dust and water, so it is built for outdoor use.
• Warranty: 10 years on the copper, with 5 years on the LED and electronics.
• Returns are accepted as normal, unless the item is made to order.
• Made in New Zealand.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

What does the M4 twin pole light do?

It is a slim ground spike pole with two adjustable heads. Each head can be aimed separately, so one fitting lights two spots. It suits paths, borders and garden features.

Which beam angle should I choose?

Choose 26º for a narrow beam on a single feature, 36º for a medium spread, and 74º for a broad wash across planting.

Does the twin pole light come with a driver?

No. It is a low voltage fitting that needs a suitable 700mA constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered electrician installs it.

How tall is it?

The whole fitting is 738mm high and measures 228.6mm across the two heads. The pole is 25.40mm in diameter. How much shows above ground depends on how deep you push the spike into the soil.

Can I get a different pole length or fix it to a hard surface?

Yes. Custom pole lengths and a flange mount option are available, so please contact us with what you need.

Can I change the LED later?

Yes. The Cree LED can be replaced, so the colour or beam can be changed without a new fitting.

Overall height: 738mm
Width across the two heads: 228.6mm
Head height: 38mm
Head diameter: 40.60mm
Pole diameter: 25.40mm
