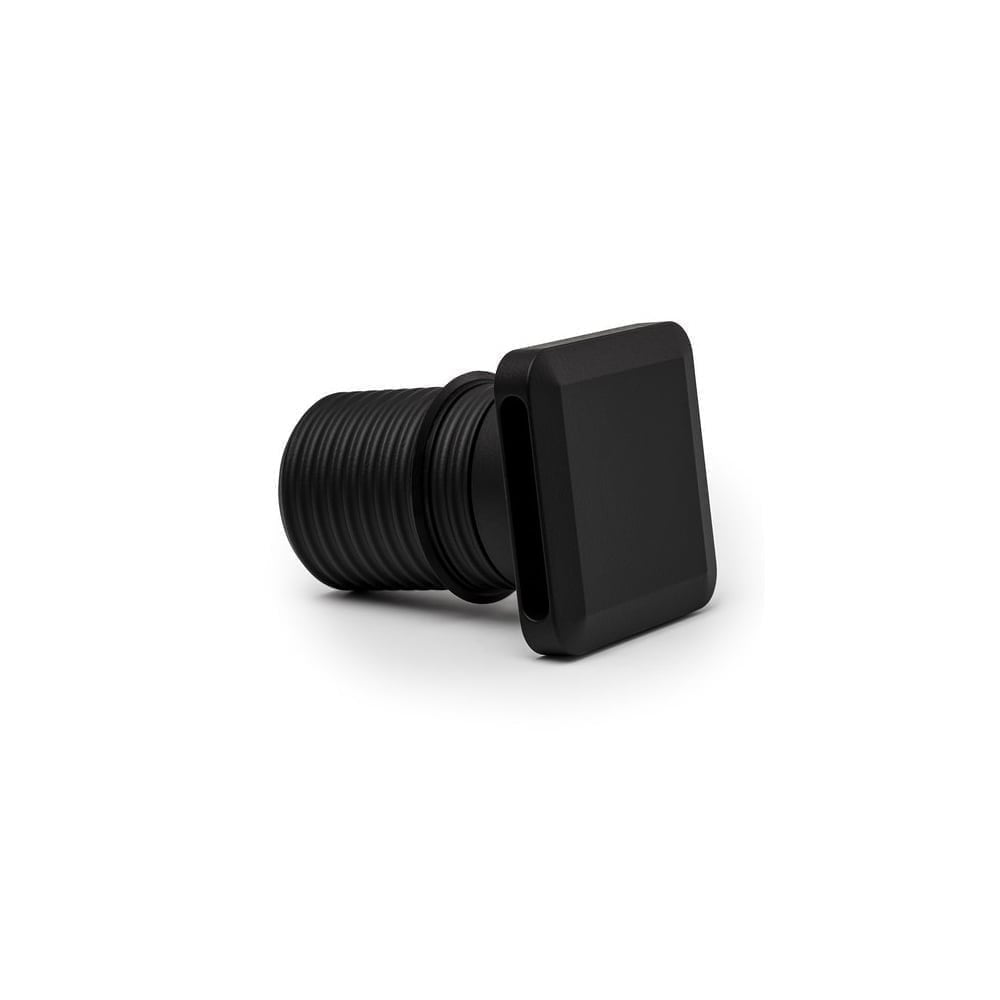

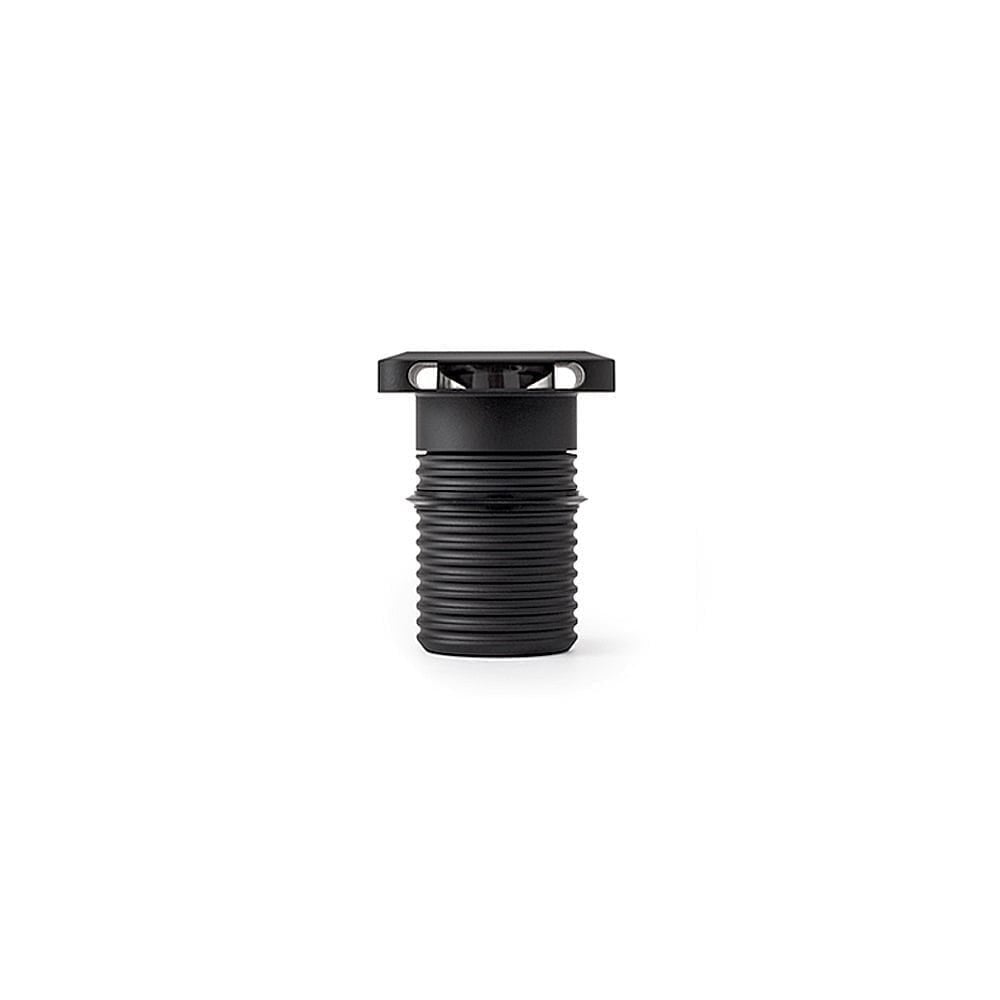

A Small Powder Coated Recessed Wash Light with One Facet
The LuxR Modux 4 Square Light Wash with 1 Facet is a small low voltage recessed feature light. It gives a narrow, decorative band of light starting 5º below the flange lip. This is the 1 facet version: a facet is the opening that the light is emitted from, so this one has a single opening. For the exact light distribution, please check the product spec sheet or contact us. The flange is 53mm wide.
UV Powder Coated Aluminium in Four Colours
This version is made from UV powder coated aluminium. Matt Black is the quietest choice against dark paving, Matt Bronze suits warmer stone and timber, and Matt White or Matt Dark Grey can match a painted wall or render. The light source is a replaceable 4 watt Cree LED with a CRI of 90 plus.
Choose Your Options
- Colour: Matt Black, Matt Bronze, Matt White or Matt Dark Grey.
- Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
How It Works
The body is set into a cut-out of 43.5mm, with the square flange sitting at the surface. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The LED can be replaced and the optic can be changed to alter the beam width.
Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.
Where It Works Best
Use it to light the wall beside step treads, the treads themselves, the space above a doorway, or as a path wayfinder. It is also available in the larger M2.
Good to Know

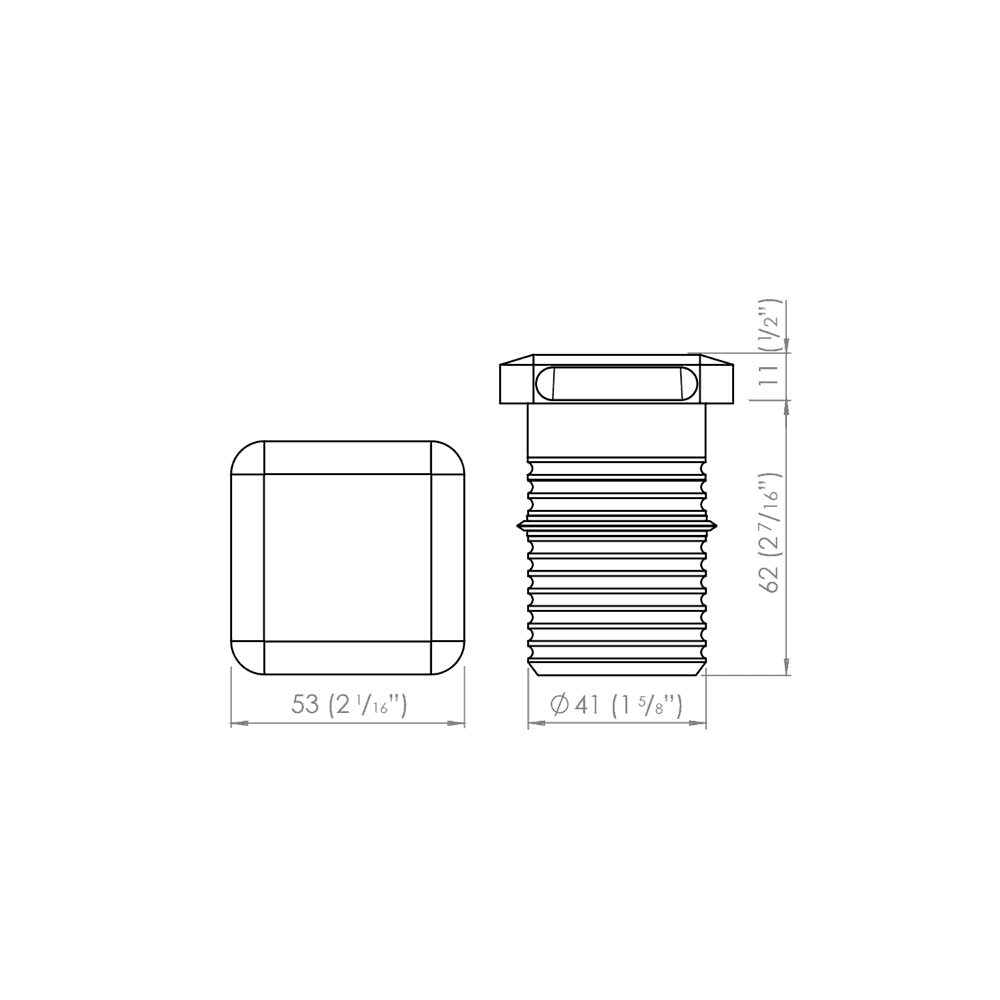

- Dimensions: recessed body 41mm diameter and 62mm long, cut-out 43.5mm. Flange 53mm wide and 11mm deep. Supplied with 1m of H05RN-F cable.
- Rated IP68 for protection against dust and water, so it is built for outdoor use.
- 4 watt LED at 90 lumens per watt, low voltage, series wiring.
- Warranty: 5 years.
- Colours marked Non-Returnable in the colour selector cannot be returned once ordered.
- Colours shown are for guidance only. Physical colour swatches are available on request.
- Made in New Zealand by the makers of Hunza.
- Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.
Questions People Ask
What is a facet?
A facet is the opening that the light is emitted from.
What is the difference between 1 facet and 2 facet?
A facet is the opening that the light is emitted from. The 1 facet version has one opening and the 2 facet version has two. The two versions share the same body and flange size. Please check the product spec sheet or contact us to confirm the exact light distribution for your project.
What cut-out size do I need?
The cut-out is 43.5mm. The body is 41mm in diameter and 62mm long, and the flange is 53mm wide.
Does it come with a driver?
No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered electrician installs it.
Which colours can I choose?
Matt Black, Matt Bronze, Matt White and Matt Dark Grey. White and Dark Grey are marked Non-Returnable, and swatches are available on request.
Where can I use it?
It suits the wall next to steps, the steps themselves, above a doorway, or as a wayfinder along a path.
