LuxR Modux 4 Spot with Spike & Glare Guard - Powder Coat - Low Voltage

A Small Powder Coated Spike Spot with a Glare Guard

The LuxR Modux 4 Spike Spot with Glare Guard is a small low voltage garden spotlight with the glare guard included. The body is 41mm across and 115mm long, and it sits on a solid 175mm spike that pushes into the soil.

UV Powder Coated Aluminium in Four Colours

This version is made from UV powder coated aluminium. Matt Black is the most discreet after dark, Matt Bronze sits well against bark and soil, and Matt White or Matt Dark Grey can match painted walls and fences. The light source is a replaceable 4 watt Cree chip with a CRI of 90 plus.

Choose Your Options

• Colour: Matt Black, Matt Bronze, Matt White or Matt Dark Grey.

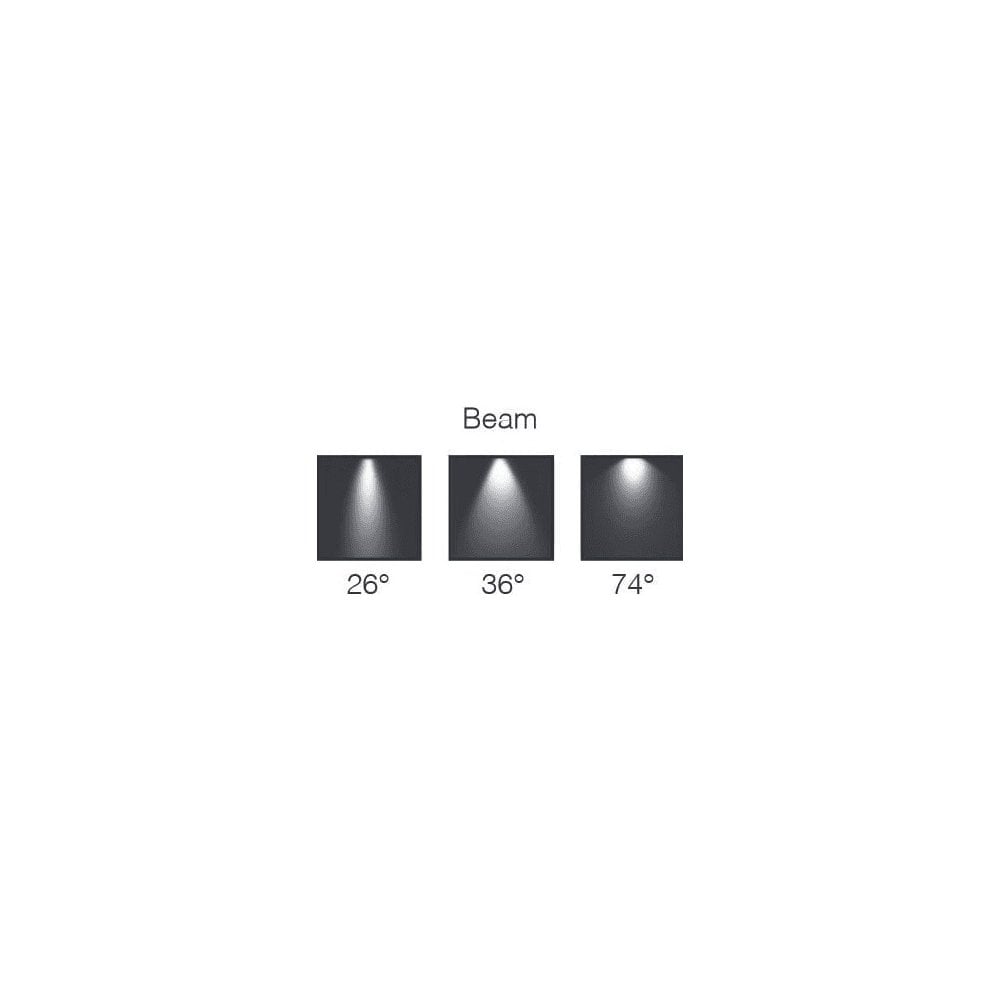

• Colour temperature and beam: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white. Beams are 26º for a single feature, 36º for a larger shrub and 74º for a wider area.
• Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

Push the spike into the soil and angle the head towards your subject. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The LED can be replaced and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

The glare guard makes this a good choice where the light may be seen from a seating area or a path and you want less glare. It suits borders, shrubs and the base of trees. It is also available in the M1 and M2.

Good to Know

• Dimensions: body 41mm diameter and 115mm long, spike 175mm. Supplied with 1m of H05RN-F cable.
• Rated IP68 for protection against dust and water, so it is built for outdoor use.
• 4 watt LED at 90 lumens per watt, low voltage, series wiring.
• Warranty: 5 years.
• Colours marked Non-Returnable in the colour selector cannot be returned once ordered.
• Colours shown are for guidance only. Physical colour swatches are available on request.
• Made in New Zealand by the makers of Hunza.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

How big is this spike spot with glare guard?

The body is 41mm in diameter and 115mm long, on a 175mm spike.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered electrician installs it.

Which colours can I choose?

Matt Black, Matt Bronze, Matt White and Matt Dark Grey. White and Dark Grey are marked Non-Returnable, and swatches are available on request.

Which beam angle should I choose?

Choose 26º for a single feature, 36º for a larger shrub or small tree, and 74º for a wider area of planting.

Can I change the LED later?

Yes. The Cree chip can be replaced, and the optic can be changed to alter the beam width.

Body
Diameter: 41mm
Length: 115mm

Spike
Length: 175mm
(refer to spec for more information)

Cable: Supplied with H05RN-F 1m

• M4 Spotlight
