LuxR Modux 4 Single Pole Light - Stainless Steel - Low Voltage

A Slim Ground Spike Pole Light With One Adjustable Head

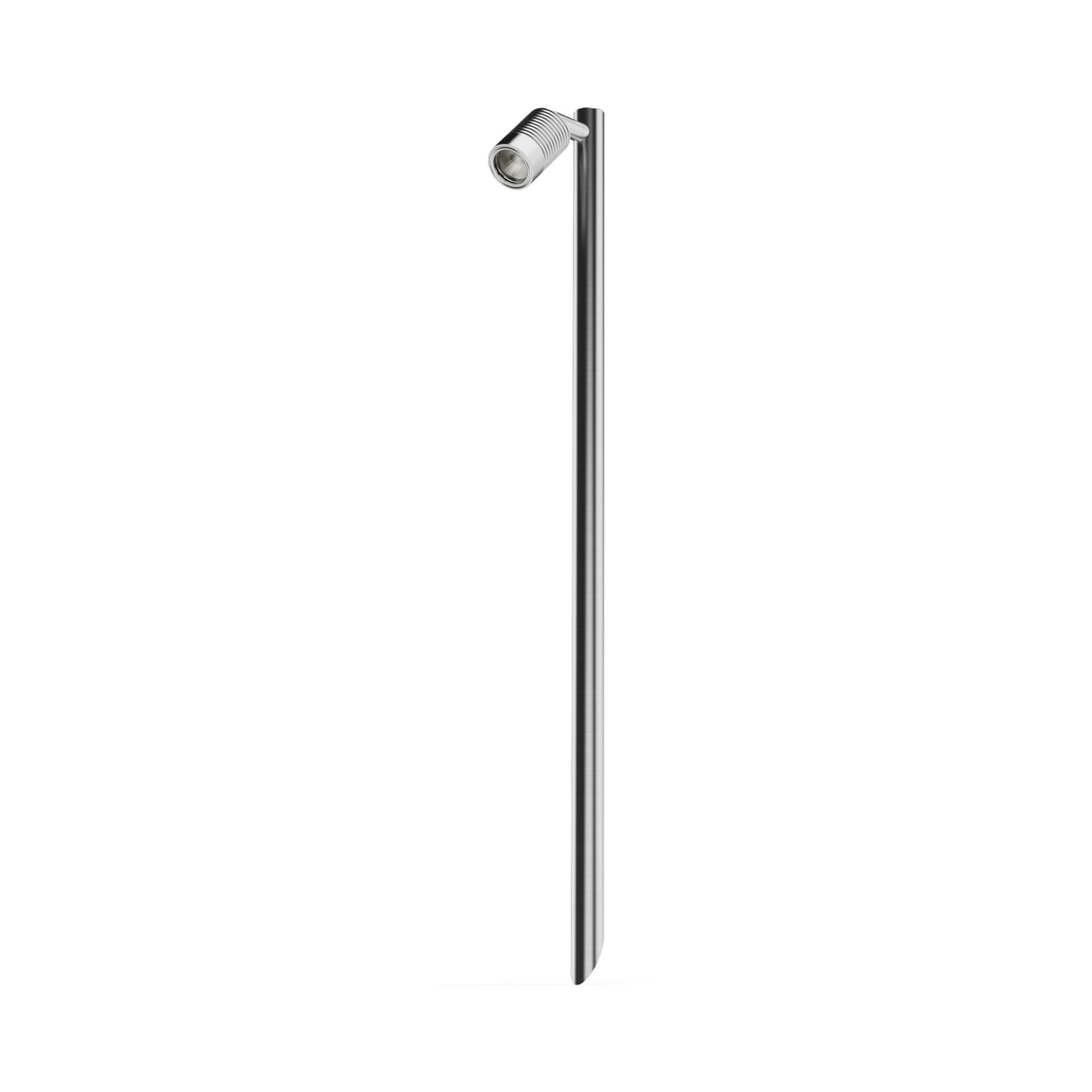

The LuxR Modux 4 Single Pole Light is a slim 25.4mm pole that pushes straight into the ground, with a single spot head on a short side arm at the top. The head adjusts, so you can aim the light exactly where you want it, whether that is a pathway, a garden feature or an individual plant or tree.

Marine Grade 316 Stainless Steel

This version is precision machined in 316 stainless steel, a marine grade metal chosen for outdoor fittings. The plain pole and head have a clean, silver look that suits modern gardens. The light source is a screw mounted 4 watt Cree LED, which the brand states delivers around 360 lumens with a CRI of 90+.

Choose Your Beam, Colour and Lens

• Beam: 26º is a narrow beam for a single feature, 36º is a medium spread, and 74º is a wide wash.
• Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
• Lens: clear glass gives the sharpest beam, and frosted glass softens its edges.

How It Works

Push the pole into the soil and adjust the head to aim the light. The fitting runs on low voltage from a 700mA constant current driver, which is sold separately. The LED is screw mounted and can be replaced later, so you can change the colour without buying a new fitting.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

Use it to pick out a pathway, a garden feature or a single plant, where you want a controlled beam of light from a slim fitting that stays out of the way. A glare guard or a snoot can be added if you want tighter control of the light. Please contact us to check the right accessory for this fitting. Custom pole lengths are available, and a flange mount is offered for fixing to hard surfaces, so please contact us to discuss what you need.

Good to Know

• Dimensions: pole diameter 25.40mm, head diameter 30.95mm, 104.5mm from the tip of the head to the far side of the pole, and 703mm from the top of the pole to the tip of the spike.
• Rated IP67 for protection against dust and water, so it is built for outdoor use.
• Warranty: 10 years on the stainless steel, with 5 years on the LED and electronics.
• Returns are accepted as normal, unless the item is made to order.
• Made in New Zealand.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

What does the M4 single pole light do?

It is a slim pole that goes into the ground, with one adjustable spot head on a short side arm. It lights pathways, garden features and individual plants from a discreet fitting.

Which beam angle should I choose?

Choose 26º for a narrow beam on one feature, 36º for a medium spread, and 74º for a broad wash.

Does the single pole light come with a driver?

No. It is a low voltage fitting that needs a suitable 700mA constant current driver, sold separately. We recommend a registered electrician installs it.

How tall is it?

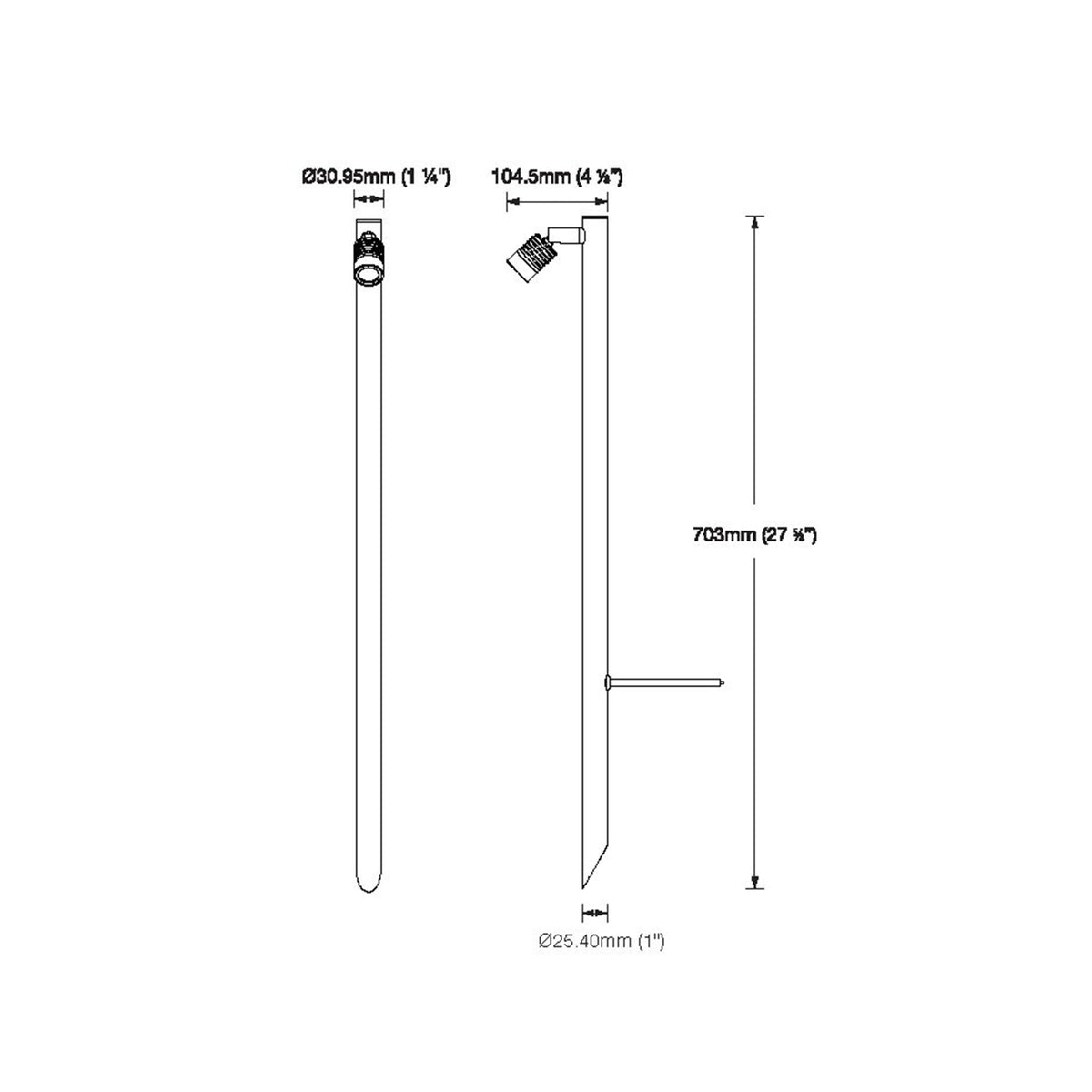

The manufacturer's drawing gives 703mm from the top of the pole to the tip of the spike, with a pole diameter of 25.40mm. How much shows above ground depends on how deep you push it into the soil. The head sits to one side of the pole, and the drawing shows 104.5mm from the tip of the head to the far side of the pole.

Can I change the LED later?

Yes. The 4 watt Cree LED is screw mounted and can be replaced.

Can I get a longer pole or fix it to a hard surface?

Custom pole lengths are available, and a flange mount is offered for hard surfaces. Please contact us with what you need.

Pole diameter: 25.40mm
Head diameter: 30.95mm
Head tip to far side of pole: 104.5mm
Top of pole to spike tip: 703mm
