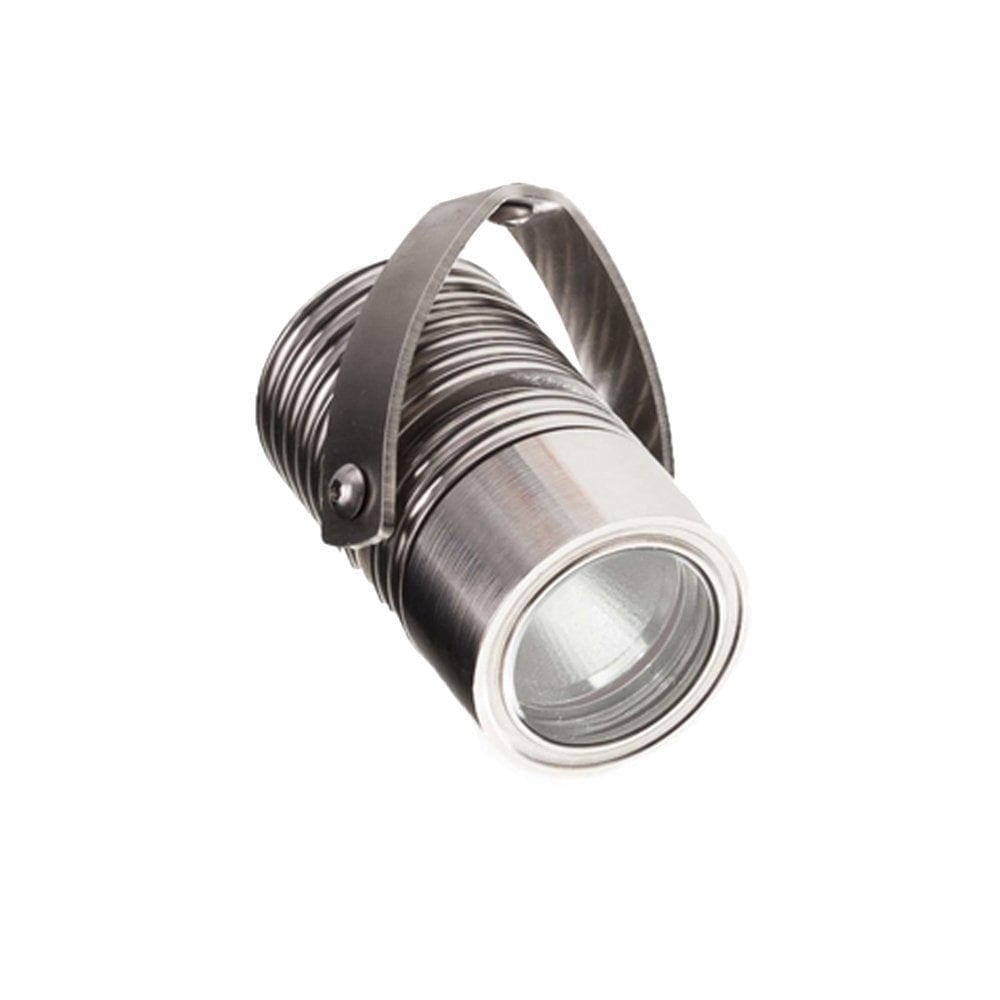

A Small Stainless Steel Bracket Spotlight
The LuxR Modux 4 Bracket Mount is a very small outdoor spotlight on a stiff metal bracket. It fixes to almost any surface with a 4mm diameter screw. The body is just 41mm across and 65mm long, so it is easy to tuck away on a wall, fence or post.
Marine Grade 316 Stainless Steel
This version is precision machined from marine grade 316 stainless steel, which keeps a clean, cool metal finish that suits contemporary walls and fences. The light source is a replaceable 4 watt Cree LED with a CRI of 90 plus.
Choose Your Beam, Colour and Lens

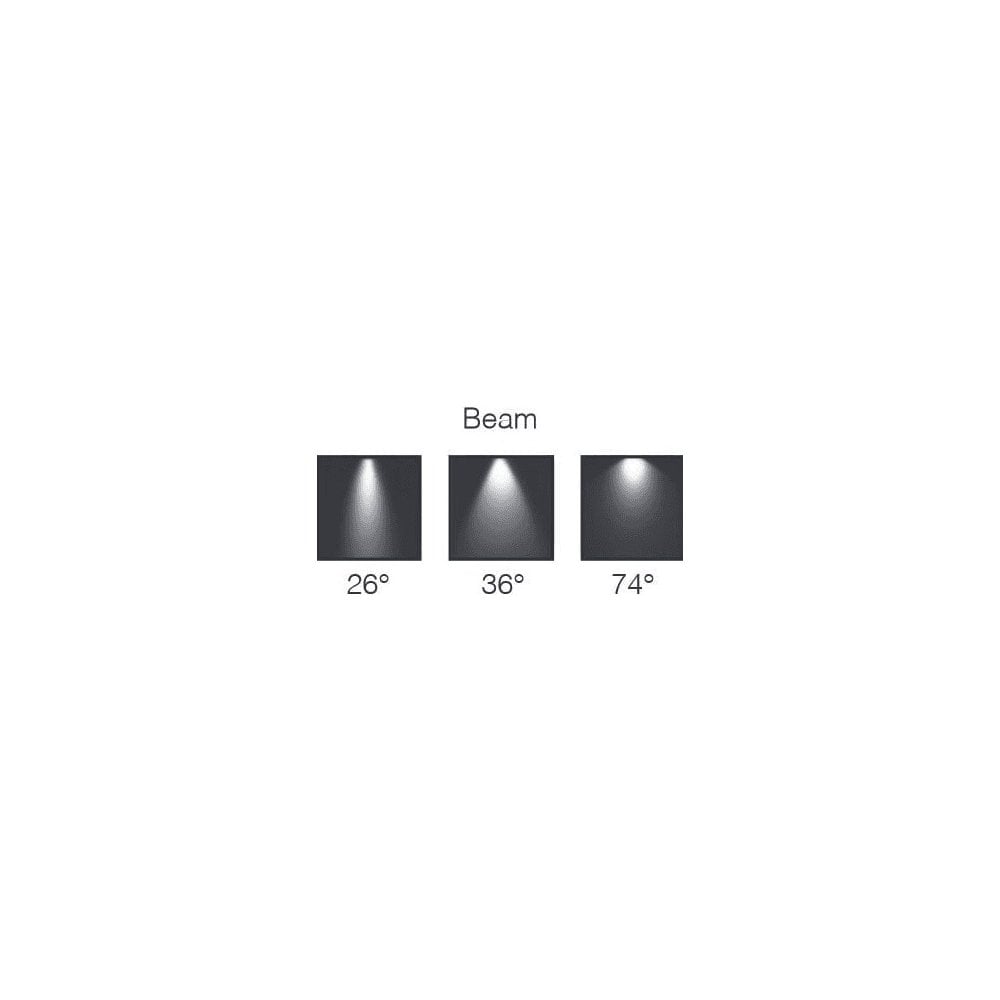

- Beam: 26º is a narrow beam for a single feature, 36º is a medium beam, and 74º is a wide beam for a broader spread.
- Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
- Lens: clear gives the sharpest beam, while frosted softens the edges of the light.
How It Works
Screw the bracket to a wall, fence or timber post and angle the head towards your subject. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.
Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.
Where It Works Best
It suits trees, climbers, walls and fences where there is no ground to push a spike into. It is also available in the M1 and M2 sizes if you need something smaller or larger.
Good to Know

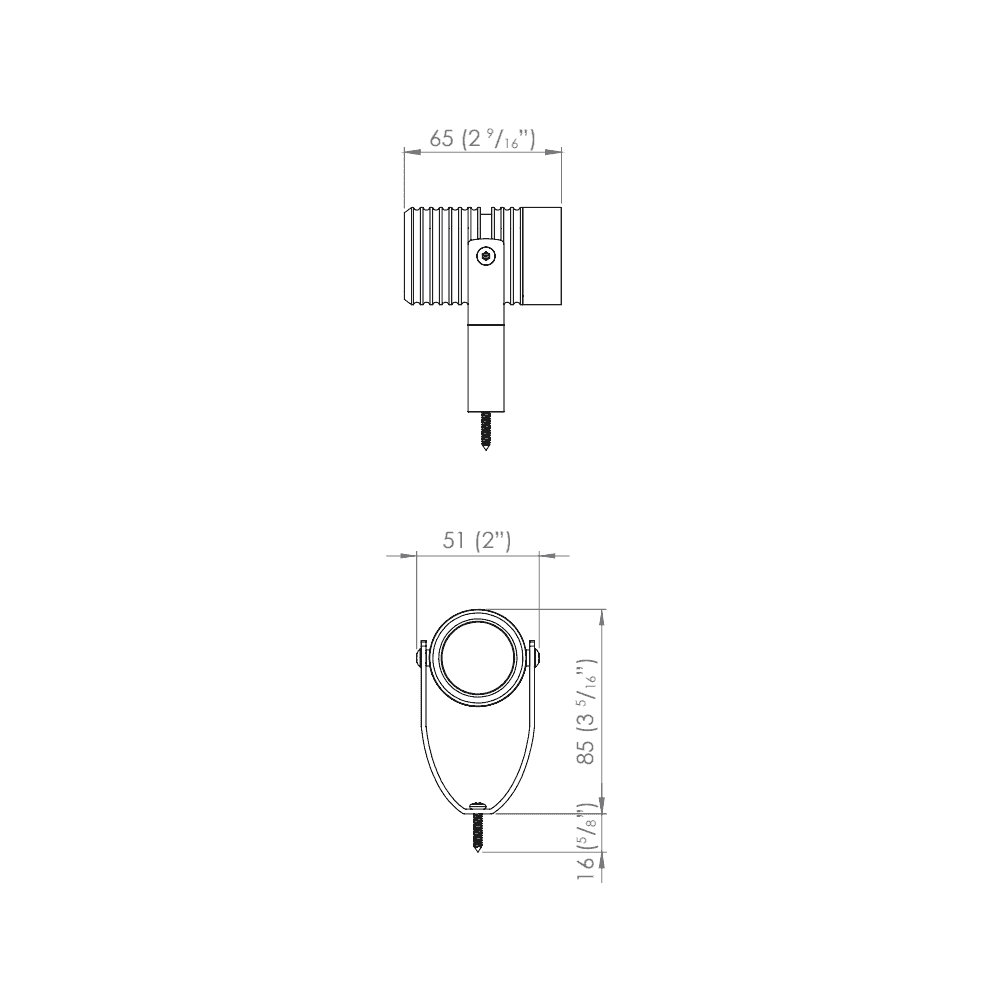

- Dimensions: body 41mm diameter and 65mm long. Supplied with 1m of H05RN-F cable.
- Rated IP68 and submersible up to 9m.
- 4 watt LED at 90 lumens per watt, low voltage, series wiring.
- Warranty: 10 years on the body, with 5 years on the LED.
- Made in New Zealand by the makers of Hunza.
- Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.
Questions People Ask
How is the stainless steel bracket spotlight fixed in place?
It comes on a stiff metal bracket that fixes to almost any surface with a 4mm diameter screw.
Does it come with a driver?
No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered NICEIC electrician installs it.
Which beam angle should I choose?
Choose 26º for a tight beam on one feature, 36º for a medium spread, and 74º when you want to cover more of a wall or a larger shrub.
What is the stainless steel made from?
It is marine grade 316 stainless steel, precision machined and rated IP68 for protection against dust and water.
Can it be used near water?
It is rated IP68 and submersible up to 9m. It still needs a suitable low voltage driver, installed by a registered electrician.
