LuxR Modux 2 Spot with Spike & Glare Guard - Stainless Steel - Low Voltage
Pay in 3 with Klarna
Rated five stars by thousands of customers since 2014 - see our full review history here
10 years (LED 5 years) Warranty
Hassle-Free Returns
20+ Years of Experience
Free UK Delivery*
A Stainless Steel Spike Spot with a Glare Guard

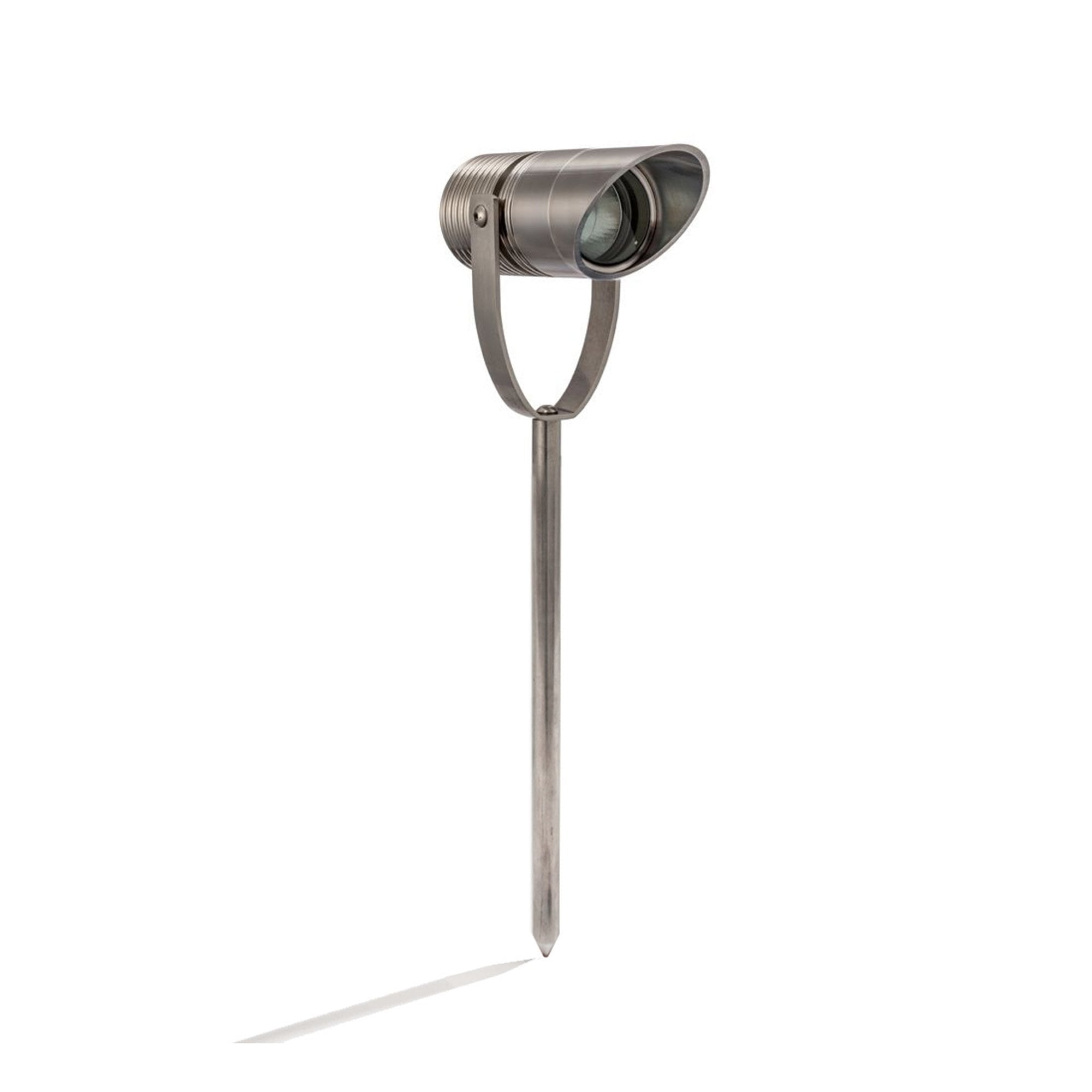

The LuxR Modux 2 Spike Spot with Glare Guard is a very small low voltage outdoor spotlight on a solid 175mm spike that pushes into garden soil. The glare guard is fitted to the front of the head to cut down glare from the fitting, which makes the body 115mm long and 41mm across.
Marine Grade 316 Stainless Steel
This version is precision machined in marine grade 316 stainless steel, with a clean, cool metal look that suits modern gardens, stone and gravel. The light source is a 2 watt Cree LED with a CRI of 90 plus, so foliage and stonework look true to colour.
Choose Your Beam, Colour and Lens

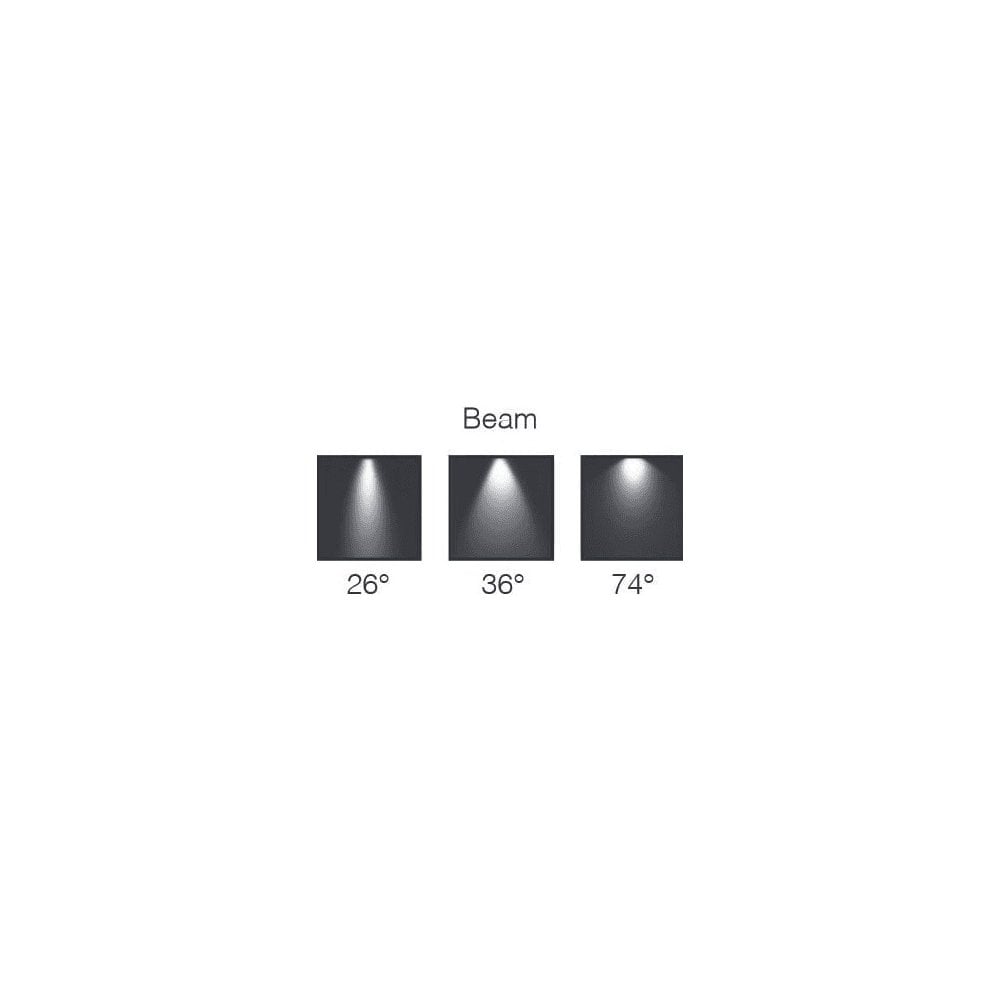

- Beam: 26º is the narrowest beam for a single feature, 36º is a little wider for a shrub, and 74º spreads the light across a broader area.
- Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
- Lens: clear gives the sharpest beam, while frosted softens the edges of the light.
How It Works
Push the spike into the soil and angle the head towards your subject. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.
Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.
Where It Works Best
Choose this where the light may be seen directly, for example beside steps, a path or a seating area, and you want a hard wearing metal finish. Moonlight Design uses LuxR fittings in its own garden lighting designs and installations. The same design is also available as the M1 and M4.
Good to Know

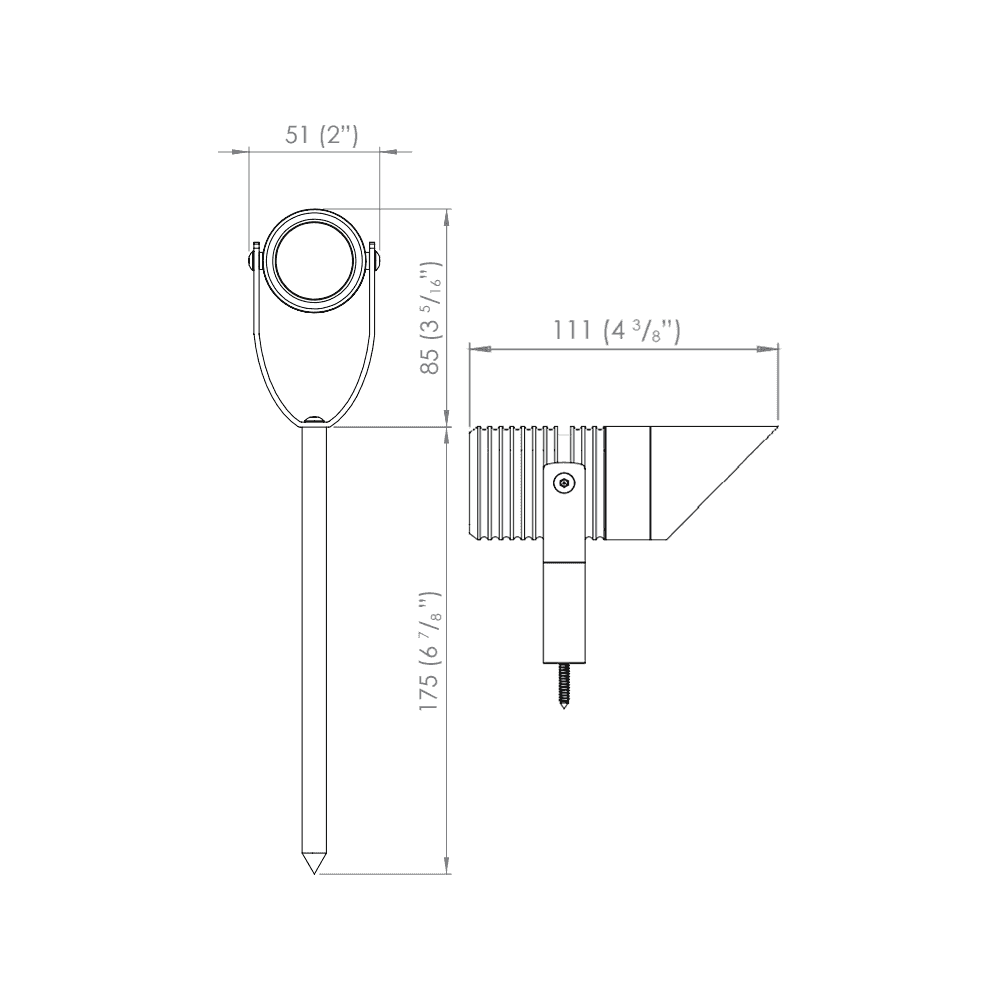

- Dimensions: body 41mm diameter and 115mm long including the glare guard, spike 175mm. Supplied with 1m of H05RN-F cable.
- Rated IP68 for protection against dust and water, so it is built for outdoor use.
- 2 watt LED at 85 lumens per watt, low voltage, series wiring.
- Warranty: 10 years on the body, with 5 years on the LED.
- Designed, engineered and hand assembled in Auckland, New Zealand, by the makers of Hunza.
- Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.
Questions People Ask
What does the glare guard do?
It is fitted to the front of the head to cut down glare from the fitting. It also makes the body 115mm long, compared with 65mm for the spike spot without one.
What is the stainless steel grade?
It is marine grade 316 stainless steel, and the fitting is rated IP68 for dust and water protection.
Does it come with a driver?
No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered NICEIC electrician installs it.
Which beam angle should I choose?
Choose 26º to light a single feature, 36º for a shrub or small tree, and 74º for a wider spread.
Can I change the LED later?
Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.
