LuxR Modux 2 Round Recessed - Powder Coat - Low Voltage

A Small Round Recessed Spotlight

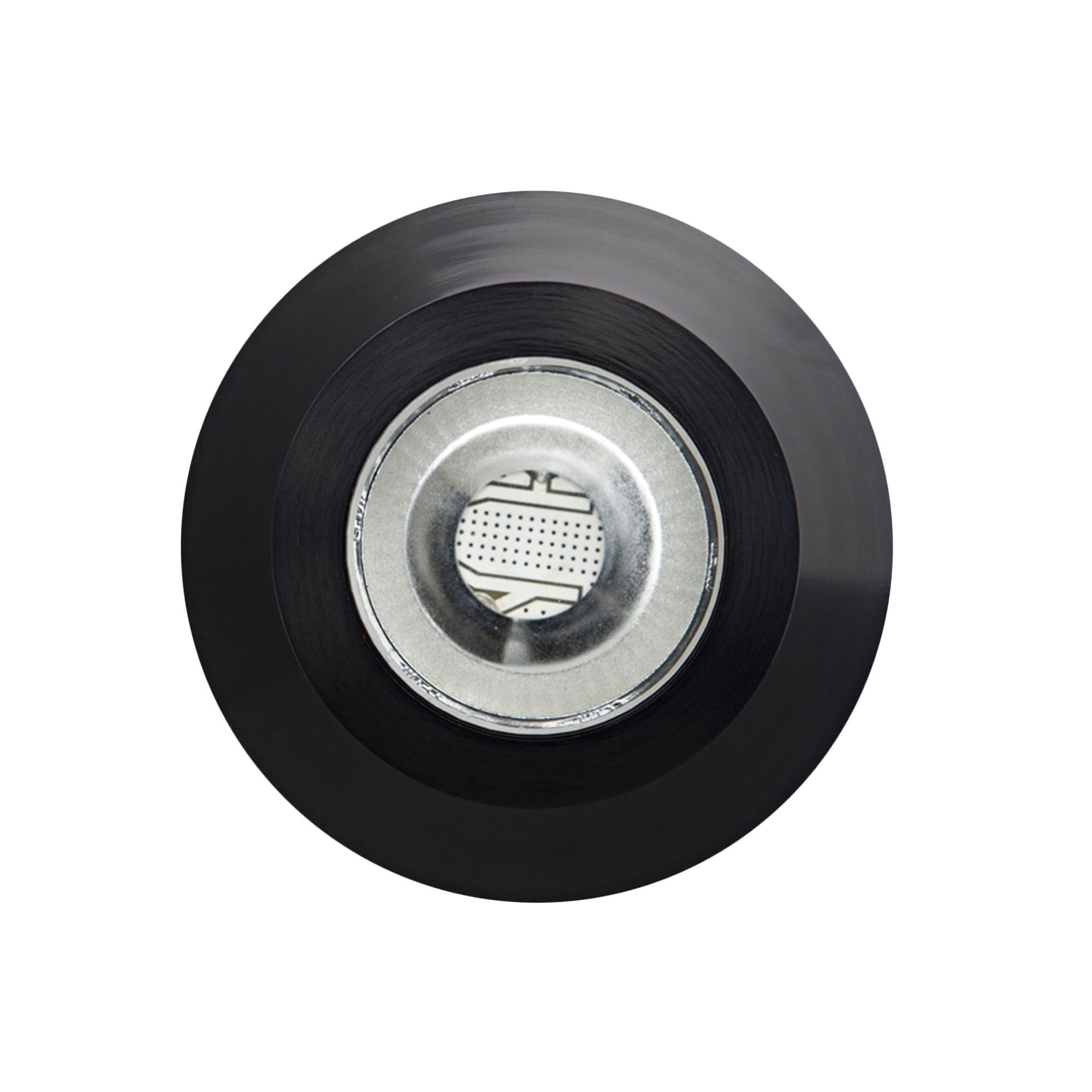

The LuxR Modux 2 Round Recessed is a small low voltage outdoor spotlight with a round flange. It sits in a surface with only the flange showing. In powder coat it can be matched to the surface around it, with a smooth matt finish.

UV Powder Coated Aluminium

This version is UV powder coated aluminium, which gives a smooth matt colour rather than a bare metal finish. The light source is a 2 watt Cree LED with a CRI of 90 plus.

Choose Your Options

• Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.

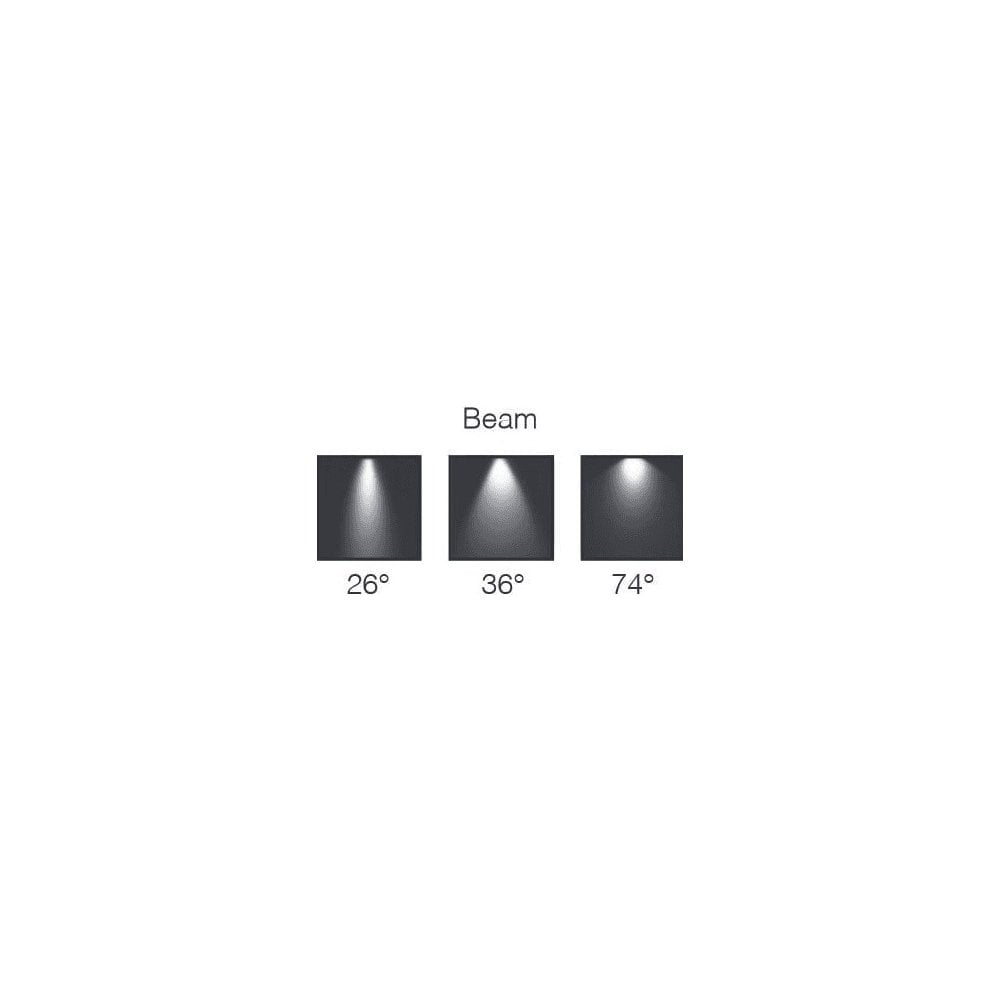

• Beam: 26º is the narrowest, 36º is a medium beam and 74º is the widest, for more spread.
• Powder coat colour: Matt Black, Matt Bronze, Matt White or Matt Dark Grey. Matt White and Matt Dark Grey are marked Non-Returnable.
• Lens: clear gives the sharpest beam, while frosted softens the edges of the light.

How It Works

The fitting recesses into a 43.5mm cut out. It is supplied with 1m of H05RN-F cable and runs on low voltage, so it needs a suitable constant current driver, which is not included, wired in series. It is dimmable when paired with a suitable dimmable driver. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

Use it to light a tree, a wall or a feature from a decking, paving or ground surface. A narrow beam picks out a single subject, and a wide beam fills a larger area. The same design is also available in the M1 and M4.

Good to Know

• Cut out 43.5mm, flange 58mm diameter. Supplied with 1m of H05RN-F cable.
• Rated IP68 for protection against dust and water, so it is built for outdoor use.
• Material: UV powder coated aluminium.
• 2 watt LED at 85 lumens per watt, CRI 90 plus, low voltage, series wiring.
• Warranty: 5 years.
• Made in New Zealand by the makers of Hunza.
• Colours marked Non-Returnable in the colour selector cannot be returned once ordered.
• Colours shown are for guidance only. Physical colour swatches are available on request.

Questions People Ask

What size hole does the round recessed need?

It needs a 43.5mm cut out, and the flange is 58mm in diameter. It is supplied with 1m of cable.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered NICEIC electrician installs it.

Which beam angle should I choose?

Choose 26º to pick out a single feature, 36º for a medium spread, and 74º for a wide wash across a larger area.

What are the powder coat colours?

The choices are Matt Black, Matt Bronze, Matt White and Matt Dark Grey. Matt White and Matt Dark Grey are marked Non-Returnable. Physical colour swatches are available on request.

Can I change the LED or beam later?

Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

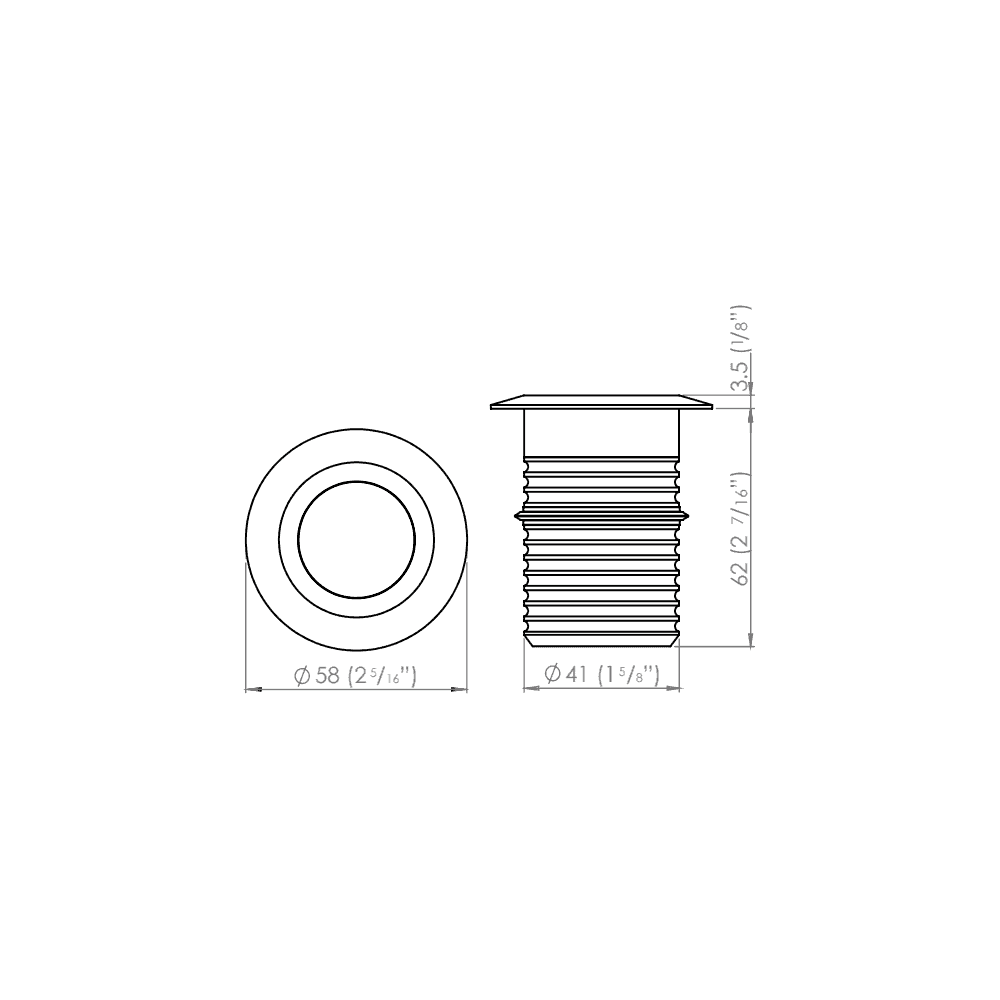

Recessed Body
Diameter: 41mm
Length: 62mm
Cut-Out: 43.5mm

Flange
Diameter: 58mm
Depth: 3mm

Cable: Supplied with H05RN-F 1m
(refer to spec for more information)

• M2 Uplighter
