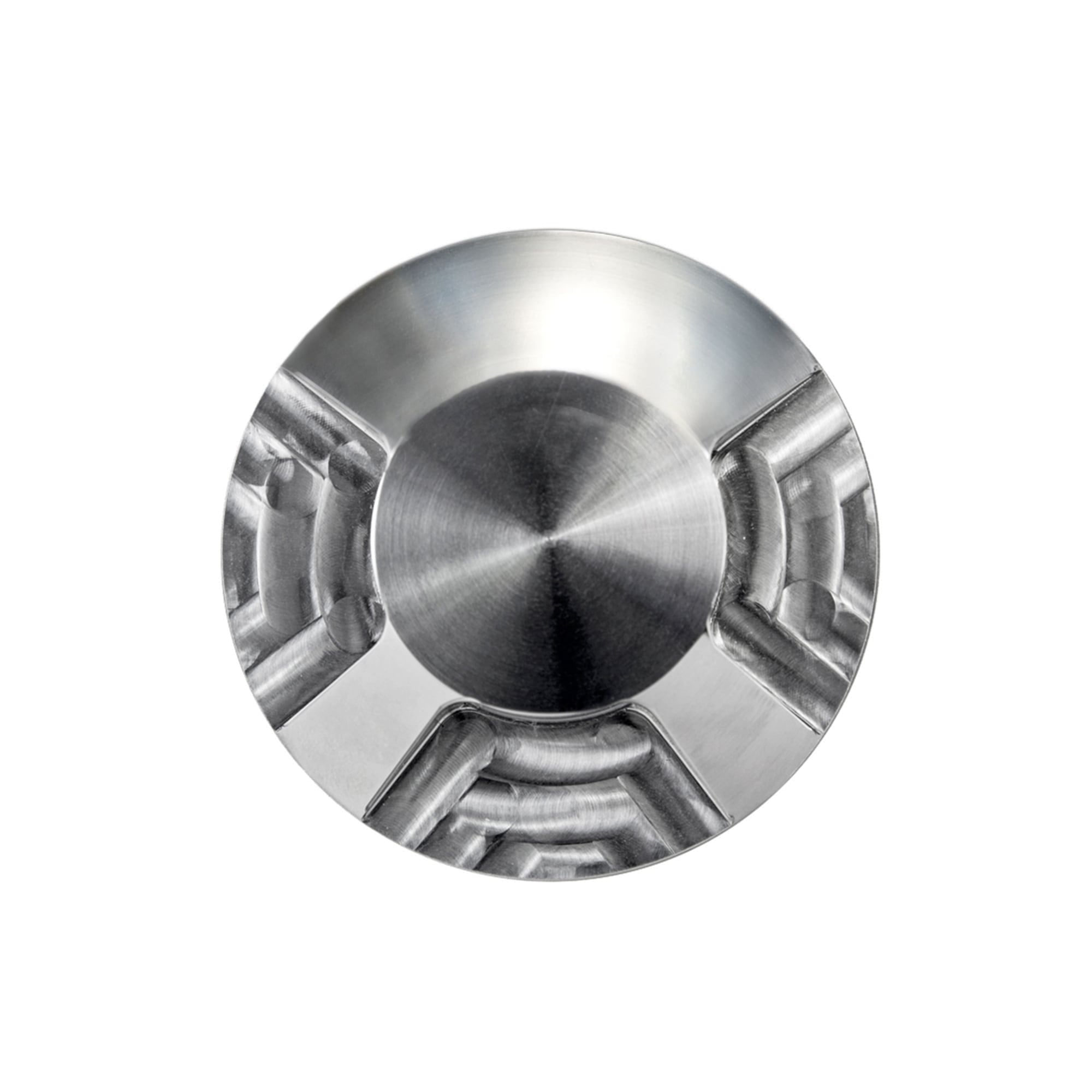

LuxR Modux 2 PL3 Path Light - 270 Degrees - Stainless Steel - Low Voltage

Wide Coverage, Clean Finish

The LuxR Modux 2 PL3 is a small recessed low voltage path light with a 270º flange. Its light covers three quarters of the way around the fitting, and only a small section behind stays dark. The brand states that the wash falls 5º below the flange lip and 10º above, so it can light a wall surface or work as a path light wayfinder.

Stainless Steel in Marine Grade 316

Marine grade 316 stainless steel gives this version its clean, cool, silvery finish, and it is chosen for outdoor use. The IP68 rating makes it a sound pick for wet or coastal gardens. Precision machined, it holds a 2 watt Cree LED with a CRI of 90 plus, so plants and stonework look true to colour. The 270º flange in stainless steel has a crisp, modern look that stays neutral against stone and paving.

Choose Your Options

• Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.
• Flange angle: each flange angle is sold as its own listing. The PL range comes in 90º, 180º, 2x90º opposite, 270º and 360º, in copper or stainless steel.

How It Works

The fitting recesses into a 43.5mm cut out. It is supplied with 1m of H05RN-F cable and runs on low voltage, so it needs a suitable constant current driver, which is not included, wired in series. It is dimmable when paired with a suitable dimmable driver. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

Choose this one for wide coverage with one side kept dark. It is a good fit for walls, edges and borders where you want a crisp, clean metal look that stays neutral against stone and paving. If you need a different size, the same design is also available in the Micro and M4.

Good to Know

• Cut out 43.5mm, flange depth 11mm. Supplied with 1m of H05RN-F cable.
• Material: marine grade 316 stainless steel.
• Rated IP68 for protection against dust and water, so it is built for outdoor use.
• 2 watt LED at 85 lumens per watt, CRI 90 plus, low voltage, series wiring.
• Warranty: 10 years on the body, with 5 years on the LED.
• Made in New Zealand by the makers of Hunza.

Questions People Ask

What size hole does the PL3 path light need?

It needs a 43.5mm cut out, and the flange has an 11mm depth. It is supplied with 1m of cable.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered NICEIC electrician installs it.

Which flange angle should I choose?

The 270º flange (PL3) lights three quarters of a circle and leaves one quarter dark. The other options are 90º (one quarter), 180º (half), 2x90º opposite and 360º (all the way round).

Is stainless steel right for outdoors?

Yes. It is made from marine grade 316 stainless steel and is rated IP68, so it is built for outdoor use.

Can I change the LED or beam later?

Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

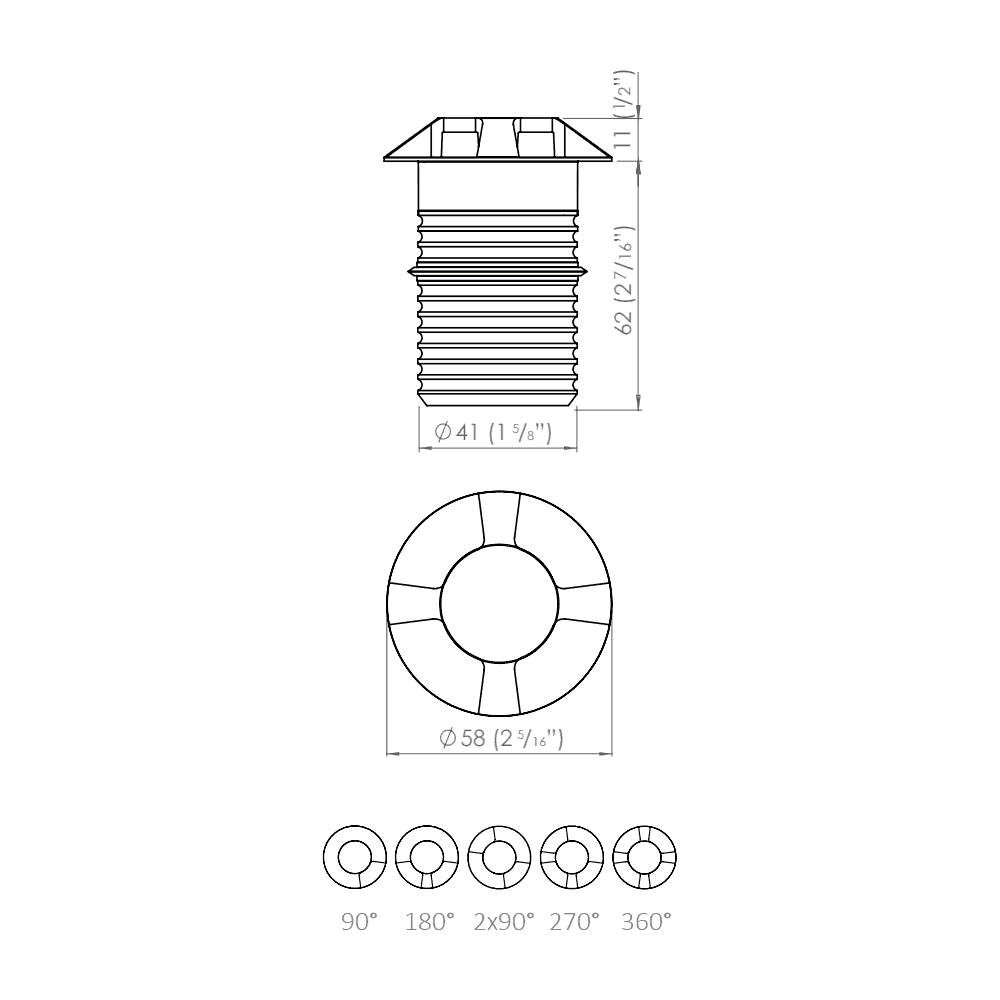

CUTOUT 43.5mm / Recessed body 41mm diameter, 62mm length / Flange 58mm diameter, 11mm depth & H05RN-F 1m Included
