LuxR Modux 2 Large Louvre Recessed - Stainless Steel - Low Voltage
Pay in 3 with Klarna
Rated five stars by thousands of customers since 2014 - see our full review history here
10 years (LED 5 years) Warranty
Hassle-Free Returns
20+ Years of Experience
Free UK Delivery*

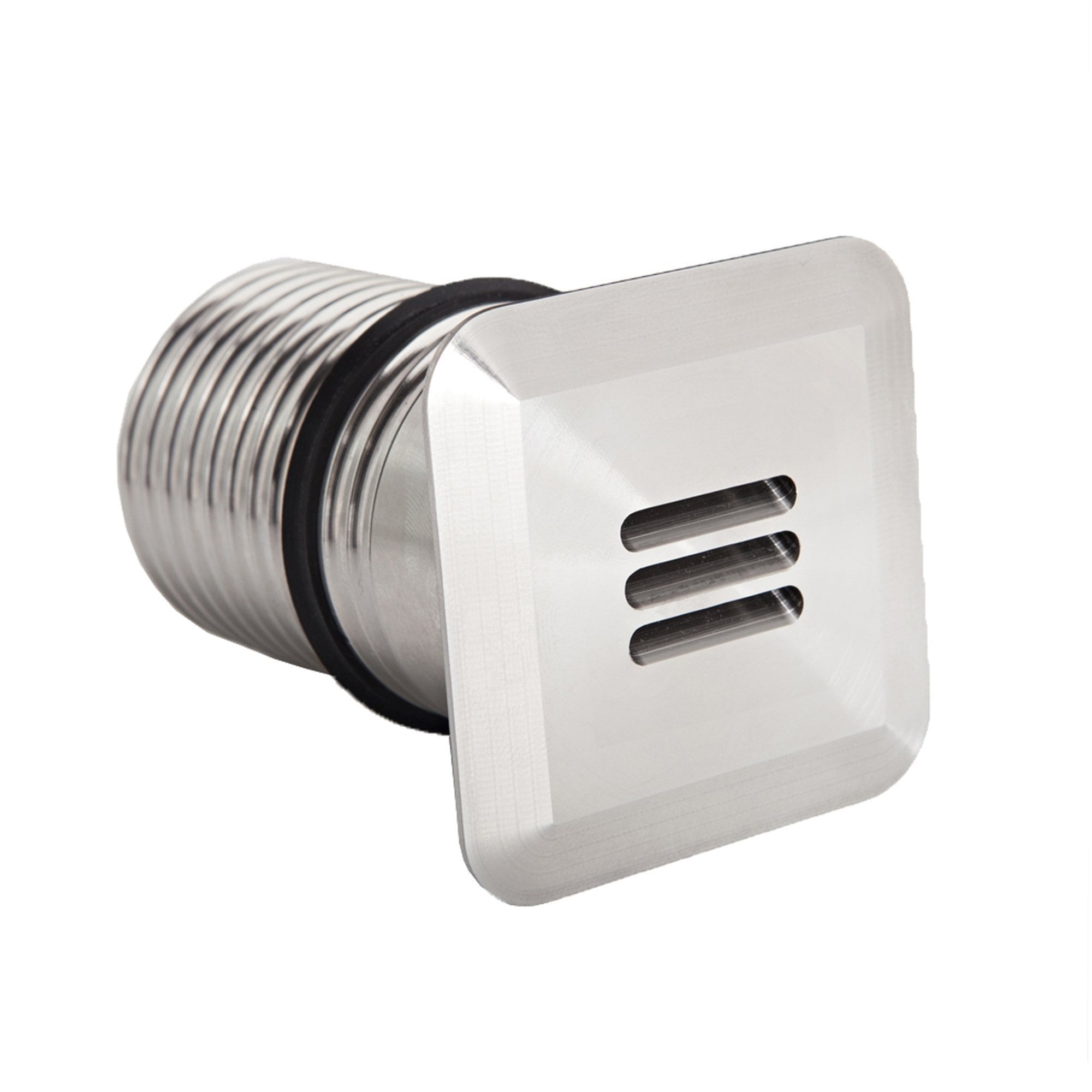

A Larger Stainless Steel Louvre Recessed Wash Light
The LuxR Modux 2 Large Louvre Recessed is a small low voltage recessed light that gives an attractive wash of light. It has a distance across the flats of 61mm, compared with 53mm for the regular M2 louvre, which is useful when the mounting hole is generous or when hole coverage is a priority.
Stainless Steel and Aluminium
This version is made from stainless steel and aluminium, with a crisp, bright finish that gives a slightly nautical look, especially on timber or composite decking. The light source is a 2 watt Cree LED with a CRI of 90 plus, and the fitting is rated IP68.
Choose Your Colour Temperature
- Colour temperature: 2200K is a very warm glow, 2700K and 3000K are warm white, and 4000K is a crisper neutral white that pairs well with the cool metal.
How It Works
The recessed body is 41mm in diameter and 62mm long, and sits in a 43.5mm cut out, with the larger flange covering the edge of the hole. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.
Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.
Where It Works Best
Use it in steps, stair treads, decking and walls where you want a soft wash of light and a flange that hides a rough cut. It is also available in M4.
Good to Know

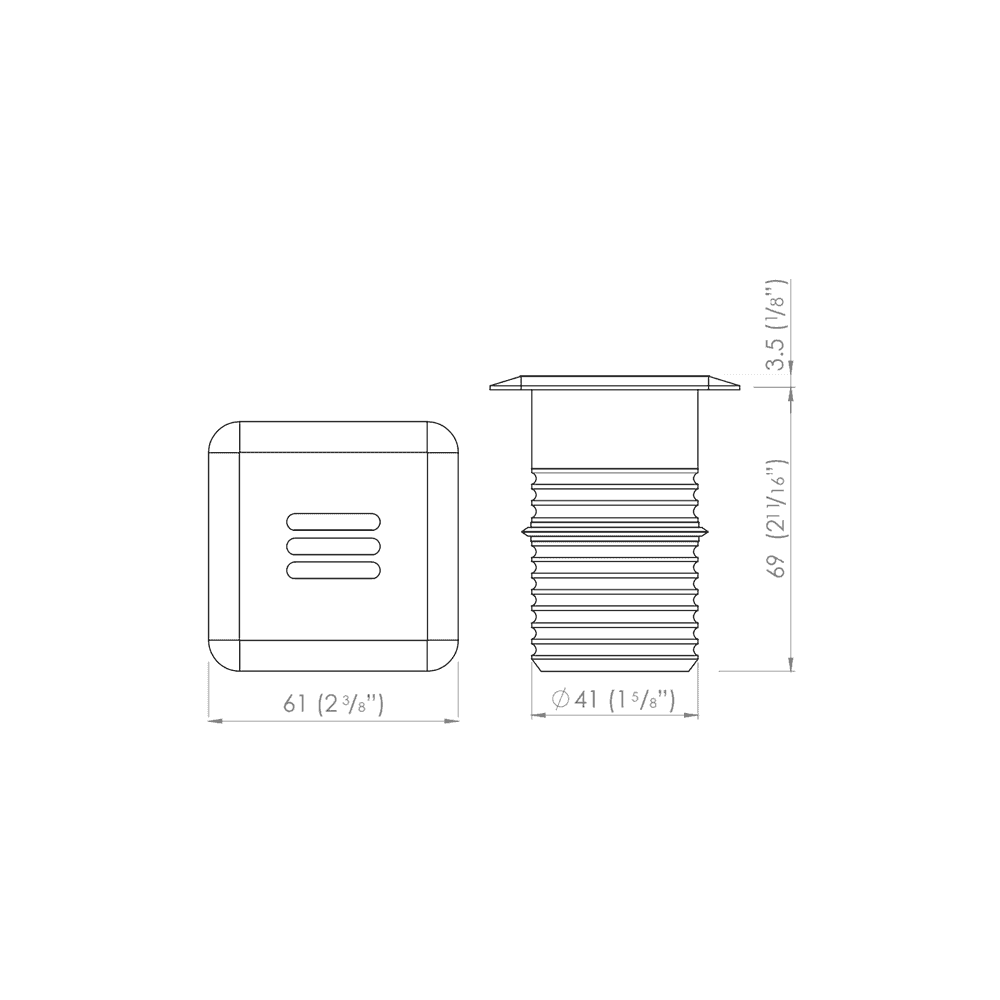

- Size: 61mm flange diameter, with a flange depth of 3.5mm. Recessed body 41mm diameter and 62mm long. Cut out 43.5mm.
- Material: stainless steel and aluminium.
- Rated IP68 for protection against dust and water.
- 2 watt LED at 85 lumens per watt, low voltage, series wiring. Supplied with 1m of H05RN-F cable.
- Warranty: 10 years on the body, with 5 years on the LED.
- Made in New Zealand by the makers of Hunza.
- Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.
Questions People Ask
How much bigger is the large louvre recessed?
The flange is 61mm across the flats, compared with 53mm for the regular M2 louvre. The cut out is 43.5mm.
Does it come with a driver?
No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered electrician installs it.
What is it made from?
The product data lists stainless steel and aluminium. It is rated IP68 for outdoor use.
Which colour temperature should I choose?
Choose 2200K or 2700K for a warm, relaxed feel, and 3000K or 4000K if you prefer a cleaner, whiter light.
Can I change the LED later?
Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.
