LuxR Modux 2 Large Louvre Recessed - Copper - Low Voltage

A Larger Copper Louvre Recessed Wash Light

The LuxR Modux 2 Large Louvre Recessed is a small low voltage recessed light that gives an attractive wash of light. It has a distance across the flats of 61mm, compared with 53mm for the regular M2 louvre, which is useful when the mounting hole is generous or when hole coverage is a priority.

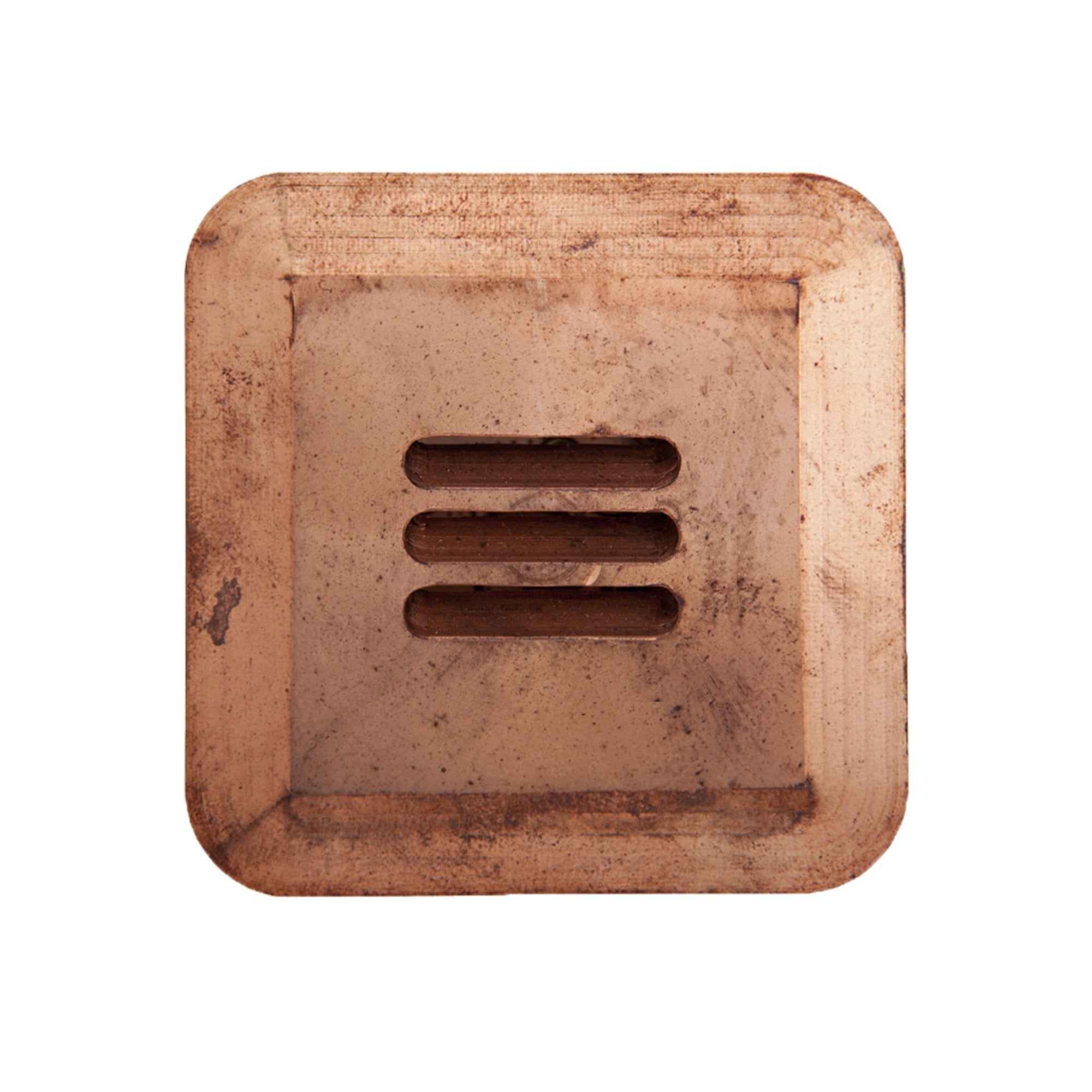

Copper That Ages Naturally

This version is made from copper and bronze. Copper looks very much at home recessed into timber, and it develops a natural patina outdoors, so the flange softens and darkens with age. The light source is a 2 watt Cree LED with a CRI of 90 plus, and the fitting is rated IP68.

Choose Your Colour Temperature

• Colour temperature: 2200K is a very warm glow that suits timber, 2700K and 3000K are warm white, and 4000K is a crisper neutral white.

How It Works

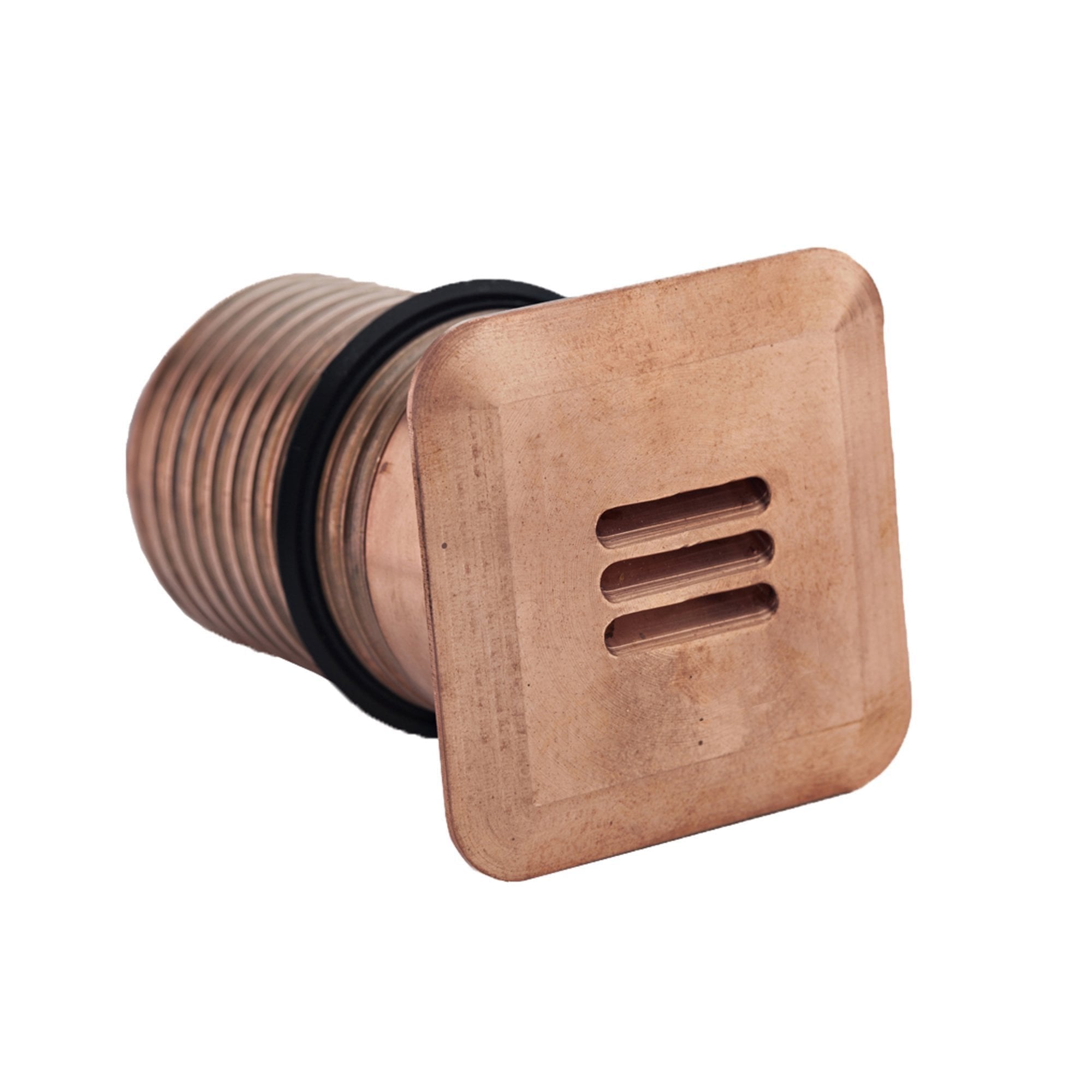

The recessed body is 41mm in diameter and 69mm long, and sits in a 43.5mm cut out, with the larger flange covering the edge of the hole. The fitting runs on low voltage, so it needs a suitable constant current driver, which is not included, and it is wired in series. It is dimmable when paired with a suitable dimmable driver. A 1m cable is supplied. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

Where It Works Best

Use it in decking, timber cladding, steps and walls where you want a soft wash of light and a flange that hides a rough cut. It is also available in M4.

Good to Know

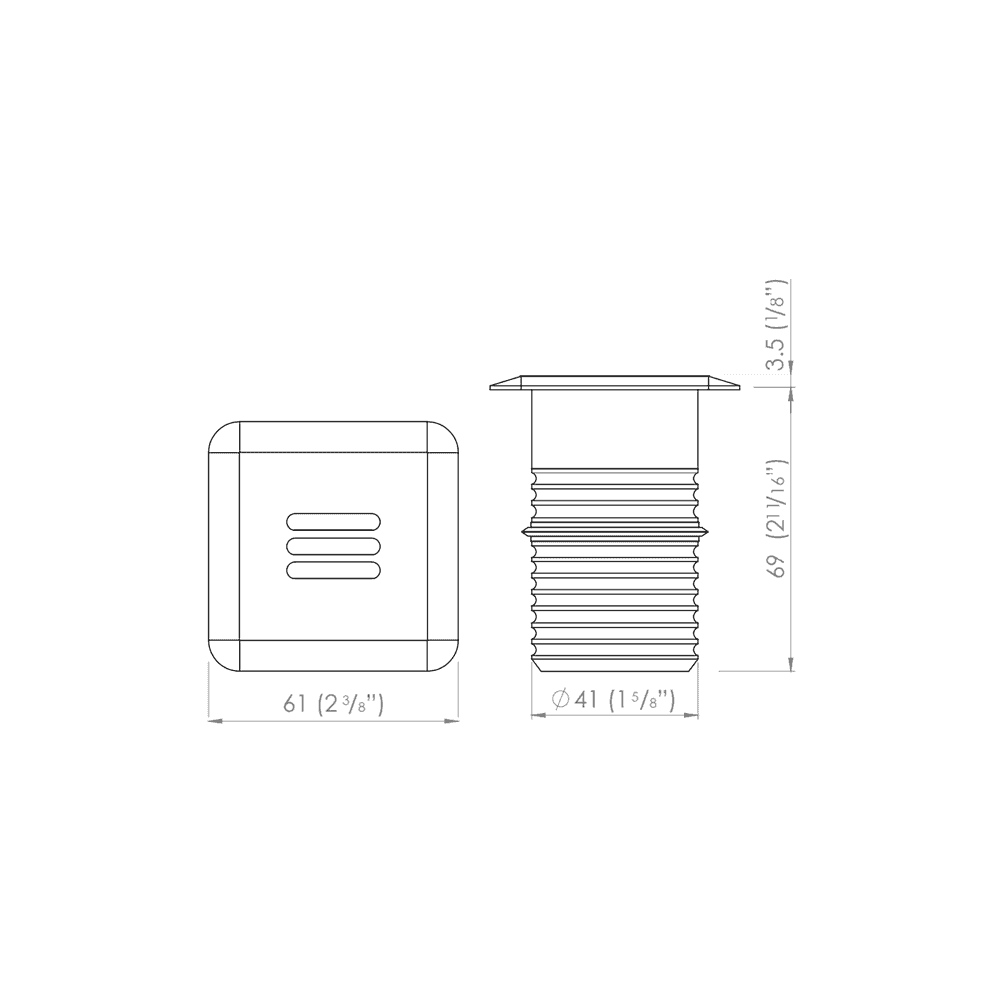

• Size: 61mm across the flats, with a flange depth of 3.5mm. Recessed body 41mm diameter and 69mm long. Cut out 43.5mm.
• Material: copper and bronze.
• Rated IP68 for protection against dust and water.
• 2 watt LED at 85 lumens per watt, low voltage, series wiring. Supplied with 1m of H05RN-F cable.
• Warranty: 10 years on the body, with 5 years on the LED.
• Made in New Zealand by the makers of Hunza.
• Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

How much bigger is the large louvre recessed?

The flange is 61mm across the flats, compared with 53mm for the regular M2 louvre. The cut out is 43.5mm.

Does it come with a driver?

No. It is a low voltage fitting and needs a suitable constant current driver, sold separately. A dimmable driver lets you dim the light. We recommend a registered electrician installs it.

Will the copper change colour?

Yes. Copper develops a natural patina outdoors over time, so the finish will soften and darken gradually. This is normal and is part of its appeal.

Which colour temperature should I choose?

Choose 2200K or 2700K for a warm, relaxed feel against timber, and 3000K or 4000K if you prefer a cleaner, whiter light.

Can I change the LED later?

Yes. The Cree LED can be replaced or swapped for a colour LED, and the optic can be changed to alter the beam width.

Recessed Body
Diameter: 41mm
Length: 69mm
Cut-Out: 43.5mm

Flange
Width: 61mm
Depth: 3.5mm

Cable: Supplied with H05RN-F 1m
(refer to spec for more information)

• M2 Louvre
