LuxR Modux 1 Pole Spot Glare Guard Stainless Steel

A Small Pole Spot With a Hood Over the Lens

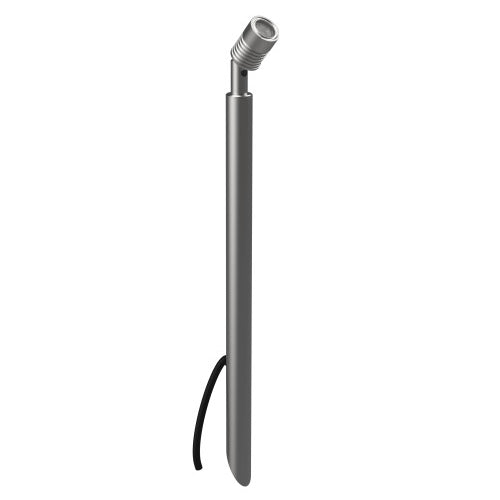

The LuxR Modux 1 Pole Spot with Glare Guard is the most compact pole spot in the range, fitted with an adjustable hood that shields the lens. The hood keeps the LED out of direct view and stops stray light reaching people nearby, which makes it a comfortable choice beside paths, seating and windows. It stands on a 400mm pole with an adjustable head.

316 Stainless Steel

The fitting is made in 316 stainless steel, a marine grade metal chosen for outdoor lighting, with a cool silver finish. Inside is a pin mounted 1 watt Cree LED, which the brand states delivers around 80 lumens, a soft output made for accent lighting.

What the Glare Guard Does

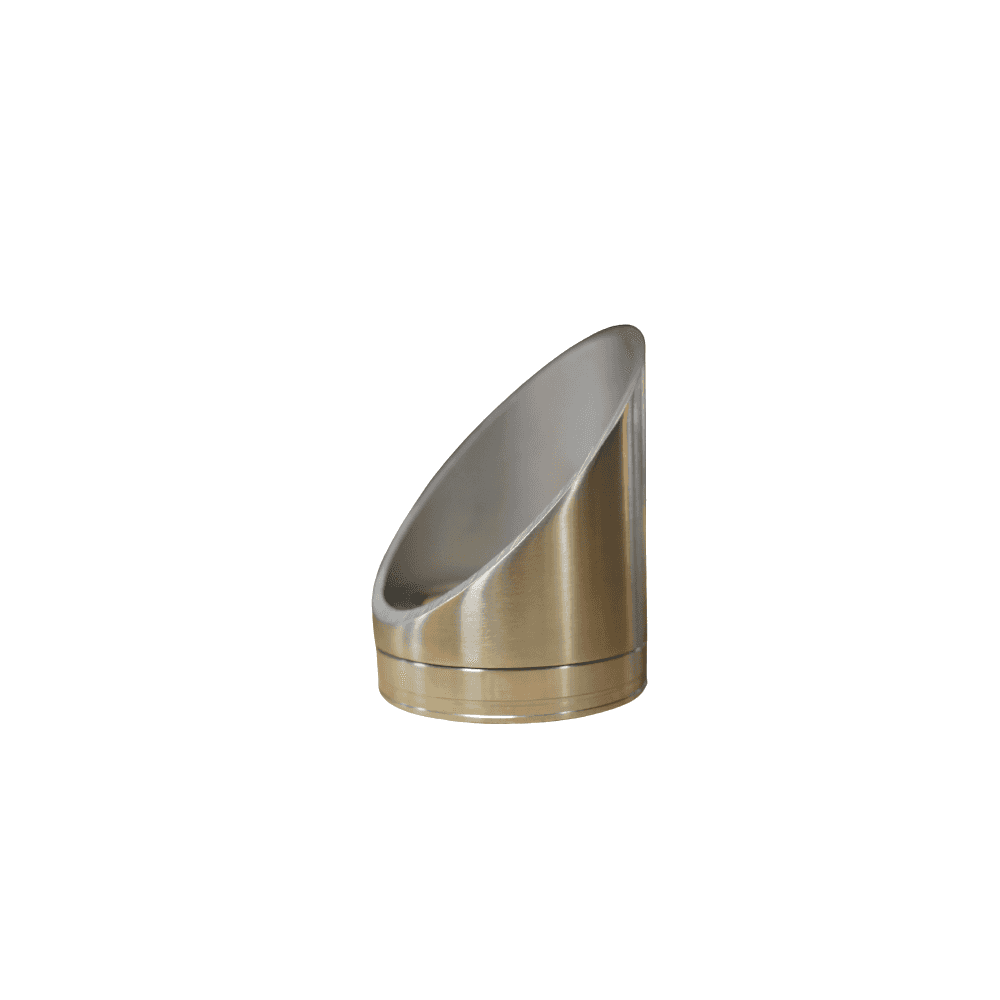

The guard is a friction fit hood that turns through a full 360º and stays where you set it. It protects the eye from the direct sparkle of the LED and helps direct light away from where it is not wanted. The glass is fitted flush so water does not pool on the lens, and a hexcell louvre baffle can be used with the guard for extra control.

Choose Your Beam, Colour and Lens

Beam: 15º is a very narrow, long reach beam, 30º is a tight spot, 53º is a wider cone, and the oval beam stretches light sideways along a low wall or border edge.
Colour temperature: 2200K is very warm, 2700K and 3000K are warm white, and 4000K is neutral white.
Lens: clear for a crisp beam, frosted for a softer edge.

How It Works

Push the pole into the soil, tilt the head and turn the hood to cut glare. The fitting runs on low voltage from a 350mA constant current driver, sold separately. A dimmable driver lets you dim the light. The LED can be replaced later.

Moonlight Design recommends that all lighting should be installed by a registered NICEIC electrician.

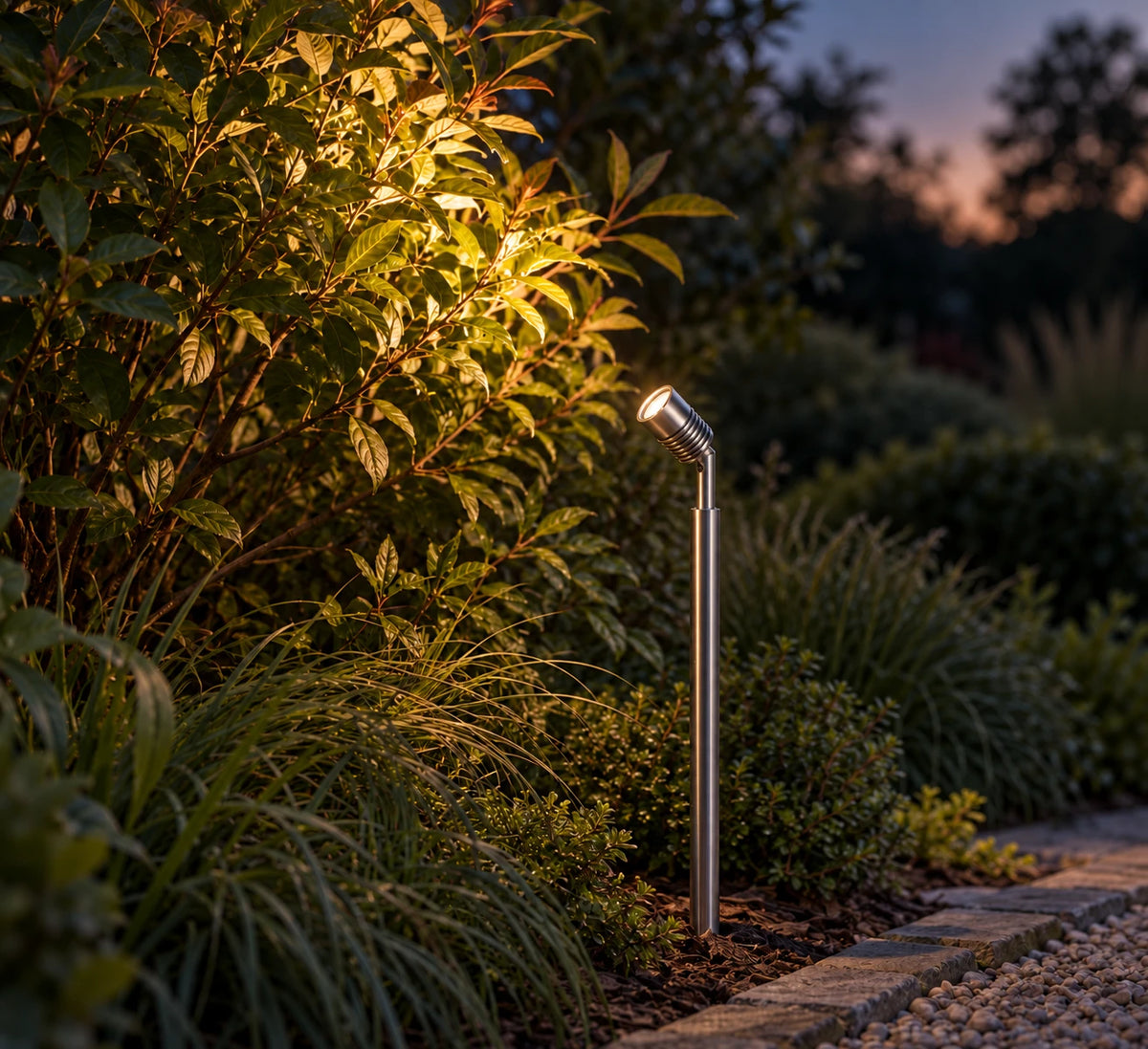

Where It Works Best

Choose this version where the light will be seen from the side: along a path, around a patio or in a border close to the house. It suits small shrubs, pots and low planting. For more output, the Modux 2 and Modux 4 pole spots are also available with a glare guard. We can also supply longer poles, so please contact us to discuss the length you need.

Good to Know

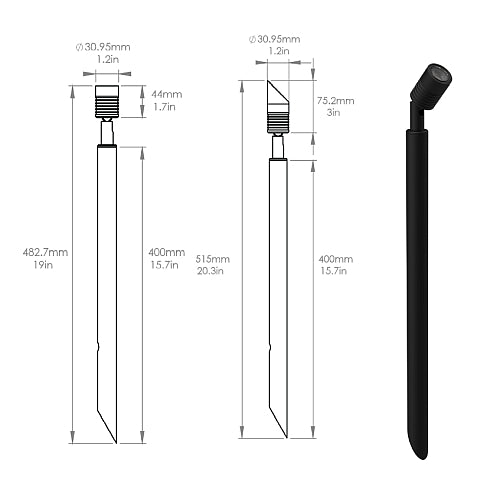

Dimensions: head 30.95mm diameter and 75.2mm long with the glare guard fitted, pole 400mm, overall length 515mm, or 482.7mm with the standard head. Longer poles are available on request, please contact us.
Rated IP68 for protection against dust and water, so it is built for outdoor use.
Warranty: 10 years on the stainless steel, with 5 years on the LED and electronics.
Returns are accepted as normal, unless the item is made to order.
Made in New Zealand.
Usually ships in 2 to 3 days. If out of stock, allow 3 to 5 weeks.

Questions People Ask

What does the glare guard do on the M1 pole spot?

It is an adjustable hood over the lens. It stops people seeing the LED directly and directs unwanted light away from passers by. It turns through 360º and holds its position by friction.

How bright is it?

The M1 uses a 1 watt LED that the brand states gives around 80 lumens. It is designed for subtle accent lighting.

Which beam angle should I choose?

Choose 15º for a very narrow, long reach beam, 30º to light one feature, 53º for a small shrub, and the oval beam for a low wall or border edge.

Is a driver included?

No. It needs a suitable 350mA constant current driver, sold separately. We recommend a registered electrician installs it.

How tall is the M1 pole spot with the glare guard?

The pole is 400mm long and the whole fitting measures 515mm from the tip of the spike to the top of the glare guard. How much shows above ground depends on how deep you push it into the soil.

Can I get a longer pole?

Yes. We can supply longer poles, so please contact us with the length you need.
