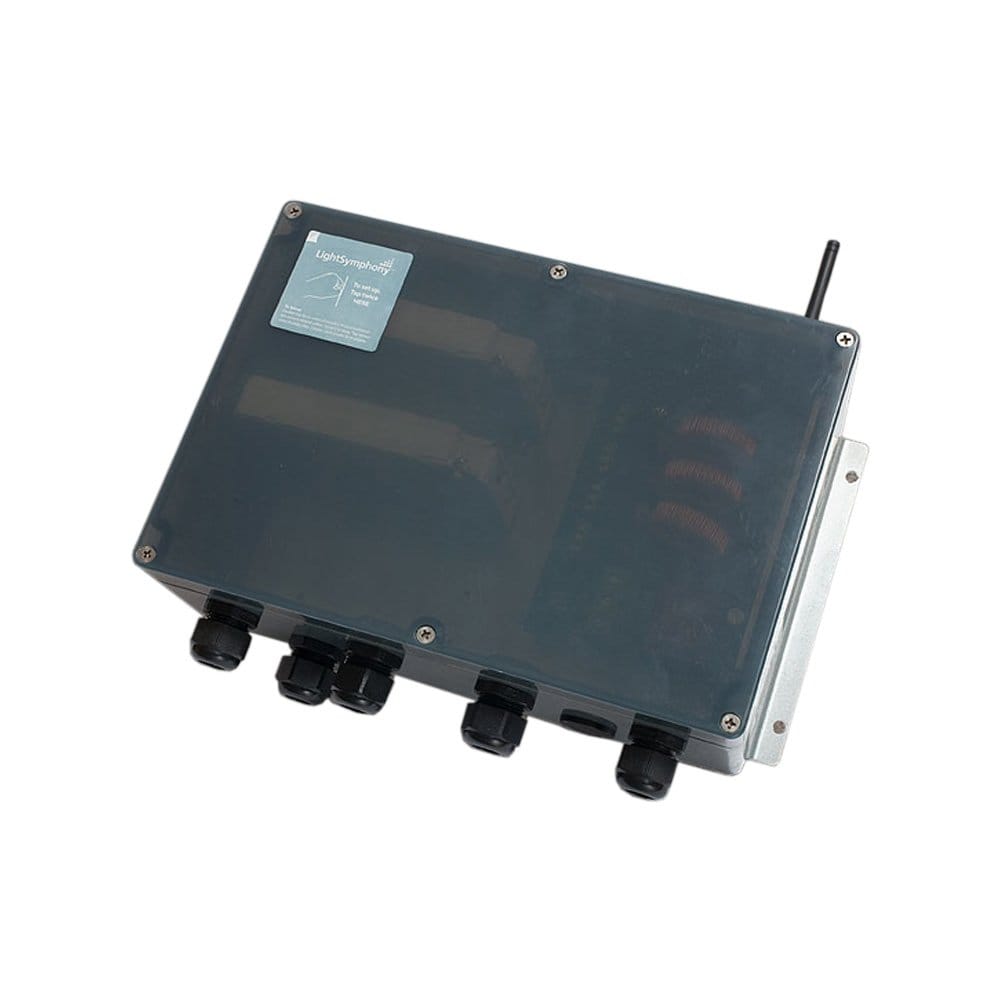

Light Symphony 4 Channel Lighting Controller

Wireless Garden Lighting Control for Four Separate Circuits

The Light Symphony 4 Channel Lighting Controller, model LS30540RGBW, gives you independent control over four garden lighting circuits. It brings switching, compatible LED dimming and DMX colour control together in one outdoor controller, allowing different parts of a lighting scheme to work separately or as a group.

That flexibility matters when your terrace needs a softer setting for sitting outside, while a path remains clearly lit and a specimen tree provides a focal point further into the garden. Separate circuits allow the lighting to respond to how you use each space.

Four Channels in One Outdoor Controller

Each output is rated at up to 500W, with an IP66 rated ABS enclosure protecting the controller outdoors. The enclosure measures 290 x 290 x 100mm. It can form the centre of a new installation or work alongside additional Light Symphony controllers as the garden develops.

How the Switching and Dimming Work

The controller receives wireless commands from compatible Light Symphony controls. Your electrician still connects the mains supply and lighting circuits: wireless refers to the control signal.

The 230V outputs can be configured for switching or leading edge dimming. With compatible dimmable lamps and drivers, the soft on and off function introduces and fades the light gradually. Non-dimmable equipment needs the appropriate switched configuration.

Colour changing lighting uses DMX control and suitable separate RGB or RGBW LED drivers, selected to match the connected LEDs.

Choose How You Control Your Garden

A compatible key fob provides straightforward handheld operation. Adding the Light Symphony Smart Timer enables app control and supported Alexa or Google Assistant voice control.

The system supports individual areas, grouped lighting and scenes, with 29 memory settings and a master on and off function. You can operate selected parts of the garden or bring the scheme together with one command.

Where It Works Best

A four channel garden lighting controller suits projects with several distinct lighting requirements. One circuit could serve terrace lighting, another a path, and the remaining circuits separate planting areas. This offers more choice over the evening scene than placing every fitting on a single circuit.

For mixed white and colour changing lighting, select the fittings, drivers and circuit layout together so each area responds as intended.

Good to Know

• Four independently controllable channels, rated at up to 500W per output.
• RGB and RGBW colour modes cannot be mixed on the same controller.
• Compatible DMX drivers are required for colour changing LEDs.
• Manufacturer-stated wireless range of up to 1,000 metres with clear line of sight; obstacles reduce coverage.
• Moonlight Design recommends installation by a registered NICEIC electrician.
• One year warranty.
• For change of mind returns, see our returns policy before installation. Separate terms apply to trade orders.

Questions People Ask

Can the Light Symphony 4 Channel Controller dim garden LEDs?
Yes, if the connected lamps or drivers are compatible with leading edge dimming and the controller is configured correctly.

Does the controller provide app control on its own?
No. Add a compatible Light Symphony Smart Timer if you want app control, voice control or timed schedules.

Can I connect RGB LED strip directly to the controller?
No. RGB or RGBW LED strip needs a suitable separate DMX LED driver matched to the strip.

Can I extend the system beyond four lighting circuits?
Yes. Additional compatible Light Symphony controllers can be added when the garden needs more than four circuits.
