Hunza Pure LED Step Light Square - Stainless Steel - Low Voltage

Clean Square Lines in 316 Stainless Steel

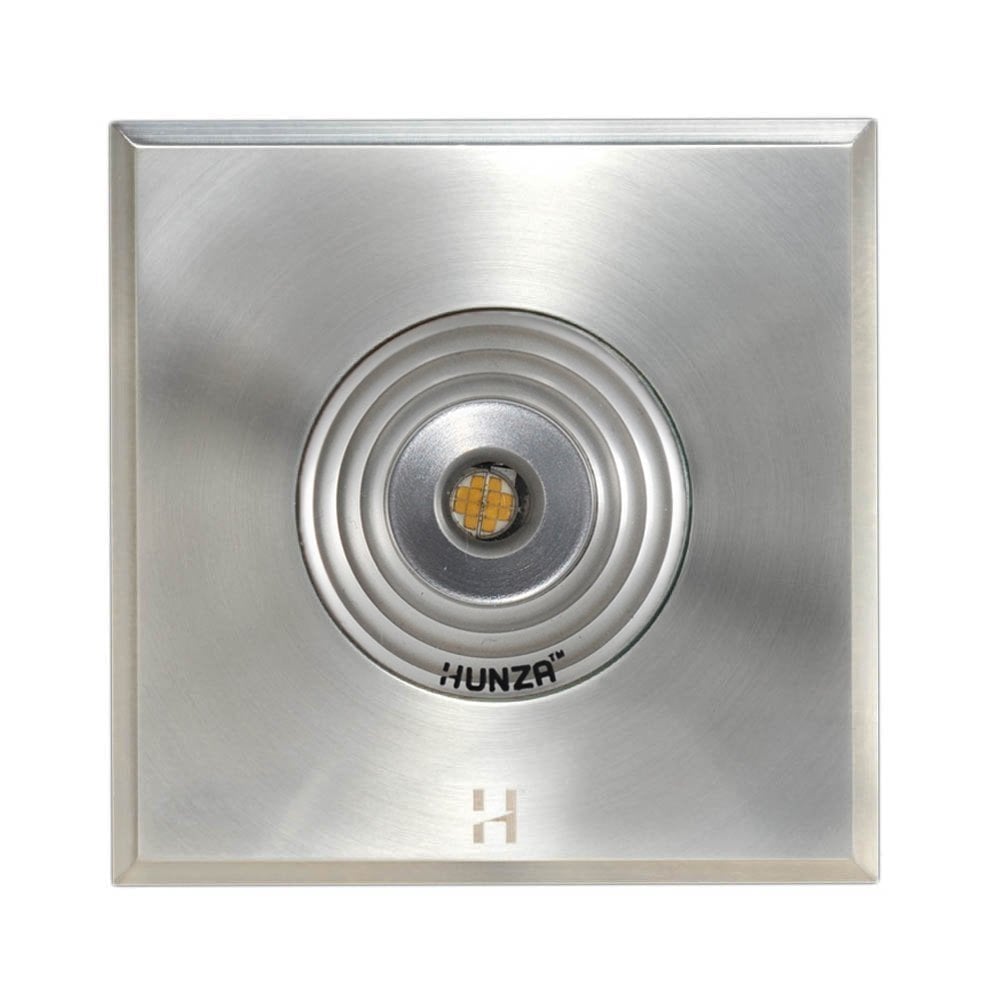

If your steps and paving are built from crisp, straight edged materials, a square fitting sits more naturally than a round one. The Hunza Pure LED Step Light Square has a square flange that lies flat against masonry, stone or wood, with a low voltage Cree LED behind it. It suits step lighting, paved areas and driveways, and it can also be used as a recessed uplighter.

Stainless Steel for a Consistent Look

This version is made from marine grade 316 stainless steel with a brushed finish. It looks the same fitting after fitting, which helps when you are lighting a long flight of steps. Like any stainless steel, it can develop a light surface tarnish in some environments, and washing it now and then keeps it clear. Copper and powder coated aluminium versions are also available.

How It Works

• The square flange is 88mm wide and 7mm deep, and the body behind it is 63.5mm in diameter and 68.5mm long. The cut out is 63.5mm.
• Mounting holes come as standard. Use a canister and they are not needed.
• A Cree LED chip gives 600 lumens at 1050mA from 6 watts, with CRI 90 or more at 3000K. You can service the parts if needed.
• Choose 2200K, 2700K, 3000K or 4000K, a beam of 15, 25, 38 or 60 degrees, and a clear or frosted lens.
• Wired in series and driven by a remote LED driver, sold separately. It is dimmable with a suitable dimmable driver.
• Comes with 1m of cable, an IP67 rating and a 10 year warranty, with 5 years on the LED.

Where It Works Best

• Contemporary steps in porcelain, concrete or sawn stone
• Paved terraces and driveways with a square paving pattern
• Raised beds and low walls, set into the face of the brick
• Pointing upward as a small recessed uplighter

Moonlight Design Has Fitted Hunza Since 2003

Hunza has been one of our core brands since 2003, and we fit it in real gardens. You can see photographs of finished schemes on our Design Service page, together with how a layout is planned, drawn up and installed by NICEIC registered electricians. Visit it if you would like to see how a lighting scheme comes together from the first drawing to the finished garden.

Good to Know

• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• Returns accepted within 14 days if the fitting is unused, uninstalled and in its original packaging.
• You will need a remote LED driver, sold separately, and series wiring should be planned by your electrician.
• Step lighting helps both with safety and with the look of an exterior scheme.
• We recommend installation by a registered NICEIC electrician.

Questions People Ask

What shape is the flange?
It is square, 88mm wide and 7mm deep, which is what separates this from the round Pure LED Step Light.

Is it suitable for decking?
Yes. It is designed to be mounted flush into masonry, stone or wood.

Can it be used as an uplighter?
Yes. Hunza describes it as suitable for use as a recessed uplighter as well as for step lighting.

Is the LED replaceable?
The LED chip is built in and Hunza states that the parts are serviceable.

Recessed body
Diameter: 63.5mm
Length: 68.5mm

Flange
Width: 88mm
Depth: 7mm
(refer to spec for more information)
Supplied with 1m cable

• Hunza Step Lite Square PureLED Spec Sheet
