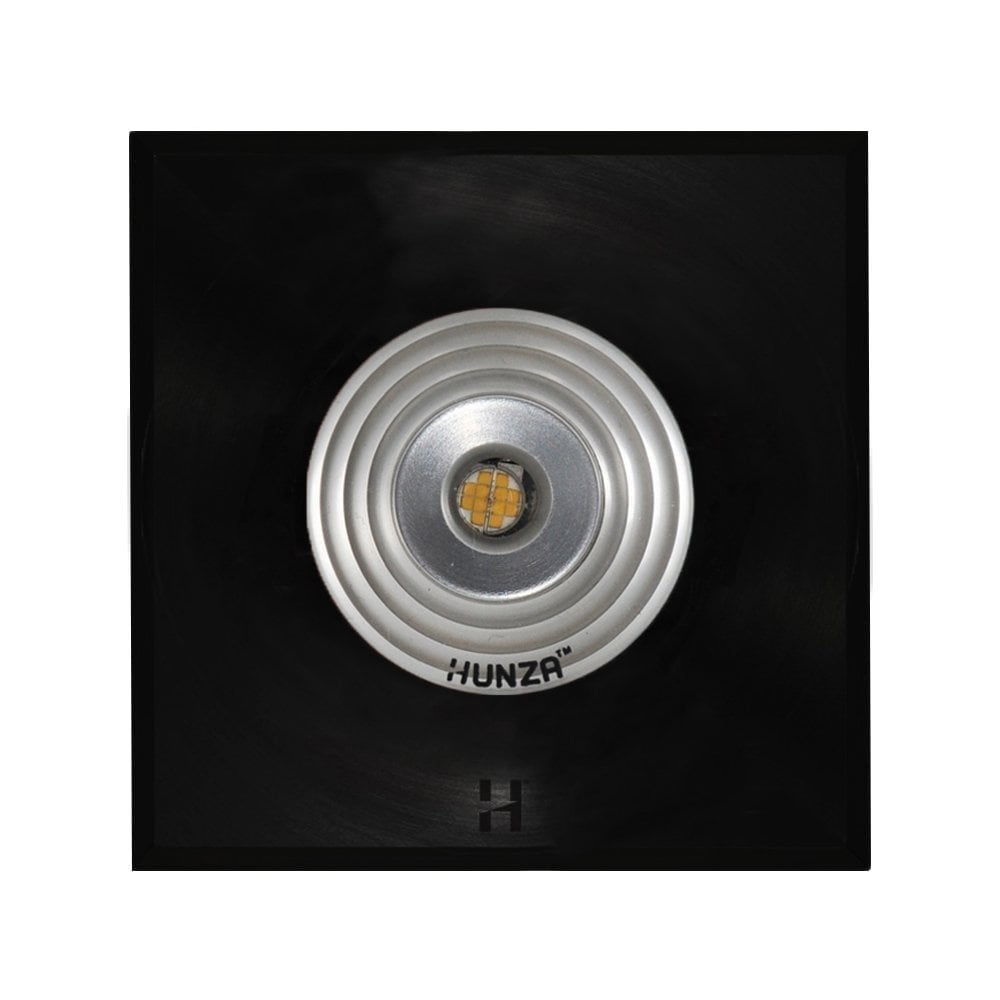

Hunza Pure LED Step Light Square - Powder Coat - Low Voltage

A Square Step Light That Matches Your Materials

The Hunza Pure LED Step Light Square pairs a square flange with a low voltage Cree LED, and in this powder coated aluminium version you choose the colour. Set it flush into masonry, stone or wood and it lights steps, driveways and paved areas from a few centimetres above the ground. It can also be fitted as a recessed uplighter.

Choosing a Powder Coat Colour

Seven colours are available: Black, Dark Grey, White, Birch, Bronze, Olive Green and Silver Star. The colour is baked on, and what you see on screen is indicative only, so swatches are available on request. Matt Black and Matt Bronze can be returned within 14 days of delivery if they are unused, uninstalled and in their original packaging. Matt Olive Green, Matt White, Matt White Birch, Matt Dark Grey and Matt Silver Star are made to order and not returnable unless faulty or damaged.

How It Works

• Square flange 88mm wide and 7mm deep, with a recessed body 63.5mm in diameter and 68.5mm long. Cut out size 63.5mm.
• Mounting holes are fitted as standard, and a canister makes them unnecessary.
• The Cree LED chip is rated at 600 lumens from 6 watts at 1050mA and CRI 90 or more at 3000K, and the parts are serviceable.
• Options on order: 2200K, 2700K, 3000K or 4000K, 15, 25, 38 or 60 degree beams, and clear or frosted lenses.
• Being wired in series, it relies on a remote LED driver, sold separately. Dimming needs a suitable dimmable driver.
• Supplied with 1m of cable, rated IP67 and covered by a 5 year warranty.

Where It Works Best

• Black or dark grey on slate and dark stone steps, where the fitting almost disappears
• White or Birch against rendered walls and pale paving
• Olive Green beside planting, such as a border or raised bed
• Silver Star on contemporary steps with a metallic or concrete finish

Planning Your Scheme With Us

Moonlight Design started working with Hunza in 2003. We design lighting schemes for gardens, supply Hunza fittings and install them with NICEIC registered electricians. Photographs of finished projects on our Design Service page show how a scheme is planned and drawn up. Visit it if you would like to see what a finished garden lighting plan looks like.

Good to Know

• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• Matt Black and Matt Bronze can be returned within 14 days if unused, uninstalled and in original packaging. The other colours are not returnable unless faulty or damaged.
• A remote LED driver is needed and sold separately.
• Colours are for indication only. Ask us for swatches.
• We recommend installation by a registered NICEIC electrician.

Questions People Ask

Is this the round or the square version?
This is the square version, with an 88mm wide square flange. A round Pure LED Step Light is also available.

What finish is it?
It is made from powder coated aluminium, with the colour baked on.

Can I see colour samples?
Yes. Colours are indicative only and swatches are available on request.

What warranty does it have?
It carries a 5 year warranty and is rated IP67.

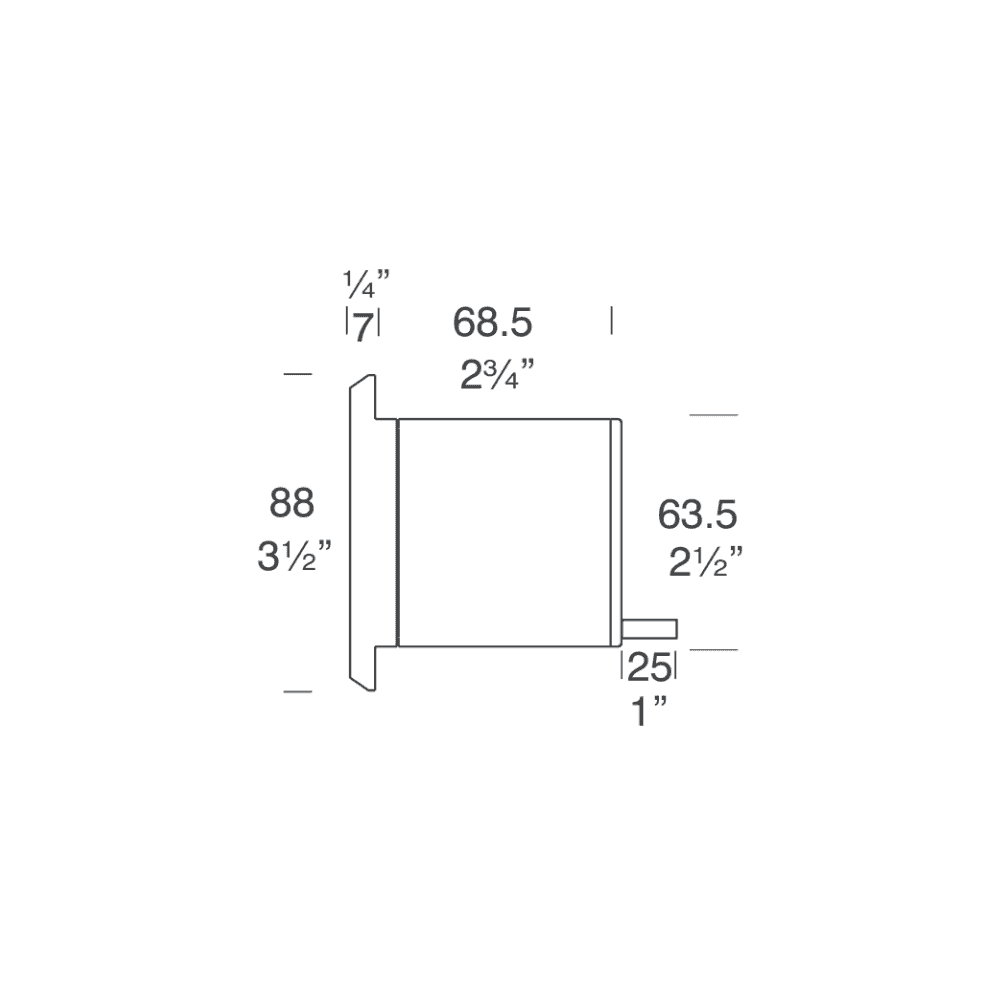

Recessed body
Diameter: 63.5mm
Length: 68.5mm

Flange
Width: 88mm
Depth: 7mm
(refer to spec for more information)
Supplied with 1m cable

• Hunza Step Lite Square PureLED Spec Sheet
