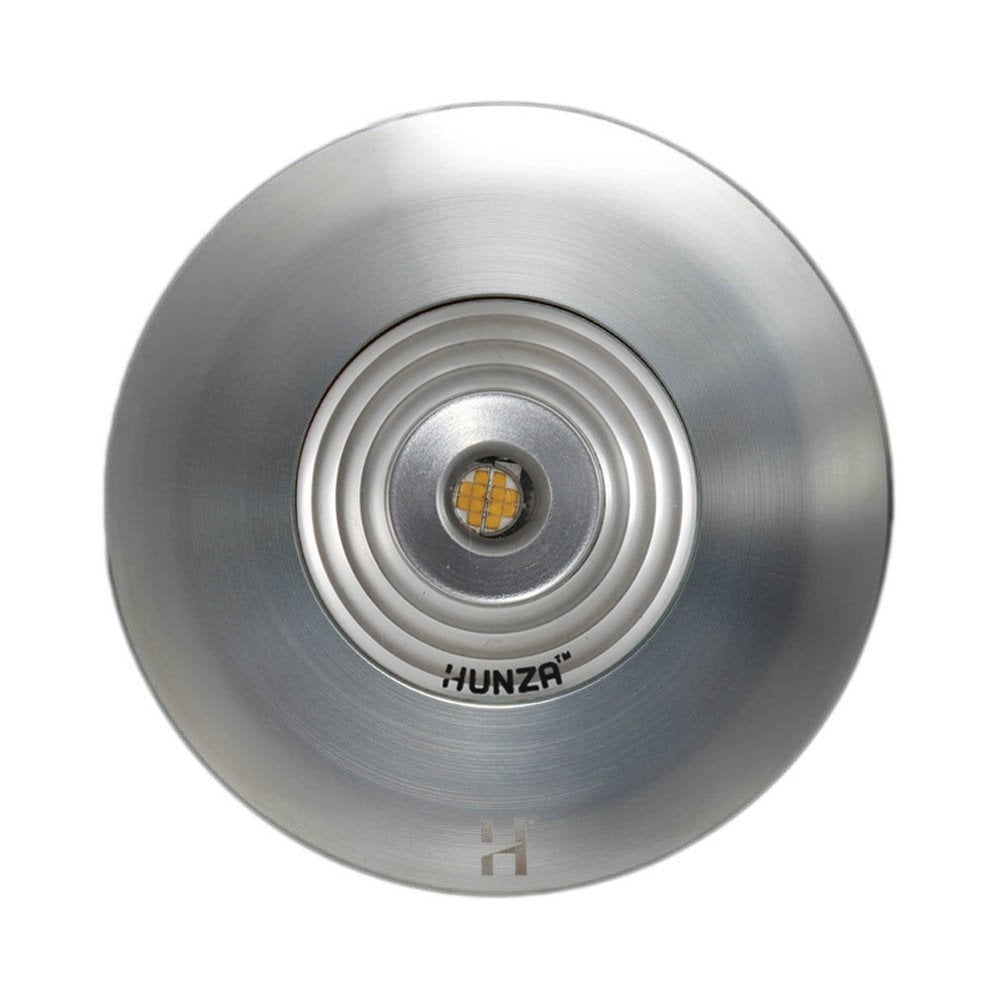

Hunza Pure LED Floor Light - Stainless Steel - Low Voltage

Stainless Steel Uplighting You Can Step On

This is the Hunza Pure LED Floor Light in marine grade 316 stainless steel. It is a very shallow, low voltage uplighter that is built to be walked on without harm to the fitting. Fitted into a hard surface, it lets a beam of light climb a wall or a tree and leaves nothing to trip over in the daytime.

316 Stainless With a Brushed Look

Solid 316 stainless steel keeps a consistent brushed finish through the year. In some environments it can acquire a light surface tarnish, and a regular wash keeps that in check. If you would rather a warmer metal that changes over time, this fitting is also available in solid copper.

How It Works

• The light source is a Cree LED chip, giving 600 lumens at 6 watts with a CRI of 90 or more at 3000K.
• You select colour temperature (2200K, 2700K, 3000K or 4000K), beam angle (15, 25, 38 or 60 degrees) and clear or frosted lens when ordering.
• The body is 63.5mm in diameter and 68.5mm long, topped by an 88mm flange 3mm deep. It needs a 63.5mm cut out, and 1m of cable comes with it.
• A mounting canister is not supplied. You can add one from our canister page.
• Call us if you want a tilting module with this fitting.
• It is a low voltage fitting wired in series, with a remote LED driver, such as the Hunza 1050mA driver, sold separately.
• Dimming works with a suitable dimmable driver.
• IP67 rated. 10 year warranty, 5 years on the LED.

Where It Works Best

• In a stone terrace, lighting the house wall above it
• Along a drive or path edge, pointing up at hedging or a fence
• Under a multi stemmed tree set in a lawn
• In modern schemes where crisp stainless suits the paving

How We Plan and Install Hunza Lighting

Moonlight Design has worked with Hunza since 2003. We design lighting schemes for gardens, supply Hunza fittings and install them. The project photographs on our Design Service page are of our own completed lighting schemes, and they show how we plan, draw up and install a layout with NICEIC registered electricians. Please visit that page if you would like help with where recessed lights should go.

Good to Know

• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• You can return it within 14 days of delivery if it is unused and uninstalled, in its original packaging.
• No mounting canister is supplied with this fitting.
• A remote LED driver is needed, sold separately.
• We recommend installation by a registered NICEIC electrician.

Questions People Ask

Is this floor light safe to walk on?
Yes. The profile is extremely low, so people can step on it without the luminaire being damaged.

Can I choose a clear or frosted lens?
Yes. Both are offered, along with beam angles of 15, 25, 38 and 60 degrees.

Will stainless steel tarnish?
It may show a light surface tarnish in some environments, and regular washing keeps this in check.

What waterproof rating does it have?
IP67.

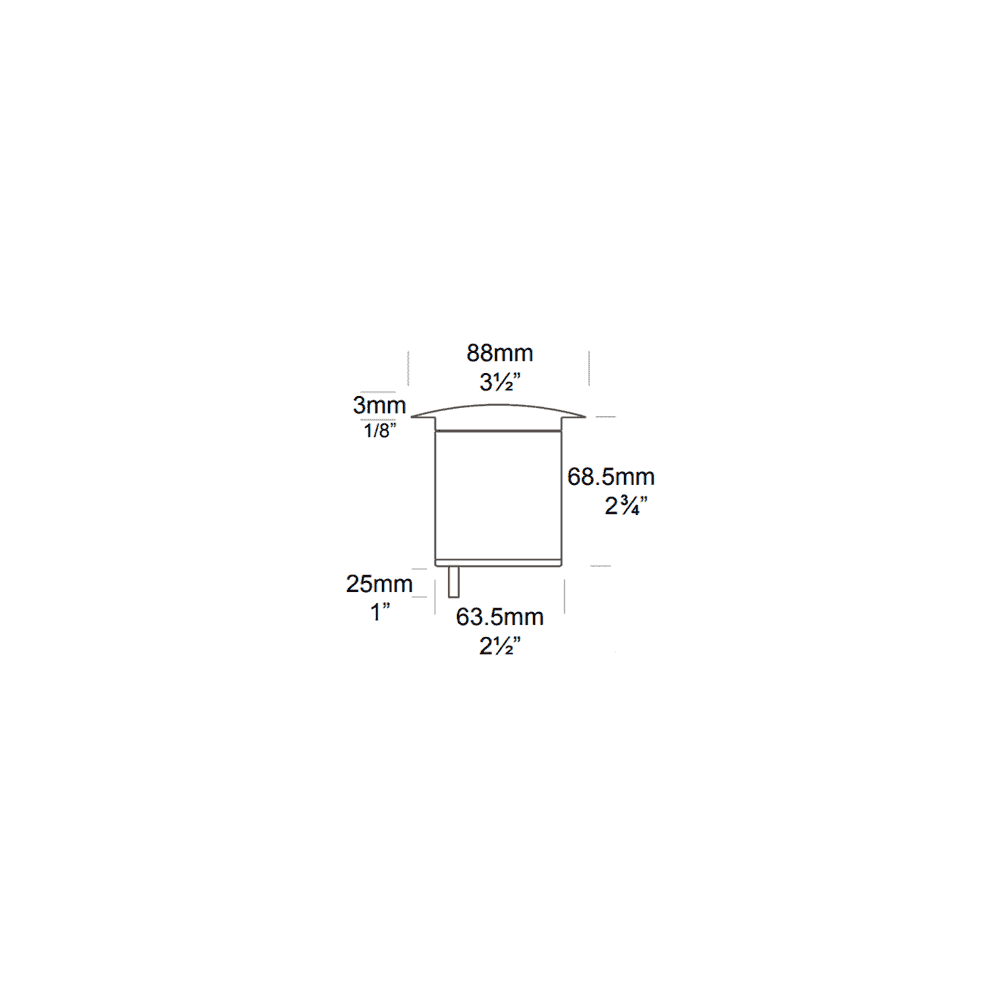

Body
Diameter: 63.5mm
Length: 68.5mm

Flange
Diameter: 88mm
Depth: 3mm
(refer to spec for more information)
Supplied with 1m cable

• Hunza Pure LED Floor Light Spec Sheet
