Hunza Pure LED Dual Lighter (Pillar Pagoda) - Stainless Steel - Low Voltage

Pagoda Glow and a Focused Beam, in Stainless Steel

Where one light would do two jobs, the Hunza Pure LED Dual Lighter (Pillar Pagoda) steps in. One end has a pagoda lens that reflects light at two angles, horizontally and upwards. The other end is a pillar light that shines up or down. Fitted to a pier, post or wall, it covers general lighting and a more directed effect together. This low voltage version has an integrated Cree LED chip.

316 Stainless Steel Throughout

The body is marine grade 316 stainless steel with a consistent brushed finish. It can pick up a light surface tarnish in some environments, and washing it regularly keeps that in check. Choosing copper instead gives you a finish that ages, and powder coated aluminium gives you colour, both on the same fitting.

How It Works

• Pagoda lens at one end for spread, and an up or down beam at the other.
• 510 lumens at 1050mA from 6 watts, CRI 90 or more at 3000K.
• Options at checkout include 2200K to 4000K colour temperatures, 15, 25, 38 or 60 degree beams, and clear or frosted lenses.
• Length 202mm, diameter 63.5mm, base 78mm across and 28mm deep, 1m of cable included.
• Series wired low voltage with 6vF at each end and 12vF in total. A remote driver, for example the Hunza 1050mA driver, is sold separately.
• Dimmable with a suitable dimmable driver.
• IP66, 10 year warranty and 5 years on the LED.

Where It Works Best

• On modern piers and rendered gateposts
• Along the side of a contemporary house wall
• Beside a driveway entrance where light should go both ways
• Near coastal or damp areas where marine grade steel makes sense

How We Plan and Install Hunza Lighting

At Moonlight Design we have worked with Hunza since 2003. We design lighting schemes for gardens, supply Hunza fittings and install them with NICEIC registered electricians. The projects on our Design Service page are our own completed schemes, and the page shows how we plan, draw up and install them. We invite you to browse it and get in touch.

Good to Know

• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• Returns accepted within 14 days if unused, uninstalled and in its original packaging.
• Remote driver needed, sold separately.
• Stainless steel can show a light surface tarnish in some environments.
• We recommend installation by a registered NICEIC electrician.

Questions People Ask

Can the beam be narrow or wide?
Yes. You can choose 15, 25, 38 or 60 degrees when ordering.

Does it light up and down?
The pillar end can be used for uplighting or downlighting, while the pagoda end lights horizontally and upwards.

What is it made of?
Marine grade 316 stainless steel.

Is the LED replaceable?
The Cree LED chip is integrated and the parts are serviceable.

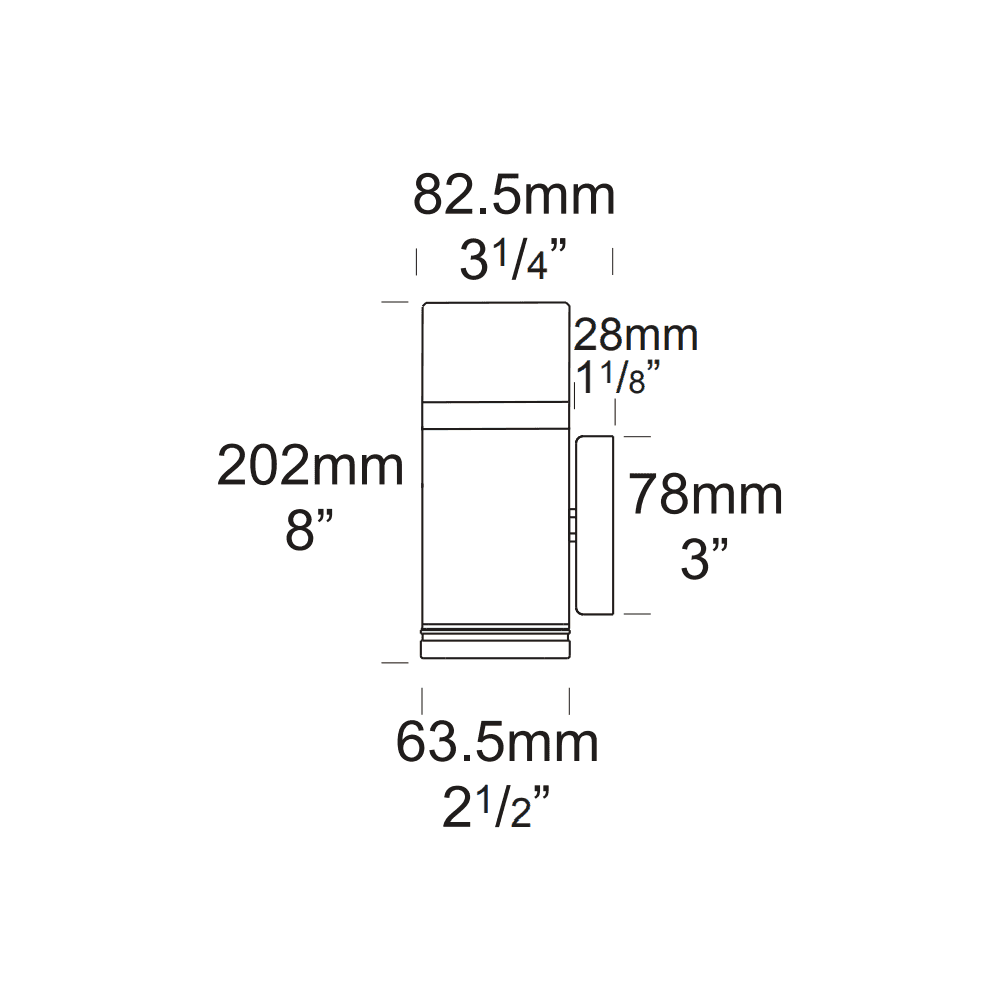

Body
Diameter: 63.5mm
Length: 202mm

Base
Diameter: 78mm
Depth: 28mm
(refer to spec for more information)
Supplied with 1m cable

• Hunza Pure LED Dual Liter Spec Sheet
