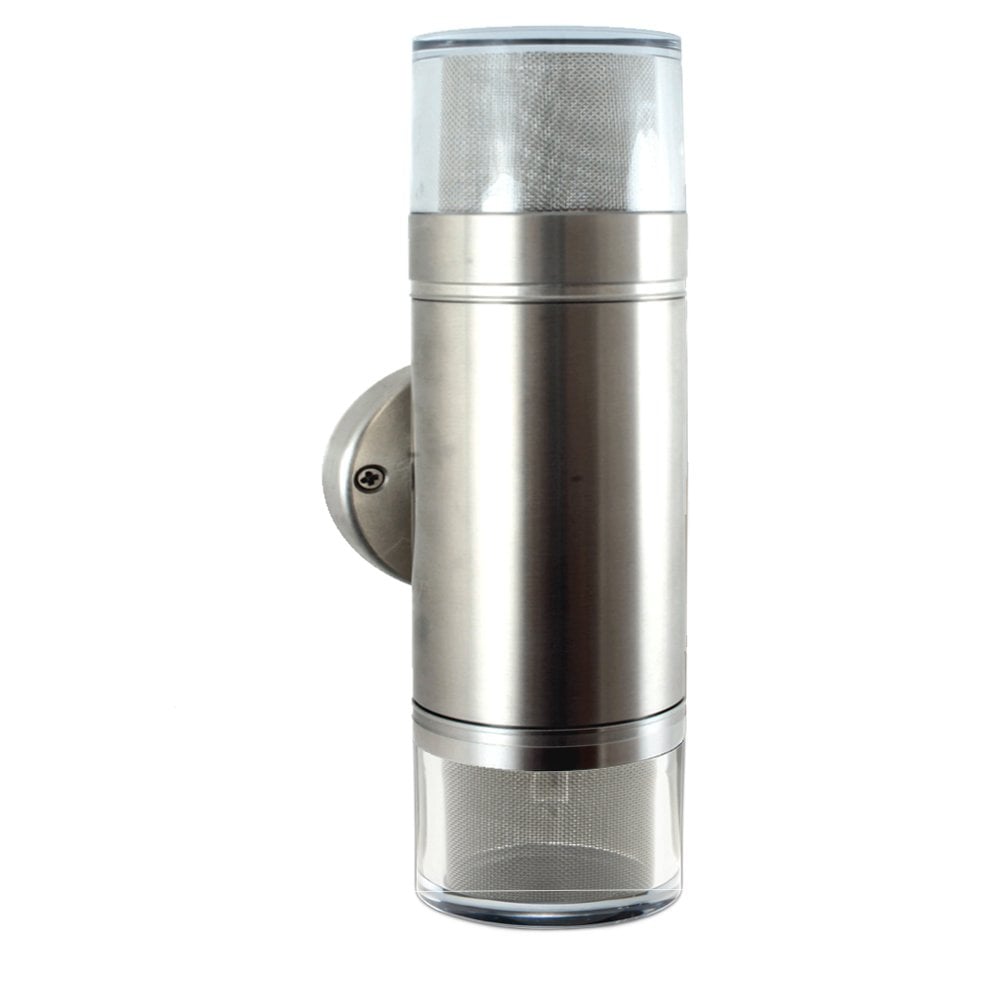

Hunza Pure LED Double Pagoda Light - Stainless Steel - Low Voltage

A Crisp Stainless Light for Doorways and Walls

Clean lines and an even spread of light define the Hunza Pure LED Double Pagoda Light. It has no single beam to aim. Instead the lens throws light outward and upward, so a doorway, wall or gate pier is lit softly from one fitting. This version is low voltage and carries an integrated Cree LED chip, and its parts are serviceable.

Marine Grade 316 Stainless Steel

The body is solid marine grade 316 stainless steel, chosen for its brushed finish that stays consistent over time. In some environments stainless can pick up a light surface tarnish, and a regular wash with water keeps that under control. If you would rather have a finish that changes with age, the same light is made in solid copper too, and in powder coated aluminium for colour.

How It Works

• Light leaves the lens horizontally and upwards, for general illumination rather than a spotlight effect.
• The Cree LED gives 510 lumens at 1050mA from 6 watts, with CRI 90 or higher at 3000K.
• Four colour temperatures are offered: 2200K, 2700K, 3000K and 4000K.
• Dimensions are 63.5mm body diameter, 258mm body length, and a 78mm base that is 28mm deep, with 1m of cable.
• It runs at low voltage in series, with 6vF per head and 12vF in total, so it needs a remote driver. The Hunza 1050mA driver is sold separately.
• A suitable dimmable driver makes it dimmable.
• IP66 rated, with a 10 year warranty and 5 years on the LED.

Where It Works Best

• On the wall beside a modern front door
• At the corner of a terrace or patio wall
• Near the coast or in damp spots where a corrosion resistant finish matters
• Beside garage doors or gateways

How We Plan and Install Hunza Lighting

We have worked with Hunza since 2003 at Moonlight Design. We design lighting schemes for gardens, supply Hunza fittings and install them using NICEIC registered electricians. Our Design Service page shows photographs of our own finished schemes, along with how we plan, draw up and install them. You are welcome to browse it before choosing where your lights will go.

Good to Know

• Made to order: usually ships within 2 to 3 days. If your specification is temporarily out of stock, allow 3 to 5 weeks.
• Returns accepted within 14 days if unused, uninstalled and in its original packaging.
• Needs a remote LED driver, sold separately, and series wiring.
• A light surface tarnish can appear on stainless steel in some environments. Washing it regularly helps.
• We recommend installation by a registered NICEIC electrician.

Questions People Ask

Is this light directional?
No. It spreads light horizontally and upwards from its lens, so it works as general lighting.

What is the body made from?
Marine grade 316 stainless steel with a brushed finish.

How long is the warranty?
The fitting carries a 10 year warranty, with 5 years on the LED.

Does it come with a driver?
No. It is a low voltage fitting and the remote LED driver is sold separately.

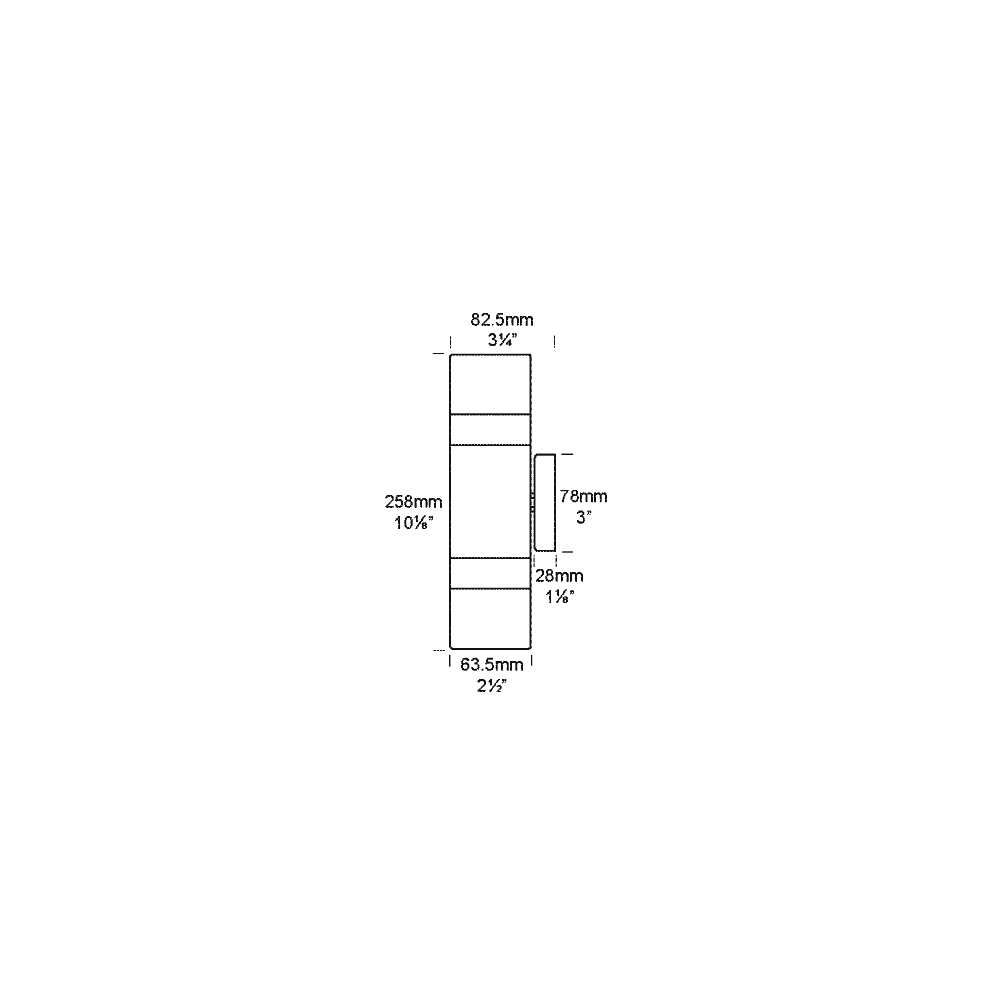

Body
Diameter: 63.5mm
Length: 258mm

Base
Diameter: 78mm
Depth: 28mm
(refer to spec for more information)
Supplied with 1m cable

• Hunza Pure LED Double Pagoda Lite Spec Sheet
