Collingwood Stepbeam Asymmetrical Wall Light - Various Bezels

A step light that throws light sideways, not out at you

Stepbeam is a small recessed wall light made for stairs, landings and corridors. The lens sits behind an asymmetrical opening, so the light is pushed out and across the tread instead of firing straight off the wall into your eyes. From the front all you see is a 50mm trim and a faceplate. What you notice is on the floor: a soft wash of 3000K warm white with a CRI of 90, which keeps timber, stone and carpet reading as their real colours. The whole thing draws 2.7W.

Bezels, finishes and how the choices differ

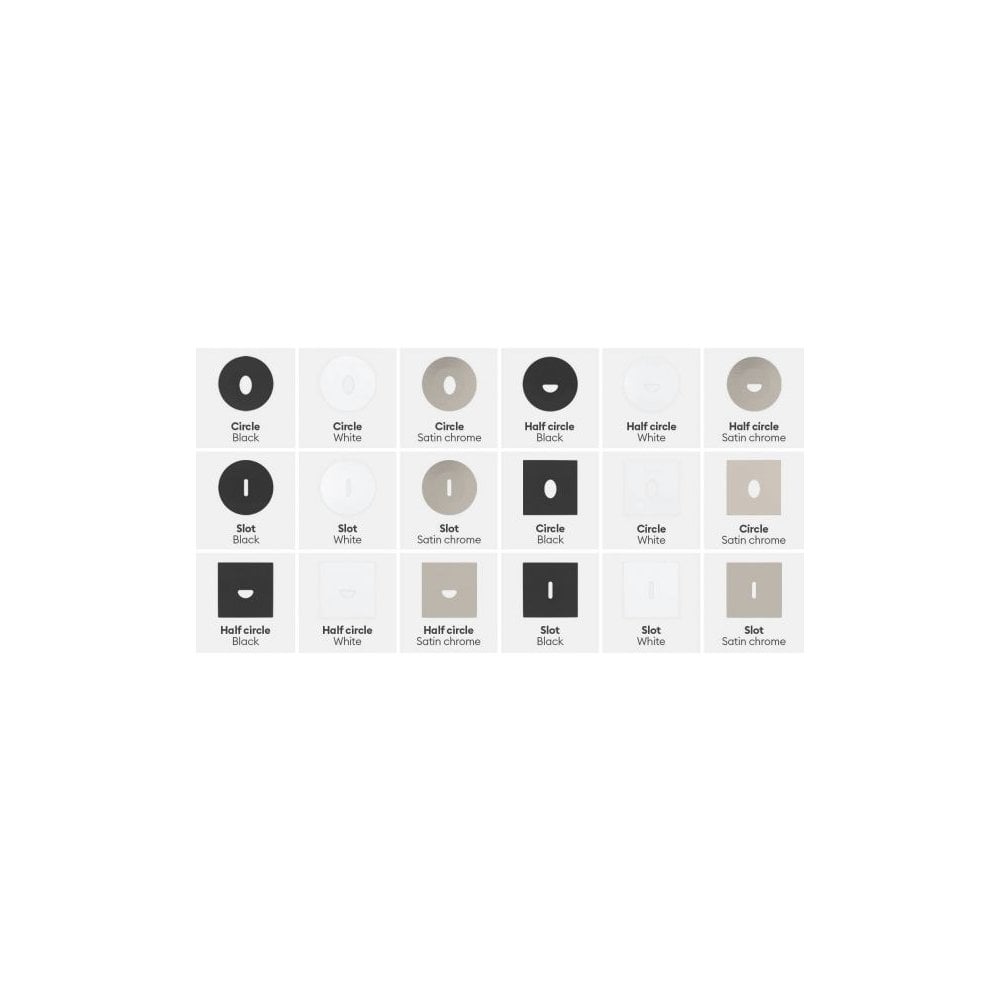

The bezel is the part that does the work on this fitting. You pick round or square, then a circle, half circle or slot opening, then black, white or satin chrome. Collingwood coats them in AkzoNobel powder coat, so the black comes out as a flat even matt, the white sits close enough to painted plaster to vanish, and the satin chrome has a low sheen rather than a mirror finish. The opening changes the output as well as the look. You get 65 lumens through the circle opening and 28 lumens through the half circle and slot openings, and the range covers 30 degree and 45 degree beams depending on which plate you fit. Square plates line up nicely with a wall of square switches and sockets. Round ones disappear more readily into plain plaster.

How It Works

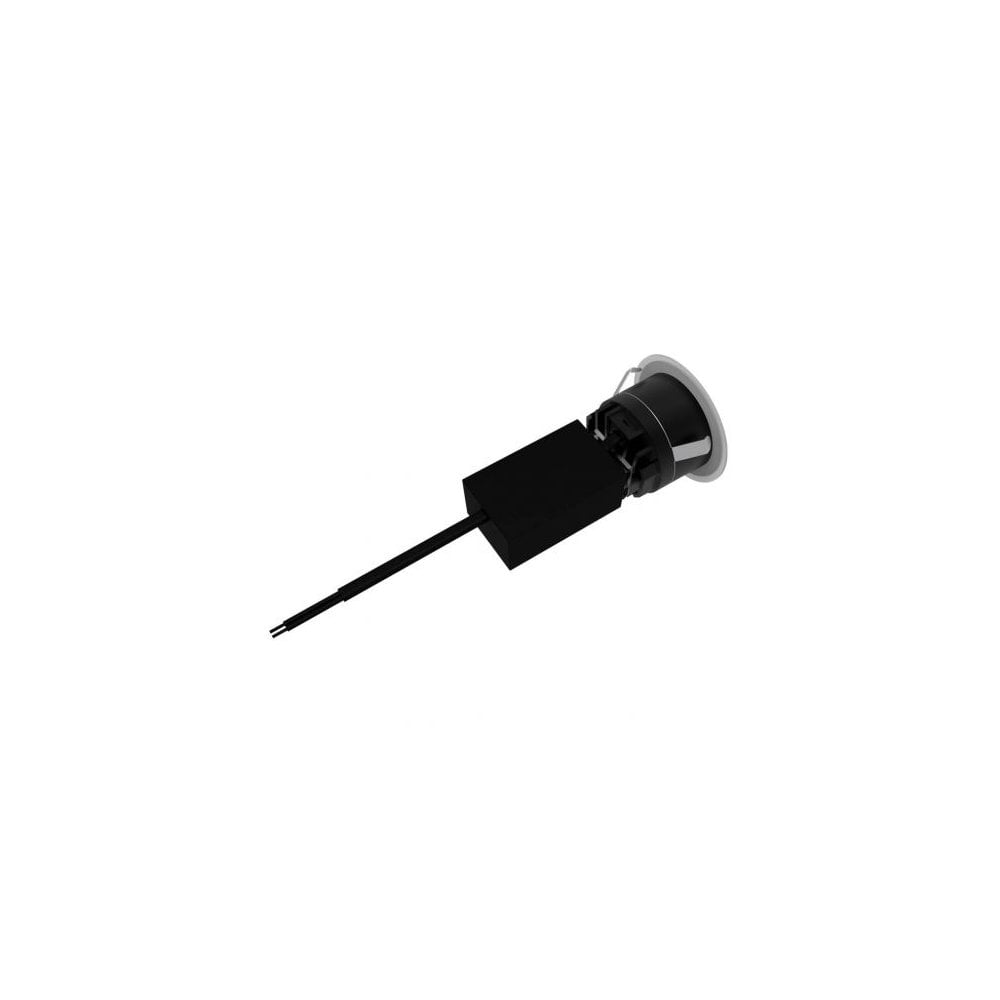

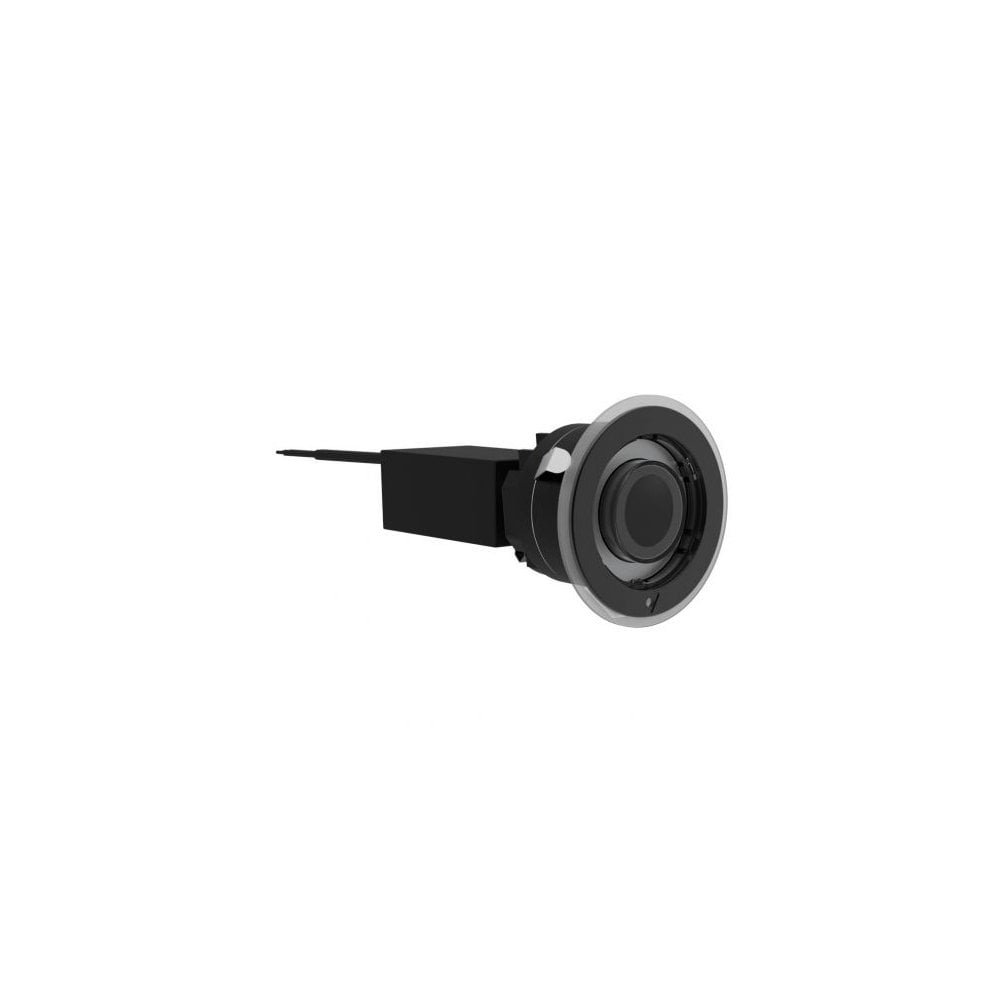

The LED is integrated, so there is no lamp to buy now or replace later. It runs at mains voltage with a small driver already fitted inline on the flying lead, which means there is no separate driver to specify or find space for. Wiring is parallel, so a run of fittings sits on one circuit. The body is die cast aluminium, 50mm across the face with an overall depth of 92.5mm, and it drops into a 45mm cut out. The bezel is magnetic and interchangeable, so the faceplate lifts off and clicks back on without pulling the fitting out of the wall. That also lets you leave the plates off until the decorators have finished. Collingwood lists the Stepbeam as compatible with leading and trailing edge phase cut dimmers.

Where It Works Best

Staircases are the obvious home for it. Set into the side wall every second or third tread, the asymmetrical beam grazes the step so people can read the edge without a bright source in their line of sight. It does the same job down a hallway, along a basement corridor, or up the side of a split level living space. Cinema rooms are another good fit, because the floor gets lit and the screen is left alone. As it is IP54, protected against dust and against water splashed from any direction, it can also go into a bathroom or wet room in the correct zone. Our guide to bathroom lighting zones sets out where each rating is allowed.

About Collingwood Lighting

Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked in LED and nothing else since 2002. The brand states it was among the first to put fire rated, sealed for life and mains dimmable LED products in front of the UK electrical wholesale trade. It also holds an EcoVadis Gold medal, which places it in the top 5% of all companies EcoVadis assesses worldwide for sustainability.

Good to Know

• Backed by a five year Collingwood warranty.
• IP54 rated, which means the fitting is protected against dust and against water splashed from any direction.
• Electrical class I, so the circuit must include an earth connection.
• Collingwood lists it as compatible with leading and trailing edge phase cut dimmers. Test your chosen dimmer on a single fitting before wiring a full staircase to it.
• Integrated LED rated to L70 at 50,000 hours, so the fitting is replaced at end of life rather than relamped.
• Allow depth behind the plasterboard for both the 92.5mm body and the inline driver box on the lead.
• Clean the bezel with a dry or barely damp cloth. Solvents and cream cleaners will mark the powder coat.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Can the Collingwood Stepbeam be used in a bathroom?
The Collingwood Stepbeam asymmetrical wall light carries an IP54 rating, which protects it against dust and against water splashed from any direction, so it can be installed in a bathroom or wet room within the appropriate zone. The zone should be confirmed by a qualified electrician before the cut out is made.

How bright is the Collingwood Stepbeam?
The Collingwood Stepbeam draws 2.7W and delivers 65 lumens through a circle bezel opening or 28 lumens through a half circle or slot opening. The light is 3000K warm white with a CRI of 90.

What size cut out does the Collingwood Stepbeam need?
The Collingwood Stepbeam requires a 45mm cut out. The fitting itself measures 50mm in diameter with an overall depth of 92.5mm, and additional space is needed behind the wall for the inline driver box.

Can the Stepbeam bezel be changed after installation?
Yes. The Stepbeam bezel is magnetic and interchangeable, so the faceplate can be lifted away and replaced with a different shape, opening or finish without removing the fitting from the wall or disturbing the wiring.

Is the Collingwood Stepbeam dimmable?
Collingwood lists the Stepbeam as compatible with leading and trailing edge phase cut dimmers. Because the driver is supplied already fitted inline on the fitting's lead, there is no separate dimmable driver to specify or source.

50mm diameter x 92.5mm depth (refer to spec for details)

• Collingwood Step Beam Spec Sheet 2025
