Collingwood SL230 LED Twin Pole Spike Light - Stainless Steel - Straight to Mains

Two Beams From One Cable Run

The SL230 twin pole puts two spotlight heads on a single spiked post, and each head aims on its own. So one fitting can wash a path from one side while the second head picks out a specimen shrub behind it. This is the straight to mains version, which runs on 220 to 240V AC with no separate LED driver to find a home for. Both heads together draw 11.4W and throw a 40 degree beam. Pick the colour temperature to suit the planting: 2700K for a soft amber that flatters brick and timber, 3000K for a warm white that stays neutral on stone, or 4000K for a crisper light that makes green foliage look green rather than olive.

316 Stainless Steel

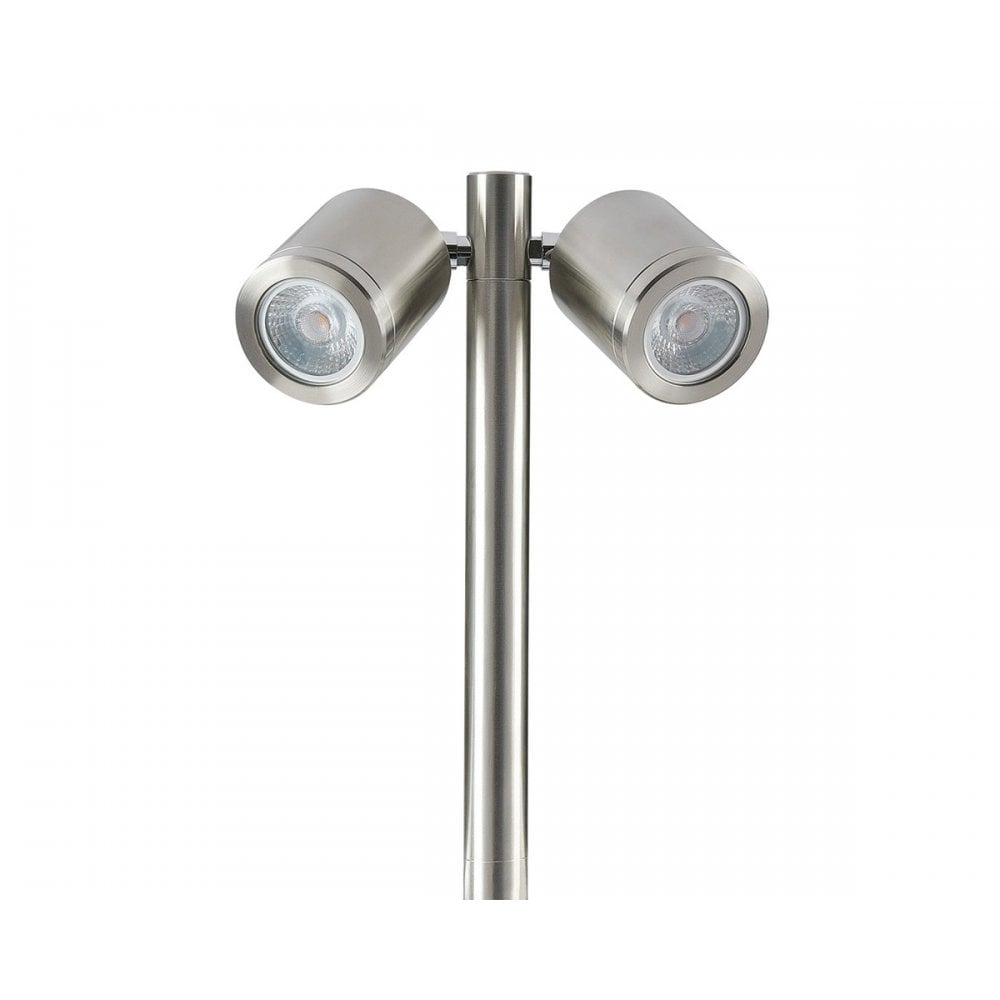

This one is built in 316 stainless steel, the marine grade, finished with a fine brushed satin surface rather than a paint or powder coating. Under the studio lights the heads pick up a soft metallic sheen and the pivot collars catch a brighter highlight. It reads cooler and more architectural than the black and bronze anodised aluminium versions of the same fitting, and Collingwood rates it as coastal protected. Stainless steel sits naturally alongside glass balustrades, wire balustrade posts, corten planters and pale stone paving. It stays visible in daylight rather than disappearing into planting, so treat the pole as part of the garden hardware, the way you would a handrail.

How It Works

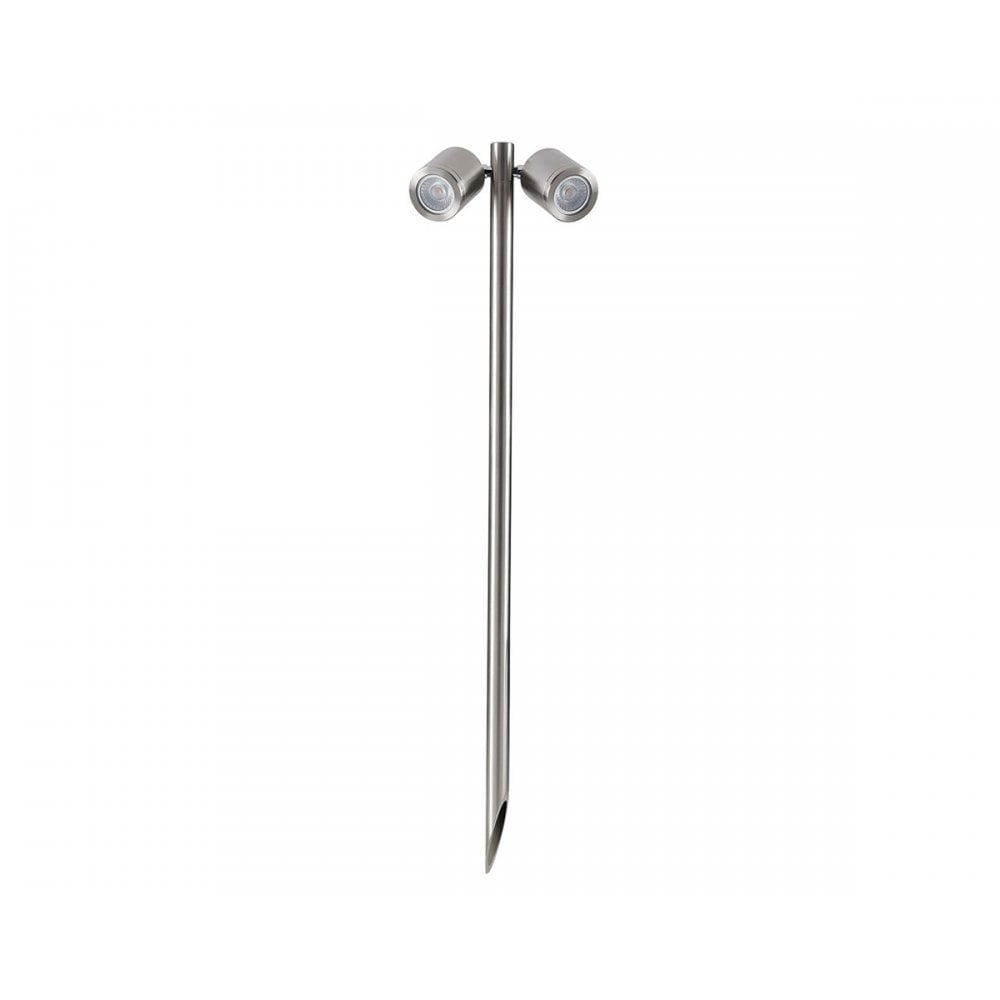

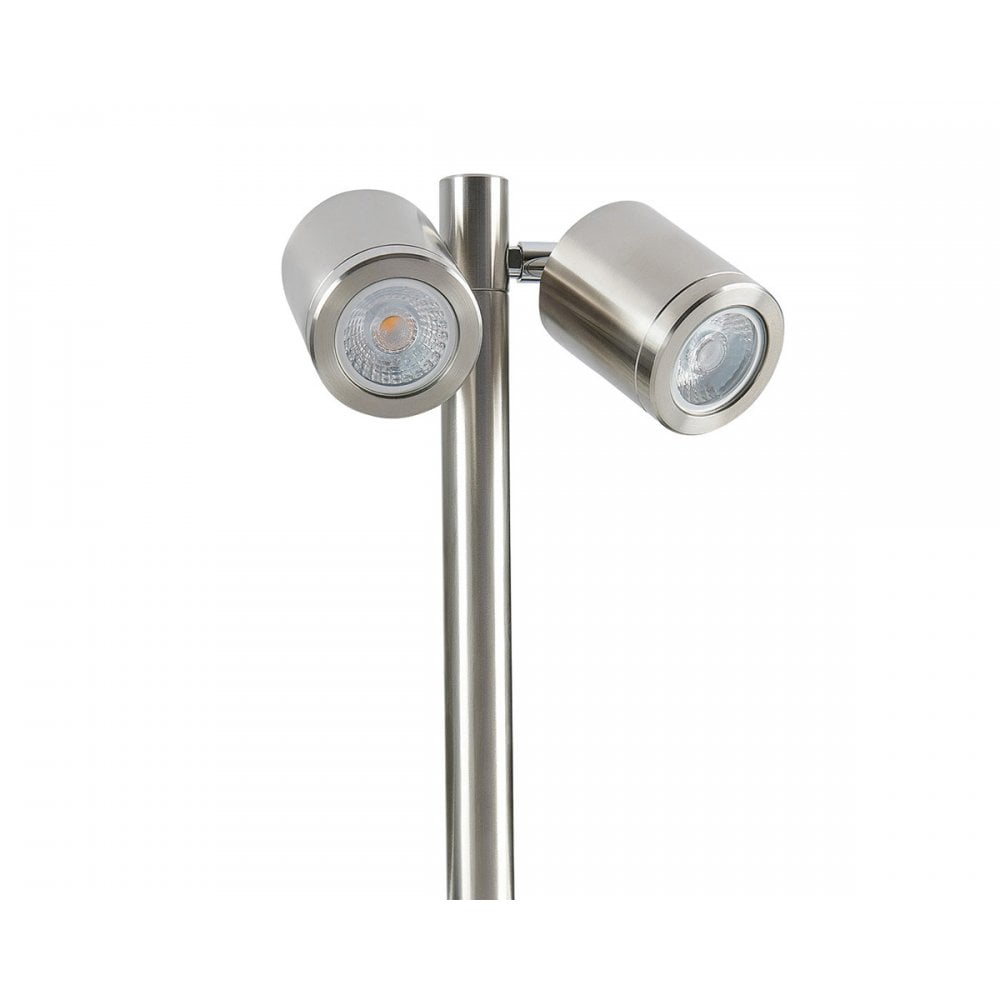

The pole pushes into soft ground and the sharpened spike carries up to 240mm below the surface, with 845mm of fitting from tip to top. The two heads sit 160mm apart on a crossbar, each one 62.5mm in diameter, and each tilts through 90 degrees and rotates through 330 degrees on its own pivot. You aim them once the pole is in and adjust again when the planting grows.

Wiring is the simple part of this version. A 3m H05RN-F rubberised cable with a 7mm outer diameter comes off the base, and fittings connect in parallel rather than in series, so adding another one later does not disturb the ones already in. The LED module is integral and sealed, so there is no lamp to buy and nothing to replace. Collingwood's JB5 gel filled waterproof connector is the matching part for joining runs underground, and the GH220D tapered hood and GS220D cylindrical snoot in the same stainless steel cut glare further. None of those three are included.

Where It Works Best

Twin heads earn their keep where a single spot would leave half the job undone. Down a path, one head lights the walking surface and the other lifts the border beside it. Against a boundary, one head grazes a fence panel while the other throws up into a tree. Around a terrace or a set of steps, a pair of these gives you light at two levels from one position, which keeps the number of cable runs down. Because it is a mains voltage fitting rather than a low voltage one, it suits longer runs down a drive or around a large garden where a low voltage circuit would start losing ground. Collingwood rates the range for coastal areas, so seafront and estuary gardens are fair territory for the stainless version.

About Collingwood Lighting

Collingwood designs and manufactures its LED products in Sywell, Northamptonshire, and has worked in LED technology since 2002. The brand states it was among the first to bring fire rated, fully sealed for life and mains dimmable LED products to the UK electrical wholesale market. It also holds an EcoVadis Gold medal, which places it in the top 5% of companies assessed worldwide for sustainability.

Good to Know

• Seven year warranty from Collingwood, with an LED lifetime quoted at 70,000 hours L70.
• IP65 rated, meaning fully protected against dust and against water jets from any direction. That covers rain, garden hoses and sprinklers, though it is not a rating for submersion.
• Class I, so the fitting must be earthed. Maximum ambient temperature is 35 degrees C.
• Dimming caveat worth reading. The straight to mains build has no external driver, and Collingwood's 2025 spike light guide lists dimming options only against the low voltage SL230. Confirm any dimming plan with your electrician before you specify a dimmer.
• Colour rendering is CRI over 80 with SDCM3 colour consistency, so the two heads and any neighbouring SL230s should match each other.
• Care is light. Rinse the lenses and the pole with clean water now and then, especially near the coast, and wipe dry with a soft cloth. Avoid abrasive pads and solvent cleaners on the brushed surface.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Does the Collingwood SL230 mains twin pole spike light need a separate LED driver?
No. The straight to mains version of the SL230 twin pole runs directly from a 220 to 240V AC supply and has its control gear built in, so no external LED driver is needed. The low voltage version of the same fitting is the one that requires a driver.

How bright is the Collingwood SL230 twin pole spike light?
The mains SL230 twin pole draws 11.4W in total and produces 1030 lumens at 2700K, 1040 lumens at 3000K or 1060 lumens at 4000K. That is an efficacy of roughly 90 to 93 lumens per watt, and the light leaves each head through a 40 degree beam.

Can the two heads on the SL230 be aimed in different directions?
Yes. Each head on the SL230 twin pole moves independently, tilting through 90 degrees and rotating through 330 degrees, so one head can light a path while the other lights planting or a tree behind it.

Is the stainless steel SL230 suitable for a coastal garden?
Yes. This version is made from 316 stainless steel, the marine grade, and Collingwood lists the SL230 spike light range as suitable for coastal areas. A freshwater rinse from time to time helps keep salt deposits off the brushed surface.

How are several SL230 mains spike lights connected together?
Mains SL230 spike lights are wired in parallel, not in series. Each fitting has a 3m H05RN-F rubberised cable of 7mm outer diameter, and Collingwood's JB5 gel filled waterproof connector is the accessory intended for making those joints below ground.

Heads 62.5mm diameter / Spike 845mm height

• Collingwood Spike Light Guide 2025
