Collingwood SL220 LED Spike Light - Bronze - Straight to Mains

A mains voltage spike light with the driver already inside

Most garden spike lights need a transformer tucked away somewhere in the border and a low voltage cable run planned around it. This version of the SL220 does not. It takes a 220 to 240V supply straight from the house, because Collingwood has built the driver into the body of the fitting. That turns the job into something much simpler: get mains cable to the right spot, connect it, push the spike in and aim the head. It draws 5.7W and gives back up to 538 lumens, so a whole run of them asks very little of a circuit.

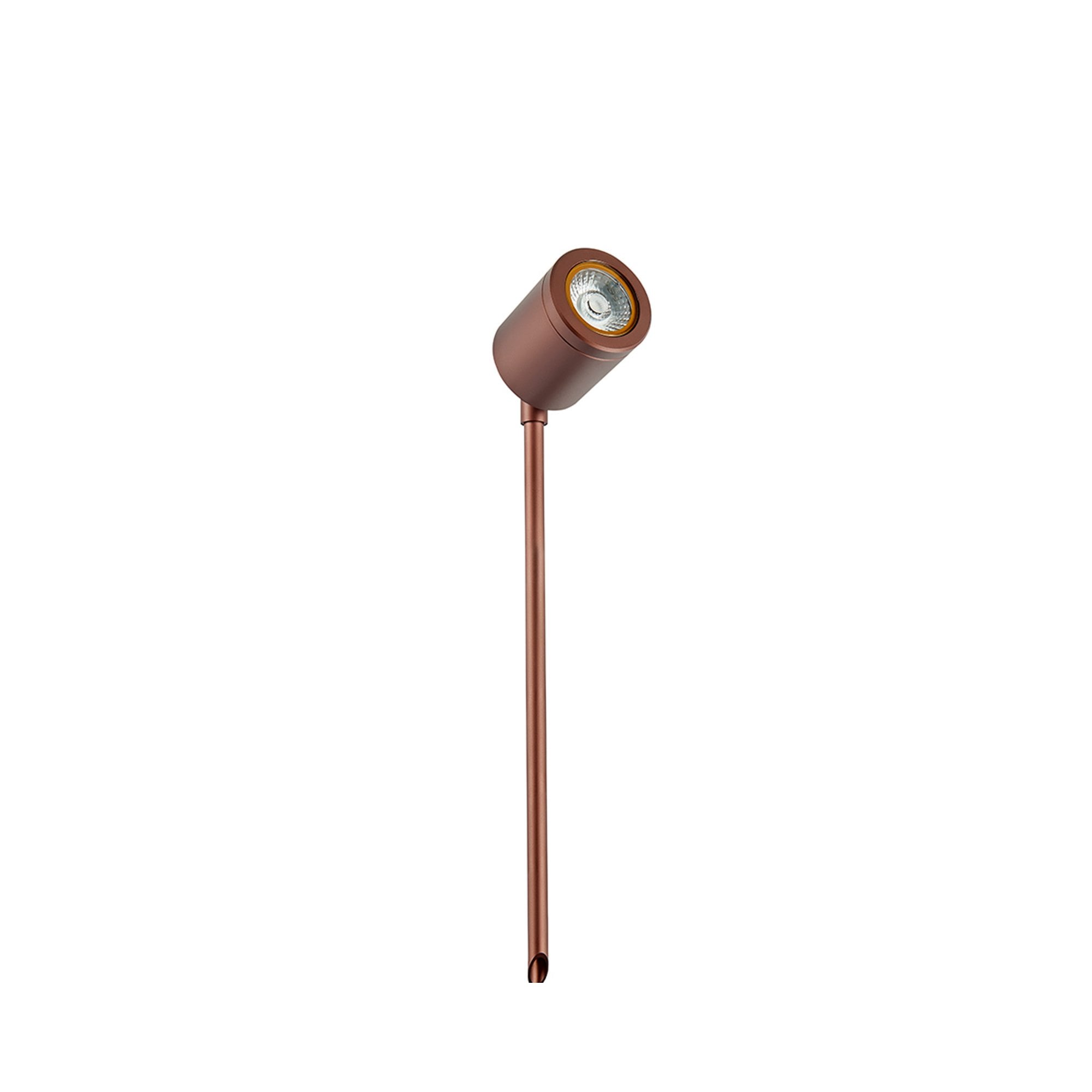

Bronze anodised, the finish that disappears

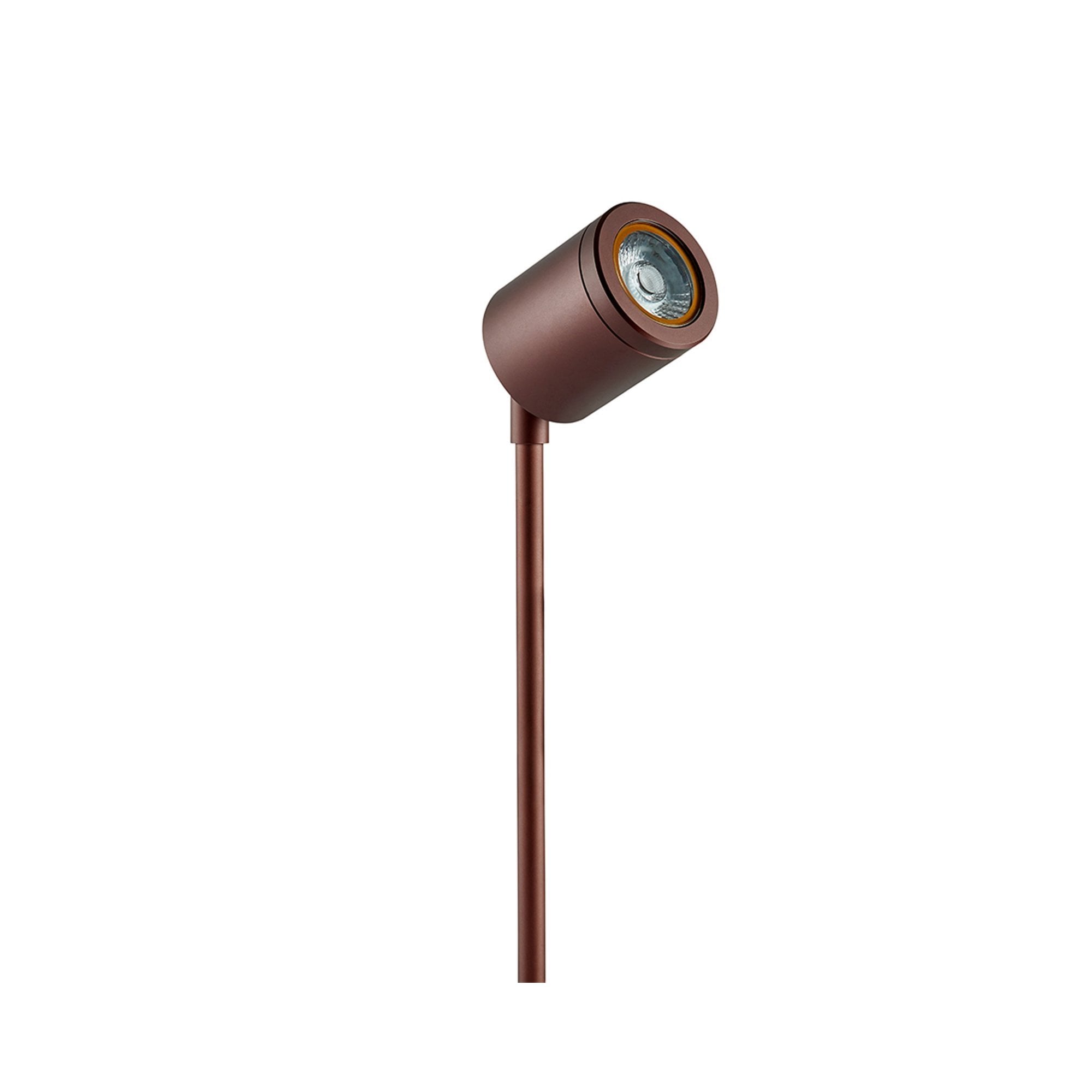

Bronze is the SL220 finish for people who would rather not see the light fitting at all. Anodising colours the aluminium itself instead of sitting on top of it like paint, which gives a warm mid brown with a faint metallic depth to it, closer to weathered copper than to a sprayed surface. Pushed into bark, leaf litter or dark planting soil it goes quiet in daylight in a way a black or stainless body never quite manages. Look straight into the head and there is one deliberate piece of contrast: a slim gold toned ring set around the reflector, sitting just behind the clear lens. It settles happily against red brick, terracotta, oak and rusted steel planters.

How It Works

The light arrives in one piece, head, stem and ground spike together, with 3m of rubberised H05RN-F cable already fitted. Up to 240mm of the 440mm length is meant to sit below the surface, so roughly 200mm stands proud once the spike is properly bedded in. The head tilts through 90 degrees, anywhere from pointing straight up to level with the ground, and you set that after the spike is in rather than before. Fittings wire in parallel, so one mains spur can feed several of them. Beam angle is fixed at manufacture and chosen at the point of ordering. The 12 degree narrow lens still reads 200 lux at 5.3m, while the 40 degree flood reaches 200 lux at 2.4m and spreads it over a far wider area. Collingwood's gel filled JB5 connector joins the flying lead to buried cable, and the GH220 hood and GS220 baffle style snoot are there if a fitting lands in a sightline and needs its glare cut.

Where It Works Best

This is an uplighter, and it is at its best aimed at something with structure. Set the narrow beam at the foot of a multi stem birch, an olive or a clipped yew and it carries light the whole way up through the trunk and branches. The wide beam suits mass planting, low hedging and ornamental grasses, where the point is a soft pool of light over a group rather than one specimen singled out. Turned towards a wall it grazes render, stone and brick, which is an easy way to give a boundary some depth after dark. Because it runs on mains, it makes most sense in gardens where a spur already reaches outside, or in bigger schemes where the number of fittings would outgrow a single low voltage transformer. Collingwood also rates the SL220 as suitable for coastal areas, so exposed seaside gardens are fair game.

About Collingwood Lighting

Collingwood works out of Sywell in Northamptonshire, where it designs and manufactures its LED products, and it has been an LED specialist since 2002. The brand states it was among the first to put fire rated, sealed for life and mains dimmable LED products in front of the UK electrical wholesale trade. It also holds an EcoVadis Gold medal, a rating that places it inside the top 5% of businesses assessed for sustainability worldwide.

Good to Know

• Covered by Collingwood's 7 year guarantee.
• IP65 rated. Completely sealed against dust and tested against water jets from any direction, which is what a fitting sat in wet ground through a British winter actually needs.
• Listed by Collingwood as suitable for coastal areas.
• Class I, so an earth connection is required. Earth leakage is quoted at 0.1mA.
• Not dimmable. There is no external driver on this version, so put it on a plain switched circuit and keep it away from dimmers.
• Runs on 220 to 240V AC and wires in parallel with the other fittings on the circuit.
• Supplied with 3m of H05RN-F rubberised flexible cable, 6mm outside diameter.
• 62.5mm head diameter and 440mm overall, with up to 240mm of that below ground. The bronze version weighs 694g.
• Integrated LED with a colour rendering index above 80, SDCM3 colour consistency and an L70 rating of 70,000 hours. There is no replaceable lamp.
• Maximum ambient temperature 55 degrees C.
• Colour temperature and beam angle are both fixed per fitting, so decide on each before ordering.
• Wipe the lens now and then, and pull mulch back from the head so it can shed heat.
• Moonlight Design recommends installation by a registered NICEIC electrician.

Questions People Ask

Does the mains version of the Collingwood SL220 need a transformer?
No. The straight to mains Collingwood SL220 has its LED driver built into the fitting and runs directly from a 220 to 240V AC supply, so no external transformer or low voltage cabling is required.

How bright is the 5.7W Collingwood SL220 mains spike light?
The 5.7W mains Collingwood SL220 produces 515 lumens at 2700K, 520 lumens at 3000K and 538 lumens at 4000K, reaching an efficacy of up to 94 lumens per watt with a colour rendering index above 80.

How far does the beam of the Collingwood SL220 reach?
Collingwood measures 200 lux at 5.3 metres from the 12 degree narrow beam of the mains SL220, and 200 lux at 2.4 metres from the 40 degree wide beam, which trades distance for a much broader spread of light.

How much of the Collingwood SL220 spike light sits above ground?
The Collingwood SL220 measures 440mm in total with a 62.5mm diameter head, and up to 240mm of the spike is designed to go below the surface, leaving roughly 200mm visible above ground once it is bedded in.

What cable is supplied with the Collingwood SL220 and how is it extended?
The Collingwood SL220 comes with 3 metres of H05RN-F rubberised flexible cable of 6mm outside diameter, fitted to the light as a flying lead. Longer runs are made by joining that lead to buried mains cable with a waterproof connector such as Collingwood's gel filled JB5.

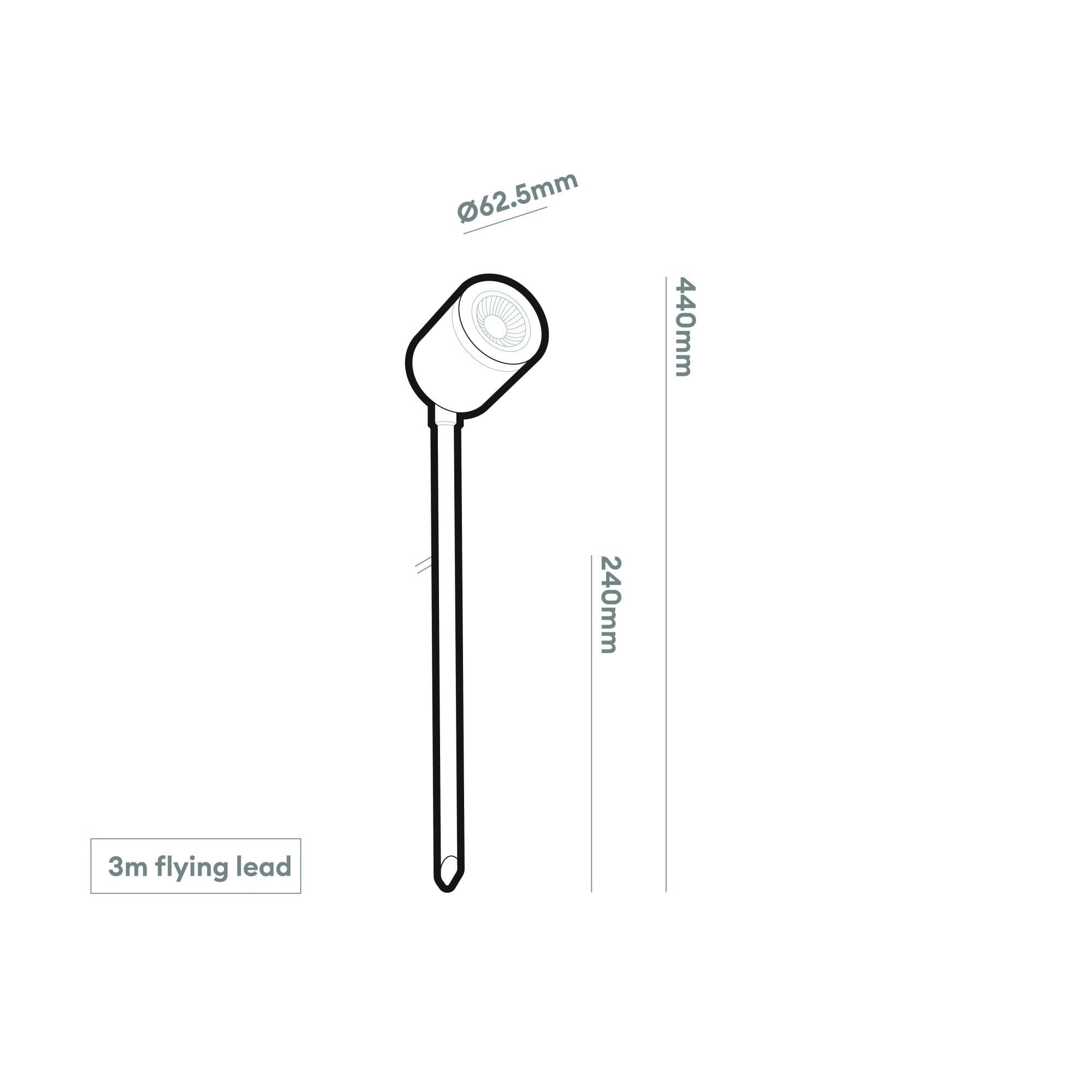

62.5mm diameter x 440mm height (refer to spec for details)
